QoS: Select this option to Activated/Deactivated the IP QoS on different types (IP ToS and
DiffServ).
Summary: Click the button to view the configurations of QoS.
Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Router will
take the corresponding action to deal with it.
•
Rule Index: Select the index for the rule you want to configure.
•
Active: Activate the rule. The rule can take effect only when it is activated.
•
Application: Select the application that the rule aimed at.
•
Physical Ports: Select the port whose traffic flow are controlled by the rule.
•
Destination MAC & IP & Mask & Port Range: Enter the IP information about the
Destination host for the rule.
TD-8816B ADSL2+ Modem Router User Guide

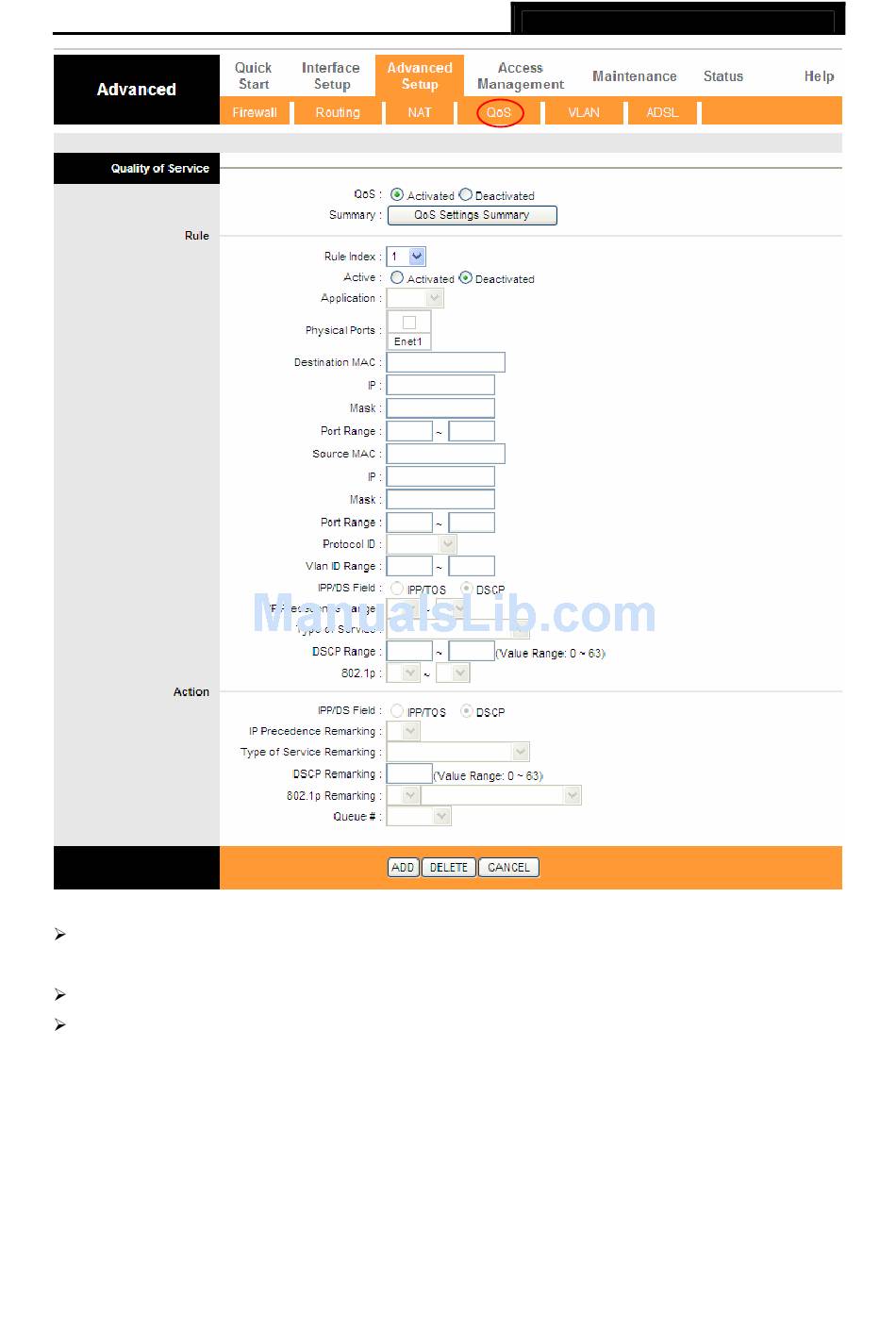

Figure 4-22
