Access Management; Acl - TP-Link TD-8816B User Manual

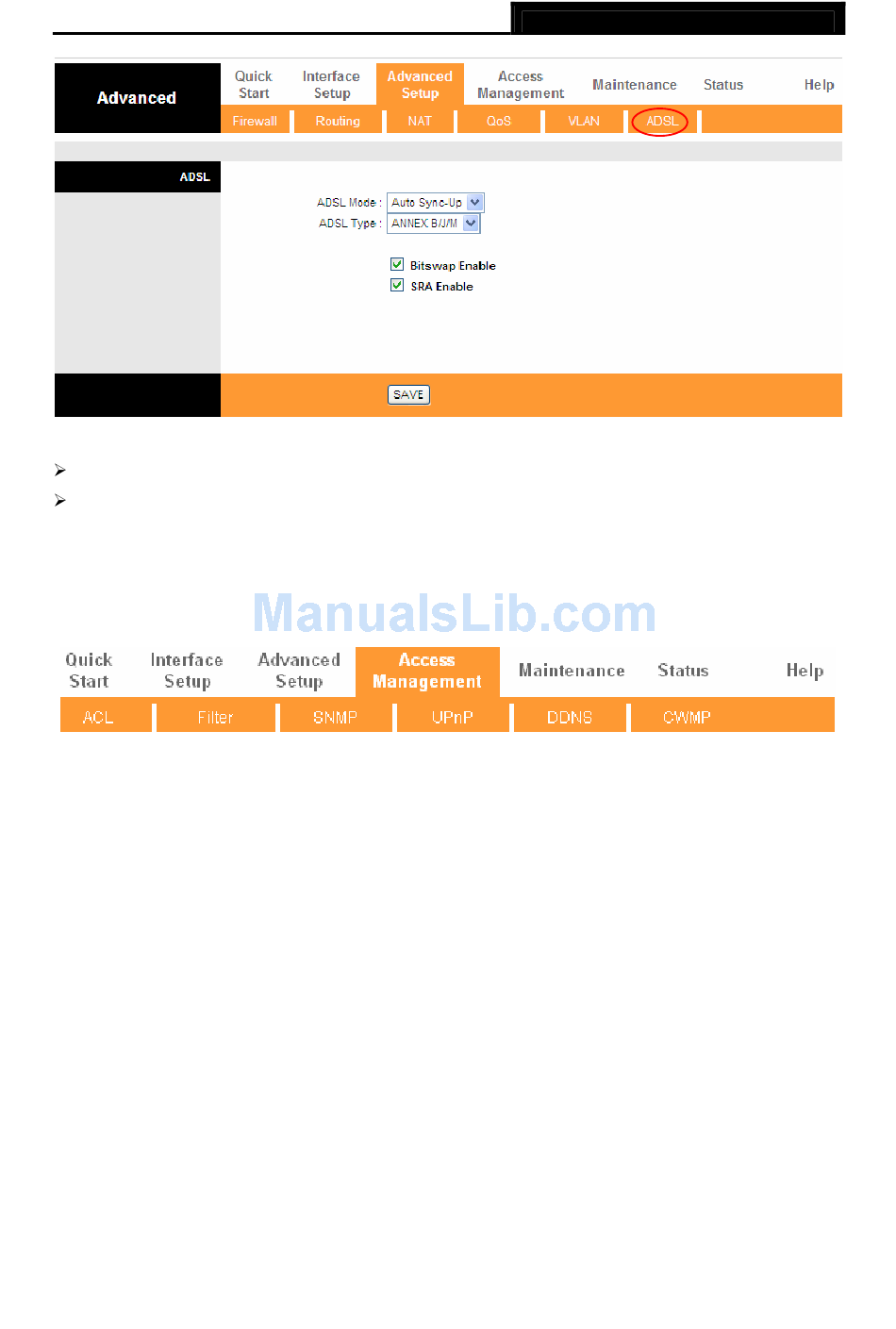

ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.
ADSL Type: Select the ADSL operation type which your ADSL connection uses.

4.5 Access Management

Choose "Access Management", you can see the next submenus:
Click any of them, and you will be able to configure the corresponding function.

4.5.1 ACL

Choose "Access Management→ACL", you can see the next screen (shown in Figure 4-28). You
can specify the client to access the ADSL Router once setting his IP as a Secure IP Address
through selected applications.
TD-8816B ADSL2+ Modem Router User Guide
Figure 4-26
Figure 4-27
35
