AOpen MK79 Installation Manual
Hide thumbs Also See for MK79:

Advertisement

Quick Links

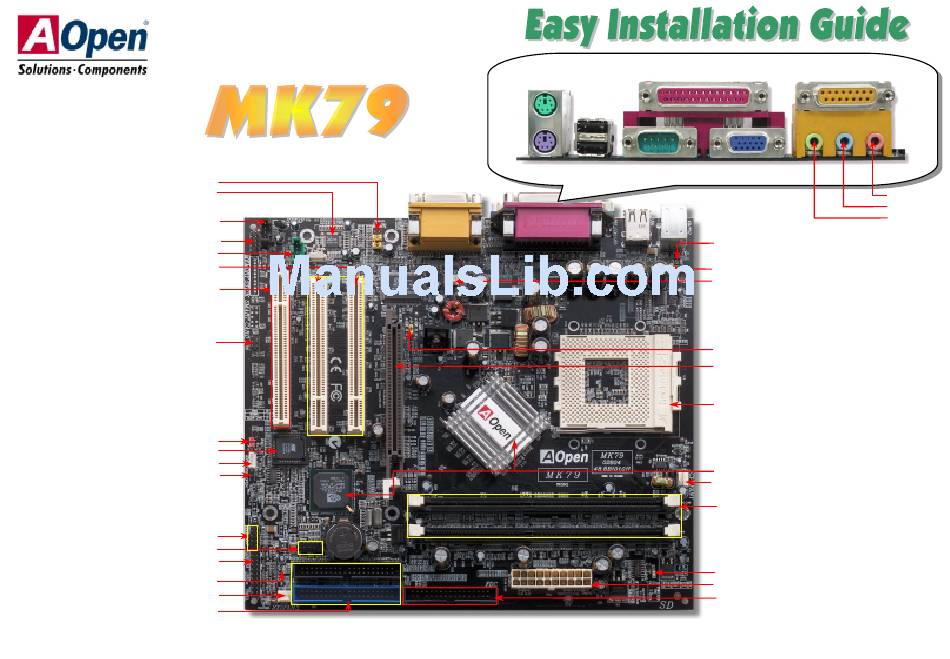

Front Audio Connector
Onboard AC97 CODEC RealTek ALC202A
CD-IN Connector
COM2 Connector
AUX-IN Connector
32-bit PCI Expansion Slot x2
ACR slot
IrDA Connector
JP14 CMOS Data Clear Jumper
2Mbit Phoenix Award Flash ROM
WOL (Wake on LAN) Connector
Chassis Intrusion Sensor Connector
nd
2
USB (1.1) Port Connector
rd
3
USB (1.1) Port Connector
Front Panel Connector
AGP LED
SYSFAN3
IDE Connector x2 (ATA33/66/100 supported)
AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
SPP/EPP/ECP Parallel Port
PS/2 Mouse
Connector
USB1.1
Ports
PS/2 Keyboard
COM 1 Port
Connector
Game Port
VGA Port
MIC-In
Line-In
Speaker Out
Resetable Fuse
JP28 Keyboard/Mouse Wakeup
SYSFAN2 Connector
JP17Host Clock Selection
AGP 4x Expansion Slot
(For 1.5V AGP and ADD card only)
462-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
TM
TM
AMD
Athlon
/ Duron
/ and Athlon
XP
nVIDIA nForce IGP and MCP-D
CPUFAN1 Connector
184-pin DIMMx2 supports
DDR266/200
(Max. to 1GB)
STBY LED
ATX Power Connector
FDD Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK79 and is the answer not in the manual?

Questions and answers

Summary of Contents for AOpen MK79

  • Page 1 Front Panel Connector STBY LED AGP LED ATX Power Connector SYSFAN3 FDD Connector IDE Connector x2 (ATA33/66/100 supported) AOpen reserves the right to revise all the specifications and information contained in this documentation, which are subject to change without notice.
  • Page 2: Jp14 Clear Cmos

    The factory default setting is set to “Enable”(1-2), and you may disable this function by setting the jumper to 2-3. Pin 1 JP28 PART NO: 49.8B101.001 DOC. NO: MK79-EG-E0210A Disable Enable (Default)
  • Page 3 3. Installing CPU & Housing Fan 5. Setting CPU Voltage & Frequency Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you Setting CPU Core Voltage can also plug it on SYSFAN2 or SYSFAN3 connector. The CPU core voltage will be automatically detected.
  • Page 4: Com2 Connector

    6. COM2 Connector 8. Connecting IDE, Floppy Cables This motherboard provides two serial ports. One of them is on back panel connector, and Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be the other is on the upper middle of board. With proper cable, you can connect it to the back careful of the pin1 orientation.
  • Page 5: Front Audio Connector

    10. Connect IrDA Connector 12. Connecting CD-IN/AUX-IN Connectors The IrDA connector can be configured to support wireless infrared module, with this The CD-IN connector is used to connect CD module and application software such as Laplink or Windows 95 Direct Cable Audio cable from CDROM or DVD drive to Connection, the user can transfer files to or from laptops, notebooks, PDA devices and onboard sound.
  • Page 6 You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select and it’s STRONGLY RECOMMENDED to close all the applications before you start the model name. upgrading. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw) Unzip download...
  • Page 7: Part Number And Serial Number

    IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. MK79 is model name of motherboard; R1.02 is BIOS version...
  • Page 8 Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to Test Report: We recommend to choose board/card/device from the our customer is our first priority. However, we receive numerous emails and compatibility test reports for assembling your PC.
