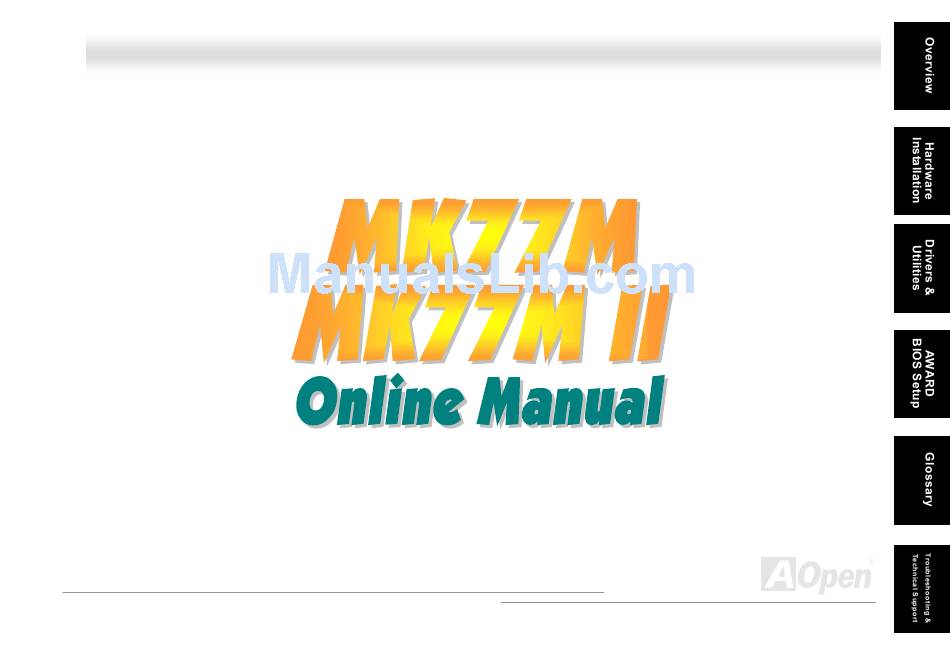

Page 1: Mk77M / Mk77M Ii
3MK77M / MK77M II DOC. NO.: MK77MII-OL-E0211A... -
Page 2: Table Of Contents
’ ’ MK77M / MK77M II ........................... 1 What’s in this manual ..............................2 You Must Notice ................................8 Before You Start ................................9 Overview ..................................10 Feature Highlight................................11 Quick Installation Procedure ............................15 Motherboard Map ................................16 Block Diagram................................17 Hardware Installation........................ - Page 3 Support 10/100 Mbps LAN onboard ..........................43 PC99 Color Coded Back Panel ............................. 44 Support 2 and 3 USB 2.0 Port (MK77M II only) ......................45 Chassis Intrusion Sensor Connector ..........................46 CD Audio Connector ..............................47 MODEM-CN Connector ..............................48 Front Audio Connector ..............................
- Page 4 AOConfig Utility................................53 Resetable Fuse ................................55 2200 F Low ESR Capacitor............................56 μ Layout (Frequency Isolation Wall) ..........................57 Driver and Utility ........................58 Auto-run Menu from Bonus CD Disc ..........................59 Installing LAN Driver ..............................60 ® ® ®...
- Page 5 ACPI (Advanced Configuration & Power Interface) ....................... 74 AGP (Accelerated Graphic Port)............................ 74 AMR (Audio/Modem Riser)............................75 AOpen Bonus Pack CD ..............................75 APM (Advanced Power Management) ........................... 75 ATA (AT Attachment) ..............................75 ATA/66 ..................................75 ATA/100 ..................................76 ATA/133 ..................................
- Page 6 EPROM (Erasable Programmable ROM)........................79 EV6 Bus ..................................79 FCC DoC (Declaration of Conformity) ........................... 79 FC-PGA (Flip Chip-Pin Grid Array) ..........................79 Flash ROM ..................................80 FSB (Front Side Bus) Clock ............................80 C Bus ..................................80 IEEE 1394 ..................................81 Parity Bit ..................................
- Page 7 SDRAM (Synchronous DRAM) ............................84 Shadow E PROM ................................84 SIMM (Single In Line Memory Module) ......................... 84 SMBus (System Management Bus) ..........................85 SPD (Serial Presence Detect) ............................85 Ultra DMA ..................................85 USB (Universal Serial Bus) ............................86 VCM (Virtual Channel Memory) .............................
-
Page 8: You Must Notice
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this manual, including the products and software described in it. -
Page 9: Before You Start
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved format, we recommend using Adobe Acrobat Reader 4.0 for online viewing, it is included in Bonus CD disc or you can get free download from... -
Page 10: Overview
1056MB/sec. With high bandwidth 200/266MB/s 8-bit V-Link Host Controller, DDR200 (PC1600) DDR266(PC2100) DDR SDRAM can be applied to the MK77M / MK77M II and the maximum memory size can be up to 2GB. The on-board IDE controller supports Ultra DMA 66/100/133 mode and the transfer rate up to 133MB/s. -
Page 11: Feature Highlight
Client V-Link controller with 200/266MB/s bandwidth between Host/Client V-Link interface, provides a V-Link-PCI and V-Link-LPC controller. Of three PCI slots provided, MK77M / MK77M II supports all three master PCI slots with arbitration and decoding for all integrated functions and LPC bus. -
Page 12: Expansion Slots
SDRAM and the data buffers at 200/266 MHz. The four banks of DDR RAM can be composed of an arbitrary mixture of 64, 128, 256, 512MB or 1GB DDR RAM and maximum up to 2GB. The MK77M / MK77M II allows DDR RAM to run at either synchronous or pseudo-synchronous mode with the host CPU bus frequency (200/266MHz). - Page 13 Includes AOpen “Watch Dog Timer” function that can auto-reset system in 4.8 seconds when you fail to system overclocking. Power Management/Plug and Play The MK77M / MK77M II supports the power management function that confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA) Energy Star program. It also offers Plug-and-Play, which helps saving users from...
- Page 14 (Suspend to RAM, S3), STD (Suspend to Disk, S4), WOL (Wake On LAN) features. Super Multi-I/O The MK77M / MK77M II provides one high-speed UART compatible serial port, one VGA port and one parallel port with EPP and ECP capabilities.
-
Page 15: Quick Installation Procedure
This page gives you a quick procedure on how to install your system. Follow each step accordingly. Installing CPU and Fan Installing System Memory (DIMM) Connecting Front Panel Cable Connecting IDE and Floppy Cable Connecting ATX Power Cable Connecting Back Panel Cable Power-on and Load BIOS Setup Default Setting CPU Frequency Reboot... -
Page 16: Motherboard Map
VIA® Apollo KM266 Chipset and JP21 FSB Select Jumper VT8233A SB (MK77M only) VIA® Apollo KM266 Chipset and JP14 CMOS Data Clear Jumper VT8235 SB (MK77M II only) WOL (Wake ON LAN) Connector CPUFAN1 Connector 184-pin DIMMx2 supports STBY LED DDR266/DDR200 (Max. -
Page 17: Block Diagram
(MK77M) Audio CODEC VGA onboard VT8235 (MK77M II) RealTek LAN connect Component RTL8100BL Modem CODEC USB Port 2MBit Flash EEPROM USB 2.0 connectors x6 USB Port (MK77M II only) Parallel Port USB Port Serial Port x1 Floppy Disk Drive x2... -
Page 18: Hardware Installation
This chapter describes jumpers, connectors and hardware devices of this motherboard. Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. Always observe the following precautions before you install a system component. Do not remove a component from its protective packaging until you are ready to install it. Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. -
Page 19: Clear Cmos Data
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedures below. Turn off the system and unplug the AC power. Remove ATX power cable from connector PWR2. Locate JP14 and short pins 2-3 for a few seconds. Return JP14 to its normal setting by shorting pin 1 &... - Page 20 ® This motherboard supports AMD Athlon and Duron Socket 462 series CPU. Be careful of CPU orientation when you plug it into CPU socket. 2. Locate Pin 1 in the socket and look for a black dot or cut edge on the 1.
-
Page 21: Cpu Installation
3. Press down the CPU socket lever and finish CPU installation. CPU cut edge Note: If you do not match the CPU socket Pin 1 and CPU cut edge well, it may damage the CPU. Note: This picture is for example only, it may not exactly be the same motherboard. -
Page 22: Jp21 Fsb/Pci Clock Ratio
This jumper is used to specify the relationship of PCI and clock. Generally speaking, if you are not overclockers, we recommend you to set it to the default setting. Additionally, this motherboard also provides “1MHz Stepping Adjustment” feature for overclockers to adjust CPU FSB frequency via BIOS setup program. Based on the CPU type, the adjustment range has two levels: 100~132 (FSB=100, such as Athlon 800), 133~166 (FSB=133, such as Athlon 1000) MHz for your choosing. -
Page 23: Cpu Jumper-Less Design
CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the BIOS setup, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less designs are eliminated. There will be no worry of wrong CPU voltage detection. Clock Generator BIOS Socket 462 CPU... - Page 24 Tip: If your system hangs or fails to boot because of overclocking, simply use <Home> key to restore the default setting or you can wait the AOpen “Watch Dog Timer” reset the system after five seconds and system will auto-detect hardware again.
- Page 25 Core Frequency = CPU Clock * CPU Ratio PCI Clock = CPU Bus Clock / Clock Ratio Clock = PCI Clock x 2 EV6 Bus Speed = CPU external bus clock x 2 CPU Core Frequency EV6 Bus Clock Ratio Athlon 1G 1GHz 200MHz...
- Page 26 ” “ ” With this motherboard, AOpen provides a very special, useful feature for overclockers. When you power-on the system, the BIOS will check last system POST status. If it succeeded, the BIOS will enable “Watch Dog Timer” function immediately, and set the CPU frequency by user’s setting that stored in the BIOS.
-
Page 27: Cpu And Housing Fan Connector
Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 or SYSFAN3 connector. CPUFAN1 Connector +12V SENSOR SENSOR +12V SYSFAN2 Connector SENSOR Note: Some CPU fans do not have +12V sensor pin, so that cannot support fan monitoring. -
Page 28: Jp28 Keyboard/Mouse Wake-Up Enable/Disable Jumper
This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could resume your system from suspend mode with keyboard or mouse installed. The factory default setting is set to “Disable”(1-2), and you may enable this function by setting the jumper to 2-3. Pin 1 JP28 KB/Mouse Wake-up... -
Page 29: Dimm Sockets
ECC and Non-ECC DDR RAM are supported, but you can’t install them both on DIMM. Otherwise, it will cause serious damage on memory sockets or SDRAM module. Warning: The MK77M / MK77M II support DDR RAM, please do not install the SDRAM sockets. - Page 30 Please follow the procedure as shown below to finish memory installation. Make sure the DIMM module’s pin face down and match the socket’s size as depicted below. Pin 1 52 pins 40 pins Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.
-
Page 31: Stby Led
This LED indicates that there is power applied to motherboard and memory. If you connect power to the motherboard, this LED will light up. It is useful to check the system power status when power on/off and stand-by mode or RAM power status during Suspend to RAM mode. -
Page 32: Front Panel Connector
Attach the power LED, speaker, power and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode. Locate the power switch cable from your ATX housing. It is 2-pin female connector from the housing front panel. -
Page 33: Atx Power Connector
The ATX power supply uses 20-pin connector shown below. Make sure you plug in the right direction. -
Page 34: Ac Power Auto Recovery
A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery function to solve this problem. -
Page 35: Ide And Floppy Connector
Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage. Pin 1 IDE2 (Secondary) Pin 1 Pin 1 IDE1 (Primary) FDD Connector ATA 66/100/133 IDE Connector... - Page 36 IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode.
-
Page 37: S/Pdif (Sony/Philips Digital Interface) Connector
S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive audio quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital output. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality. -
Page 38: Super 5.1 Channel Audio Effect
This motherboard comes with an ALC650 CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand new audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an audio application supporting 5.1 Channel. -
Page 39: Irda Connector
The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows 95 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps). Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART2 Mode, make sure to have the correct orientation when you plug in the IrDA connector. -
Page 40: Wol (Wake On Lan)
This feature is very similar as Wake On Modem, but it goes through local area network. To use Wake On LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the system. - Page 41 WOL Connector (Ethernet Card Side) WOL Connector (Motherboard Side) Note: This picture is for example only, it may not exactly be the same motherboard.
-
Page 42: Agp (Accelerated Graphic Port) Expansion Slot
The MK77M / MK77M II provides an 2x4x slot. The AGP 2x4x is a bus interface targeted for high-performance 3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4bytes x 2 = 528MB/s. AGP is now moving... -
Page 43: Support 10/100 Mbps Lan Onboard
The South Bridge VT8233A (MK77M) or VT8235 (MK77M II) includes a fast Ethernet controller on chip. On the strength of RealTek RTL8100BL LAN controller on board, which is a highly-integrated Platform LAN Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45 connector is located on top of USB connectors. The green LED indicates the link mode, it lights when linking to network and blinking when transferring data. -
Page 44: Pc99 Color Coded Back Panel
The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, serial ports COM1 and VGA, Printer, USB 2.0 (MK77M II only), AC97 sound and game port. The view angle of drawing shown here is the back panel of the housing. SPP/EPP/ECP... - Page 45 This motherboard provides six 2.0 ports to connect USB devices, such as mouse, keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You can use proper cables to connect the other USB connectors to the USB modules or front panel of chassis.
-
Page 46: Chassis Intrusion Sensor Connector
The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in the system BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or the opening of the chassis, the system will send out beep sound to inform you. -
Page 47: Cd Audio Connector
This connector is used to connect CD Audio cable from CD-ROM or DVD drive to onboard sound. GND GND CD-IN... -
Page 48: Modem-Cn Connector
This connector is used to connect Mono In/MIC Out cable from internal modem card to onboard sound circuit. The pin 1-2 is Mono In, and the pin 3-4 is MIC Out. Please note that there is no standard for this kind of connector yet, only some internal modem cards implement this connector. -
Page 49: Front Audio Connector
If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable. -
Page 50: Battery-Less And Long Life Design
This Motherboard implements Flash ROM and a special circuit that allows you to save your current CPU and CMOS Setup configurations without using the battery. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual. -
Page 51: Cpu Over-Current Protection
CPU, memory, HDD, add-on cards installed on this motherboard may be damaged because of component failure, human operating error or unknown nature reason. AOpen cannot guaranty the protection circuit will always work perfectly. -
Page 52: Hardware Monitoring
This motherboard implements a hardware monitoring system. As you turn on your system, this smart design will continue to monitor your system’s working voltage, fan status and CPU temperature. If any of these systems’ status goes wrong, there will be an alarm through the AOpen Hardware Monitoring Utility to warn the user. -
Page 53: Aoconfig Utility
Moreover, AOconfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and send them to AOpen directly for technical support or further diagnosis of system problem. The system page shows the... - Page 54 NOTE: AOconfig can be used in Windows 98SE/ME, NT4.0/2000, or even the latest Windows XP. Please be informed that AOconfig can only be operated in a system equipped with an AOpen motherboard. Meanwhile, all applications must be closed before starting AOconfig.
-
Page 55: Resetable Fuse
Traditional motherboard has fuse for Keyboard and port to prevent over-current or shortage. These fuses are soldered onboard that user cannot replace it when it is damaged (did the job to protect motherboard), and the motherboard remains malfunction. With expensive Resetable Fuse, the motherboard can resume back to normal function after fuse had done its protection job. Resetable Fuse... -
Page 56: F Low Esr Capacitor
μ μ The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation. -
Page 57: Layout (Frequency Isolation Wall)
For high frequency operation, especially overclocking, layout is the most important factor to make sure chipset and CPU working in stable condition. The layout of this motherboard implements AOpen’s unique design called “ Frequency Isolation Wall”. Separating each critical portion of motherboard into... -
Page 58: Driver And Utility
There are motherboard drivers and utilities included in AOpen Bonus CD disc. You don’t need to install all of them in order to boot your system. But after you finish the hardware installation, you have to install your operation system first (such as Windows 98) before you can install any drivers or utilities. -
Page 59: Auto-Run Menu From Bonus Cd Disc
You can use the auto-run menu of Bonus CD disc. Choose the utility and driver and select model name. -
Page 60: Installing Lan Driver
You may use the InstallShield Wizard for step by step installation. -
Page 61: Installing Windows
® ® ® ® ® ® & & ® ® ® If you are using Windows 98 Second Edition, Windows Millennium Edition or Windows 2000/XP, you do not need to install the 4-in-1 driver as the IRQ Routing Driver and the ACPI Registry are already incorporated into the operating system. Users with ®... -
Page 62: Installing Via 4 In 1 Driver
You can install the VIA 4 in 1 driver (IDE Bus master (For Windows NT use), VIA ATAPI Vendor Support Driver, VIA AGP, IRQ Routing Driver (For Windows 98 use), VIA Registry (INF) Driver) from the Bonus Pack CD disc auto-run menu. Warning: To take advantage of ATA133, it is a must to install the latest version of VIA 4in1 driver in the Bonus CD. -
Page 63: Installing Onboard Sound Driver
This motherboard comes with RealTek ALC650 AC97 CODEC and the onboard sound controller. You can find the audio driver from the Bonus Pack CD disc auto-run menu. - Page 64 You can install Intel VGA Driver to get the best graphics function of the chipset. You can find it in the AOpen Bonus Pack disc.
-
Page 65: Installing Hardware Monitoring Utility Iii
You can install Hardware Monitoring Utility III to monitor CPU temperature, fans and system voltage. The hardware monitoring function is automatically implemented by the BIOS and utility software. No hardware installation is needed. -
Page 66: Phoenix Award Bios
The BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports. Most BIOS setting of MK77M / MK77M II had been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t fine-tune the chipset controlling the entire system. Hence, the rest of this chapter is intended to guide you through the process of configuring your system using setup procedures. -
Page 67: How To Use Phoenix Award™ Bios Setup Program
Phoenix Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix Award™ BIOS setup program. By the way, all products of AOpen also provides a special function in the BIOS setup, you can press <F3>... - Page 68 Description Load Setup Defaults setting value from CMOS. Load turbo setting value from CMOS. Save changed setting and exit setup program.
-
Page 69: How To Enter Bios Setup
After you finish the setting of jumpers and connect correct cables. Power on and enter the BIOS Setup, press <Del> during POST (Power-On Self Test). Choose "Load Setup Defaults" for recommended optimal performance. Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting. -
Page 70: Bios Upgrade Under Windows Environment
98SE/ME, NT4.0/2000, or even the latest Windows XP. In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have multi-language function to provide easier way for users’ usage in changing BIOS setting. - Page 71 You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all the applications before you start the upgrading. 1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://english.aopen.com.tw/) 2. Unzip the download BIOS package (ex: WMK77M102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
-
Page 72: Overclocking
As a leading manufacturer in motherboard industry, AOpen always listens to what customers want and develop products to fit different user's requirements. Reliability, compatibility, leading technology and friendly features are our basic goals when designing motherboards. Other than above mentioned design criteria, there are power users who are always seeking to push the limitation of the system performance by overclocking who we call them "Overclocker". -
Page 73: Vga Card & Hard Disk
VGA and HDD is key components for overclocking, for your reference, the following list are what have been successful overclocked in our lab. Please note that AOpen can not guaranty they can be successful overclocked again. Please check the Available Vendor List (AVL) by link to our official website. -
Page 74: Glossary
AGP uses both rising and falling edge of the 66MHz clock, for 2X AGP, the data transfer rate is 66MHz x 4byte x 2 = 528MB/s. AGP is now moving to 4X mode, 66MHz x 4byte x 4 = 1056MB/s. AOpen is the... -
Page 75: Amr (Audio/Modem Riser)
Unlike ACPI, BIOS controls most APM power management functions. AOpen Suspend to Hard Drive is a good example of APM power management. ATA is the specification of diskette interface. In 80’s, many software and hardware manufacturers instituted the ATA specification together. -
Page 76: Ata/100
ATA/100 is a new IDE specification under developing. ATA/100 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 40ns. The data transfer rate is (1/40ns) x 2 bytes x 2 = 100MB/s. To use ATA/100, you need special 80-wire IDE cable, the same as ATA/66. -
Page 77: Cnr (Communication And Networking Riser)
The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft. -
Page 78: Dma (Direct Memory Access)
Channel for communications between the memory and surrounding devices. The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode can only detect single-bit error. -
Page 79: Eprom (Erasable Programmable Rom)
Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back. EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge to transfer data, similar as DDR SDRAM or ATA/66 IDE bus. -
Page 80: Flash Rom
Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 256KB (2M bit). AOpen AX5T is the first board to implement 256KB (2Mbit) Flash ROM. -
Page 81: Ieee 1394
IEEE 1394 is a low-cost digital interface originated by Apple Computer as a desktop LAN and developed by the IEEE 1394 working group. The IEEE 1394 can transport data at 100, 200 or 400 Mbps. One of the solutions to connect digital television devices together at 200 Mbps. -
Page 82: Pc-100 Dimm
SDRAM DIMM that supports 100MHz CPU bus clock. SDRAM DIMM that supports 133MHz CPU bus clock. Based on FSB frequency, the DDR DRAM has 200MHz, 266MHz and 333 MHz three types of working frequency. Because of DDR DRAM data bus is 64-bit, it provides data transfer bandwidth up to 200x64/8=1600MB/s, 266x64/8=2100MB/s, 333x64/8=2700MB/s and 400x64/8=3200MB/s. -
Page 83: Pdf Format
A file format for electronic document, PDF format is independent from platform, you can read PDF file under Windows, Unix, Linux, Mac … with different PDF reader. You can also read PDF file by web browser such as IE and Netscape, note that you need to install PDF plug-in first (Included in Acrobat Reader). -
Page 84: Rimm (Rambus Inline Memory Module)
SDRAM comes in 64-bit 168-pin DIMM and operates at 3.3V. AOpen is the first company to support dual-SDRAM DIMMs onboard (AP5V), from Q1 1996 A memory space in Flash-ROM to simulate E PROM operation, AOpen motherboard uses Shadow E... -
Page 85: Smbus (System Management Bus)
SMBus is also called I2C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one host to communicate with CPU and many masters and slaves to send/receive message. SPD is a small ROM or EEPROM device resided on the... -
Page 86: Usb (Universal Serial Bus)
USB is a 4-pin serial peripheral bus that is capable of cascading low/medium speed peripherals (less than 10Mbit/s, but the newly designed USB2.0 has s fancy speed of up to 480Mbps) such as keyboard, mouse, joystick, scanner, printer and modem. With USB, the traditional complex cables from back panel of your PC can be eliminated. -
Page 87: Troubleshooting
If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem. Start Turn off the power and unplug the AC power cable, then remove all of the add-on cards and cables, including VGA, IDE, FDD, COM1, COM2 and printer. - Page 88 Continue Install the VGA card. Then connect your monitor and keyboard. Turn on the power and check if the power supply and CPU fan work properly. The problem is probably caused by power supply or motherboard failure. Next Please contact your reseller or local distributor for repairing.
- Page 89 Continue Perhaps your VGA card Check if there is display? or monitor is defective. Press <Ctrl> and <Alt> key at the same time, hold them and then press <Del> to reboot the system. It is very possible that your Check if the system keyboard is defective.
- Page 90 Continue During system rebooting, press <Del> to enter BIOS setup. Choose “Load Setup Default”. Turn off the system and re-connect IDE cable. The problem should be Check if the system can caused reboot successfully? cable or HDD itself. Re-install the operating system such as Windows 98.
-
Page 91: Technical Support
Dear Customer, Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend you follow the procedures below and seek help before contact us. - Page 92 News Group: News posted by computer experts, you are welcome to join any discussion and learning from it. http://english.aopen.com.tw/tech/newsgrp/default.htm Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your system configuration very well and should be able to solve your problem more efficiently than us. After all, their attitude of service is an important reference for you if next time you want to buy something else from them.
- Page 93 Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example: MK77M R1.02 Nov.01.2002 AOpen Inc. Award Plug and Play BIOS Extension v1.0A Copyright © 1998, Award Software, Inc. MK77M is model name of motherboard, R1.02 is BIOS version.
-
Page 94: Product Registration
Be able to join the discussions of web-based news groups. AOpen makes sure that the information you provide is encrypted, so that it cannot be read or intercepted by other people or companies. Further, AOpen will not disclose any of information you submitted under any conditions. Please consult our... -
Page 95: How To Contact Us
Please do not hesitate contact us if you have any problem about our products. Any opinion will be appreciated. Pacific Rim Europe America AOpen America Inc. AOpen Inc. AOpen Computer b.v. Tel: 886-2-3789-5888 Tel: 31-73-645-9516 Tel: 1-510-489-8928 Fax: 886-2-3789-5899 Fax: 31-73-645-9604...
