Manual

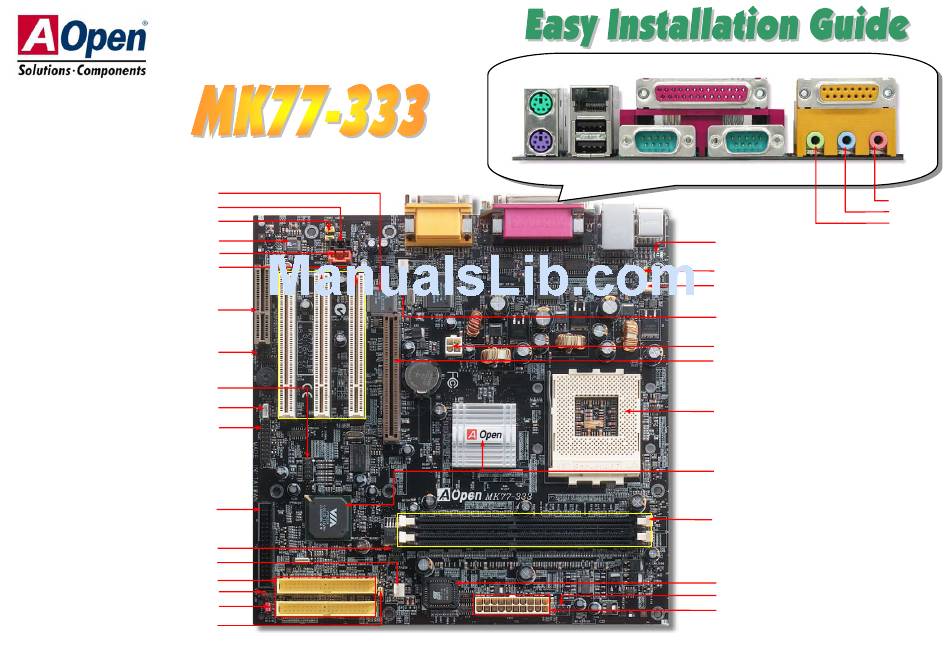

RealTek RTL8100BL
CD-IN Connector
Front Audio Connector
Onboard AC97 CODEC RealTek ALC201A
MODEM-CN Connector
32-bit PCI Expansion Slot x3
CNR Expansion Slot
S/PDIF Connector
nd
2
USB V.1.1 Port Connector
WOL (Wake ON LAN) Connector
Front Panel Connector
FDD Connector
Chassis Intrusion Sensor Connector
FAN2 Connector with H/W Monitoring
IDE Connector x2 (ATA/66/100/133 supported)
System & RAM Power Indicate LED
JP14 CMOS Data Clear Jumper
JP21 FSB Select Jumper
SPP/EPP/ECP
PS/2 Mouse
RJ45 10/100
Parallel Port
Connector
LAN Jack
PS/2 Keyboard
USB Port
COM 1 Port
Connector
(V1.1)
Game Port
COM 2 Port
Resettable Fuse
JP28 Wakeup on Keyboard/Mouse
CPU Fan Connector with H/W Monitoring
FAN3 Connector
4-pin 12V. ATX Power Connector
AGP 4x Expansion Slot
462-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
TM
AMD
Athlon
/ Duron
/ and
TM
Athlon
XP
®
VIA
Apollo KT333 Chipset and VT8233A SB
(ATA100/133 supported)
184-pin DIMMx2 supports
DR333/DDR266/DDR200
(Max. to 2GB)
2Mbit Flash ROM
IrDA Connector
ATX Power Connector
MIC-In
Line-In
Speaker Out
Advertisement
Table of Contents
Related Manuals for AOpen MK77-333
Summary of Contents for AOpen MK77-333
- Page 1 SPP/EPP/ECP PS/2 Mouse RJ45 10/100 Parallel Port Game Port Connector LAN Jack PS/2 Keyboard USB Port COM 1 Port COM 2 Port Connector (V1.1) RealTek RTL8100BL MIC-In CD-IN Connector Line-In Front Audio Connector Speaker Out Onboard AC97 CODEC RealTek ALC201A Resettable Fuse MODEM-CN Connector 32-bit PCI Expansion Slot x3...
-
Page 2: Jp14 Clear Cmos
1. JP14 Clear CMOS You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from connector PWR2. Everything you need to boot this 3. -
Page 3: Connecting Atx Power Connector
<Home> key to restore the default +12V Note: Some CPU fans do not have setting or you can wait the AOpen “Watch Dog Timer” reset Sensor sensor pin, so that cannot support the system in five seconds and system will auto-detect fan monitoring. -
Page 4: Jp21 Fsb/Pci Clock Ratio
6. JP21 FSB/PCI Clock Ratio 8. Connecting IDE, Floppy Cables This jumper is used to specify the relationship of PCI and FSB clock. Generally speaking, if Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC connector. Be you are not overclockers, we recommend you to set at the default setting. -
Page 5: Front Audio Connector
The IrDA connector can be configured to support wireless infrared module, with this With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard module and application software such as Laplink or Windows 95 Direct Cable ---- EZWinFlash. -
Page 6: Bios Upgrade
14. AOpen Bonus Pack CD 16. BIOS Upgrade AOpen Easy Flash is a much more user-friendly than traditional flash method. The BIOS You can use the autorun menu of Bonus CD disc. Choose the utility and driver and select binary file and flash routine are combined together and you simply run a single file to model name. -
Page 7: Part Number And Serial Number
IDE cable. The problem should be caused by the Check if the system can IDE cables or HDD itself. reboot successfully. Re-install Windows 95, Windows 98 or Windows NT. MK77-333 is model name of motherboard; R1.00 is BIOS version... - Page 8 Dear Customer, Test Report: We recommend to choose board/card/device from the Thanks for choosing AOpen products. To provide the best and fastest service to compatibility test reports for assembling your PC. our customer is our first priority. However, we receive numerous emails and http://www.aopen.com/tech/report/default.htm...
