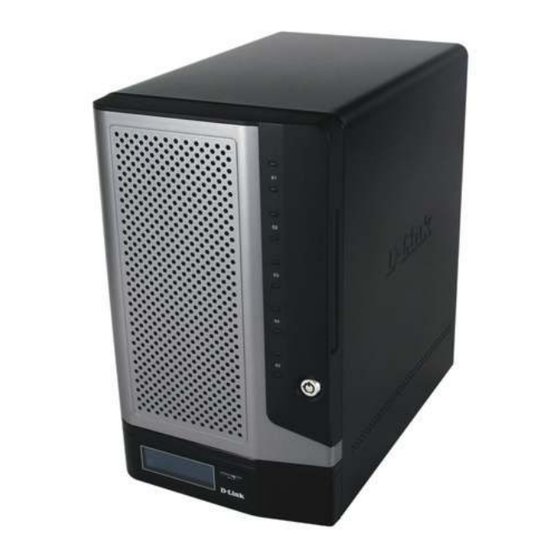

D-Link DNS-1200-5 User Manual

Sharecenter pro.
Hide thumbs

Advertisement

Advertisement

   Related Manuals for D-Link DNS-1200-5

   Summary of Contents for D-Link DNS-1200-5

  • Page 2: Table Of Contents

    Network.Discovery.Services......112 My.Favorites............38 Applications............113 Status..............39 Web.File.Manager.......... 114 System.Status........... 40 Download.Manager......... 115 Hard.Drive.Status..........41 Backup..............118 Disk.Management........... 42 Volume.Snapshot........... 119 Volume.............. 43 D-Link ShareCenter Pro 1200 User Manual...

  • Page 3: Table Of Contents

    Local.Backup..........123 Remote.Backup..........126 External.Backup..........133 Extension.Pack............. 134 Extension.Pack..........135 Knowledge Base ............136 What.is.RAID?..........136 Mapping.a.Drive........... 139 USB.Print.Server..........142 iSCSI.Drive.Mapping..........150 Hot-swap Function ..........159 Storing non-English Character Files ..... 160 D-Link ShareCenter Pro 1200 User Manual...

  • Page 4

    Section 1 - Product Overview Introduction The.D-Link.ShareCenter.Pro.1200.(DNS-1200-05).Uniied.network.storage.addresses.the.ever-growing.data.storage. requirements.for.SMB.users..The.need.for.data.consolidation.and.data.sharing.make.this.enclosure.an.ideal.solution.. Small.and.medium.businesses.looking.for.a.central.storage.location.for.sharing.or.backing.up.data..SMBs.will.appreciate. the.ease.of.use.of.the.NAS.ile.server.feature.as.well.as.the.fast.access.performance.of.iSCSI..The.ShareCenter. Pro.1200.is.a.hybrid.NAS/iSCSI.storage.enclosure,.which.offers.concurrent.NAS/iSCSI.functionality..In.addition,.the. ShareCenter.Pro.1200.has.a.rich.set.of.SMB.features.for.the.small.and.medium.business-minded.user. The.included.CD.contains.D-Link’s.Easy.Search.Utility..This.utility.allows.you.to.locate.the.ShareCenter.on.the.network. and.map.drives.to.your.computer..Backup.software.is.also.included.on.the.CD..This.software.allows.you.to.backup. your.iles.from.a.computer.to.the.ShareCenter.manually,.by.a.schedule,.or.in.real-time..Real-time.backups.are.a.great. way.to.safeguard.against.unfortunate.accidents.that.may.result.in.the.loss.of.important.iles.. Combining.ease.of.use.with.rich.set.of.SMB.features,.the.ShareCenter.Pro.1200.is.a.great.solution.for.any.small. and.medium.business.environment..Centralize.and.manage.your.data.the.way.you.want,.and.keep.it.safe.with.the. ShareCenter.Pro.1200.Uniied.network.storage!. D-Link ShareCenter Pro 1200 User Manual...

  • Page 5: Package.contents

    Cat5 Ethernet Cable Front Panel Lock Key Note: U sing a power supply with a different voltage than the one included with the ShareCenter will cause damage and void the warranty for this product. Note: T he ShareCenter Pro 1200 should only be maintained by the authorized server manager or IT administrator. The ShareCenter Pro 1200 should be locked using the Front Panel Key. Only certiied staff who have the Key are allowed to unlock it. If any of the above items are missing, please contact your reseller. System Requirements For best results, the following minimum requirements are recommended on any system used to conigure and use the ShareCenter: Computer with: 1Ghz processor / 512 MB RAM / 200 MB available space / CD-ROM drive Internet Explorer version 6.0 or Mozilla Firefox 1.0 and above Windows XP (with Service Pack 2) or Vista ® ™ 3.5” SATA Hard Drive(s) D-Link ShareCenter Pro 1200 User Manual...

  • Page 6

    Web File Manager Security: Create users, groups, and iSCSI Print server targets with password authentication. Scheduled downloads from web or FTP sites. Account management: Manage users/groups Power management to conserve energy and and Read/Write permission extend hard drive life. Schedule power on/off iSNS Virtual Disks Hard disk hibernation Thin-provisioning SMART for hard disk health scan DDNS D-Link Green Ethernet Volume Snapshot Up to 64 iSCSI Targets SNMP (D-View 6.0 compatible) D-Link ShareCenter Pro 1200 User Manual...

  • Page 7: Front.panel

    Section 1 - Product Overview Hardware Overview Front Panel Drive Trays Front Panel Lock Power Button OLED Screen Next Button COMPONENT DESCRIPTION Turn key to up position to unlock. Turn key to left position to lock. Front.Panel.Lock This screen displays detailed information about the following: OLED.Screen System Information, HD Volume Information and Error Messages Use this button to display the System Information, HD Volume Information, and Error Messages Next.Button on the OLED. Press the button once to alternate between the different Status screens. Use the screws to fasten the SATA hard drives with the trays and insert to the ShareCenter. Drive.Trays Use this button to switch the device on or off. Power.Button To switch on the device press the button once. To switch off the device hold the button down for 5 seconds. D-Link ShareCenter Pro 1200 User Manual...

  • Page 8

    Section 1 - Product Overview Rear Panel (Connections) Cooling Fan USB Connectors Gigabit Ethernet Ports Reset Button Power Receptacle COMPONENT DESCRIPTION Gigabit.Ethernet.Port Use.the.Gigabit.Ethernet.Port.to.connect.the.ShareCenter.to.the.local.network.. Power.Receptacle Connect.the.supplied.power.cord.to.the.receptacle. USB.Connector Two.USB.2.0.(Type.A).connectors..The.USB.Host.ports.are.for.Print.Servers,.USB.memory. disks.or.USB.UPS.monitoring. Reset.Button Press.this.button.for.more.than.5.seconds.to.reset.the.unit.to.factory.defaults. Cooling.Fan The.cooling.fan.is.used.to.cool.the.hard.drives.and.feature.speed.control..When.the.unit.is.irst. powered.on.the.fans.rotate.at.a.low.speed.and.rotate.at.a.high.speed.when.the.temperature. rises.above.36.°C. D-Link ShareCenter Pro 1200 User Manual...

  • Page 9

    Section 1 - Product Overview Using the OLED The ShareCenter features an OLED that enables the administrator to easily view information about the ShareCenter. The OLED display screen displays the system information, hard drive volume information and error messages. The OLED has three different screens: SystemyInformation- This screen shows the following information: The hostname of the ShareCenter The IP address of the ShareCenter The hard drive slots information HardyDriveyVolumeyinformation- This screen shows the following information: The percentage of space used on the hard drives. ErroryMessages- This screen shows error messages when there is any system failure. Press the ybutton once to alternate between the different Status screens. LEDyIndicatoryLights On each hard drive tray there are 2 LED indicator lights. The meaning of the LED colors are shown below: HardyDriveyTrayyLEDyLights Color Status Description Top LED Static Disk is powered on and operational Blinking Disk is being accessed Bottom LED Static Disk has failed or is ofline D-Link ShareCenter Pro 1200 User Manual...

  • Page 10: Easy.search.utility

    Section 2 - Installation Installation Hardware Setup Follow the instructions below to install a hard drive, connect to the network and power on the ShareCenter. Open the shipping carton for the ShareCenter and carefully remove and unwrap its contents. Follow the instructions below to setup the ShareCenter. If this is the irst time using the ShareCenter or if a new hard disk is installed, use the Easy Search utility located on the Installation CD and follow the instructions for setting up, coniguring and formatting the new drive. To install ShareCenter on your local network, refer to the steps below: 1.. Put.a.3.5”.SATA.hard.drive.into.a.drive.tray.and.use. screws.to.fasten.the.hard.drive.with.the.tray..There. are.four.holes.for.fastening.the.screws..Two.holes. are.circled. in.red.in.the.image,.and.the.other.two. holes.are.on.the.other.side.of.the.drive.tray. 2.. Open.the.faceplate.to.access.the.drive.bays. D-Link ShareCenter Pro 1200 User Manual...

  • Page 11

    Section 2 - Installation 3.. Insert.the.tray.into.a.bay. 4.. Depress.the.blue.button.to.lock.it.into.place. D-Link ShareCenter Pro 1200 User Manual...

  • Page 12

    Section 2 - Installation 5.. Connect.an Ethernet cable to the available Ethernet port. This cable should connect the ShareCenter to your local network via a router or switch, or directly to a computer for coniguration. D-Link ShareCenter Pro 1200 User Manual...

  • Page 13

    Section 2 - Installation 6. Connect the supplied power adapter to the power receptacle. D-Link ShareCenter Pro 1200 User Manual...

  • Page 14: Easy Search Utility

    Click Coniguration to access the Web based coniguration of the ShareCenter. Conigure the LAN Settings for the ShareCenter here. Click Apply to save changes to the LAN Settings. Displays the available iSCSI targets on ShareCenter. Mapping Click Connectyto connect to the iSCSI target. Click Management to edit the information. Volumes available for mapping are displayed here. Choose an available drive letter. Click Connect vailable Drive to map the selected volume. Click Disconnect Letters to disconnect the selected mapped volume. Click About to view the software version of the Easy Search Utility. Click Exit to close the utility. D-Link ShareCenter Pro 1200 User Manual...

  • Page 15: Getting Started

    Section 3 - Coniguration Getting Started To.run.the.Easy.Search.Utility,.insert.the.ShareCenter.CD.into.your.CD-ROM.drive: Click Easy Search Utility. D-Link ShareCenter Pro 1200 User Manual...

  • Page 16

    Select.the.listed.ShareCenter.and.click.the.Coniguration. button.. This. will. launch. the. computer’s. default. web. browser. and. direct. it. to. the. IP. address. listed. for. the. device..Make.sure.the.browser.is.not.conigured.to.use. a.proxy.server. Note:.The.computer.used.to.access.the.ShareCenter web-based.coniguration.manager.must.be.on.the.same. subnet. as.the.ShareCenter.. If.your. network. is. using. a. DHCP.server.and.the.computer.receives.IP.settings.from. DHCP.server,.the.ShareCenter.will.automatically.be.in. the.same.subnet. D-Link ShareCenter Pro 1200 User Manual...

  • Page 17

    ShareCenter . If your network is using a DHCP server and the computer receives IP settings from DHCP, the ShareCenter will automatically be in the same subnet. D-Link ShareCenter Pro 1200 User Manual...

  • Page 18: Create.user

    Volume, iSCSI Target, Virtual Volume, and perform Disk Diagnostic. Accounty Management- Allows the ShareCenter administrator to conigure Admin Password, Users, Groups and Share Folders SystemyManagement-yContains Network, Time and Date, System Settings, Power Management, Email Alerts, Firmware Upgrade and Logs. NetworkyServices-yContains File Sharing, Dynamic DNS, SNMP and Network Discovery Services. Applications- Contains Web File Manager and Download Management. Backup-yContains Volume Snapshot, Local Backup, Remote Backup and External Bakup. ExtensionyPack- Allows the ShareCenter administrator to add more applications to the device. These pages and their coniguration options will be discussed in detail in the following pages of this manual. Note: After logging in to the ShareCenter for the irst time it is recommended to add a password to the admin account. D-Link ShareCenter Pro 1200 User Manual...

  • Page 19

    Section 3 - Coniguration When prompted to create a volume: Select the coniguration type of the volume, Standard, JBOD, RAIDy0, RAID1, RAID5 or RAIDy6. Tick the corresponding check box to select the hard disk(s) in the array and spare. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 20

    Section 3 - Coniguration Select to enable or disable the auto-rebuild function of RAID 1, RAID 5, or RAID 6. Click the Enable radio button to encrypt the volumes. Enter a password in the Password and ConirmyPassword ields. Tick the AutoyUnlockycheck box to automatically unlock the volume when the system starts. Tick the USBy Key check box to save the password to a USB drive. Click Apply to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 21

    Section 3 - Coniguration A warning message appears before starting to create the volume. Click Yes to continue. The volume is being created. The status bar displays the percentage of completion in real time. D-Link ShareCenter Pro 1200 User Manual...

  • Page 22

    Section 3 - Coniguration Once the volume is created, the Volume page opens to show the information. D-Link ShareCenter Pro 1200 User Manual...

  • Page 23

    Section 3 - Coniguration Homepage This page contains the System Wizard, Create User, Create Share Folder and My Favorite. Click the (Homepage) icon to see the subcategories. This window provides quick access to the Setup Wizard and the My Favorites section. Users can add the most frequently used functions to My Favorites and quickly access these functions by clicking the icon or selecting from the (My Favorites) drop-down list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 24

    Section 3 - Coniguration System Wizard The ShareCenter has a System Wizard that allows you to quickly conigure some of the basic device settings. Click the SystemyWizard icon to start the Setup Wizard. When running the ShareCenter System Wizard, the welcome screen details the ive steps of the wizard. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 25

    Section 3 - Coniguration This window can conigure the LAN 1 settings. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 26

    Section 3 - Coniguration This window can conigure the LAN 2 settings. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 27

    Section 3 - Coniguration Enter the host name of the ShareCenter. Enter the primary and secondary DNS server address in the ields. Use the drop-down menu to select the LAN interface. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 28

    Section 3 - Coniguration This window can enable or disable various the ile sharing method. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 29

    Section 3 - Coniguration Select the coniguration type of the volume, Standard, JBOD, RAIDy0, RAID1, RAID5 or RAIDy6. Tick the corresponding check box to select the hard disk(s) in the array and spare. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 30

    Section 3 - Coniguration Select to enable or disable the auto-rebuild function of RAID 1, RAID 5, or RAID 6. Click the Enable radio button to encrypt the volumes. Enter a password in the Password and ConirmyPassword ields. Tick the AutoyUnlockycheck box to automatically unlock the volume when the system starts. Tick the USBy Key check box to save the password to a USB drive. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 31

    Section 3 - Coniguration This window displays the information you conigured in System Wizard. Click Apply to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 32

    Section 3 - Coniguration A warning message appears before starting to create the volume. The volume is being created. The status bar displays the percentage of completion in real time. D-Link ShareCenter Pro 1200 User Manual...

  • Page 33

    Section 3 - Coniguration The ShareCenter is saving the settings. After saving the settings, the Homepage window will appear. D-Link ShareCenter Pro 1200 User Manual...

  • Page 34: Create User

    Section 3 - Coniguration Create User The Create User wizard icon directly links to the Create User function. Click the Create User icon in the Homepage window and the Create User window appears. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 35

    Section 3 - Coniguration Enter a name in UseryName, and a password in Password and ConirmyPassword. If setting a speciic storage quota for the user, tick the Sety Quota check box and enter the storage quota in megabyte (MB). Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 36

    Section 3 - Coniguration Select a group from the list. If there is no entry in the list, you can go to Account Management >> User to update the information after a group has been created. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 37

    Section 3 - Coniguration Select a share folder from the list. If there is no entry in the list, you can go to Accounty Management > User to update the information after a share folder is created. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 38

    Section 3 - Coniguration This window displays the information that has been conigured. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 39

    Section 3 - Coniguration Create Share Folder The Create Share Folder wizard icon directly links to the Create Share Folder function. Click the Create Share Folder icon in the Homepage window and the Create Share Folder window appears. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 40

    Section 3 - Coniguration Click the SelectyPath ield to choose the path of a folder. Click the radio buttons to conigure the folder options. If setting a speciic storage quota for the share folder, tick the SetyQuota check box and enter the storage quota in megabyte (MB). Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 41

    Section 3 - Coniguration My Favorites Click the (Homepage) icon to see the My Favorites ield at the lower half of the window. To add a category in My Favorites, click an arrow key next to a folder icon to display all categories within the folder in the left window, and drag the category to the My Favorites ield. To delete a category in My Favorites, drag the category in My Favorites ield to the left window. Once the category is added to My Favorites, click the icon to see the category in the list. Click to directly link to the window of the category. D-Link ShareCenter Pro 1200 User Manual...

  • Page 42: System.status

    Section 3 - Coniguration Status This folder contains the System Status and Hard Drive Status. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 43: System Status

    Section 3 - Coniguration System Status Click the System Status icon in the Status window or the System Status link in the left window to view System Status. Displays the model name, current irmware version and current temperature of the ShareCenter. Information Displays the local network settings of the ShareCenter Displays the host name, and DNS information of the ShareCenter Settings Displays the current date and time settings of the ShareCenter. Time Displays information for a connected USB printer, memory disk or UPS. Click the Unmount button Information to remove the device from the ShareCenter. D-Link ShareCenter Pro 1200 User Manual...

  • Page 44: Hard Drive Status

    Section 3 - Coniguration Hard Drive Status This window displays the Vendor, Model name, Temperature, and Size of the Hard Disks installed in the ShareCenter, along with the slot they are installed in. You can view the S.M.A.R.T. information for each hard disk installed in the ShareCenter (if the hard disk supports the S.M.A.R.T. feature). To see the S.M.A.R.T. information of a hard disk, select a hard disk and click the Details button. Status The S.M.A.R.T. test results for the selected hard drive is displayed. Click the Close button to go Information back to the Hard Drive Status window. D-Link ShareCenter Pro 1200 User Manual...

  • Page 45: Volume

    Section 3 - Coniguration Disk Management This folder contains the Volume, iSCSI Target, Virtual Volume and Disk Diagnostic. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 46

    Standalone, JBOD, RAID 0, RAID 1, RAID 5 and RAID 6. Click this button to create a new volume. Click this button to delete a volume. Click to enlarge a volume by replacing one of the existing hard drives with a larger capacity hard drive, or set a spare for a volume Click to change the RAID level of a volume. Click to enlarge a volume by replacing one of the existing hard drive with a larger capacity hard drive. Click to unlock an encrypted volume Click to conigure the encryption yption settings of the volume. Click to enable or disable the auto-rebuild function. D-Link ShareCenter Pro 1200 User Manual...

  • Page 47

    The data is stored in a striped fashion and geared towards maximum available space and performance. CAUTION: RAID 0 does not provide data redundancy. RAID 1 requires a minimum of two hard drives and mirrors the hard drives for data redundancy. RAID 5 requires a minimum of three hard drives and provides data striping with distributed parity. RAID 6 requires a minimum of four hard drives, and stripes data and double-parity information across all of the member drives. Tick the check box to select the corresponding hard drive to be part of the volume. Tick the check box to select the corresponding hard drive as a spare for the volume. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 48

    Click the radio buttons to enable or disable yption encryption settings. When encryption is enabled, enter a password in the ield. A minimum of 5 digits is required. Retype the password in the ield. Password Tick the check box to automatically unlock the volume when the system starts. Tick the check box to save the password to a USB drive. Click Apply to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 49

    Section 3 - Coniguration A warning message appears before starting to create the volume. Click Yes to continue. The volume is being created. The status bar displays the percentage of completion in real time. Once the volume is created successfully, the Volume window appears. D-Link ShareCenter Pro 1200 User Manual...

  • Page 50

    Section 3 - Coniguration Extend/Spare a Volume Click a volume and the Extend/Spare button to see the following window. Tick the check box to extend the volume. Tick the check box to select the disk to be a spare disk. Displays the conigured disk number. Displays the size of the hard disk. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 51

    Section 3 - Coniguration Migrate a Volume Click a volume and the Migrate button to see the following window. The windows allows you to change the RAID level of the volume. Choose a RAID level and select the hard disks to be used in the migration. Click OK to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 52

    Section 3 - Coniguration Expand a Volume Click the Expand button to see the following window. Click Yes to continue. Follow the instruction in the State column to expand the volume. D-Link ShareCenter Pro 1200 User Manual...

  • Page 53

    Section 3 - Coniguration Change the Encryption Settings Click the Encryption button to see the following window. The Encryption window appears and there are four tabs in the window. This window displays the settings in the Change tab. Tick the check box and enter the new password in NewyPassword Password and ConirmyPassword ields. Tick the check box to automatically unlock the volume when the system starts. Tick the check box to save the password to a USB drive. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 54

    Section 3 - Coniguration This window displays the setting in the Save tab. Click Save to save the password to local. This window displays the settings in the Load tab. Click the Browse button to locate the path of the password that is saved to the local computer. password from local Click the Load button to get the password from local. D-Link ShareCenter Pro 1200 User Manual...

  • Page 55

    Section 3 - Coniguration This window displays the setting in the Mail tab. Click Mail to send the password to administrator. D-Link ShareCenter Pro 1200 User Manual...

  • Page 56: Iscsi Target

    Section 3 - Coniguration iSCSI Target Click the iSCSIyTarget icon in the Disk Management window or the iSCSI Target link in the left window to conigure the iSCSI target. iSCSI Manager Click the iSCSIyManager tab to see the following window. Tick the check box to enable the iSCSI function. Target Tick the check box to enable the Internet Storage Name Service function. Enter the iSNS server IP address in the ield. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 57

    Section 3 - Coniguration iSCSI Targets Click the iSCSIyTargets tab to see the follwing window. An iSCSI target shares its storage capacity with the iSCSI initiator. Click the button to add a new target. Select a target and click the button to change the settings. Select a target and click the button to remove the target from the list. Click the Create button to see this window. Click the Yes radio button to reserve a certain amount of capacity on the target in advance. Click No that enables thin provisioning to provide just enough storage space for immediate use. Enter a name in the text box to identify the new iSCSI Target. Use the drop-down list to select the volume for olume the target. Specify the size of the iSCSI target in gigabytes. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 58

    Section 3 - Coniguration The CHAP Settings window appears. If the iSCSI initiator supports Challenge Handshake Authentication Protocol, click the Yes radio button. Click the No radio button to disable. If enabling CHAP, enter the CHAP username in the ield. If enabling CHAP, enter the CHAP password in the ield. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 59: Virtual Volume

    Section 3 - Coniguration Virtual Volume Click the VirtualyVolume icon in the Disk Management window or the Virtual Volume link in the left window to conigure the virtual volume. The Virtual Volume allows the ShareCenter to expand its iSCSI capacity. By utilizing the built-in iSCSI initiator, the ShareCenter will be able to connect to other iSCSI targets on the network and convert them into virtual volumes. These virtual volumes are seen as multiple single volumes on the ShareCenter. Up to 8 virtual volumes can be stacked. The ShareCenter Pro acts as the storage stack master server. Virtual Volumes can be used to store and backup data, just like a local volume. Click the button to add a virtual volume. Select a target and click the button to change the settings. Select a target and click the button to remove the virtual volume from the list. When using the virtual volume for the irst time, the volume must be formatted before mounting to the ShareCenter. Click Connect to link to a virtual volume. Click Disconnect to terminate the connection. Disconnect D-Link ShareCenter Pro 1200 User Manual...

  • Page 60

    Section 3 - Coniguration Create a Virtual Volume Click the Create button to see this window. Enter the IP address of the device. Enter the port for the device. Click the button to search for the iSCSI targets on the network. Displays the available iSCSI targets. argets Enter a name for the share folder to access. Click the Yes radio button to enable the authentication function. Enter the user name for authentication. Enter the password for authentication Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 61: Disk Diagnostic

    Section 3 - Coniguration Disk Diagnostic Click the DiskyDiagnostic icon in the Disk Management window or the Disk Diagnostic link in the left window to conigure the Disk Diagnostic. This window is used to run a SMART (Self-Monitoring Analysis, and Reporting Technology) or Scan test. The hard drive is grayed out if it does not support SMART. Click to run a quick SMART test. The test checks the electrical mechanical, and read performance of the hard drive. Click to run an extended SMART test. This takes longer time, but checks more thoroughly and complete than the quick test. Click to conigure a scheduled test for the selected hard drive. Click to stop a test Click to scan if there are any errors or if there is any corruption on the ile system. Click to format a volume. All data on the volume will be deleted. D-Link ShareCenter Pro 1200 User Manual...

  • Page 62

    Section 3 - Coniguration Schedule Disk Diagnostic Click the Schedule button to see this window. Use the drop-down menu to select the frequency of the self-test schedule. Click the radio buttons to select the type of the test. Use the drop-down menu to select hour and minute of the day. Use the drop-down menu to select which day eekday of the week. Use the drop-down menu to select a date. Click OK to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 63

    Section 3 - Coniguration Scan a Volume Click the Scan button to see this window. Select a volume and click Scan to start to check the ile system. D-Link ShareCenter Pro 1200 User Manual...

  • Page 64

    Section 3 - Coniguration Format a Volume Click the Format button to see this window. Select a volume and click Format to format the volume. A warning message appears to double conirm if the formatting will proceed. Click Yes to proceed. D-Link ShareCenter Pro 1200 User Manual...

  • Page 65: Account Management

    Section 3 - Coniguration Account Management This folder contains the Admin Password, Users, Groups and Share Folders. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 66: Admin Password

    Section 3 - Coniguration Admin Password Click the AdminyPassword icon in the Account Management window or the Admin Password link in the left window to conigure the Admin Password. This window is used to change the administrator’s password. Displays administrator’s user name. Enter the original password. Enter a new password. Password Retype the new password. Password Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 67

    Section 3 - Coniguration Users Click the Users icon in the Account Management window or the Users link in the left window to create, edit or delete users. This window also can assign users to various groups. Click the button to create a new user. Select a user and click the button to conigure the user’s information. Select a user and click the button to remove the user from the list. Click the button to import a ile with a list of users. Click the button to create multiple users at one time. Enter the search keyword and click to search for the user. Click to clear the search ield and all users’ information appears. D-Link ShareCenter Pro 1200 User Manual...

  • Page 68

    Section 3 - Coniguration Create a User Click the Create button to see the welcome window. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 69

    Section 3 - Coniguration Enter the name of a user. Enter the password of the user. Retype the password. Password Tick the SetyQuota check box to limit the storage capacity in megabyte for the user. The value of 0 means an unlimited quota size. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 70

    Section 3 - Coniguration This window is used to add the user to a group. If there is no entry in the list, you can go to AccountyManagement > Groups to create a group. Enter the search keyword and click to search for the group. Click to clear the search ield and all groups’ information appears. Tick the corresponding check box to add the user to the group. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 71

    Section 3 - Coniguration This window is used to assign access rights to the user for the corresponding share folder(s). If there are no entries in the list, you can go to AccountyManagement > Sharey Folders to create share folders. Enter the search keyword and click to search for the folder. Click to clear the search ield and all folders appear. Tick the check box for read only access right. Tick the check box for both read and write access rights. Tick the check box for no access right. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the folder list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 72

    Section 3 - Coniguration This window displays a summary of the configured information. Click Previous to modify the settings. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 73: Import Users

    Section 3 - Coniguration Import Users Click the ImportyUsers button to see the welcome window. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 74

    Section 3 - Coniguration This window allows you to import a user list ile. Click this button to see the example for listing the users in the ile. Tick the check box to replace duplicate write accounts. duplicate accounts Click the Browse button to locate the ile. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 75

    Section 3 - Coniguration This window displays all the users in the ile. If there are any error warnings in the State ield. The user will not be able to go to the next window. Click Next to continue. The window displays the inal results of importing users to the ShareCenter. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 76

    Section 3 - Coniguration Create Batch Users Click the CreateyBatch button to see the welcome window. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 77

    Section 3 - Coniguration This window allows you to create multiple users. Enter the preix of the users Enter the start number of the users. Enter the total number of the users. Enter the password of the users Retype the password Tick the check box to replace duplicate write accounts. duplicate Accounts Tick the Sety Quota check box to limit the storage capacity (in megabyte) for the user. The value of 0 means an unlimited quota size. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 78

    Section 3 - Coniguration This window is used to add the users to groups. If there is no entry in the list, you can go to AccountyManagement > Groups to create groups. Enter the search keyword and click to search for the group. Click to clear the search ield and all groups’ information appears. Tick the corresponding check box to add the users to the groups. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 79

    If there is no entry in the list, you can go to Accounty Management > ShareyFolders to create share folders. Enter the search keyword and click to search for the folder. Click to clear the search ield and all folders appear. Tick the check box for read only access right. Tick the check box for both read and write access rights. Tick the check box for no access right. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the folder list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 80

    Section 3 - Coniguration This window displays a summary of the configured information. Click Previous to modify the settings. Click Apply to save the settings. Depending on the amount of users, the procedure may take a few hours. D-Link ShareCenter Pro 1200 User Manual...

  • Page 81

    Section 3 - Coniguration Groups Click the Groups icon in the Account Management window or the Groups link in the left window to create, edit or delete a group. Click the button to create a new group. Select a group and click the button to conigure the group’s information. Select a group and click the button to remove the group from the list. Enter the search keyword and click to search for the group. Click to clear the search ield and all groups’ information appears. D-Link ShareCenter Pro 1200 User Manual...

  • Page 82: Create A Group

    Section 3 - Coniguration Create a Group Click the Create button to see the welcome window. Enter a name of the group Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 83

    If there is no entry in the list, you can go to Accounty Management > Users to create users. Enter the search keyword and click to search for the user. Click to clear the search ield and all users’ information appears. Tick the corresponding check box to add the user to the group. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 84

    Section 3 - Coniguration Share Folders Click theyShareyFolders icon in the Account Management window or the Share Folders link in the left window to create, edit or delete a share folder. Click the button to create a new folder. Select a folder and click the button to conigure the folder’s information. Select a folder and click the button to remove the folder from the list. Enter the search keyword and click to search for the folder. Click to clear the search ield and all folders’ information appears. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 85

    Section 3 - Coniguration Create a Share Folder Click the Create button to see the welcome window. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 86

    Click the Create button to add a new folder. Double-click a folder to select it. Click Enable to enable the Opportunistic lock (oplock) mechanism. Click Enable to the map archive function. Click Enable to enable the recycle bin for this share folder. Tick the Sety Quota check box to limit the storage capacity (in megabyte) for the share folder. The value of 0 means an unlimited quota size. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 87

    Section 3 - Coniguration This window assigns the access rights of this folder. Tick the radio button to grant all the users the same access right to the folder. Tick the check box to grant access rights to the speciic users. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 88

    Section 3 - Coniguration If Ally Users is selected in the previous window, this window appears. Tick the check box for read only access right. Tick the check box for both read and write access rights. Tick the check box for no access right. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 89

    Tick the check box for read only access right. Tick the check box for both read and write access rights. Tick the check box for no access right. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 90

    Section 3 - Coniguration This window displays a summary of the configured information. Click Previous to modify the settings. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 91: System Management

    Section 3 - Coniguration System Management This folder contains the Network, Time and Date, System Settings, Power Management, Email Alerts, Firmware Upgrade, and Logs. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 92

    Network Click the Network icon in the System Management window or the Network link in the left window to conigure the Network. LAN 1 Click the LANy1 tab to see the following window. Click the radio button to obtain the IP address from a DHCP server. Click the radio button to assign a static IP address to the ShareCenter. Enter a static IP address. Enter the subnet mask for the IP address. Use the drop-down menu to select the larger frame size than standard Ethernet frame size. Enter the gateway IP address for the ShareCenter. Enable or disable the VLAN. Enter a VLAN ID when VLAN is enabled. Enable or disable port bonding which is also known as port trunking. Use the drop-down menu to select the port bonding method. Available methods are Round Robin, Active Backup, XOR, Broadcast, 802.3ad, Adaptvie Transmit Load Balancing, and Adaptive Load Balancing. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 93

    Section 3 - Coniguration LAN 2 Click the LANy2 tab to see the following window. Click the radio button to obtain the IP address from a DHCP server. Click the radio button to assign a static IP address to the ShareCenter. Enter a static IP address. Enter the subnet mask for the IP address. Use the drop-down menu to select the larger frame size than standard Ethernet frame size. Enter the gateway IP address for the ShareCenter. Enable or disable the VLAN. Enter a VLAN ID when VLAN is enabled. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 94: Global Settings

    Section 3 - Coniguration Global Settings Click the GlobalySettings tab to see the following window. Enter the name of the ShareCenter. Enter the main DNS address for the ShareCenter. y DNS Enter the secondary DNS address for the ShareCenter. Use the drop-down menu to select the LAN interface. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 95

    Select a routing path and click the button to remove the entry from the list. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click the Create button under the Route tab to see the window. Enter an IP address of the routing path. Address Enter the subnet mask for the IP address. Enter an integer cost metric for the route. Use the drop-down menu to select the interface. Enter the forwarding or next hop IP address. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 96: Time And Date

    Time and Date Click the TimeyandyDate icon in the System Management window or the Time and Date link in the left window to conigure the time and date of the ShareCenter. Displays the current time of the ShareCenter. Use the drop-down menu to select the time zone ime Zone of your area. Click the radio button to synchronize the ShareCenter’s time with your computer. Computer Click the radio button to set the time and date manually. Click the radio button and select a NTP server to synchronize the ShareCenter’s time with the Server NTP server. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 97: System Settings

    Click the Save button to save the current settings to the selected location. Coniguration Click the Browse button to locate the path for the coniguration ile and click Load to Coniguration load the ile. Click Restore to reset the ShareCenter back to the factory default settings. Coniguration Enter a period of time. If the web is idle longer eb Timeout than the time, it will be automatically logged out. Toggle between Celsius and Fahrenheit and enter a temperature. Once the system Temperature temperature is over the entered temperature;, the ShareCenter will automatically shut down. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 98: Power Management

    Use the drop-down menu to select an idle urn Off Hard time, after which the hard drives will enter into Drive hibernation mode. Use the drop-down menu to select an idle time, after which the OLED will be turned off. Click Enable to have the power restored when encountering a power failure. Recovery Use the drop-down menu to select the fan speed modes. Available choices are Auto (Off/Low/ High), Auto (Low/High) and Manual (Always on High). Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 99

    Section 3 - Coniguration Schedule Power On/Off Settings Click the ScheduleyPoweryOn/OffySettings tab to see the following window. This function will be deactivated if the schedule is conigured at the same time as the irmware update. Click Enable to set a schedule for automatic system power on and off. Power On/Off Use the drop-down menus to select the time of system power on and off. Schedule Off Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 100: Email Alerts

    If the SMTP server requires authentication, select Login. If not, select Anonymous. If Login is selected in LoginyMethod, enter the user name of the e-mail account. If Login is selected in LoginyMethod, enter the password of the e-mail account. Select SSL/TLS if the SMTP server requires yption authentication. Enter the IP address of the SMTP server. Enter the port number of the SMTP server. Enter the sender’s e-mail address. Enter the e-mail address that the e-mail alert sends to. Click the TestyE-Mail button est E-mail to send a test e-mail. Tick the check boxes to select the situation that will cause the e-mail alert to be sent out. Settings Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 101: Firmware Upgrade

    Section 3 - Coniguration Firmware Upgrade Click the FirmwareyUpgrade icon in the System Management window or the Firmware Upgrade link in the left window to update the irmware. Displays the current irmware in the system. Version Displays the date of the irmware. Click the Browse button to locate the irmware. You must save the irmware to the local hard drive of your computer before upgrading the irmware. Click Apply to start updating the irmware. D-Link ShareCenter Pro 1200 User Manual...

  • Page 102: Log Settings

    Section 3 - Coniguration Log Settings Click the LogySettings icon in the System Management window or the Log Settings link in the left window to conigure the log settings. Log Settings Click the LogySettings tab to see the following window. Click the radio buttons to enable various situations which will be recorded in the logs. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 103

    The numbers below represent different levels of severity. 0: Emergency 1: Critical 2: Alert 3: Error 4: Warning 5: Notice 6: Info 7: Debug Displays the time and date for the log. Displays detail information about the log. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 104: Network Services

    Section 3 - Coniguration Network Services This folder contains File Sharing, Dynamic DNS, SNMP and Network Discovery Services. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 105: File Sharing

    Section 3 - Coniguration File Sharing Click the FileySharing icon in the Network Services window or the File Sharing link in the left window to conigure the network services. File Sharing Click the FileySharing tab to see the following window. Click the radio buttons to enable various network services. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 106

    Use the drop-down menu to select the maximum number of concurrent FTP per IP per IP connection. Use the drop-down menu to select the time that the FTP server logs out the user after this Time period of idle time. Click Enable to restrict the bandwidth of each FTP connection. Enter the number in KB/s for Restriction the maximum speed of upload and download. Click Enable to allow anonymous FTP to log Support Click Enable to only allow SSL or TLS connection requests from the FTP clients. Connection Only Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 107

    Section 3 - Coniguration Click the NFS tab to see the following window. Click to add a new NFS client. Select a mount path and click the button to edit the NFS client. Select amount path and click the button to remove the entry from the list. Enter the search keyword and click to search for the speciic entry. Click to clear the search ield and see all the entries. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 108

    Section 3 - Coniguration Click the Create button to see this window to select a share folder. Enter the search keyword and click to search for the speciic entry. Click to clear the search ield and see all the entries. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 109

    Section 3 - Coniguration This window is use to conigure the permission of the NFS. Use the drop-down menu to assign NFS access rights, Read or Read/Write. Select Rooty Squash and the system maps requests from uid/gid 0 to the anonymous uid/gid. Enter the host name. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 110

    Section 3 - Coniguration CIFS Click the CIFS tab to see the following window. Enter the description of your device. Click the radio button to choose the system to be orkgroup in a workgroup. Enter the name of the workgroup in the ield. Click the radio button to choose the system to Directory be in an Active Directory (AD). Enter the AD server account name. Enter the AD server account password. Enter a DNS IP address to analyze the domain name of the AD server. Etner the name of the workgroup which should orkgroup be the same as the computers on the network. Enter the AD server domain name. Enter the AD server hostname. Name Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 111

    Section 3 - Coniguration Click the DFS tab to see the following window. Click to add a new DFS share. Select a local share name and click the button to edit the DFS share. Select a local share name and click the button to remove the entry from the list. Enter the search keyword and click to search for the DFS share. Click to clear the search ield and see all the entries. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 112

    Section 3 - Coniguration Click the Create button to see this window to add a new DFS share. Enter an IP address, a host name or a URL in the ield. Enter a remote share folder location manually, or click the GetyHostyShareyFolder button to search share folder for one. Enter the local share name in the ield. name Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 113: Dynamic Dns

    Section 3 - Coniguration Dynamic DNS Click the DynamicyDNS icon in the Network Services window or the Dynamic DNS link in the left window to conigure the dynamic DNS. Click the radio button to enable or disable the dynamic DNS function. Use the drop-down menu to select a dynamic ver Address DNS service provider. Enter the host name. Enter the username or key provided by the dynamic DNS service provider. Enter the password or key provided by the dynamic DNS service provider. Re-type the password or key. erify Password or Key Enter a time in hours for periodic updates imeout from the dynamic DNS provider. Displays the current status to the server. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 114

    Section 3 - Coniguration SNMP Click the SNMP icon in the Network Services window or the SNMP link in the left window to conigure the SNMP settings. Simple Network Management Protocol (SNMP) is used to monitor the conditions of the network-attached devices. Enable or Disable SNMP. Enter the name of the SNMP community. Enable or Disable trap support. Enter the IP address that will receive the notiication. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 115

    Click the NetworkyDiscoveryyServices icon in the Network Services window or the Network Discovery Services link in the left window to conigure the settings. Click Enable to allow the ShareCenter to be discovered on a network via the UPnP discovery protocol. Click Enable to allow the ShareCenter to be discovered by the network map under Windows Vista or Windows 7. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 116

    Section 3 - Coniguration Applications This folder contains the Web File Manager and Download Manager. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 117: Web File Manager

    Section 3 - Coniguration Web File Manager Click the WebyFileyManager icon in the Applications window or the Web File Manager link in the left window to conigure the settings. This window is used to start a web server for users to upload and download iles through the web browser. Click the radio buttons to enable or disable the server. Enter the port number for the function. Port 80 cannot be used as it is used for administration purposes. Click the radio buttons to enable or disable the HTTPS connection. Enter the port number for the HTTPS connection. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 118: Download Manager

    Section 3 - Coniguration Download Manager Click the DownloadyManager icon in the Applications window or the Download Manager link in the left window to conigure the settings. This window is used to schedule downloading iles from FTP or HTTP sites. Click to add a new download job. Select an entry and click the button to edit. Select an entry and click the button to remove the entry from the list. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 119

    Toggle between the FTP or HTTP download methods. Click the Account radio button when a password is required for downloading files. Click the Anonymous where there is no password required for downloading iles. Enter a user name for downloading. Enter a password for downloading. Toggle between File or Folder to download the speciic ile or all iles in a speciic folder. Enter the FTP, HTTP or local site address for the scheduled download. Click the Test button to see if the URL can be connected. Click the ield to show the available folders. Click the Create button to add a new folder. Double- click a folder to select it. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 120

    Section 3 - Coniguration This window is used to set the schedule for downloading. Use the drop-down menu to have repeated scheduled download time every day, week or Download month. Select None to disable the recurring download. Click to select year and date for downloading. Use the drop-down menu to select downloading time. Select a day of the week for recurring download. eekly Select the month for recurring download. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 121

    Section 3 - Coniguration Backup This folder contains the Volume Snapshot, Local Backup, Remote Backup, and External Backup. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 122

    Section 3 - Coniguration Volume Snapshot Click the VolumeySnapshot icon in the Backup window or the Volume Snapshot link in the left window to conigure the settings. This window is used to create, edit or delete a snapshot job. It also allows you to take a snapshot of a volume. The ShareCenter supports up to 10 snapshot jobs and each job can have maximum 20 snapshots. Click to add a new snapshot job. Select an entry and click the button to edit. Select an entry and click the button to remove the entry from the list. Click the button to take a snapshot of a volume. snapshot Click the button to show the calendar indicating on which dates a snapshot had been taken. snapshot D-Link ShareCenter Pro 1200 User Manual...

  • Page 123

    Create a Snapshot Job Click the Create button to see the window. Click the ield to show the available folders. Click a folder to see the sub-folders. Double-click a folder to select it. Use the drop-down menu to select the number of snapshots for this job. Use the drop-down menu to select manually schedule the job, or schedule to take the snapshot on a daily, weekly or monthly basis. Use the drop-down menus to select hour and minute of the day. Use the drop-down menu to select the day of eekday the week. Use the drop-down menu to select the day of the month. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 124

    Section 3 - Coniguration Show Snapshot Click the ShowySnapshot button to see the calendar. Find the year and month of the snapshot on that day. The date cell is highlighted when there are snapshots on that day. Click the cell to view details of the volume’s snapshot(s). Click Close to go back to the Volume Snapshot window. D-Link ShareCenter Pro 1200 User Manual...

  • Page 125

    Section 3 - Coniguration The window displays the volume’s snapshot(s) information. Select an entry and click the button to remove the entry from the list. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. Click Close to go back to the previous window. D-Link ShareCenter Pro 1200 User Manual...

  • Page 126: Local Backup

    Section 3 - Coniguration Local Backup Click the LocalyBackup icon in the Backup window or the Local Backup link in the left window to conigure the settings. This window allows iles and folders to be backed up to local folders. Click to add a new backup job. Select an entry and click the button to edit. Select an entry and click the button to remove the entry from the list. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 127

    Click the Account radio button when a password is required for the procedure. Click the Anonymous where there is no password required for the procedure. Enter a user name for backup. Enter a password for backup. Toggle between File or Folder to download the speciic ile or all iles in a speciic folder. Enter the path manually, or click Local to locate the path. Click the Test button to see if the path can be connected to. Click the ield to show the available folders. Click the Create button to add a new folder. Double- click a folder to select it. Tick the check box to enable the incremental backup method. All backups after the irst full Backup backup will be on an incremental basis. Only the changes since the last backup will be backed up. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 128

    Section 3 - Coniguration This window is used to set the schedule for local backup jobs. Use the drop-down menu to enable a recurring backup. This can be done on a daily, weekly Backup or monthly basis. Select None to disable the recurring backup. Click to select year and date for backup. Use the drop-down menu to select the time for backup. Select a day of the week for recurring backup. eekly Select the month for recurring backup. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 129: Remote Backup

    Click the RemoteyBackup icon in the Backup window or the Remote Backup link in the left window to conigure the remote backup. Remote Backup Server Click the RemoteyBackupyServer tab to see the following window. Tick the check box to enable the function. Backup Enter the password for backing up iles and folders from or to the ShareCenter. This is the remote backup password. The password for the remote NAS should be the same as the password of the ShareCenter. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 130

    Section 3 - Coniguration Remote Backup Job Click the RemoteyBackupyJob tab to see the following window. Click to add a new remote backup job. Select an entry and click the button to edit. Select an entry and click the button to remove the entry from the list. Click the button to back up. Click the button to enable or disable the schedule remote backup function. Schedule Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 131

    Section 3 - Coniguration Click Create to see the window. Use the drop-down menu to select between ver Type D-Link NAS Server or Rsync Server. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 132

    Section 3 - Coniguration This window allows you to conigure the source settings. Enter the name of the remote backup job. Click the ield to select the source ile/folder to be backed up remotely. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 133

    Section 3 - Coniguration This window is used to conigure the destination settings. Enter the IP address of the server. Server Enter the password of the destination server. Tick the check box to enable SSH encryption. yption Support Tick the check box to keep the existing ile the same (not overwrite) at the remote server and File create another backup copy. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 134

    Section 3 - Coniguration This window is used to conigure the destination path. Click the ield to select the destination path. Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 135

    Section 3 - Coniguration This window is used to schedule the remote backup job. Use the drop-down menu to enable a recurring remote backup. This can be done on a daily, Backup weekly or monthly basis. Select Backupynow to start the backup. Click to select year and date for backup. Use the drop-down menu to select the time for backup. Select a day of the week for recurring backup. eekly Select the month for recurring backup. Click Apply to save the settings. D-Link ShareCenter Pro 1200 User Manual...

  • Page 136

    Section 3 - Coniguration External Backup Click the ExternalyBackup icon in the Backup window or the External Backup link in the left window to conigure the settings. This window is used to back up data to external devices. Click the USB port that is connected to an external USB storage device. Click the ield to show the available folders. Click the Create button to add a new folder. Double-click a folder to select it. Tick the IncrementalyBackup check box to enable the incremental backup method. All backups after irst full backup will be on an incremental basis. Only the changes since the last backup will be backed up. D-Link ShareCenter Pro 1200 User Manual...

  • Page 137: Extension.pack

    Section 3 - Coniguration Extension Pack This folder contains the Extension Pack. Click the folder to see the subcategories. D-Link ShareCenter Pro 1200 User Manual...

  • Page 138

    Extension Pack Click the ExtensionyPack icon in the Extension Pack window or the Extension Pack link in the left window to conigure the add-ons. Click the Browse button to locate the ile. Click Apply to add the ile to the Add-ons list. Displays a list of all add-ons modules. Displays if the module is currently activated (Enabled) or deactivated (Disabled). Activate/Deactivate the module. Remove the add-on module from the list. Displays number of pages. You can enter a page number in the ield to jump to the speciic page. Click First Page ( ), Previous Page ( ), Next Page ( ) or Last page ( ) to search for the group. Click to update the group list. D-Link ShareCenter Pro 1200 User Manual...

  • Page 139: Knowledge Base

    Section 4 - Knowledge Base Knowledge Base What is RAID? RAID, short for Redundant Array of Independent Disks, is a combination of two or more disks with the aim of providing fault tolerance and improving performance. There are several different levels of RAID, with each one providing a different method of sharing or distributing data among the drives. The ShareCenter supports JBOD, RAIDy0, RAIDy1, RAIDy5, RAIDy6 and Standalone. RAID 0 provides data striping, which spreads RAID 1 provides mirroring over multiple disks, with out blocks of data over all drives, but does not the same read/write speed of a single disk. A RAID provide data redundancy. 1 array can only be as large as it’s smallest member disk. Although performance is improved, the lack of fault tolerance means that if one drive fails, all Because the data is stored on multiple disks, data in the array will be lost. RAID 1 provides fault tolerance and protection, in addition to performance advantages. D-Link ShareCenter Pro 1200 User Manual...

  • Page 140

    Section 4 - Knowledge Base RAID 5 provides data striping with distributed parity, which stores information that can be used to reconstruct data. A RAID 5 array will be the size of all the combined disks capacity less the capacity of one disk, e.g. If there are 4x 80GB disks in the array, the arrays capacity will be 240GB (3x80GB). Implementing RAID 5 on the ShareCenter allows it to continue operating even if one of the disks fails. The diagram below indicates the operation of RAID 5: D-Link ShareCenter Pro 1200 User Manual...

  • Page 141

    Section 4 - Knowledge Base RAID 6 is an extension of RAID 5. It adds an additional parity block by using block-level striping with two parity blocks distributed across all the member disks. RAID 6 allows the array to continue operating even if two of the disks fail. The diagram below indicates the operation of RAID 6: D-Link ShareCenter Pro 1200 User Manual...

  • Page 142: Mapping.a.drive

    Section 4 - Knowledge Base Mapping a Drive You.can.use.the.D-Link.Easy.Search.Utility.to.map.drives.to.your.computer..Insert.the.ShareCenter.CD.into.your.CD- ROM.drive. Click.Easy.Search.Utility. The.Easy.Search.Utility.will.load.and.detect.any.ShareCenter.devices.that.are.on.the.local.network. D-Link ShareCenter Pro 1200 User Manual...

  • Page 143

    Section 4 - Knowledge Base If.the.ShareCenter.you.are.working.with.does.not.show.up.in.the.device.list,.click.Refresh.. Highlight.an.available.ShareCenter. Available. volumes. will. be. displayed. under. Drive. Mapping.. Highlight. the. volume.you.want.to.map. Select.an.available.drive.letter.from.the. drop-down.menu.and.click.Connect. Once.connected,.your.mapped.drive(s).will.appear.in.My.Computer. D-Link ShareCenter Pro 1200 User Manual...

  • Page 144

    Section 4 - Knowledge Base .the.My.Computer. icon.on.your.desktop. Double-click.the.mapped.drive. to.access.the.iles.and.folders. D-Link ShareCenter Pro 1200 User Manual...

  • Page 145: Usb.print.server

    Section 4 - Knowledge Base USB Print Server The.ShareCenter.features.a.built-in.USB.print.server,.giving.users.the.ability.to.share.a.printer.on.their.local.network.. . Connect.a.USB.printer.to.the.USB.port.on.the.back.of.the.ShareCenter..It.is.important.to.ensure.that.any.of.the.printer. manufacturer’s.drivers.are.already.installed.on.any.computer.you.want.to.print.from. To.add.a.printer: ClickyStart and select PrintersyandyFaxes. D-Link ShareCenter Pro 1200 User Manual...

  • Page 146

    Section 4 - Knowledge Base Select Addyayprinter. The.Windows .Add.Printer.Wizard.will.launch: ® Click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 147

    Section 4 - Knowledge Base When prompted to choose a local, or network printer, select “Ay networky printer,y ory ay printeryattachedytoyanotherycomputer.” Click Nextyto continue. Select “Browseyforyayprinter” and click Nexty to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 148

    Section 4 - Knowledge Base Select Double-click DNS-1200 from the Shared Printers list to expand the tree. Select the available USB printer, and click Next to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 149

    Section 4 - Knowledge Base The.following.printer.driver.messages.will.appear: Click Yesyto continue. Click OK to continue and select a printer driver. Select the appropriate printer driver from the list and clickyOK to complete the wizard. If the driver is not in the list, select HaveyDisk. D-Link ShareCenter Pro 1200 User Manual...

  • Page 150

    Section 4 - Knowledge Base Insert the print driver CD or browse to the appropriate directory. Select the appropriate driver ile, and click Open to continue. Click OK to continue. D-Link ShareCenter Pro 1200 User Manual...

  • Page 151

    Section 4 - Knowledge Base Verify the driver is correct, and click OK to continue. The wizard will install the printer drivers, and return a completion screen. Click Finish. D-Link ShareCenter Pro 1200 User Manual...

  • Page 152

    Section 4 - Knowledge Base The printer should now appear as an available printer. D-Link ShareCenter Pro 1200 User Manual...

  • Page 153: Iscsi.drive.mapping

    Section 4 - Knowledge Base iSCSI Drive Mapping The.iSCSI.Drive.Mapping.is.used.to.manage.the.iSCSI.settings.on.the.ShareCenter.. Carry.out.the.following.to.conigure.the.iSCSI.settings: 1. Click the listed ShareCenter. 2. The available iSCSI target names in the iSCSI Drive Mapping section appear. Note: If you cannot see the latest list, click the Refresh button to update the status. Note:.You.will.need.to.create.iSCSI.volume.in.the.Disk Management.->.iSCSI Target..Click.the.iSCSI Targets.tab. to.see.the.iSCSI.target.name.in.this.section. D-Link ShareCenter Pro 1200 User Manual...

  • Page 154

    Displays Yes if the target is active. Displays No if the target is not active. Choose a target from the list and click the Connect/Disconnect button to activate/deactivate the Target. If CHAP authentication has been enabled, then a username and password will be required. Click the button to see the Management window. The window allows you to add, delete, mount and unmount the partition. D-Link ShareCenter Pro 1200 User Manual...

  • Page 155

    Section 4 - Knowledge Base Coniguring Targets 1. When attempting to connect a target for the irst time, choose the target from the list 2. Click the Connect button. 3. If the CHAP is enabled, you will see this window appears requesting CHAP User and Password. D-Link ShareCenter Pro 1200 User Manual...

  • Page 156

    (in megabytes) in the Megabytes ield. Choose whether to format the new partition with NTFS or FAT32 by ticking the appropriate checkbox. Choose the drive letter that you want to allocate to the iSCSI partition from the drop-down menu. When you have inished coniguring the Target Settings, click the Format button to see the window below D-Link ShareCenter Pro 1200 User Manual...

  • Page 157

    Displays the ID number of the disk installed in the ShareCenter. Displays the partition number of the disks partition. Displays the drive letter that the partition olume is mapped to on the client machine. Displays the File System that the partition was formatted with. Displays the total capacity of the partition. Displays the iSCSI target name of the arget partition. D-Link ShareCenter Pro 1200 User Manual...

  • Page 158

    To specify a size, un-tick the check box and type in the capacity of size of the partition (in megabytes) in the Megabytes ield. Choose whether to format the new partition with NTFS or FAT32 by ticking the appropriate checkbox. Choose the drive letter that you want to allocate to the iSCSI partition from the drop-down menu. When you have inished coniguring the partition settings, click the Format button to add the new partition. D-Link ShareCenter Pro 1200 User Manual...

  • Page 159

    Section 4 - Knowledge Base Deleting an existing partition Right-click an existing partition and click Delete. D-Link ShareCenter Pro 1200 User Manual...

  • Page 160

    Section 4 - Knowledge Base Mounting Disks When a partition is not mounted, a * (star) symbol will appear in the Volume column in the DiskyManagement list. Carry out the following steps to mount a disk: 1. Right-click an unmounted partition and click Mount. The Drive Select window appears. 2. Select the drive letter in the Device drop-down list. 3. Click the OK button. D-Link ShareCenter Pro 1200 User Manual...

  • Page 161

    Section 4 - Knowledge Base 4. The mounted disk is displayed in the DiskyManagement list. 3. The newly mounted disk is displayed in the My Computer window and can be used as if it was a locally attached disk. D-Link ShareCenter Pro 1200 User Manual...

  • Page 162: Hot-swap Function

    Standalone/JBOD/RAIDyO: T he data will be lost and the volume will crash, if any of the hard drives are hot swapped. RAIDy1: Y ou can hot swap the hard drives as long as one of the hard drives in the mirror is still in the ShareCenter. Removal of all hard drives will result in a loss of all data and volume will have crashed. RAIDy5: I n a RAID 5 volume, it is only possible to hot swap 1 hard drive at a time without losing all data. This is because a RAID 5 volume can only tolerate the loss of 1 hard drive and still continue to work. After hot swapping a hard drive, the volume must irst be rebuilt before another hard drive can be hot swapped, otherwise this will also result in a loss of all data and the RAID volume will have crashed. RAIDy6: I n a RAID 6 volume, it is possible to hot swap 2 hard drives at a time without losing all data. This is because a RAID 6 volume can only tolerate the loss of 2 hard drives and still continue to work. After hot swapping 2 hard drives, the volume must irst be rebuilt before another hard drive can be hot swapped, otherwise this will also result in a loss of all data and the RAID volume will have crashed. You can check the RAID coniguration from the DiskyManagement -> Volume page on the Web UI. When hot swapping hard drives, you will see the changes in the Disk(s) column. Hot swap one of the hard drives, make sure the Disk number has disappeared from the Disk(s) column, and then hot swap the next hard drive. D-Link ShareCenter Pro 1200 User Manual...

  • Page 163: Storing Non-english Character Files

    Section 4 - Knowledge Base Storing non-English Character Files By. default. the. ShareCenter. will. support. Unicode. which. is. an. industry. standard. allowing. computers. to. consistently. represent.and.manipulate.text.expressed.in.most.of.the.world’s.writing.formats. D-Link ShareCenter Pro 1200 User Manual...

  • Page 164

    CEyMarkyWarning: This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FCCyStatement: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link ofice. D-Link ShareCenter Pro 1200 User Manual...

Comments to this Manuals

Symbols: 0
Latest comments:
