D-Link DSL-2890AL Quick Installation Manual

QUICK INSTALLATION GUIDE
Dual Band
Wireless AC1750
ADSL2+ Modem Router
DSL-2890AL

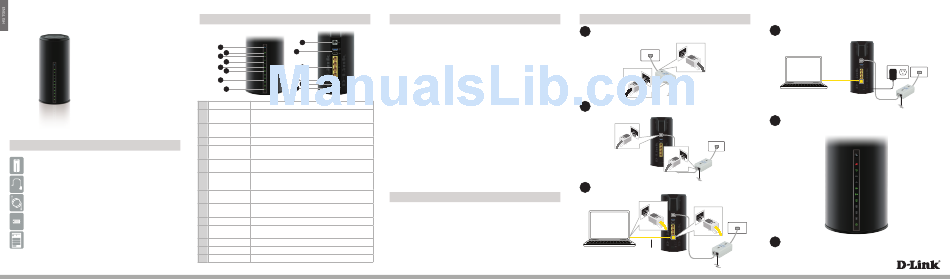

Package Contents

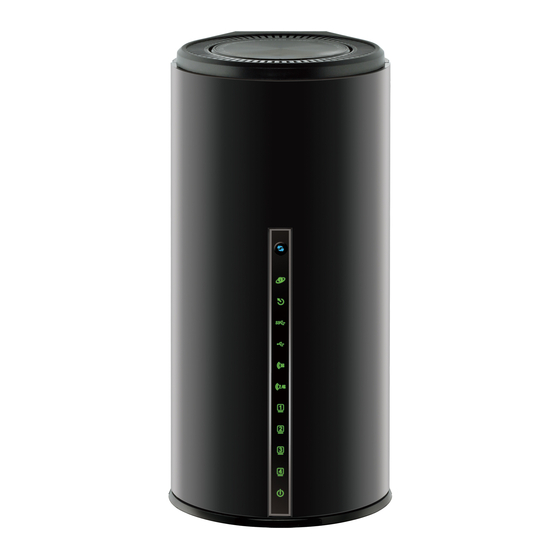

Dual Band Wireless AC1750 Gigabit Cloud ADSL2+ Modem Router
(DSL-2890AL)
Power Adapter
Ethernet Cable
ADSL2+ Microfilter/Splitter
Quick Install Guide
If any of the above items are missing, please contact your reseller/retailer.
Hardware Overview
9
1
2 10
3
4
5 11
6
7 12
13
14
8
1 WPS Button & LED The light will blink during the WPS process.
A solid green light indicates a proper connection to your
2 Internet LED
broadband service.
A solid green light indicates a proper connection to the
3 ADSL LED
ADSL enabled telephone line.
4 USB 3.0 & 2.0 LEDs A solid green light indicates a connection to a USB device.
A solid green light indicates that the wireless segment is
5 2.4G Wireless LED
ready. The light will blink during data transmission.
A solid green light indicates that the wireless segment is
6 5G Wireless LED
ready. The light will blink during data transmission.
A solid amber light indicates a connection to a Gigabit Ethernet
7
LAN (1~4) LEDs device while a green light indicates a connection to a 10/100
device. The LED will blink during data transmission.
A solid green light indicates a proper connection to the
8 Power LED
power supply.
Connect to an ADSL enabled telephone line and the
9 ADSL Port
supplied microfilter/splitter.
10 USB 3.0 & 2.0 Ports Connect USB devices such as printers, scanners or storage.
Connect Ethernet devices such as computers, switches, and
11
LAN (1~4) Ports
game consoles.
12
WiFi Button Press for three seconds to enable/disable wireless networks.
13 Power Button Press to turn on or off the device.
14 Power Port Connect the supplied power adapter.
Minimum Requirements
Internet Requirements:
• An activated ADSL telephone line and account with an Internet provider
Web-based Configuration Requirements:
Device with the following:
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Safari 4 or higher
• Chrome
• Firefox
mydlink™ Requirements (optional):
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Web Browser Requirements:
• Internet Explorer 7 or higher
• Safari 5 or higher
• Chrome
• Firefox
Note:
To learn more about mydlink, visit www.mydlink.com.au or www.mydlink.co.nz.
If you experience issues registering this Modem Router with your mydlink account,
try performing a hard reset by using an unfolded paperclip to press and hold the
reset button for 10 seconds while the Modem Router is powered on.
Before you Start
• Internet Provider Account Details - If you are using an Australian or New
Zeleand ADSL connection, you will need your user name and password. If you do
not have this information, contact your Internet provider.
Do not proceed until you have this information.
Connect your Modem Router
1
Connect your existing Phone cable from the telephone outlet to the LINE
port on the Microfilter and your telephone handset into the PHONE port.
Telephone Outlet LINE
PHONE
Microfilter
Connect the Phone cable from the DSL port on the Microfilter to the ADSL
2
port of the modem router.
DSL-2890AL
Phone Cable
Microfilter
3 Connect the Ethernet cable from the LAN port of the modem router to the
Ethernet port on your computer.
Computer
Ethernet Cable
DSL-2890AL
Plug the power adapter into your modem router and connect to an available
4
power outlet.
Power Adapter
Computer
DSL-2890AL
After the modem router has powered up, verify that the Power and ADSL
5
LEDs are both lit.
6
Continue with the Configuration section on the other side of this document.
