  • Page 1 TFT LCD COLOR MONITOR User Manual...
  • Page 2 Dear users, Welcome to use the company's color liquid crystal display monitor (touch for optional), the display employs the latest digital processing circuit and the high quality TFT LCD display, not only has low power consumption, stable performance, easy operation, etc. advantages, but also has VGA, AV, HDMI, signal inputs.
  • Page 3 Product Features ● FPV aerial dedicated input port, High Definition, High Brightness, No Blue Screen under weak signal ● 1024*600 high resolution, view details of the image ● Multiple color format support, manually enter the menu to select the appropriate standard, stronger adaptability ●...
  • Page 4: Table Of Contents

    CONTENTS 1. Product Instruction ------------------------------------- 4 Front Panel Instruction ----------------------------------- 4  Port Instruction --------------------------------------------- 5  2. OSD Operation Instruction --------------------------- 5 3. OSD Menu Instruction --------------------------------- 6 4. Parameters------------------------------------------------- 8 5. Trouble Shooting ---------------------------------------- 9...
  • Page 5: Product Instruction

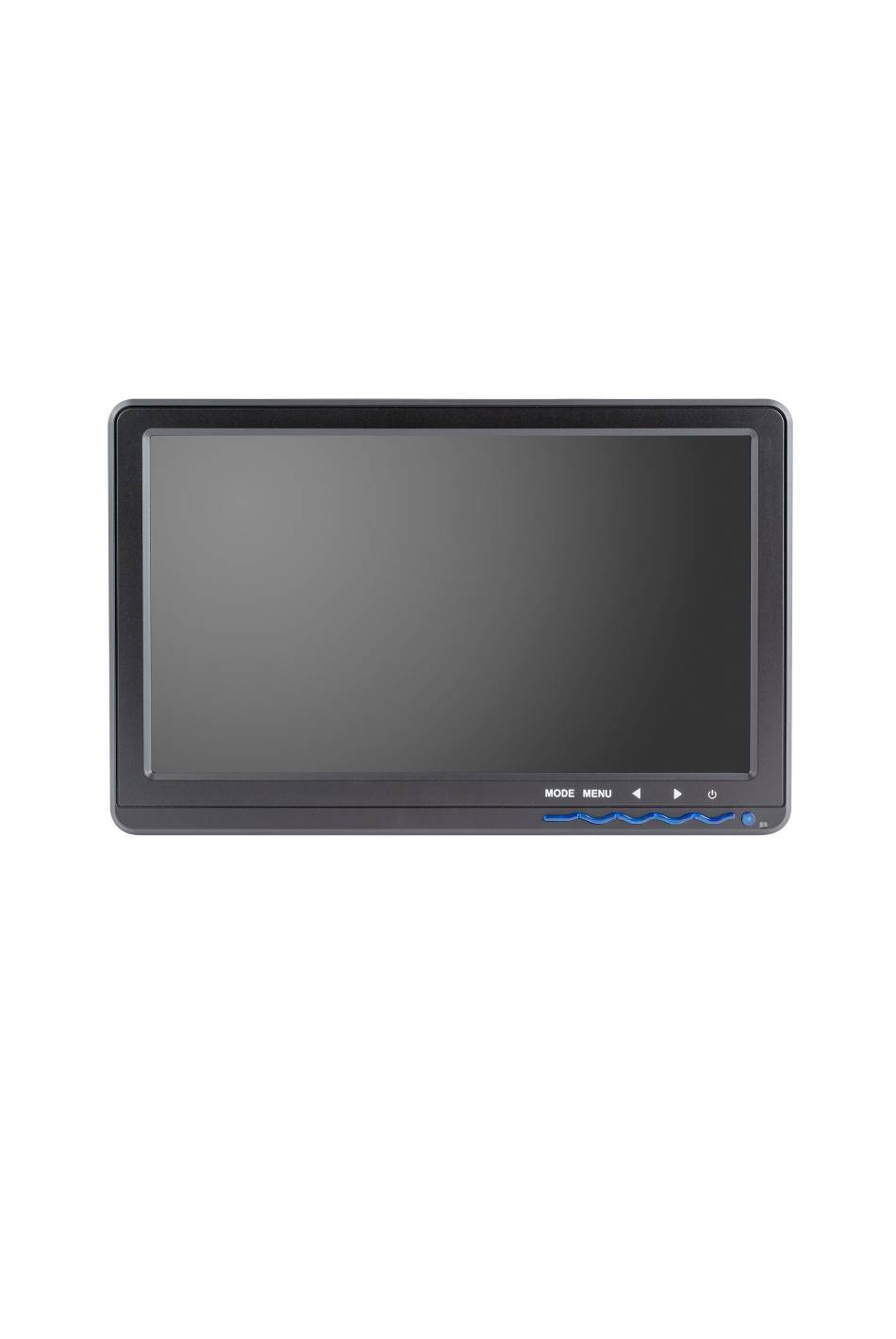

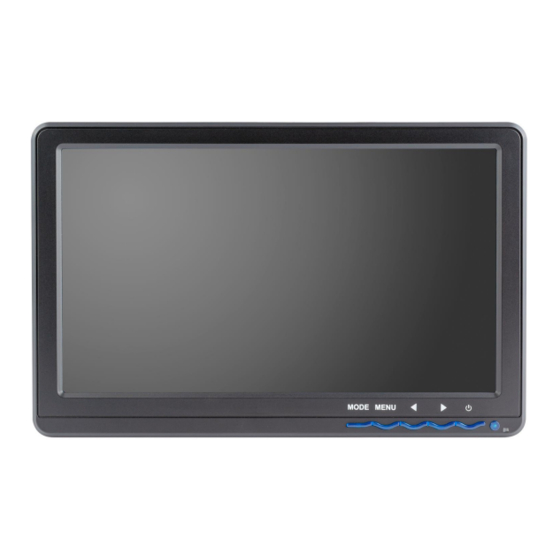

    1. Product Instruction  Front Panel Instruction MODE: To swtich VGA, AV, HDMI input signals MENU: Press this button to pop up or close OSD menu ◀: Volume down, press this button directly to control the volume decrease, and the menu is used for item selection and setting value adjustment.
  • Page 6: Port Instruction

    Port Instruction ● 1. AV signal input 2. HDMI signal input 3. VGA signal input 4. DC 12V power supply 5. USB touch interface (the FPV monitor does not have this interface) 2. OSD Operation Instruction When monitor in normal working state, press “MENU” button, screen displays OSD menu, then enter into operation.
  • Page 7: Osd Menu Instruction

    3. OSD Menu Instruction After the input video signal, users can adjust the display parameters by pressing OSD button: Color Brightness To adjust image brightness. To adjust the brightest and darkest ratio of the image. Contrast To adjust the cold and warm color of current image under HDMI signal input state.
  • Page 8 To choose OSD languages, which include English,中 Language 文, 繁体中文, Français, Italiano, Deutsch, Español, 日 本語, 한국의, русс. H Position To adjust the OSD menu in horizontal. V Position To adjust the OSD menu in Vertical. OSD Timeout To adjust the time display on the screen. Transparent To adjust the level of transparent on the screen.
  • Page 9: Parameters

    4. Parameters Panel size 10.1" Resolution 1024 x 600 pixels Display Ratio 16:9 Brightness 450cd/㎡ Contrast ratio 800:1 Viewing angle 85°/85°(L/R) 85°/85°(U/D) Input Voltage DC9-15V Power consumption ≦6 W Unit size 255L×163W×34H mm Unit weight 660 g 4-wire resistive touch panel (optional) Touch panel (optional) 5-wire resistive touch panel (optional) Capacitive touch panel (optional)
  • Page 10: Trouble Shooting

    5. Trouble Shooting 5.1 Only black and white picture. Please check saturation, brightness & contrast adjustment. 5.2 NO picture after put on the power. MODE whether in correct position, please press MODE to select correct signal input mode; Check video signal cable connecting, make sure use the standard adapter connect the monitor.
