Black Box ACS2001A-R3 User Manual

CATx DVI-D Extender with EDID

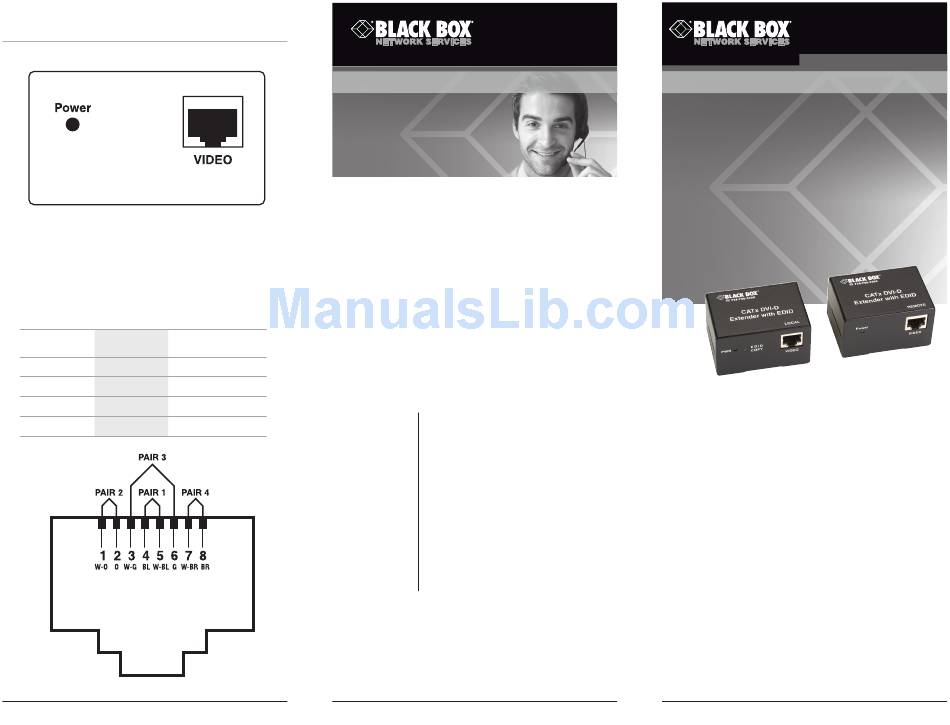

Figure 5. Remote unit rear view:
Power LED, CAT5 port.

4. Wiring Information and Coding

Table 2. RJ-45 pinning and color coding.
Conductor RJ-45 Pin Color Code for
Identification Assignment Conductor
Pair 1 5/4 White-Blue/Blue
Pair 2 1/2 White-Orange/Orange
Pair 3 3/6 White-Green/Green
Pair 4 7/8 White-Brown/Brown
Figure 6. Jack positions.
724-746-5500 | blackbox.com
ACS2001A-R3
Black Box Tech
Support: FREE! Live.
24/7. Tech support
the way it should be.
Great tech support is just 30 seconds
away at 724-746-5500 or blackbox.com.
Customer Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Mailing address:
Black Box Corporation
1000 Park Drive
Lawrence, PA 15055-1018
Web site: www.blackbox.com
E-mail: info@blackbox.com
© Copyright 2012. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Any other trademarks mentioned in this manual
are acknowledged to be the property of the trademark owners.
ACS2001A-R3, rev. 2
724-746-5500 | blackbox.com
Page 5

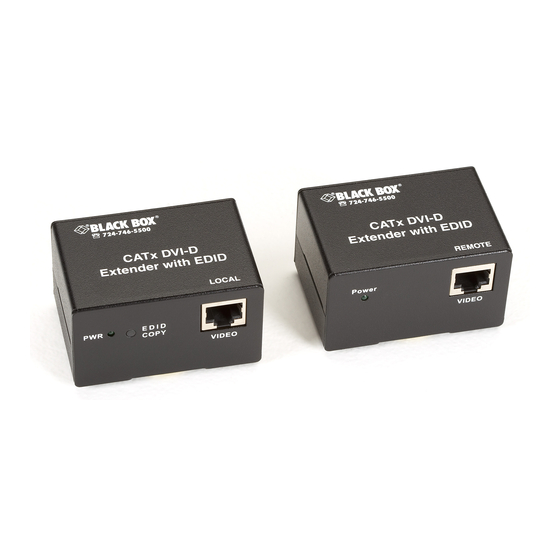

CATx DVI-D Extender with EDID
Extends the video signal
BLACK BOX
®
of a DVI-D device up to
164 feet (50 meters) over
CATx cable.
1. Specifications
Cable Distance (Maximum) — 98.4 ft. (30 m)
at 1920 x 1200 at 60 Hz;
164 ft. (50 m) at 1280 X 1024 at 60 Hz
Connectors — Input: Local unit: (1) DVI F;
Remote unit: (1) RJ-45;
Output: Local unit: (1) RJ-45;
Remote unit: (1) DVI F
Power — (2) DC 5-V 1-A adapters (included)
Size — 1.5"H x 2"W x 2.6"D (3.8 x 5.2 x 6.7 cm)
Weight — 0.3 lb. (0.1 kg)
724-746-5500 | blackbox.com
Page 6
ACS2001A-R3
