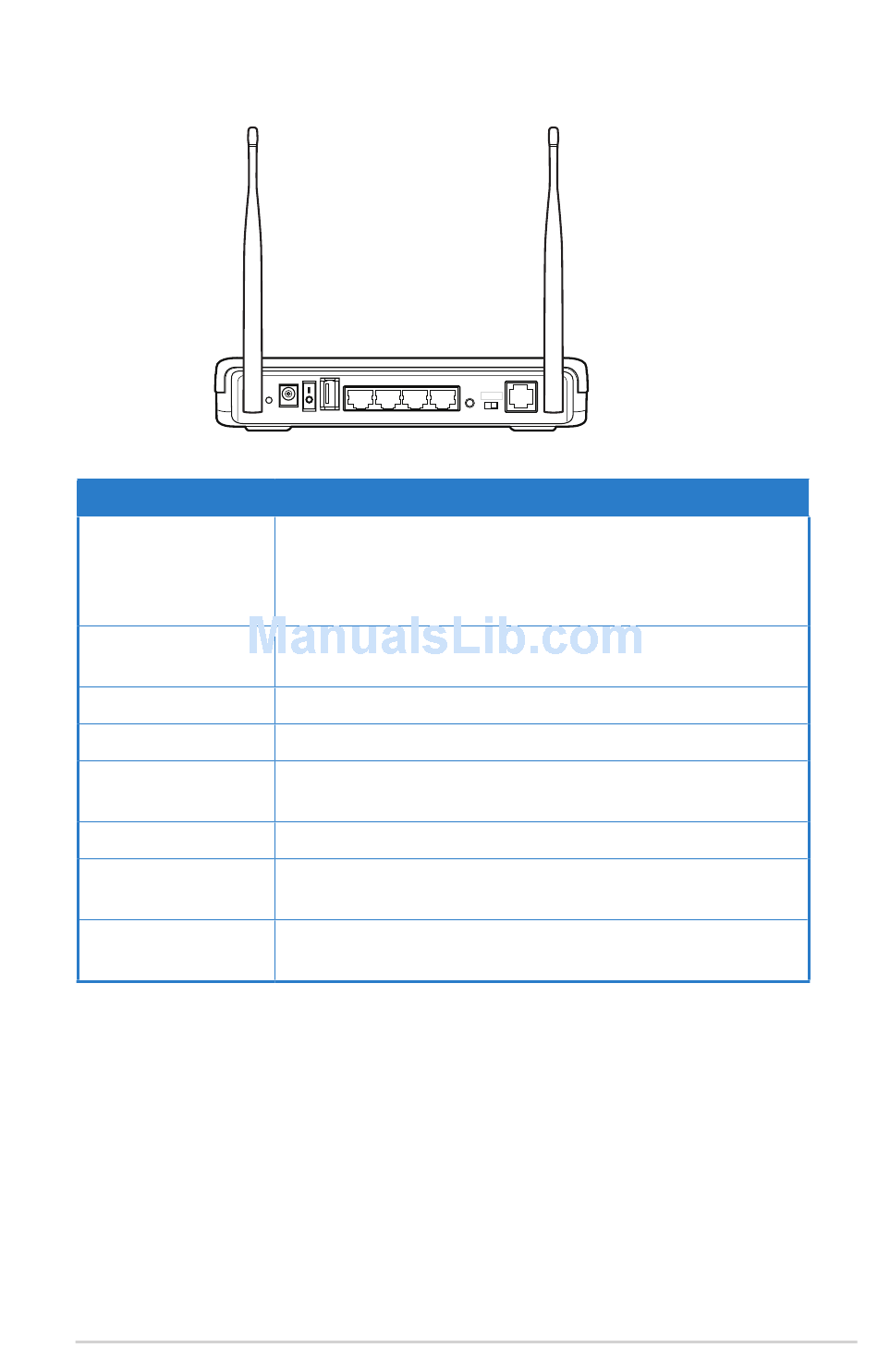

Rear panel

Label
Reset
Power
On/Off
USB
LAN1-LAN4
WPS
Wireless On/Off
switch
ADSL
Chapter 1: Knowing your wireless router
ANT
Reset
Power
On/Off
USB
LAN4
LAN3
LAN2
Press this button for more than five seconds to reset the
system to its factory default settings. If this function failed,
refer to section Firmware Restoration on page  for
details on how to restore your router to default settings.
Insert the AC adapter into this port to connect your router
to a power source.
Press this button to turn the power on/off.
Insert a USB device into this port.
Connect RJ-45 Ethernet cables to these ports to establish
LAN connection.
Press this button to launch WPS function.
Press this button to enable or disable the wireless
function.
Connect to a splitter or to a telephone outlet via an RJ-11
cable.
Wireless
On Off
LAN1
WPS
ADSL
ANT
Description
9
DSL-N1U
