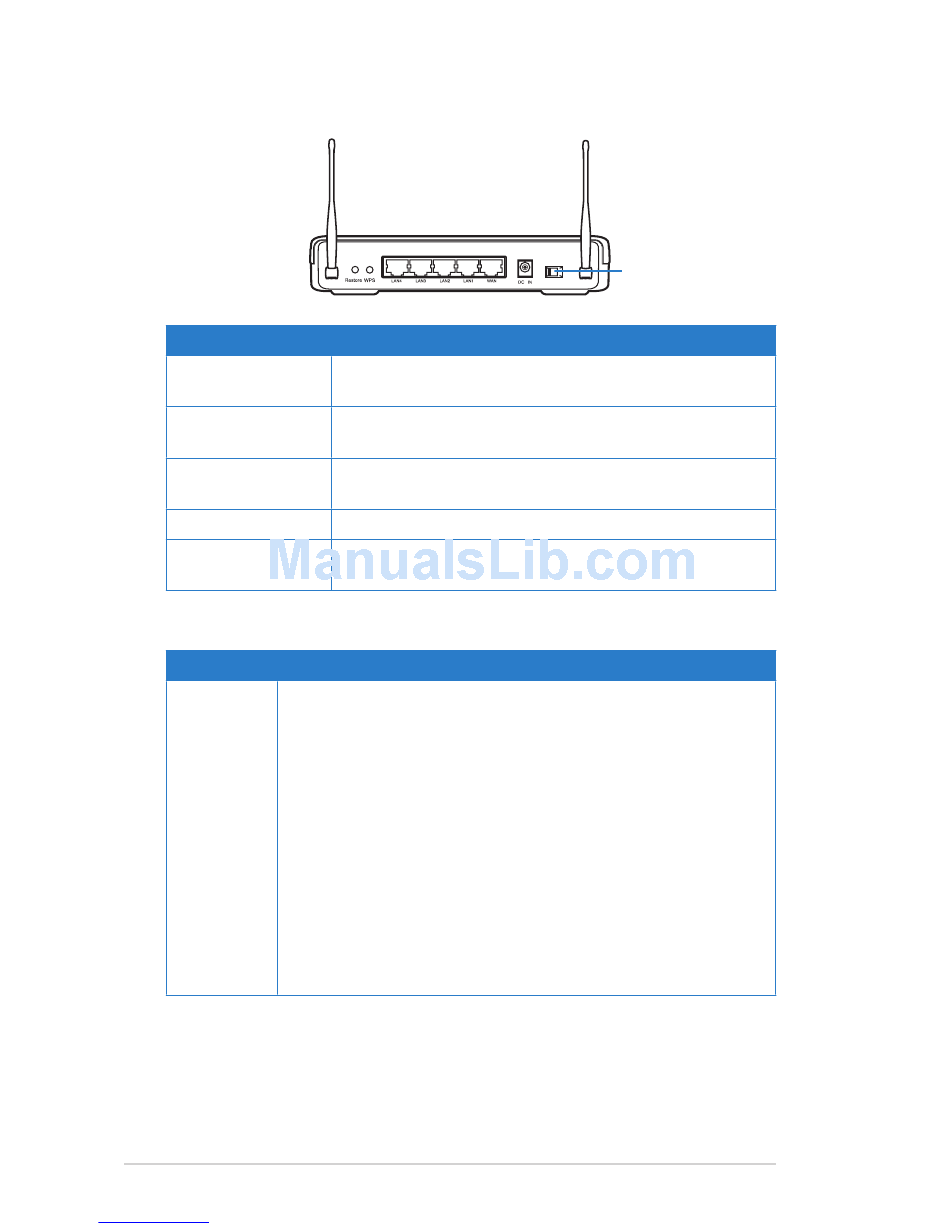

Rear panel

Operation
8
Downloaded from
www.Manualslib.com
Label
WAN
Connect an RJ-45 Ethernet cable to this port to establish
WAN connection.
LAN1-LAN4
Connect RJ-45 Ethernet cables to these ports to establish
LAN connection.
DC IN
Insert the AC adapter into this port to connect your router
to a power source.
WPS
Press this button to establish wireless connection.
Restore
Press this button for more than five seconds to restore the
system to its factory default settings.
Item
Use this selector to choose an operation mode:
Router (IP Sharing mode): In the Router mode, the wireless
router connects to the Internet via PPPoE, Automatic IP, PPTP,
LTP, or Static IP, and provides you with wireless radio signal.
The NAT, firewall, and IP sharing services for LAN clients are
enabled.
Repeater: In this mode, the wireless router extends your wireless
mode
network coverage and provides you with higher quality wireless
selector
radio signal. The NAT, firewall, and IP sharing services are
disabled.
Access Point (AP): In this mode, the wireless router receives
the WAN IP address from the router connected to the WAN port
and provides you with wireless radio signal. The NAT, firewall,
and IP sharing services are disabled.
RT-N1
manuals search engine
Operation mode
selector
Description
Description
Chapter 1: Knowing your wireless router
