• Keep the device away from transformers, heavy-duty motors, fluorescent lights,
microwave ovens, refrigerators, and other industrial equipment to prevent
signal loss.
• Install the device in a central area to provide ideal coverage for all wireless
mobile devices.
• Install the device at least 0cm from a person to ensure that the product is
operated in accordance with the RF Guidelines for Human Exposure adopted
by the Federal Communications Commission.

Hardware features

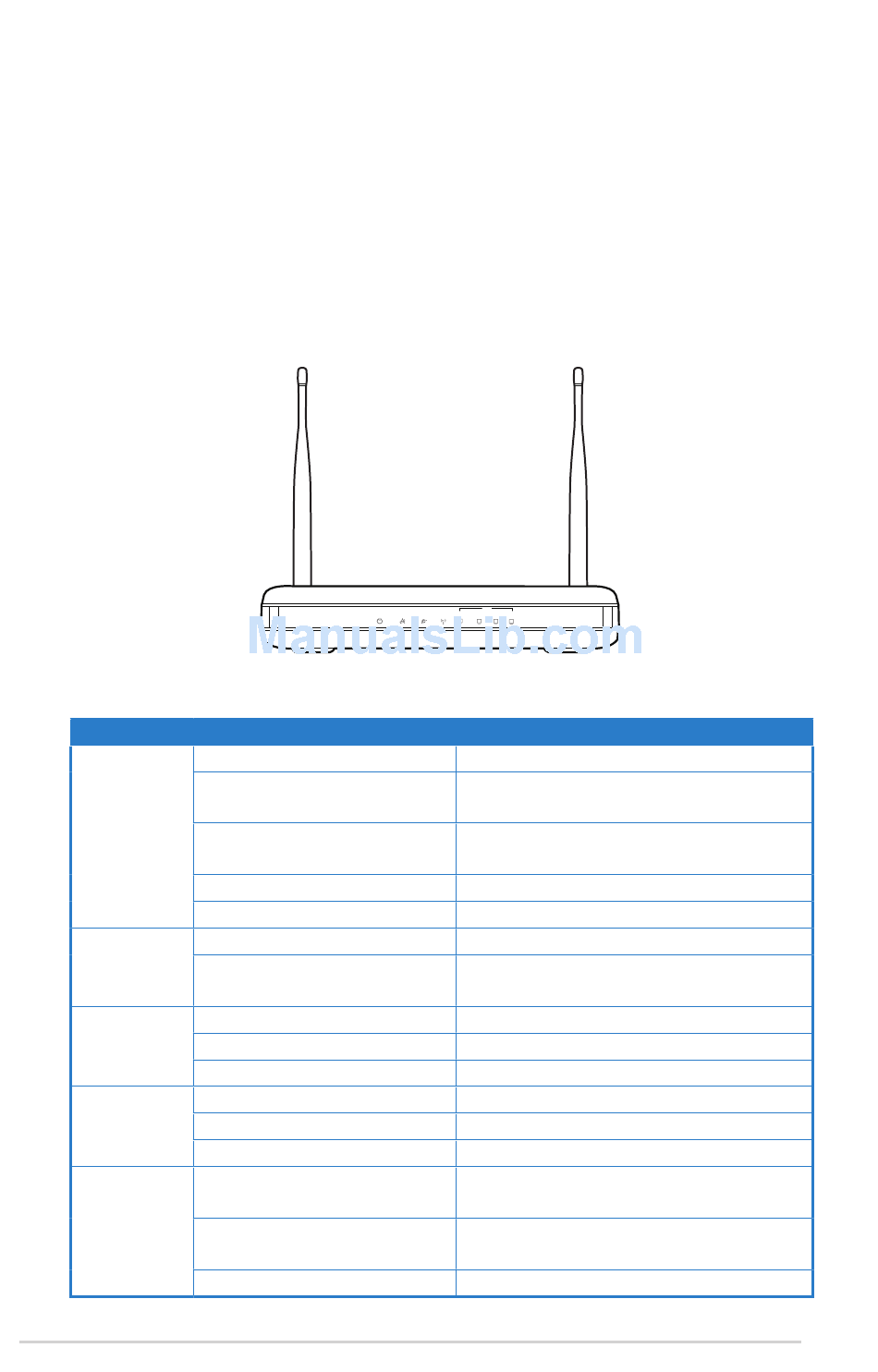

Front panel

Status indicators
LED
Power
ADSL
Internet
Wireless
LAN1~LAN4
8
DSL-N1U
DSL-N12U
300M Wireless ADSL Modem Router
Status
Solid light
Flashing fast (once per
second)
Flashing very fast (three
times per second)
Normal flashing
Off
Solid light
Flashing
Solid light
Flashing
Off
Solid light
Flashing
Off
Solid light
Flashing
Off
LAN
POWER ADSL Internet Wireless
1 2 3 4
Indication
Power on
Reset mode
Launching WPS function
Rescue mode
Power off / Failure
ADSL link is established.
No ADSL link, or unable to establish
ADSL link
Internet connection is established.
Transmitting or receiving data
Internet connection is failed.
Wireless is enabled.
Establishing WLAN connection
No wireless connection
Has physical connection to an Ethernet
network
Transmitting or receiving data (through
Ethernet cable)
No power or no physical connection
