3. From the main page, click the navigation menu or links to configure the various
features of the ASUS Wireless ADSL Router.

Using the Network Map

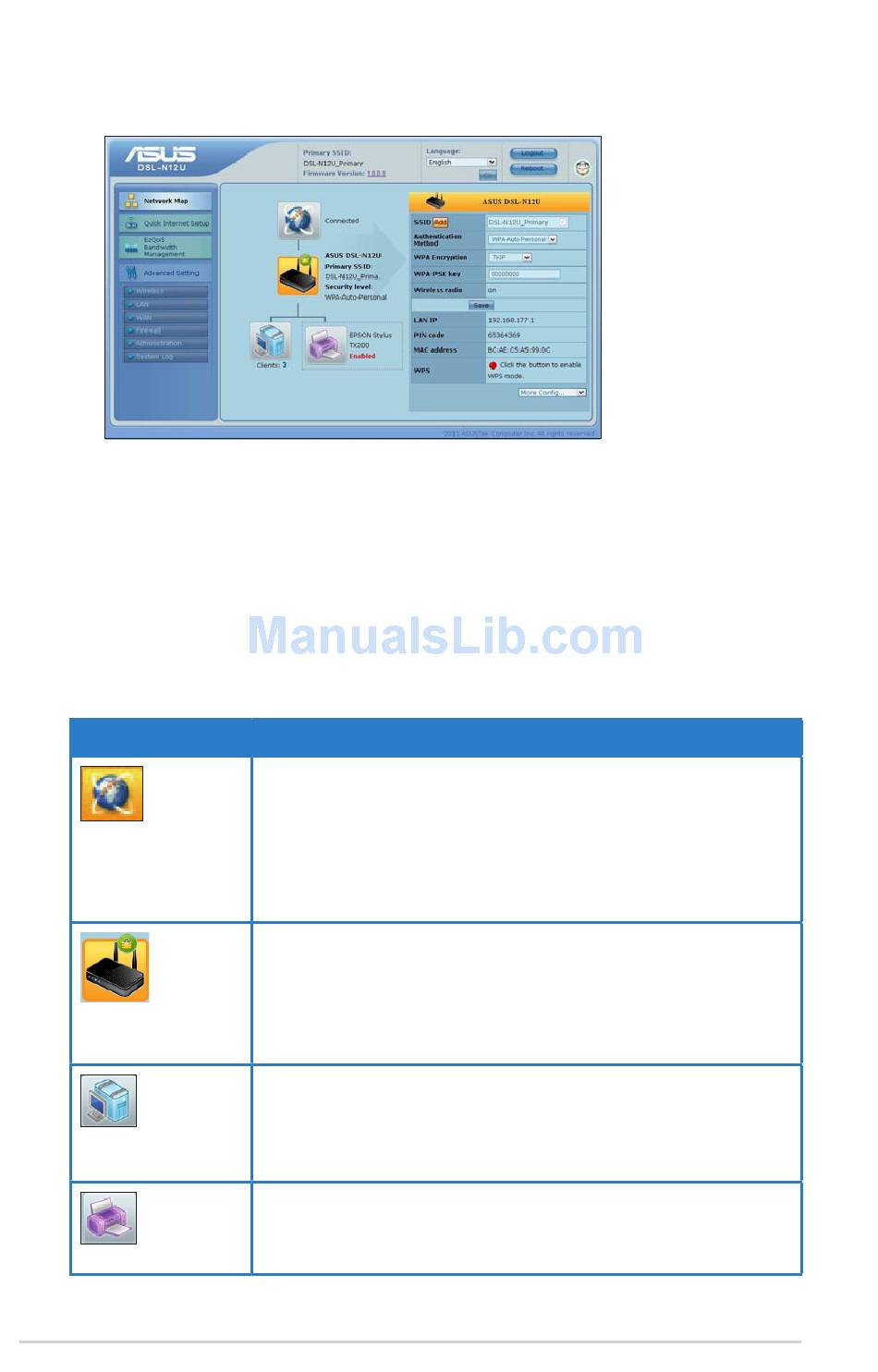

Network Map allows you to view the status and configure the connection settings
of the Internet, system, and clients in your network. It enables you to quickly set up
your Wide Area Network (WAN) using the Quick Internet Setup (QIS) feature.
To view the status or configure the settings, click any of these icons displayed on
the main page:
Icon
4
DSL-N12U
Description
Internet status
Click this icon to display information on the Internet
connection status, WAN IP address, DNS, connection type,
and gateway address. From the Internet status screen, use
the Quick Internet Setup (QIS) feature to quickly set up your
WAN.
System status
Click this icon to display information on the SSID,
authentication and encryption methods, LAN IP, or MAC
address. Enable the WPS mode from the System status
screen.
Client status
Click this icon to display information about the clients or
computers in the network, and allows you to block/unblock
a client.
USB printer status
Click this icon to display information about the USB printer
connected to the modem router.
Chapter 4: Configuring via the web GUI
