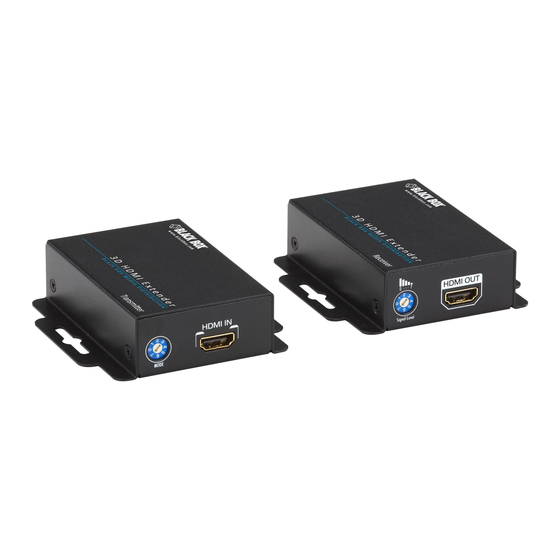

3D HDMI Extender
Boost your video/audio transmission distance
up to 200 feet (60 m) in HDTV 1080i,
130 feet (40 m) in HDTV 1080p, or 65 feet
(20 m) in HDTV 1080p with 36-bit color depth.
Customer
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
Support
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
Information
a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
VX-HDMI-TP-3D40M
BLACK BOX
®
Advertisement
Table of Contents
Related Manuals for Black Box VX-HDMI-TP-3D40M
Summary of Contents for Black Box VX-HDMI-TP-3D40M
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. Support call 724-746-5500) • FREE technical support 24 hours a day, 7 days Information a week: Call 724-746-5500 or fax 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com... -
Page 2: Trademarks Used In This Manual
Trademarks Used in this Manual Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 3: Instrucciones De Seguridad
FCC and IC RFI Statements/NOM Statement FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such... - Page 4 NOM Statement 5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo, cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc. 6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por el fabricante.
- Page 5 NOM Statement 18. Servicio por personal calificado deberá ser provisto cuando: A: El cable de poder o el contacto ha sido dañado; u B: Objectos han caído o líquido ha sido derramado dentro del aparato; o C: El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño;...
-
Page 6: Safety Instructions
Safety Instructions Safety Instructions The 3D HDMI Extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the extender should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 7: Table Of Contents
Table of Contents Table of Contents 1. Specifications ....................8 2. Overview ....................9 Introduction ..................9 Features ....................9 What’s Included ................10 Hardware Description ...............10 2.4.1 Transmitter ................10 2.4.2 Receiver .................13 Typical Configuration................15 3. Hardware Installation .................16 4. EDID Learning .....................17 5. Performance Notes ..................18 Appendix. -
Page 8: Specifications
Chapter 1: Specifications 1. Specifications Audio Support — Surround sound (up to 7.1 ch) or stereo digital audio Compliance — HDMI Deep Color and full 3D, HDCP, HDMI 1.3a Equalization — 8-level digital control at RX ESD Protection — (1) human body model: ±19 kV (air-gap discharge) and ±12 kV (contact discharge);... -
Page 9: Overview
Chapter 2: Overview 2. Overview 2.1 Introduction The 3D HDMI Extender boosts your video/audio transmission distance up to 200 feet (60 meters) in HDTV 1080i format, 130 feet (40 m) in HDTV 1080p format, and 65 feet (20 m) in HDTV 1080p with 36-bit color depth. The extender also supports the most advanced 3D video format compliant with the HDMI 1.3a specification and therefore guarantees the highest 3D video compatibility on the market. -
Page 10: What's Included
Any keystone jack along the transmission path will decrease the transmission performance significantly. 2.3 What’s Included Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (1) Transmitter • (1) Receiver •... - Page 11 Chapter 2: Overview Figure 2-2. Transmitter back panel. Table 2-1. Transmitter components. Number Component Description EDID mode switch See Table 2-2. Connects to an HDMI source with HDMI in connector an HDMI male-male cable. Connects to a 5-VDC power +5 VDC power connector supply.
- Page 12 Chapter 2: Overview Table 2-2. EDID mode switch options. Number Video Audio [Video]—2D/Full-HD 24-bit [Audio]—up to 7.1 ch 1080p@60 surround sound [Video]— 2D/Full-HD 24-bit [Audio]—up to 2.0 ch 1080p@60 surround sound [Video]—2D/Full-HD 36-bit [Audio]—up to 7.1 ch 1080p@60 surround sound [Video]—2D/Full-HD 36-bit [Audio]—up to 2.0 ch 1080p@60...
-
Page 13: Receiver
Chapter 2: Overview 2.4.2 Receiver Figures 2-3 and 2-4 show the receiver’s front and back panels. Table 2-2 describes its components. Figure 2-3. Receiver front panel. Figure 2-4. Receiver back panel. 724-746-5500 | blackbox.com Page 13... - Page 14 Chapter 2: Overview Table 2-2. Receiver components. Number Component Description +5-VDC power Connects to a 5-VDC power connector supply unit. RJ-45 connector: Plug in a CAT5/5e/6 cable that will HDMI signal in link to the transmitter. Adjusts the 8-level signal equalization control to the received HDMI signals.
-
Page 15: Typical Configuration
Chapter 2: Overview 2.5 Typical Configuration HDMI cable VX-HDMI-TP-3D40M Transmitter CATx cable CATx cable VX-HDMI-TP-3D40M Receiver HDMI cable Figure 2-3. Connection diagram. 724-746-5500 | blackbox.com Page 15... -
Page 16: Hardware Installation
Chapter 3: Hardware Installation 3. Hardware Installation 1. Connect an HDMI or DVI source (such as a Blu-ray disc player) to the transmitter. 2. Connect an HDMI or DVI display (such as an LCD TV) to the receiver. 3. Connect a CAT5/5e/6 cable between the transmitter and the receiver. 4. -
Page 17: Edid Learning
Chapter 4: EDID Learning 4. EDID Learning 1. Power off the transmitter and disconnect the CAT5/5e/6 cable between the transmitter and the receiver. 2. Using an HDMI cable, connect the HDMI display to the “HDMI IN” connector on the transmitter. 3. -
Page 18: Performance Notes
Chapter 5: Performance Notes 5. Performance Notes 1. When you adjust the signal level on the receiver, dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriately setting the signal level might damage the extender. - Page 19 Chapter 5: Performance Notes Table 5-1. HDMI performance guide. Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Unshielded (UTP) **** ***** Solid Shielded (STP) **** Unshielded (UTP) Stranded Shielded (STP) Termination Always use EIA/TIA-568B termination. NOTE: The number of asterisks in Table 5-1 indicates the performance quality (more asterisks = better performance).
-
Page 20: Appendix. Pin Definitions
Appendix A: Pin Definitions Appendix. Pin Definitions A.1 HDMI Figure A-1. Type A HDMI receptacle. Table A-1. HDMI female connector pinning. Number Signal Number Signal Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock- Pin 3 TMDS Data2-... -
Page 21: Cat5 (Rj-45)
Appendix A: Pin Definitions A.2 CAT5 (RJ-45) Figure A-2. RJ-45 jack. Table A-2. Data link TIA/EIA-568-B. Number Color Function Pin 1 White-Orange TX0- Pin 2 Orange TX0+ Pin 3 White-Green TX1- Pin 4 Blue TX2- Pin 5 White-Blue TX2+ Pin 6 Green TX1+ Pin 7... - Page 22 NOTES 724-746-5500 | blackbox.com Page 22...
- Page 23 NOTES 724-746-5500 | blackbox.com Page 23...
- Page 24 Great tech support is just 30 seconds away at 724-746-5500 or blackbox.com. About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
