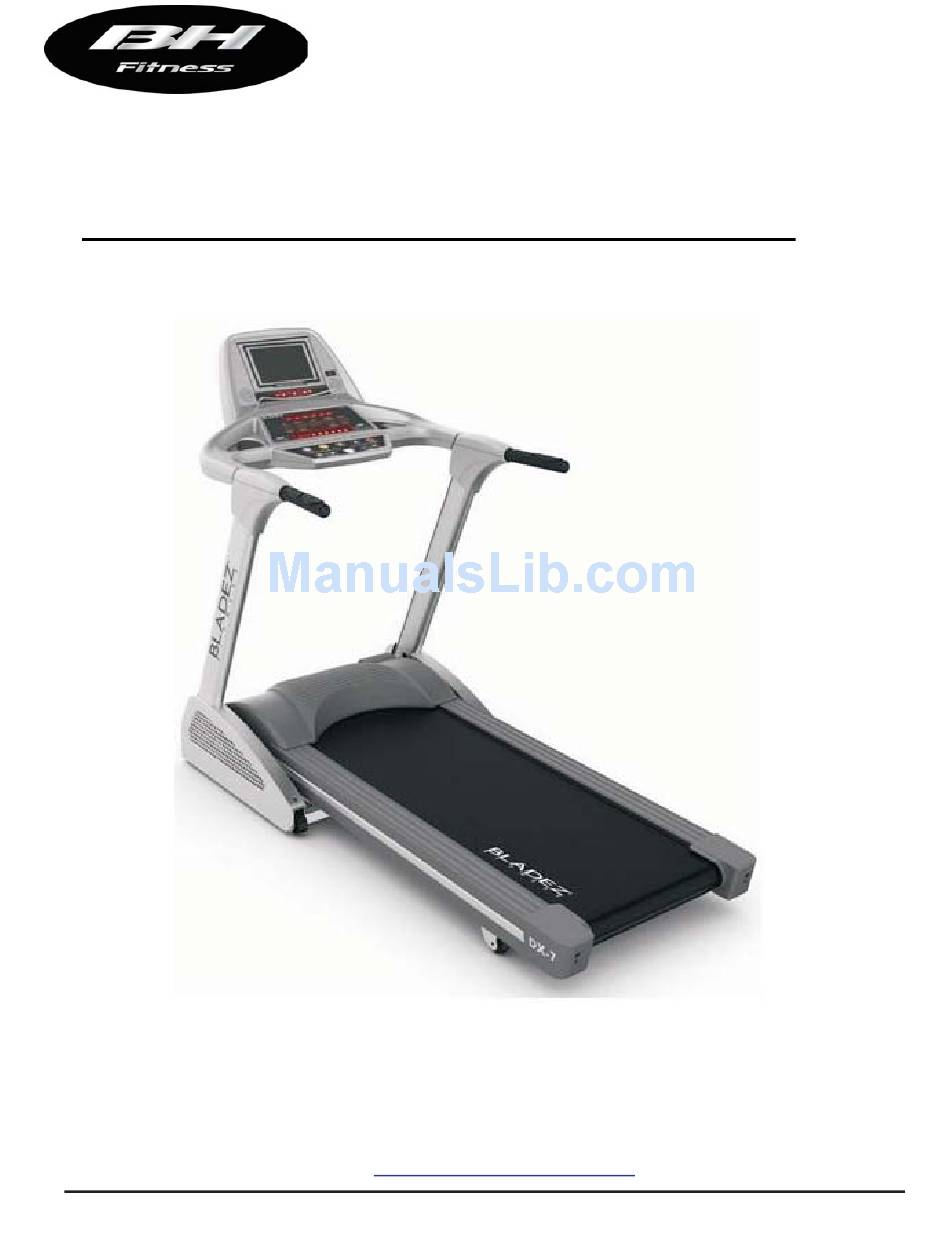

- Page 1 Treadmill Owner’s Manual Bladez DX7T-ME BH North America Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949-206-0330 Fax: 949-206-0013 Email: f itness@bhnorthamerica.com...
- Page 2 INTRODUCTION: ongratulations for selecting BH as your primary source of fitness. BH treadmills offer many exercise programs that benefit users of all levels and ages. Your new treadmill is designed to make your workouts more effective and enjoyable. Please read this entire manual carefully before using your treadmill.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Section 1. IMPORTANT SAFETY INSTRUCTIONS ............3 2. ASSEMBLY INSTRUCTIONS............... 5 3. GETTING STARTED ..................10 4. WORKOUT PROGRAM DETAILS..............14 5. USING YOUR LCD DISPLAY ...............18 6. PROGRAM PROFILES ................20 7. PREVENTIVE MAINTENANCE..............22 8. TROUBLESHOOTING .................23 9. WARRANTY ....................25 BH North America •... -
Page 4: Important Safety Instructions
SECTION 1 IMPORTANT SAFETY INSTRUCTIONS Read all instructions before using the treadmill. Notice: Before using this or any other exercise equipment consult your family physician or health care professional to develop a well planned exercise program to fit your health needs. - Page 5 IMPORTANT SAFETY INSTRUCTIONS CONTINUED GROUNDING INSTRUCTIONS This product must be grounded. If it malfunctions or breaks down, grounding provides a path of least resistance for electric currents, to reduce the risk of electric shock. This product is equipped with a cord that has an equipment- grounding conductor and a grounding plug.
-
Page 6: Assembly Instructions
SECTION 2 ASSEMBLY INSTRUCTIONS ITEM Description Computer Console Frame Upright (L) Upright(R) Decorative Cover (L) Decorative Cover(R) Handrail (L) Handrail (R) Handrail Cover (L) Handrail Cover(R) Bottle BH North America • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bhnorthamerica.com •... - Page 7 ASSEMBLY INSTRUCTIONS CONTINUED ITEM Description Screw M5x0.8x15 Self Tapping Screw ψ5x25 Allen Bolt ψ13 M8xP1.25x60 Allen Bolt M8xP1.25x1 5 Allen Wrench 5mm Allen Wrench 6mm Safety Key/Clip SILICON Power Cord TV Remote Controller MP3 Sound Wire Magazine Shelf BH North America • 20155 Ellipse • Foothill Ranch •...
- Page 8 ASSEMBLY INSTRUCTIONS CONTINUED A minimum of two people are required to assemble this treadmill. Also, READ and understand ALL INSTRUCTIONS thoroughly BEFORE ASSEMBLING the treadmill. 1. Pull out the Control Wire with the Guide Thread in the right Upright. Insert the Control Wire into the hole on the side of the right Upright.
- Page 9 ASSEMBLY INSTRUCTIONS CONTINUED 3. Connect the cables for the Pulse Sensors, Elevation Speed Switches in the Handrails to the cables from the Computer Shelf. Insert the Handrails (G, H) into the frame in the direction shown in drawing. 4. Place the Computer Shelf on the assembled frame.
- Page 10 ASSEMBLY INSTRUCTIONS CONTINUED 5. After the above is done, attach the Handrail Cover Computer Shelf and tighten with Self Tapping Screw (b), then assemble the Magazine Shelf (p) in the direction shown in the drawing. Note: When you tighten the screws, make sure not to damage the control wire in the tube.
-
Page 11: Getting Started
SECTION 3 GETTING STARTED FOLDING: To fold your treadmill into the upright position, first be sure to set the elevation to 0 % incline. The treadmill will not lock into the upright position if the treadmill is not at 0 % incline. - Page 12 GETTING STARTED CONTINUED SAFETY KEY & CLIP Your Bladez treadmill is equipped with a safety key that will disable the treadmill if it is not in place. You should attach the clip end to your clothing. The magnet end goes into the recess of the console.
- Page 13 GETTING STARTED CONTINUED BEFORE STARTING Do not stand on the walking belt while starting or stopping the treadmill. Straddle the running belt and stand on the side rails. TV-OSD Start Display: 1. After you start the treadmill, the window will display weight unit KGS/LBS: Metric unit KGS pre-set value is 70.
- Page 14 GETTING STARTED CONTINUED ** The table below shows the relationship between the optimum amount of running under different age and heart rate: OVER MIDDLE (A g e) Operation instructions: 1. In START/READY mode, press” ”, the system enters and starts Manual run. 2.
-
Page 15: Workout Program Details
SECTION 4 WORKOUT PROGRAM DETAILS MODE Operation Instructions (This mode includes MANUAL and 6 pre-set PROGRAMS): 6. MANUAL: In this mode you can set the time and distance freely, the operation method is shown below: 6.1. Press, ” ”, and you will see the MANUAL LED light blinking. Press ” ”... - Page 16 WORKOUT PROGRAM DETAILS CONTINUED 3. HILL CLIMB (P2): When choosing this mode, the program will ask you to enter the following values: Time: pre-set 30min: Range 20~99min: step 1min. After setting up correct value, press ” ”to set next value. The window will show the program drawing, and the windows of speed and elevation will show the max range of speed and elevation in this program.
- Page 17 WORKOUT PROGRAM DETAILS CONTINUED speed led window will be flashing. Press INCLINE ” ” to select the speed. Press ” ”, the incline led window will be flashing. Press INCLINE ” ” to select the elevation. After finishing the setting, press ” ”or ”...
- Page 18 WORKOUT PROGRAM DETAILS CONTINUED U1. U2. U3. U4. U5. SAVE Buttons Instructions: 1. U1~U5 are used for setting individual in formation. The setting content includes the values of BODY FAT. 2. Turn on the treadmill, select one of U1~U 5 to set age, height, sex, weigh. After setting, press”...
-
Page 19: Using Your Lcd Display
SECTION 5 USING YOUR LCD DISPLAY LCD TV USER’S MANUAL: 1. Function Keys: KEY ITEM FUNCTION DESCRIPTION TV/AV/MP3 TV FUNCTION KEY: Press the key to shift between TV/ AV/MP3. DATA To switch the treadmill data display. MODE MENU system setting 1. - Page 20 USING YOUR LCD DISPLAY CONTINUED 3. Keys and descriptions of Remote Control This treadmill is built with MP3 and Walkman playback features. The MP3 player or Walkman player should be connected with the enclosed cable. Press the AV/TV/MP3 button on the Computer Console or Remote to select the MP3 playback mode to start the function.
-
Page 21: Program Profiles
SECTION 6 PROGRAM PROFILES BH North America • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bhnorthamerica.com • Phone 949-206-0330 • Fax 949-206-0013... - Page 22 PROGRAM PROFILES CONTINUED BH North America • 20155 Ellipse • Foothill Ranch • CA • 92610 www.bhnorthamerica.com • Phone 949-206-0330 • Fax 949-206-0013...
-
Page 23: Preventive Maintenance
SECTION 7 PREVENTIVE MAINTENANCE The running belt can shift to one side or simply ‘skid over’ when running. To center the belt using the 6mm Allen wrench, run the machine at 3mph for a few minutes to determine which side the belt is drifting towards; left or right. -
Page 24: Troubleshooting
SECTION 8 TROUBLESHOOTING ERROR MESSAGE PROBABLE CAUSES SOLUTION - Loss of Speed Signal Bad sensor, air gap too far Check Sensor Connection Gap & magnet - Running Deck Running Deck not Check Deck lubricated Speed Sensor misaligned Check Sensor position - Main cable connection Damaged, not connected loosen or re-adjust... - Page 25 TROUBLESHOOTING CONTINUED ERROR MESSAGE PROBABLE CAUSES SOLUTION Elevation Motor out of Check Zero Position of E- Range Motor Bad controller Replace controller - Elevation Motor Elevation Motor out of Replace Elevation Motor Range - Display Doesn’t Light On/Off switch Check if unit is turned on Replace fuse Fuse for elevation motor BH North America •...
-
Page 26: Warranty
LABOR – 1 Year BH Fitness shall cover the labor cost for the repair of the device for a period of One year from the date of original purchase, so long as the device remains in the possession of the original owner.
