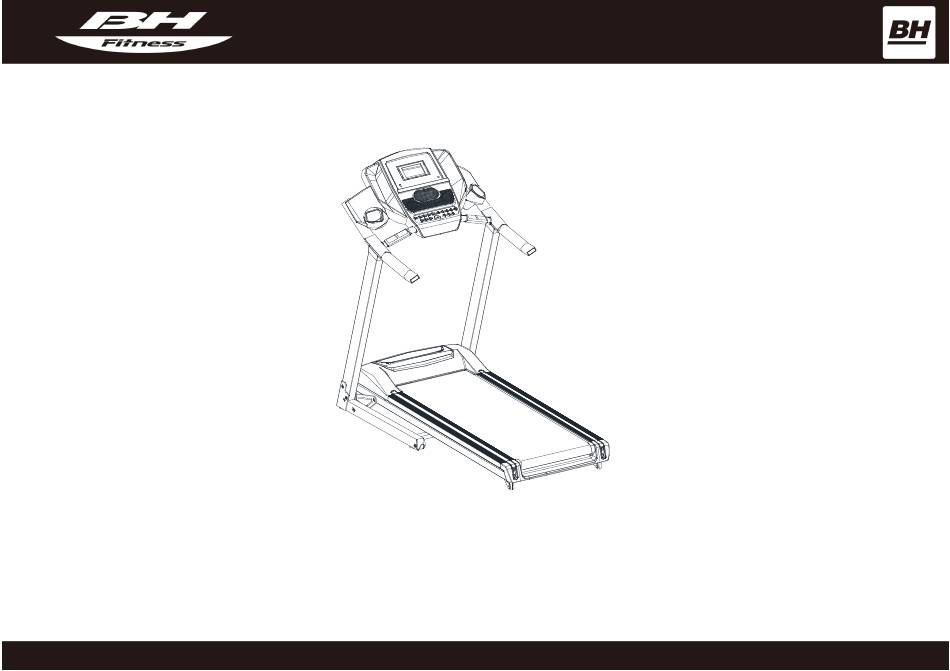

  • Page 1 BH TREADMILL BT6380 Vector MANUAL...

  • Page 2: Assembly Diagram

    Treadmill Vector BT6380 1. Assembly Diagram Console Handle bar Up-right post Motor cover Side rail Running belt End Caps Remark: Our company retain the priority of revision not to advise in AC-220V / 50Hz Voltage advance. 1 1 0 K g Max weight...

  • Page 3: Implied Warranty

    Treadmill Vector BT6380 2. Implied Warranty The importer of this machine assures that this device was manufactured from high quality materials. Prerequisite for the implied warranty is the proper setup in accordance with the operating instructions. Improper use and /or incorrect transportation can render the warranty void.
  • Page 4 Treadmill Vector BT6380 General safety instructions A great deal of emphasis was placed on safety in the design and manufacture of this fitness device. Still, it is very important that you strictly adhere to the following safety instructions. We cannot be held liable for accidents that were caused due to disregard. To ensure your safety and to avoid accidents, please read through the operating instructions thoroughly and attentively before you use the sports device for the first time.

  • Page 5: Setting Up Your Treadmill

    Treadmill Vector BT6380 the device and keep a free space of at least 0.5 m around the device for safety reasons. 10) Take care not to put your arms and legs near moving parts. Do not place any material in openings in the device. 11) Use the device only for the purposes described in these operating instructions.

  • Page 6: Placement In Your Home

    Treadmill Vector BT6380 PLACEMENT IN YOUR HOME To make exercise a desirable daily activity for you, the treadmill should be placed in a comfortable and convenient setting. This treadmill is designed to use minimal floor space and to go nicely in your home. Do not place the treadmill outdoors.

  • Page 7: Safety Tether Key And Clip

    Treadmill Vector BT6380 GETTING STARTED TURN POWER ON The On/Off switch for the treadmill is located next to the power supply cord at the back of the motor cover. Flip this switch to the “ON” position. SAFETY TETHER KEY AND CLIP The safety key is designed to cut the main power to the treadmill should your fall.
  • Page 8 Treadmill Vector BT6380 Assembly ●Before starting with the assembly of this fitness device, carefully read through the set up steps as of page 7 We also recommend that you view the assembly drawing prior to assembly . ● Remove all packaging material and place the individual parts on a free surface. This will provide you with an overview and will simplify assembly.

  • Page 9: Exploded View

    Treadmill Vector BT6380 3. Exploded view...

  • Page 10: Part List

    Treadmill Vector BT6380 4. Part list Description Q'TY Description Q'TY Description Q'TY BASE FRAME PHILIPS C.K.S. FULL THREAD SCREW M5*10 MOTOR CUSHION MAIN FRAME PHILIPS C.K.S SELF-TAPPING SCREW ST4*16 SQUARE CUSHION 20×40×T8.0 INCLINE FRAME PHILIPS SOCKET SELF-TAPPING SCREW ST4*15 WIRE PROTECTOR STAND POST L PHILIPS C.K.S SELF-TAPPING SCREW ST5.5*15 ROUND SIDE RAIL GUIDER...
  • Page 11 Treadmill Vector BT6380 Description Q'TY Description Q'TY INCLINE MOTOR SILICON BOTTLE RUNNING DECK INNER HEX BOLT M8X30 FRONT ROLLER REAR ROLLER CYLINDER MOTOR BELT RUNNING BELT CHOKE D36×D22×15 WIRE (1) L-1100 WIRE (2) L-800 WIRE (3) L-500 IPAD HOLDER BOTTLE HANDLE PULSE UPPER HANDLE BAR COVER LEFT LOWER HANDLE BAR COVER LEFT...
  • Page 12 Treadmill Vector BT6380 Main Part SCREW M8*55*20 * 2pcs SILICION BOTTLE Main body SCREW M8*15 *4pcs SAFETY KEY MP3 wire（Optional） T SHAPE WRETCH L SHAPE WRETCH...
  • Page 13 Treadmill Vector BT6380 5. Assembly Instructions Step 1 ： T ake the machine from the package （ L eft hand carry thebase frame, right hand carry the main frame ） ， p ut on the floor 。 Step 3: Put up the handle bar , let the console frame fit into the stand post.
  • Page 14 Treadmill Vector BT6380 Ipad holder installation step（Optional） Insert the Ipad holder into the holes on the panel(As below photo shown) Anti-slip pad Instruction(option) Please stick the anti-slip pad onto the side rail to avoid accidents such as slipping. Anti-slip pad Instructions: Stick and flatten the anti-slip pad onto the side real to ensure it firmly stick without falling off.
  • Page 15 Treadmill Vector BT6380 6.Computer Operation Instruction INSTANT INCLINE INSTANT SPEED SPEED +/– INCLINE +/– PROGRAM MODE START STOP...
  • Page 16 Treadmill Vector BT6380 Window and key-press instruction ： LCD Display window ： Time, Distance, Calories, Pulse, Speed, Incline data, f unction key P rogram, Mode, start, stop, Speed(+/-), Incline(+/-),Speed instant key 6 1 0 KM/H, E CO; Incline instant key 6 ：...
  • Page 17 Treadmill Vector BT6380 ： S tart instruction: ： P ut the safety key in the correct place, the time window will show 0:00. ： P ress Start / Stop key, the window show 3 － － 1 , then the motor start to run. Manual Mode ：...
  • Page 18 Treadmill Vector BT6380 ⑧ : When the setting time is decreased to Zero ,the speed will slowly until stopped, and the treadmill will alarm for 10 times ,the window will display the END. Then press the “Program” and “Start “ key ,the speed will be increased to the first section. ⑨...
  • Page 19 Treadmill Vector BT6380 adjust the speed according to age (setting range: (10-99 years) 5Press mode key, the distance window display: F3, said into the set height, calories window 170 (cm), by speed plus or minus button to adjust the height (setting range: (100-200 cm). 6: Press mode key, the distance window display: F4, said into the set weight, calories window 70 (kg), by speed plus or minus button to adjust the weight (setting range: (20-150 kg).
  • Page 20 Treadmill Vector BT6380 Fan function instruction(For option) 1.Press the fan key, the fan will start. Press again. The fan will stop. 2.When the fan is running, take out the safety key, the fan will keep running. And then put on the safety key, the fan will stop. 3.When the fan is running, press the stop key, the fan will stop.
  • Page 21 Treadmill Vector BT6380 Program Table speed incline speed incline speed incline speed incline speed incline speed incline STEP1 STEP2 STEP3 STEP4 12.0 STEP5 10.0 12.0 12.0 STEP6 10.0 12.0 12.0 STEP7 12.0 STEP8 12.0 12.0 STEP9 10.0 STEP10 10.0 STEP11 12.0 12.0 12.0...
  • Page 22 Treadmill Vector BT6380 speed incline speed incline speed incline speed incline speed incline speed incline STEP1 STEP2 STEP3 STEP4 10.0 10.0 STEP5 STEP6 STEP7 10.0 STEP8 12.0 10.0 10.0 11.0 STEP9 12.0 11.0 10.0 STEP10 12.0 12.0 STEP11 10.0 STEP12 10.0 STEP13 STEP14...

  • Page 23: Unfolding The Treadmill

    Treadmill Vector BT6380 6. Folding Up Instructions FOLDING THE TREADMILL 1. Restore incline to flat (0) position 2. Unplug from power point before folding 3. Lift deck until it's parallel to the upright post and cylinder locks into position 4. Caution: check to ensure cylinder locking device has engaged UNFOLDING THE TREADMILL Folding tube...

  • Page 24: Safety Instructions

    Treadmill Vector BT6380 Safety Instructions This product must have an earth connection. In the event that the appliance malfunctions then the earth connection will redirect the electrical current away from the machine and reduce the risk of an electrical shock. This product is supplied with a mains cable that has an earth wire and a plug with an earth pin.

  • Page 25: Adjusting The Belt

    Treadmill Vector BT6380 Hours per week <3 >7 <6 1 year 6 months 3 months Speed 6-12 6 months 3 months 2 months (km/h) >12 3 months 2 months 1 month Note: This preventive maintenance schedule is only meant for home use. In aggressive environments, with high dispersion of particles or with heavy weight people, lubrication frequency should be increased accordingly.
  • Page 26 Treadmill Vector BT6380 CENTRING THE RUNNING BELT When you run, you may push off harder with one foot than with another. The severity of the deflection depends on the amount of force4 that one foot exerts in the relation to the other. This deflection can cause the belt to move off- centre. This deflection is normal and the running belt will centre when nobody is on the running belt.

  • Page 27: General Fitness Tips

    Treadmill Vector BT6380 7. General fitness tips Start your exercise program slowly, i.e. one exercise unit every 2 days. Increase your exercise session week by week. Begin with short periods per exercise and then increase these continually. Start slowly with the exercise sessions and don’t set yourself impossible targets. In addition to these exercises, do other forms of exercise such as jogging, swimming, dancing and/or cycling.

  • Page 28: Touble Shooting

    Treadmill Vector BT6380 8. Touble Shooting Problem Possible cause Corrective action a .no connect to power supply Plug into socket b. safety switch not insert Insert safety switch in monitor Treadmill does not work c .cut off the signal circuit system Check control panel and signal cable d.

  • Page 29: Error Message And Solution

    Treadmill Vector BT6380 ： ERROR MESSAGE AND SOLUTION...
