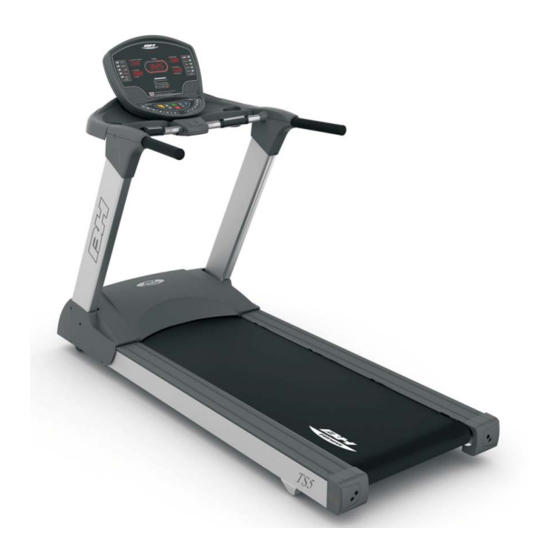

BH Fitness TS5
Treadmill Owner's Manual
BH FITNESS
20155 Ellipse, Foothill Ranch, CA 92610
Phone: 949-206-0330
Fax: 949-206-0013
Email:
fitness@bhnorthamerica.com
BH 12/6/12
Web:
www.BHFitnessUSA.com
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS5 and is the answer not in the manual?

Questions and answers

Related Manuals for BH FITNESS TS5

Summary of Contents for BH FITNESS TS5

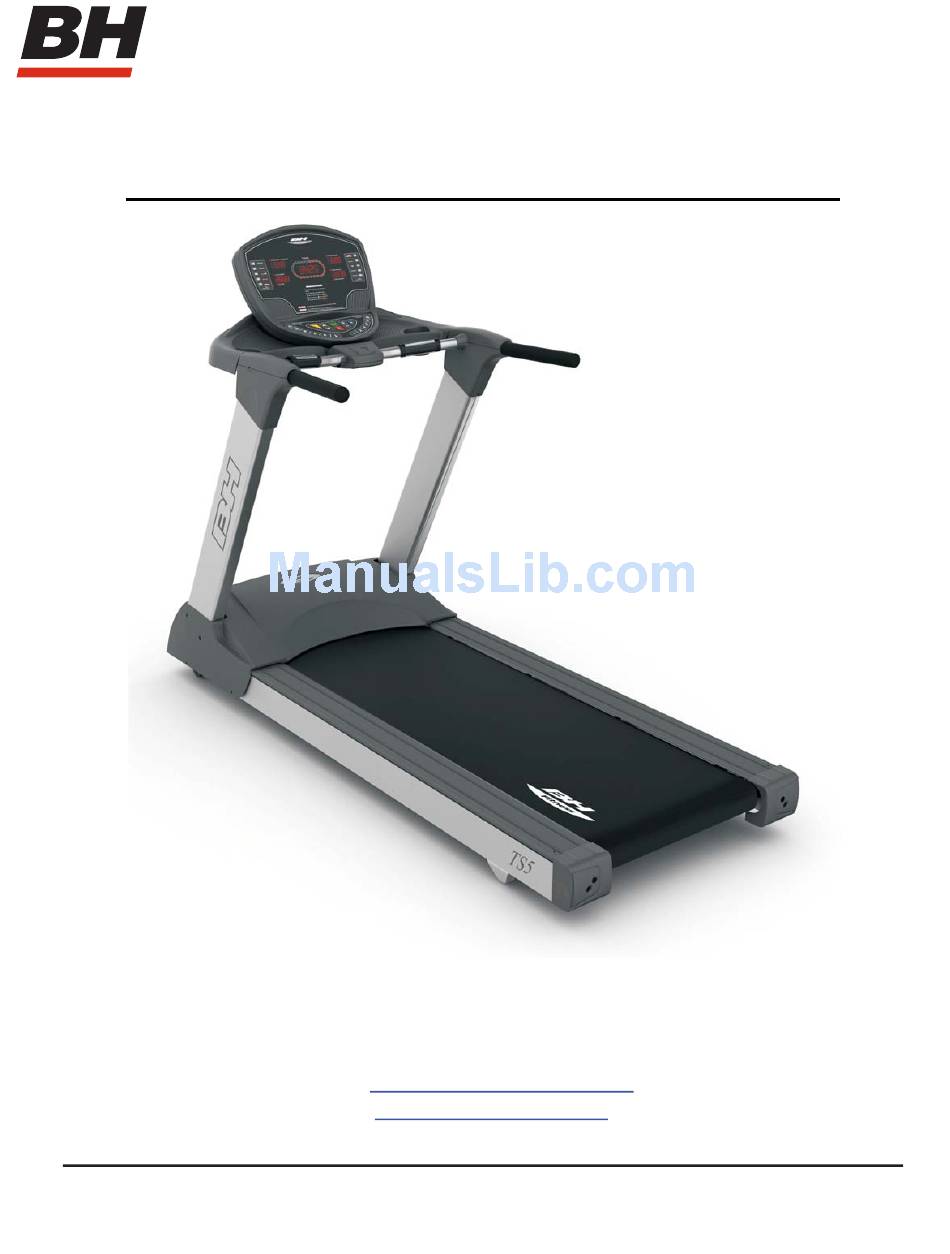

  • Page 1 Treadmill Owner’s Manual BH FITNESS 20155 Ellipse, Foothill Ranch, CA 92610 Phone: 949-206-0330 Fax: 949-206-0013 Email: fitness@bhnorthamerica.com BH 12/6/12 Web: www.BHFitnessUSA.com BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 2 Please read this entire manual carefully before using your treadmill. This will allow you to get a full understanding of all the features your BH FITNESS treadmill provides. If you have any questions or concerns, please contact BH FITNESS or any authorized BH FITNESS distributors in your area.

  • Page 3: Table Of Contents

    3. TREADMILL AND CONSOL E...............1 1 4. WORKOUT PROGRAMS ................15 5. CALCULATING YOUR TARGET HEART RATE ...........19 6. PREVENTIVE MAINTENANCE..............20 7. TROUBLESHOOTING ..................21 8. WARRANTY....................31 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 4: Important Safety Instructions

    12. Keep the electrical cord away from heated surfaces. 13. Connect this Treadmill to a properly grounded 110-120V, 15 or 20 Amp dedicated outlet only. 14. Call your service center or BH Fitness with your concerns before taking your treadmill in for repair.
  • Page 5 If it does not fit the outlet, have a proper outlet installed by a qualified electrician. GROUNDING METHODS GROUNDED GROUNDING PIN Please save these instructions BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 6: Assembly Instructions

    Left Upright Right Upright Console Welding-Base Left Handrail Cover Right Handrail Cover Left Handrail Right Handrail Cup/Bottle Holder Cover Computer cover Bottle BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 7 Bolt M6x15L Screw Ø 4x16 Allen Wrench 6mm T-Wrench Power Cord Safety Key/Clip SILICON Bolt M4xP0.7x8 Hex Wrench + Screwdriver 1.0mm BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 8 Make sure that the hole pattern of the handrails match that of the base (E) before inserting bolts and tightening. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 9 Attach the Left/Right handrail covers (F, G) and secure in place with sheet metal screws (e, i) and machine screw (h). BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 10 Interface before securing the console in place with 4 nuts (g) under the cup holder. Attach the rear console cover (K) with machine screws (o). BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 11: Moving The Treadmill

    Keep the treadmill at that angle and wheel the unit as required. SAFETY KEY & CLIP BH Fitness treadmill is equipped with a safety key that will disable the treadmill if it is not in place. User should attach the clip end to clothing.

  • Page 12: Treadmill And Consol

    ENTER – This key is used to confirm the value of the current selection. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 13 SPEED – This is how fast the treadmill moves in Miles Per Hour (MPH). DISTANCE – Total distance traveled during your workout in miles. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 14: Quick Start

    Note: For an immediate stop, pull the safety key out of the safety key recess and power to the treadmill will be interrupted abruptly; the belt will roll to a complete stop. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 15: Workout Programs

    6. Adjust Speed with the or any of the instant Speed keys 7. Adjust Incline with the or any of the instant Incline keys BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 16 7. Press ENTER to accept and press QUICKSTART to begin the program workout. 8. Speed and Incline can be changed during the workout using keys respectively. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 17 User must constantly provide heart rate or the program stops. Therefore, it is best to wear a wireless heart rate strap while exercise with this program. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www. .com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 18 12. Repeat steps above for all segments (30 segments) or stop anytime. 13. Press QUICK/START at anytime to finish data entry and begin workout BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 19: Calculating Your Target Heart Rate

    Remember to consult your family physician or health care professional to develop a well-planned exercise program to fit your health needs. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 20: Preventive Maintenance

    8 Miles or more / hr = lube every 3 months Check belt condition and if necessary adjust using the instructions above. BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 21: Troubleshooting

    Check if unit is turned on Fuse Check fuses on MCB Insufficient power source Plug unit in a dedicated 120V, 20A outlet BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 22 The outlet must not supply power to any other devices or appliances (Figure 2) BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 23: Part List

    Counter Sink Hex Screw M8xP1.25x40 51 CB00080 Running Belt 52 SIA8-35I Counter Sink Hex Screw M8xP1.25x35 53 SEA8-115-25 Allen Screw M8xP1.25x115 Thread 25mm BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 24 Exploded View Drawing TS5 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 25 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 26 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 27 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 28 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 29 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...
  • Page 30 BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610 www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013...

  • Page 31: Warranty

    For more detailed warranty information or to register your product warranty easily online, visit our website at: www.BHFitnessUSA.com FOR WARRANTY REPAIRS, PLEASE DO NOT TAKE YOUR MACHINE BACK TO THE RETAIL STORE. CONTACT BH FITNESS FIRST. BH North America Corporation 20155 Ellipse Foothill Ranch, CA 92610 Phone: 949.206.0330;...
