BH FITNESS BT6443 T200 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

BH Treadmill
BT6443 T200
OWNER'S MANUAL
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT6443 T200 and is the answer not in the manual?

Questions and answers

Atiq
January 20, 2025

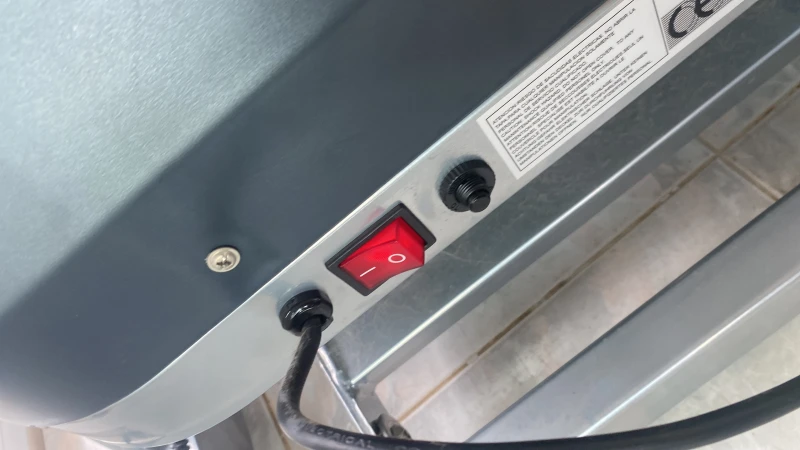

The main switch is turn on but the screen didnt lit up

User image 678e130600415
0
1 comments:
Mr. Anderson
February 4, 2025

The screen not lighting up on the BH FITNESS BT6443 T200 treadmill, despite the main switch being turned on, could be due to several reasons:

1. Power Supply Issue: Check if the power and voltage are less than 50%. Use the correct power and ensure normal voltage.

2. Connection Problem: Verify the connection line between the computer and the controller. Ensure all joints are properly connected.

3. Controller Issue: Inspect the controller for any special smell or signs of damage. If the controller is faulty, it may need to be replaced.

Address these potential issues to resolve the problem.

This answer is automatically generated

0

Related Manuals for BH FITNESS BT6443 T200

Summary of Contents for BH FITNESS BT6443 T200

  • Page 1 BH Treadmill BT6443 T200 OWNER'S MANUAL Version 1.00...

  • Page 2: Table Of Contents

    BT6443/T200 Treadmill INDEX SAFETY PRECAUTIONS ......... - 2 - SAFETY USE ATTENTION ........- 2 - GROUNDING WIRES INSTRUCTION ....- 3 - ASSEMBLY INSTRUCTION ........- 4 - FOLDING INSTRUCTION ........- 6 - GETTING START ............- 7 - WARM-UP EXERICSE ..........

  • Page 3: Safety Precautions

    BT6443/T200 Treadmill SAFETY PRECAUTIONS Warning: In order to avoid the accident, you have to pay attention to the following: When using the treadmill ,keep attaching the safety key clip to your clothes or belt; When you are exercising, PLS swing your arms naturally, straight ahead. Don’t look at your feet; Pls accelerate the speed gradually, adapt to the current speed before the acceleration ;...

  • Page 4: Grounding Wires Instruction

    BT6443/T200 Treadmill Always hold the handrails when initially walking or running on the treadmill until you are （7） comfortable with the speed. The treadmill is indoor equipment do not use outdoor. Don’t refit the treadmill. The （8） treadmill made by special equipment. Pls do not remodel or do others. （9）...

  • Page 5: Assembly Instruction

    BT6443/T200 Treadmill ASSEMBLY INSTRUCTION When you open the carton, you will find the below spare parts. 1.5#Wrench 2.6#Wrench 3.Wrench 4L/R.Front Cover 5.Treadmill（Folded） 6.Safety lock 8. Washer Bolt M8*20 6pcs 10pcs ∮8.4*∮14.5*t0.8 9.Bolt M4*8 4pcs 10. Silicone Oil 11.MP3 Line 12.B M8*35 4pcs Install...
  • Page 6 BT6443/T200 Treadmill Step 3. Secure the computer tightly onto the upright(13L/R) with the bolt(7) M8*20 and the washer(8)Ø8.4*Ø14.5*t0.8. Step 4. Install the front cover onto the upright(13L/R) with the bolt(9) M4*8 Then put the safety lock (6)and MP3 Line onto the right place according to the diragram.

  • Page 7: Folding Instruction

    BT6443/T200 Treadmill FOLDING INSTRUCTION Support the end of the treadmill with hand, then pull it up towards the arrow direction, untill hearing the sound”ka” that the cylinder is locked into the round tube. Support the end of treadmill with hand , kick the place as arrow showing of air pressure bar, then the base frame will fall down automatically.

  • Page 8: Getting Start

    BT6443/T200 Treadmill GETTING START PREPARE： If you are around 45 years old, or have health problem, or this is your first time to do exercise, please consult doctor or professional before use it. 入 门 指 南 Before use the motorized treadmill, please stand on the side to learn the operation, such as start, stop and speed adjustment.

  • Page 9: Warm-Up Exericse

    BT6443/T200 Treadmill WARM-UP EXERICSE It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 minutes to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time. After running, do those stretch exercises one more time.

  • Page 10: Operation Instruction

    BT6443/T200 Treadmill OPERATION INSTRUCTION 1、LCD DISPLAY A. SPEED WINDOW： In setstate, display “P01,P02-------P12-U1-U2-U3-FAT”;In running, display the speed date; the speed display range :1.0-14.0KM/H. B. TIME WINDOW： Display the time, when it in manual mode ,is the timing from 0:00-99.:59,when time to 99:59,treadmill speed smooth slow down to stop and the speed window display”End”,5second full stop into standby mode;...
  • Page 11 BT6443/T200 Treadmill E. INCL/PUL. WINDOW： Display the calorie and the current incline data, incline display range:0-12,when sporter grasp the hand pulse with both hand,the system can auto detect the sporter ‘s heartrate and display .the heartrate display range :50-200 times/min,this date is for reference only,not as a medical data. 2、BUTTONS：...
  • Page 12 BT6443/T200 Treadmill I. Speed shortcuts： 3、6、9、12KM/H，under the operating state，press the button adjust the speed to the set value. J. Incline shortcuts： 3、6、9、12 sections，under the operating state，press the button adjust the incline to the set value. FIX PROGRAM/STARTING： 1. PROGRAM EXPLAIN： A.
  • Page 13 BT6443/T200 Treadmill 3．Manual programming operation： A. Press the “START” button，3 seconds countdown, then the treadmill start with the speed1.0km/h ； B. Press SPEED+/SPEED- to adjust the speed； C. Press INCLINE+/INCLINE- to adjust the incline； D. Press the speed shortcut button to the setting speed value； E.
  • Page 14 BT6443/T200 Treadmill FIXED PROGRAM MODE DATA ： SETTING TIME/ 20 = EVERY GARDE TIME time program SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN SPEED INCLIN - 13 -...
  • Page 15 BT6443/T200 Treadmill USER PROGRAM ： Treadmill have three user program can setting by the user except the P1-P12 Fixed program:U1,U2,U3 1. The setting of the user program At the standby state, press the ‘PROGRAM’ button to select the’ U1’,’U2’,’U3’, and word ’USER” display. press ‘mode’...
  • Page 16 BT6443/T200 Treadmill 01-male 02-female 10-99 height 100-200 weight 20-150 ≤=<19 thin =(20---25) normal =(25---29) overweight ≥>=30 obesity Running parameter display and setting range： Default Setting default Setting Range Display Range value value TIME(M:S) 0:00 15:00 5:00-99:00 0:00-99:59 SPEED(KM/H) 1.0－14.0 INCLINE（SECTIONS） 0－12 DISTANCE(KM) 5.00...
  • Page 17 BT6443/T200 Treadmill Attention： Check the power and safety lock is sure a valid state before start do exercise. When run into emergency, pull off the safety lock to stop the treadmill quickly； ，and put on the safety lock, the system back to default, waiting for input the instruction. If there is any problem，PLS contact the distributor .Amateurs, do not attempt to disassemble or maintain so as to avoid the damage of equipment Simple troubleshooting methods：...
  • Page 18 BT6443/T200 Treadmill 1.the power and voltage is 1.use the right power and less than 50% normal voltage 2.check the connection of 2.connecting again the motor or the motor may E02(fault code) Explosion-proof protection or change the motor damaged 3.check there is special smell of the controller or not 3.exchange the controller 1.
  • Page 19 BT6443/T200 Treadmill SAFETY EXERCISE Please consult professional staff before do exercise. He can help recommendation exercise rate/intension and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult professional before you want continually to do exercise.
  • Page 20 BT6443/T200 Treadmill MAINTENANCE INSTRUCTION WARNING Please make sure pulled out the treadmill's power plug before cleaning or maintain the product. Always unplug the treadmill from the electrical outlet before removing the motor cover. At least once a year remove the motor cover and vacuum under the motor cover. CLEANING General cleaning the unit will greatly prolong the treadmill working life.

  • Page 21: Belt Adjustment

    BT6443/T200 Treadmill Belt Middle Placement and Tightness Adjustment It is very necessary to adjust the belt to a good condition for the better use of the treadmill Belt Adjustment ·Place treadmill on a lever surface. ·Make the treadmill run at 6-8km/h. ·If the belt has drifted to the right .
  • Page 22 BT6443/T200 Treadmill ADJUST ME THOD Step 1: Close the power, then open the motor cover. Step 2: Unscrew the four bolts of motor and adjust the threaded bar . If you can use hand to reverse the motor belt by 100%or more, then the motor belt is too flabby. It should be adjusted tightly.
  • Page 23 BT6443/T200 Treadmill - 22 -...
