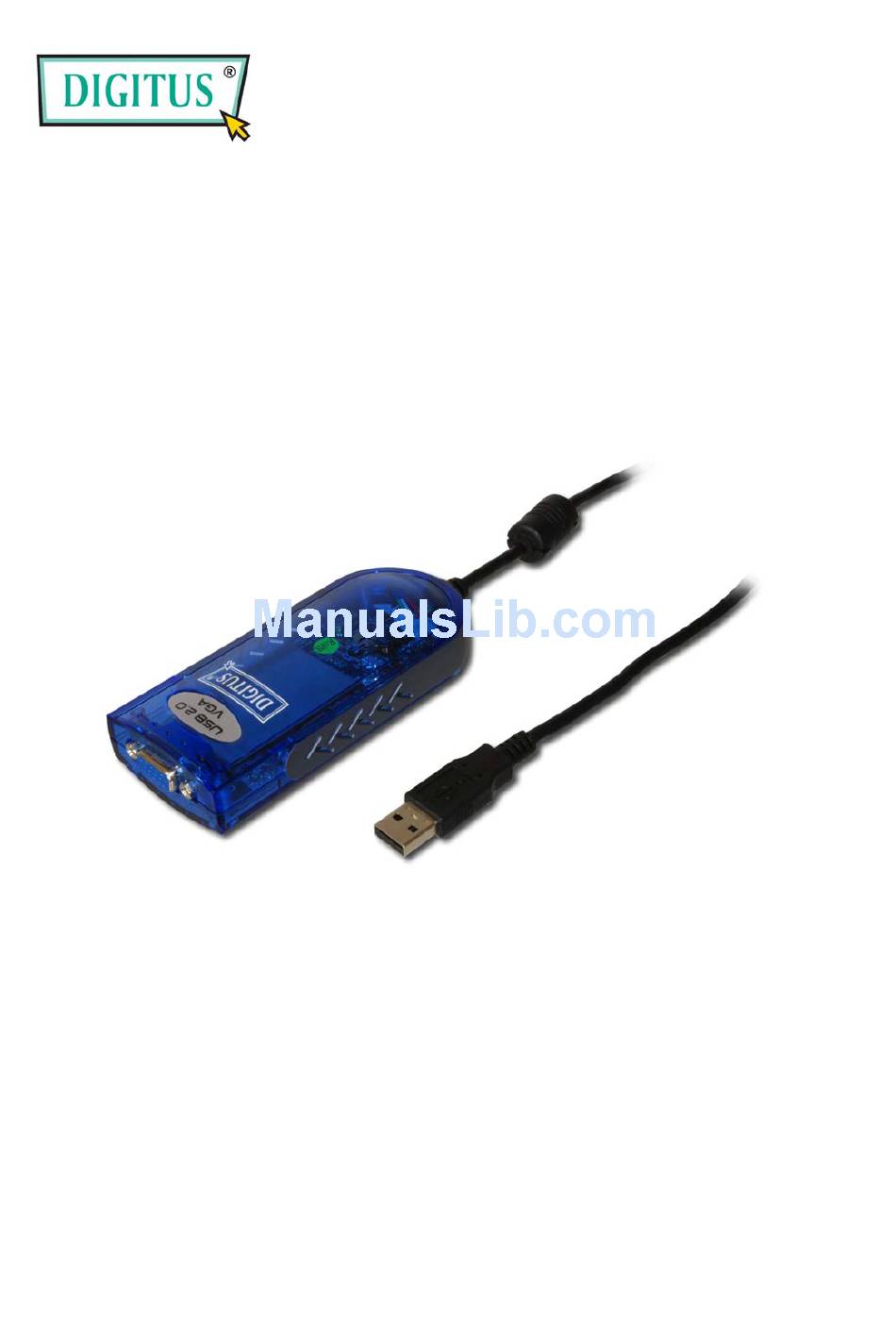

Page 1: User Manual

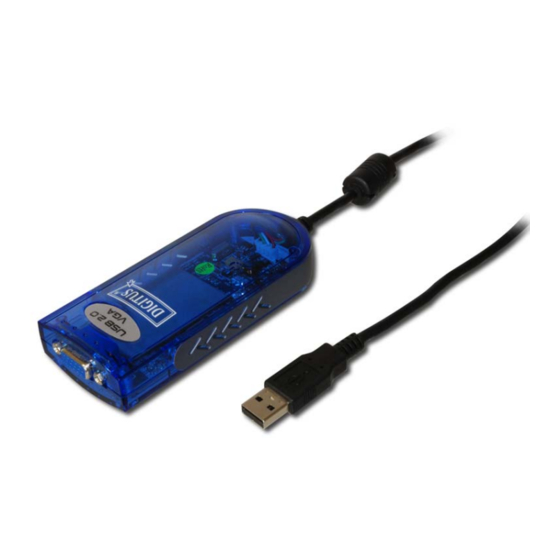

HIGH PERFORMANCE USB GRAPHIC ADAPTER User Manual DA-70830 Rev. 2-2 Package Content: - 1 x USB 2.0 VGA Adapter - 1 x Driver / Manual CD - 1 x Quick Installation Guide... -
Page 2: Table Of Contents
ONTENTS ..........................3 NTRODUCTION ..........................3 EATURES ......................3 YSTEM EQUIREMENTS .......................3 ACKAGE ONTENTS ............................3 2000/XP 2000/XP ................4 EVICE NSTALLATION ON INDOWS EVICE NSTALLATION ON INDOWS ....................4 EVICE RIVER NSTALLATION USB 2.0 VGA A ............5 NSTALLATION OF INGLE DAPTER USB 2.0 VGA A ..........6 NSTALLATION OF ULTIPLE... -
Page 3: Introduction
2.0 VGA Adapter User Manual NTRODUCTION Thank you for purchasing the USB 2.0 VGA Adapter. The USB 2.0 VGA Adapter enables you to connect one or multiple display devices (CRT/LCD monitor, projector) to your desktop or notebook PC. The connected display can act as mirrored or extended desktop of the main display on your PC. -
Page 4: Device Nstallation On Evice Installation On Windows 2000/Xp
2.0 VGA Adapter User Manual EVICE RIVER NSTALLATION Installing the device driver enables your computer’s operating system to recognize the USB 2.0 VGA Adapter once it’s connected. Please check your operating system and refer to the appropriate installation procedure to begin installing the device driver. Please make sure the USB 2.0 VGA Adapter is unplugged from your PC or Notebook before executing the setup program. -
Page 5: Installation Of Single Usb 2.0 Vga Adapter
2.0 VGA Adapter User Manual Step 4. Connect the external display device (monitor/projector) to the VGA (DB15) connector of USB 2.0 VGA Adapter and switch it on. Step 5. Click “Finish” to exit the Driver Wizard. Then plug the USB 2.0 VGA Adapter into an available USB 2.0 port of your PC or Notebook. -
Page 6: Nstallation Of Ultiple Usb 2.0 Vga Adapters
2.0 VGA Adapter User Manual Step 6b. USB 2.0 VGA A NSTALLATION OF ULTIPLE DAPTERS Please select “No, I will restart my computer later.” And click “Finish” to continue the next installation. b. Connect another external display device to the VGA (DB15) connector of next USB 2.0 VGA Adapter and switch it on. -
Page 7: Verifying Device Driver Nstallation River Installation
2.0 VGA Adapter User Manual The following procedure allows you to verify the device driver installation. Please right click “My Computer” → “Properties” → “Hardware” → “Device Manager”. Please double click “Display adapters”, and “Universal Serial Bus controllers”. USB 2.0 VGA A INGLE DAPTER INSTALLATION ON THE COMPUTER... - Page 8 2.0 VGA Adapter User Manual USB 2.0 VGA A ULTIPLE DAPTER INSTALLATION ON THE COMPUTER...
-
Page 9: Device Driver U N - Installation
2.0 VGA Adapter User Manual Step 1. Start menu: Click “Start” → “Control Panel” → “Add or Remove Programs”. Classic start menu: Click “Start” → “Settings” → “Control Panel” → “Add or Remove Programs”. Select “USB 2.0 VGA Device (Multiple) driver version no.” item. -
Page 10: Device Nstallation On Evice Installation On Windows Vista
2.0 VGA Adapter User Manual EVICE RIVER NSTALLATION Installing the device driver enables your computer’s operating system to recognize the adapter once it’s connected. Please check your operating system and refer to the appropriate installation procedure to begin installing the device driver. Please make sure the USB 2.0 VGA Adapter is unplugged from your PC or Notebook before executing the setup program. - Page 11 2.0 VGA Adapter User Manual Step 4. It will show the Windows Security warning dialogue box under Windows Vista, it will not affect the device driver installation and usage the device. Please select “Always trust software from “Magic Control Technology Corp.”, then click “Install”...
-
Page 12: Installation Of Single Usb 2.0 Vga Adapter
2.0 VGA Adapter User Manual USB 2.0 VGA A NSTALLATION OF INGLE DAPTER Please select “Yes, I want to restart my computer now.” and click “Finish” to complete the driver installation. After reboot the computer, you would see the extend display on the display device. -
Page 13: Verifying Device Driver Nstallation River Installation
2.0 VGA Adapter User Manual The following procedure allows you to verify the device driver installation. Please right click “Computer” → “Properties” → “Device Manager”. Please double click “Display adapters”, and “Universal Serial Bus controllers”. Installed one unit of USB 2.0 VGA Adapter:... - Page 14 2.0 VGA Adapter User Manual...
-
Page 15: Device Driver U N - Installation
2.0 VGA Adapter User Manual Step 1. Start menu: Please click “Start” → “Control Panel” → “Program and Features”. Classic Start menu: Please click “Start” → “Settings” → “Control Panel” → “Program and Features”. Select “USB 2.0 VGA Device (Multiple) (driver version number)” item. Click “Uninstall”... -
Page 16: Function Description
2.0 VGA Adapter User Manual This section describes the main functions provided by the USB 2.0 VGA Adapter. - It can support the LCD or CRT monitor; it can attach the D-SUB interface LCD or CRT monitor and it supports 4 kinds of selections, Primary, Extended, Mirror... -
Page 17: Primary" Mode
2.0 VGA Adapter User Manual Primary” Mode “ The system’s main graphics adapter will automatically switch to act as the secondary graphics adapter and the main screen will now work as the extended desktop. The monitor connected to the USB 2.0 VGA Adapter will now act as the primary Windows desktop. -
Page 18: Mirror" Mode
2.0 VGA Adapter User Manual “Mirror” Mode By setting this mode, the Windows desktop will be mirrored / replicated to the secondary CRT/LCD monitor. The screen resolution setting on the secondary monitor will follow the primary screen’s resolution. For example, if the primary resolution is 1024x768x32bit, and the secondary monitor’s resolution will be the same. -
Page 19: Rotation" Mode
2.0 VGA Adapter User Manual “Rotation” Mode This feature enables setting the orientation of the secondary CRT/LCD monitor. Several options such as “0 degrees”, “90 degrees”, “180 degrees” or “270 degrees” are available under the Extended or Primary mode. -
Page 20: Supported Common Display Resolution
2.0 VGA Adapter User Manual UPPORTED OMMON ISPLAY ESOLUTION Aspect Ratio Resolution 16:10 1920 * 1200 16:9 1920 * 1080 16:10 1680 * 1050 16:10 1440 * 900 16 / 32 16:10 1280 * 800 16, 32 15:9 1280 * 768 16, 32 1280 * 1024 16, 32... -
Page 21: Q&A
2.0 VGA Adapter User Manual & & This section describes the common Q&A regarding to the installation or operation of the USB 2.0 VGA Adapter. Q: Why can’t I make the USB 2.0 VGA Adapter the primary display? A: Some video cards ship their product with a utility that prevent other video cards from being set as the primary card. -
Page 22: Troubleshooting Tips
2.0 VGA Adapter User Manual The following troubleshooting tips may help if you are experiencing any difficulties using our device. Contact your dealer for additional assistance if needed. - Check to make sure that all connectors are plugged in correctly. - Make sure that the USB port that you are using is USB 2.0. -
Page 23: Regulatory Compliance
2.0 VGA Adapter User Manual EGULATORY OMPLIANCE This equipment has been tested and found to comply with Part 15 / Subpart B of the FCC rules. Operation is subject to the following two conditions: • This device may not cause harmful interference •...
