WePresent WiPG-1500 User Manual

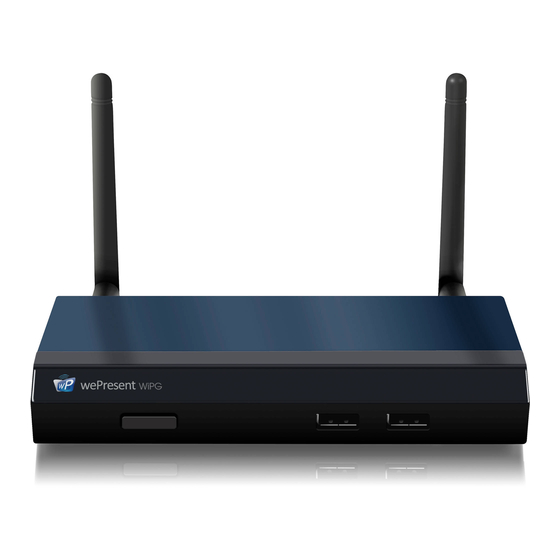

Wepresent wipg-1500 is professional wireless presentation gateway
Hide thumbs Also See for WiPG-1500:
Table of Contents

Advertisement

Quick Links

See also: User Manual
WiPG-1500
User's Manual
Version: 5.1
Date: November 19, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WiPG-1500 and is the answer not in the manual?

Questions and answers

Related Manuals for WePresent WiPG-1500

Summary of Contents for WePresent WiPG-1500

  • Page 1 WiPG-1500 User’s Manual Version: 5.1 Date: November 19, 2013...

  • Page 2: Table Of Contents

    Package Contents ....................7 USB Token Contents ..................8 Physical Details ....................9 What You Might Need ..................12 Quick Installation .....................13 WiPG-1500 Receiver Device .................15 PC-List ........................15 Setup Page ......................16 Remote Touch Control (UST/UoIP).............17 Whiteboard ......................17 Pen Menu Function ..................18 DoWiFi for Windows ..................19...
  • Page 3 Advanced Screen Capture ................29 8.10.13 Send Audio to Display ..................30 8.10.14 Auto Power Manager ..................30 8.10.15 Auto WiFi Connect ...................30 8.10.16 Make wePresent WiPG-1500 Token ............31 8.10.17 Copy Application to desktop ...............32 8.10.18 Hot Key ........................32 8.10.19 About........................32 8.10.20 Exit .........................32 DoWiFi for Mac ....................33...
  • Page 4 Table of Contents 9.10.9 Resolution setting ....................41 9.10.10 Projection Aspect Ratio .................42 9.10.11 Send Audio to Display ..................42 9.10.12 Auto WiFi Connect ...................42 9.10.13 Hot Key ........................42 9.10.14 About........................43 9.10.15 Exit .........................43 Web Management ...................44 10.1 Home Page ......................44 10.2 Download ......................45 10.3 Conference Control ..................45...

  • Page 5: Overview

    Overview wePresent WiPG-1500 is professional wireless presentation gateway. By enabling the Revolutionary “interactive” and “UST/UoIP” functions, you can throw your presentations wirelessly from a PC, Mac, iPad, iPhone, or Android devices to a projector/display, and use the touch screen/IWB, mobile phone or Pad to control the presentation remotely.

  • Page 6: Basic Features

    • Basic Features ▪ High performance screen/audio projection for Windows/Mac (Windows8 and Mac Mountain Lion) ▪ Remote desktop control from USB, Touch Screen or Mouse/Keyboard for Windows/Mac ▪ Plug&Show: launching the projection application from a USB thumb drive without installation ▪...

  • Page 7: Package Contents

    Package Contents • wePresent WiPG-1500 Box • wePresent WiPG-1500 USB Token • Power Adapter (DC +5V, 2.5A) • 2 WiFi Antenna • Quick Installation Guide • Wall Mount Kit • Warranty Card WiPG-1500 Quick Installation Guide APD-G-1 APD-U-1 APD-N-1 APD-K-1 →Back...

  • Page 8: Usb Token Contents

    USB Token Contents • Windows Installer (WiPG-1500 Windows Installer) • MAC Installer (WiPG-1500 Mac Installer) • VAC Driver (For Windows XP Audio Projection) • VDD Driver (For Windows XP/Vista Virtual Extended Screen) • USBoIP Driver (For USB IWB Bridge) • Utility •...

  • Page 9: Physical Details

    Physical Details • Front Panel Power Button and LED USB Port Description Power on/off button. Power Button and LED LED Indicator: System Loading (Red), Ready (Yellow) USB Port (Front) USB port for USB mouse and keyboard →Back Physical Details Chapter 4...

  • Page 10: Rear Panel

    • Rear Panel USB Port Audio Jack Antenna RJ-45 VGA Connector HDMI Power Jack Antenna Description Antenna WiFi Antenna USB Port (Rear) USB port for USB IWB device (HID type) RJ-45 10/100M RJ-45 port VGA Connector VGA connector HDMI HDMI Connector Audio Jack Audio Jack (3.5mm) Power Jack...
  • Page 11 • Bottom Side Screw hole Reset Button (Optional kit for Wall Mount) Description Screw Hole Screw Hole for Wall Mount Kit Press reset button and power on the Reset Button device to execute Hardware Reset. →Back Physical Details Chapter 4...

  • Page 12: What You Might Need

    What You Might Need • Projector/display with VGA/HDMI interface • Windows or Mac PC/Laptop • Apple iPhone, iPad or iPod-touch device • Android Phone or Tablet device • Speaker (Optional, for audio projection feature) • USB Mouse and Keyboard (Optional, for remote desktop feature) •...

  • Page 13: Quick Installation

    Quick Installation 1. Connect wePresent WiPG-1500 device to Projector/display through VGA/HDMI port and turn on projector/display power. →Back What You Might Need Chapter 5...
  • Page 14 • It will show the default standby screen as below when system is ready. 3. Attach the speaker cable to WiPG-1500 phone jack for audio output 4. Attach the USB mouse and keyboard to WiPG-1500 front USB port for OSD control and remote desktop control 5.

  • Page 15: Wipg-1500 Receiver Device

    WiPG-1500 Receiver Device 7.1 PC-List 1. If there are sender connected to WiPG-1500 device, it will show the available PC- List on standby screen, conference moderator can use the USB mouse/keyboard/ Touch Screen/IWB to select the PC and control it remotely.

  • Page 16: Setup Page

    2. You can also click the feature Icon to browse the Quick Guide for each highlight feature. 7.2 Setup Page Click the “Setup” icon, you can find the FW version, resolution and WiFi security information. Meanwhile, you can also calibrate the attached Touch Screen/IWB screen coordination by “Calibration” function. →Back WiPG-1500 Receiver Device Chapter 7...

  • Page 17: Remote Touch Control (Ust/Uoip)

    7.3 Remote Touch Control (UST/UoIP) WiPG-1500 can support standard Win7/8 compatible HID touch device. By attaching the HID touch screen/IWB device, you can operate the standby screen, White Board feature and the projecting PC/mobile remotely from the Touch Screen/IWB device.

  • Page 18: Pen Menu Function

    Slideshow (F5), press this button to enable Slide Show function. ESC, Press this button to quit Slide Show mode. Moderator, Enable wePresent Moderator mode. Home, Go back to wePresent home standby screen. Clear all of the drawings on the screen. Erase part of drawing.

  • Page 19: Dowifi For Windows

    DoWiFi for Windows 8.1 Install the application 1. Make sure your PC WiFi is enabled already, and connect your PC to wePresent WiPG-1500 box through WiFi. 2. Open your browser and enter the Device Host Name (SSID) or IP address in the browser.

  • Page 20: Start The Application

    WiPG-1500 software to pass through.) 8.2 Start the application 1. Click wePresent WiPG-1500 icon on desktop to execute the application, or launch the application from PnS token directly. 2. It will start to search wePresent WiPG-1500 receiver automatically.

  • Page 21: Quick Connect

    1. WiPG-1500 will memorize the last successful connection profile and open the quick connect dialog, you can enter the code and press the “Connect” button to connect this WiPG-1500 directly. 2. If you want to connect to another WiPG-1500 receiver, please press the “Rescan” button. 8.4 Connect to WiFi Network 1.

  • Page 22: Connect To Receiver Device

    IP address manually and connect. 8.6 Login 1. When it connects to a “Code” protection enabled WiPG-1500 receiver, you have to enter the “Code” and press the “Connect” button to login the receiver. (You can find the CODE from the right-upper of OSD standby screen) 2.

  • Page 23: Main User Interface

    8.7 Main User Interface Menu Area Control Area for Screen Status Indicator Projection Feature 8.8 Screen Projection Click the “Play” button for full or “1,2,3,4” for split screen projection, you can project the main screen on to the display immediately. Click the “Pause” button, you can freeze you projection screen, and click the “Stop”...

  • Page 24: Audio Projection

    8.9 Audio Projection 1. When you are doing the full screen projection or project to split #1 screen, you can also choose to project the audio to WiPG-1500 receiver for the multimedia or video scenario. 2. To enable or disable the audio projection feature, please change the setting from WiPG-1500 menu.

  • Page 25: Show Receiver Information

    Item Description Show Receiver Information Show Receiver Information on screen Web Admin Open web admin page Search Receiver Connect to another receiver device Launch SidePad Launch SidePad sender Enable WebSlides Enable WebSlides Select Projection Desktop Select the projection desktop Projection Quality Change projection quality Projection Mode Change the presentation or video mode.

  • Page 26: Launch Sidepad

    8.10.4 Launch SidePad 1. Open the main menu of the WiPG-1500 application(Win/Mac), and choose the item, “Launch SidePad” Note: You have to download the “SidePad receiver” on your Android/iOS device, and then connect the Android/iOS to WiPG-1500 device through WiFi and Launch “SidePad receiver”.

  • Page 27: Enable Webslides

    Click the “Enable WebSlides”, it will start to broadcast your slides to the browser on connected mobile devices. Note: Audience need to connect to WiPG-1500 WiFi Network, open the browser and click the “WebSlides” button to start receiving the slides.

  • Page 28: Select Projection Mode

    8.10.10 Projection Aspect Ratio Click the “Projection Aspect Ratio”, choose “Keep aspect ratio” to keep the original aspect ratio if the desktop resolution is different from WiPG-1500 output resolution, or choose “Fit full screen” to project the screen to full screen.

  • Page 29: Enable Usb Iwb Bridge

    Note: You have to install the USBoIP driver first. You can find the driver from USB token. 8.10.12 Advanced Screen Capture Click the “Advanced Screen Capture”, you will be able to see tip windows and other layered windows (include the main UI) on the connected display. However, the mouse cursor may blink from time to time when you are projecting your PC screen! ▪...

  • Page 30: Send Audio To Display

    “highest performance”, however, you can click the “Auto Power Manage” to enable or disable this function and restore you power scheme immediately. 8.10.15 Auto WiFi Connect Click “Auto WiFi Connect” to enable the WiPG-1500 WiFi connect feature. →Back DoWiFi for Windows Chapter 8...

  • Page 31: Make Wepresent Wipg-1500 Token

    8.10.16 Make wePresent WiPG-1500 Token Click “Make wePresent WiPG-1500 Token” to make a USB wePresent WiPG-1500 Token, you can insert a USB thumb drive and follows the wizard to make the Token. →Back DoWiFi for Windows Chapter 8...

  • Page 32: Copy Application To Desktop

    8.10.17 Copy Application to desktop Click the “Copy Application to desktop”, it will copy the application to your desktop immediately even you don’t have the system privilege 8.10.18 Hot Key Click “Hot Key” to display the available Hot Key definition. 8.10.19 About Click “About”...

  • Page 33: Dowifi For Mac

    DoWiFi for Mac 9.1 Install the application 1. Make sure your PC WiFi is enabled already, and connect your PC to wePresent WiPG-1500 box through WiFi. 2. Open your browser and enter the Device Host Name (SSID) or IP address on browser.

  • Page 34: Quick Connect

    1. WiPG-1500 will memorize the last successful connection profile and open the quick connect dialog, you can enter the code and press the “Connect” button to connect this WiPG-1500 directly. 2. If you want to connect to another WiPG-1500 receiver, please press the “Rescan” button. 9.4 Connect to WiFi Network 1.

  • Page 35: Connect To Receiver Device

    “Skip” button. 9.5 Connect to Receiver Device 1. WiPG-1500 will search and list the WiPG-1500 receiver Device. You can select the target receiver device and press the “Connect” button to connect the selected receiver device.

  • Page 36: Login

    9.6 Login 1. When it connects to a “Code” protection enabled WiPG-1500 receiver, you have to enter the “Code” and press the “Connect” button to login the receiver. (You can find the CODE from the right-upper of OSD standby screen) 2.

  • Page 37: Screen Projection

    1. When you are doing the full screen projection, you can also choose to project the audio to WiPG-1500 receiver for the multimedia or video scenario. 2. To enable or disable the audio projection feature, please change the setting from WiPG-1500 menu.

  • Page 38: Menu

    9.10 Menu Press “Menu” button from the main UI, you will find the menu to enable the additional feature or to change the application options. Item Description Show Receiver Information Show Receiver Information on screen Web Admin Open web admin page Search Receiver Device Connect to another receiver device Launch SidePad...

  • Page 39: Show Receiver Information

    9.10.4 Launch SidePad 1. Open the main menu of the WiPG-1500 application(Win/Mac), and choose the item, “Launch SidePad”. Note: You have to download the “SidePad Receiver” on your Android/iOS device, then connect the Android/iOS to WiPG-1500 device through WiFi and Launch “SidePad Receiver”.

  • Page 40: Enable Webslides

    Click the “Enable WebSlides”, it will start to broadcast your slides to the browser on connected mobile devices. Note: Audience need to connect to WiPG-1500 WiFi Network, open the browser and click the “WebSlides” button to start receiving the slides.

  • Page 41: Projection Quality

    9.10.7 Projection Quality Click the “Projection Quality”, choose “Normal” for faster projection speed with lower screen image quality, and “Best” for clear screen image quality but slower projection speed. 9.10.8 Select Projection Mode Click the “Select Projection Mode”, choose the Presentation mode for shortest latency or the Video mode for auto-latency control to have better video performance.

  • Page 42: Projection Aspect Ratio

    9.10.10 Projection Aspect Ratio Click the “Projection Aspect Ratio”, choose “Keep aspect ratio” to keep the original aspect ratio if the desktop resolution is different from WiPG-1500 output resolution, or choose “Fit full screen” to project the screen to full screen.

  • Page 43: About

    9.10.14 About Click “About” to show system information. It includes product model name, Client version, IP address and other information. 9.10.15 Exit Click “Exit” to exit this application. It will stop current playing status and close the application immediate. →Back DoWiFi for Mac Chapter 9...

  • Page 44: Web Management

    Web Management 10.1 Home Page 1. Make sure your PC connect to wePresent WiPG-1500 box successfully. 2. Enter the receiver IP address on browser; you can find the IP address on the projector/display screen. (Default IP is 192.168.100.10) →Back DoWiFi for Mac...

  • Page 45: Download

    2. Enter password and then press [Login]. (Default password: moderator) 3. After login, you can see a User List on the screen which indicates all of users con- nected to WEPRESENT WiPG-1500 box. 4. There are three columns, “Computer Name”, “Play Control” and “IP Address”.

  • Page 46: Webslides

    , Play Split #4 and Stop 6. Uncheck the “Allow Control from this page only”, it will disable the centralized control and user can project the screen to WiPG-1500 freely. 10.4 WebSlides 1. Press the “WebSlides” button to enter the WebSlides page.

  • Page 47: Admin

    10.5 Admin Click [Admin] and then enter the password to login web admin page. (Default Password: admin) →Back Web Management Chapter 10...

  • Page 48: System Status

    • Wire MAC address : wire MAC address Connection Status: • Projecting status : “Waiting for projecting” or “Projecting” • Total Users : It shows how many users login to wePresent WiPG-1500. • Code : It will show current Code →Back...

  • Page 49: Network Setup

    The default setting of the wePresent WiPG-1500 box is DHCP client. When the wePresent WiPG-1500 box is connected to a LAN that already has a DHCP server present, the wePresent WiPG-1500 box takes an IP address assigned to it by the server.
  • Page 50 • SSID Broadcast: The default value is “Enable” • Channel: to set fixed channel or Auto. The “Auto” means after power on wePresent WiPG-1500, it will scan all of wireless channel and select clear one channel automatically. • Encryption: you can select “Disable” or one of WEP/WPA/WPA2 64bit or 128bit in ASCII or HEX string.
  • Page 51 < Gatekeeper> Gatekeeper is designed for ensuring the enterprise network security within wePresent WiPG-1500 box • All Block can block Guest Users(through wireless) to access all office network(LAN), • All Allow can pass Guest Users(through wireless) to access all office network •...
  • Page 52 →Back Web Management Chapter 10...

  • Page 53: Osd Setup

    10.5.4 OSD Setup Click [OSD Setup] button, you can change the standby Logo image Change Standby Image • Replace Logo Image: Replace logo image only. • Replace entire standby image: Replace the whole standby image • <Reset to default>: Restore to default Logo image. •...

  • Page 54: Reset To Default

    *** To execute the Hardware Factory Reset to Default, Please follow below procedures. 1. Press [Reset] button and Hold. 2. Turn on wePresent WiPG-1500 box. 3. Wait for over 10 seconds and relief [Reset] button. 4. It will take effect to restore factory default settings.

  • Page 55: Firmware Upgrade

    2. System Configuration Import and Export 3. Export: Export the system configuration to a configuration file 4. Import: Import the system configuration file to WiPG-1500 5. Firmware Upgrade a. Firstly, you have to get latest firmware image file from your vendor.

  • Page 56: Webslides Setup

    Warning: Don’t power off wePresent WiPG-1500 while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor for fixing. 10.5.8 WebSlides Setup 1. Click [WebSlides Setup] button to setup the WebSlides Feature.

  • Page 57: Reboot System

    10.5.9 Reboot System Click [Reboot System] button, you can restart the system • <Reboot>: reboot system automatically. 10.5.10 Logout Click [Reboot System] button, you can logout the WiPG-1500 →Back Web Management Chapter 10...

  • Page 58: Appendix

    Appendix 11.1 Wall-mount Instructions Mounting Screw X 2 Screw Washer X 2 Mounting Bracket Fix Screw X 4 Bracket Wall →Back Wall-mount Instructions Chapter 11...
