Installation

Please note: In order to ensure successful installation, please install the necessary
software (included) on the intended host computer prior to connecting the USB Serial
Adapter to the host.
1. Insert the Driver CD into the CD or DVD-ROM drive on the host computer.
2. Browse to, and execute the Setup.exe file.
3. When the installation progress launches, a welcome screen will appear. Click Next to
proceed.
4. You will be asked to select a destination where the StarTech.com USB Serial Adapter
will be installed. Please click on Browse to manually select a location. Otherwise, leave
the default destination in place and click Next.
5. Please wait while the necessary drivers are copied and installed.
6. Once completed, a message indicating that the drivers have been successfully
installed will appear. Please click Finish to conclude the software installation.
7. Connect the USB to Serial Adapter to the computer system. Windows will
automatically detect the device and install the drivers.

Verifying Successful Installation

Windows XP/ Server 2003/ Vista/ 7

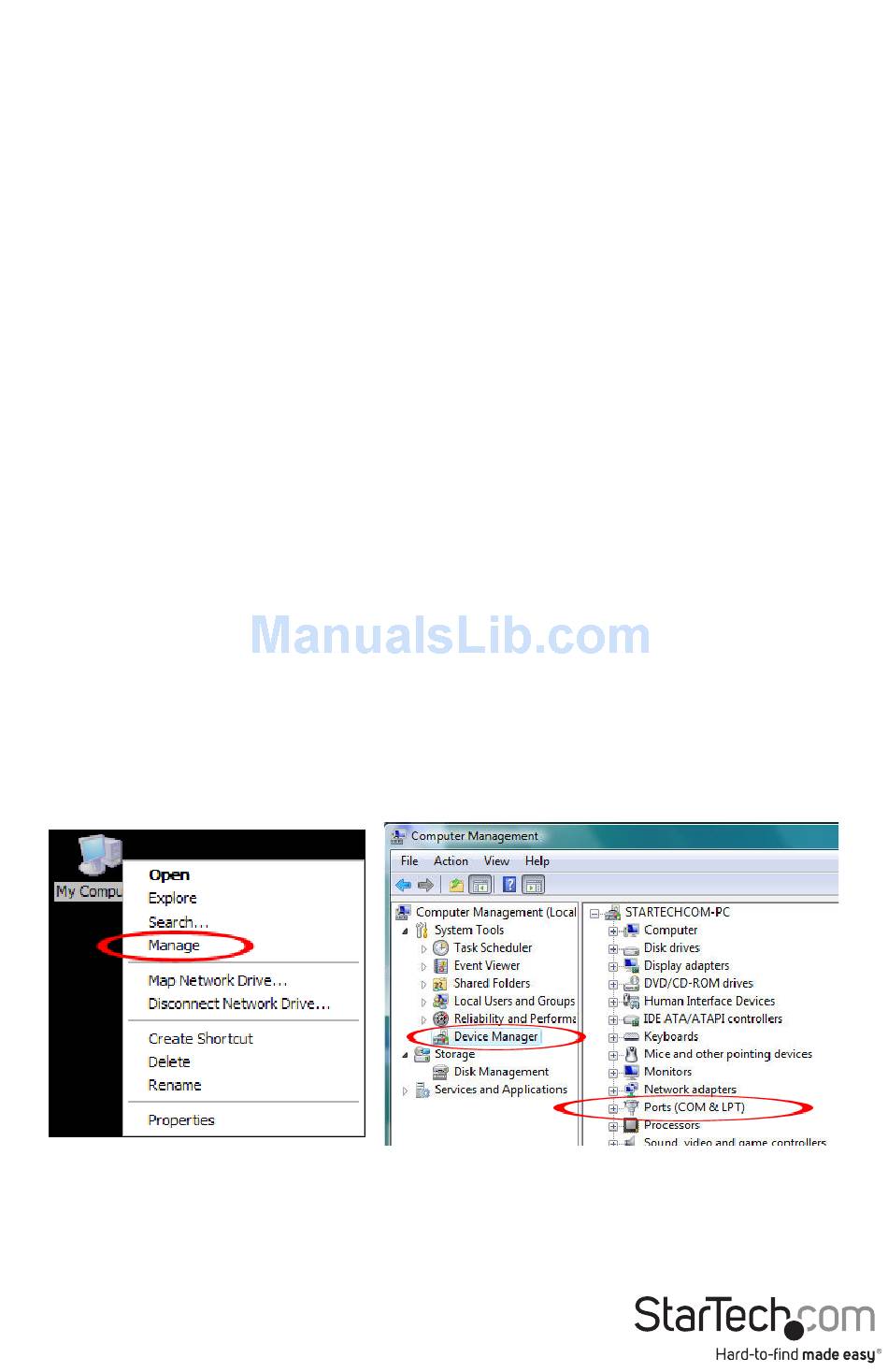

From the main desktop, right-click on "My Computer" ("Computer" in Vista/ 7), then select
"Manage". In the Computer Management window, select "Device Manager" from the left
window panel.
Double-click on the "Ports (COM & LPT)" option. Additional COM port(s) should be visible.
The port is automatically sequentially numbered by Windows, but can be changed
through the "Properties" by right-clicking on the port.
Instruction Manual
*all screenshots for reference only
