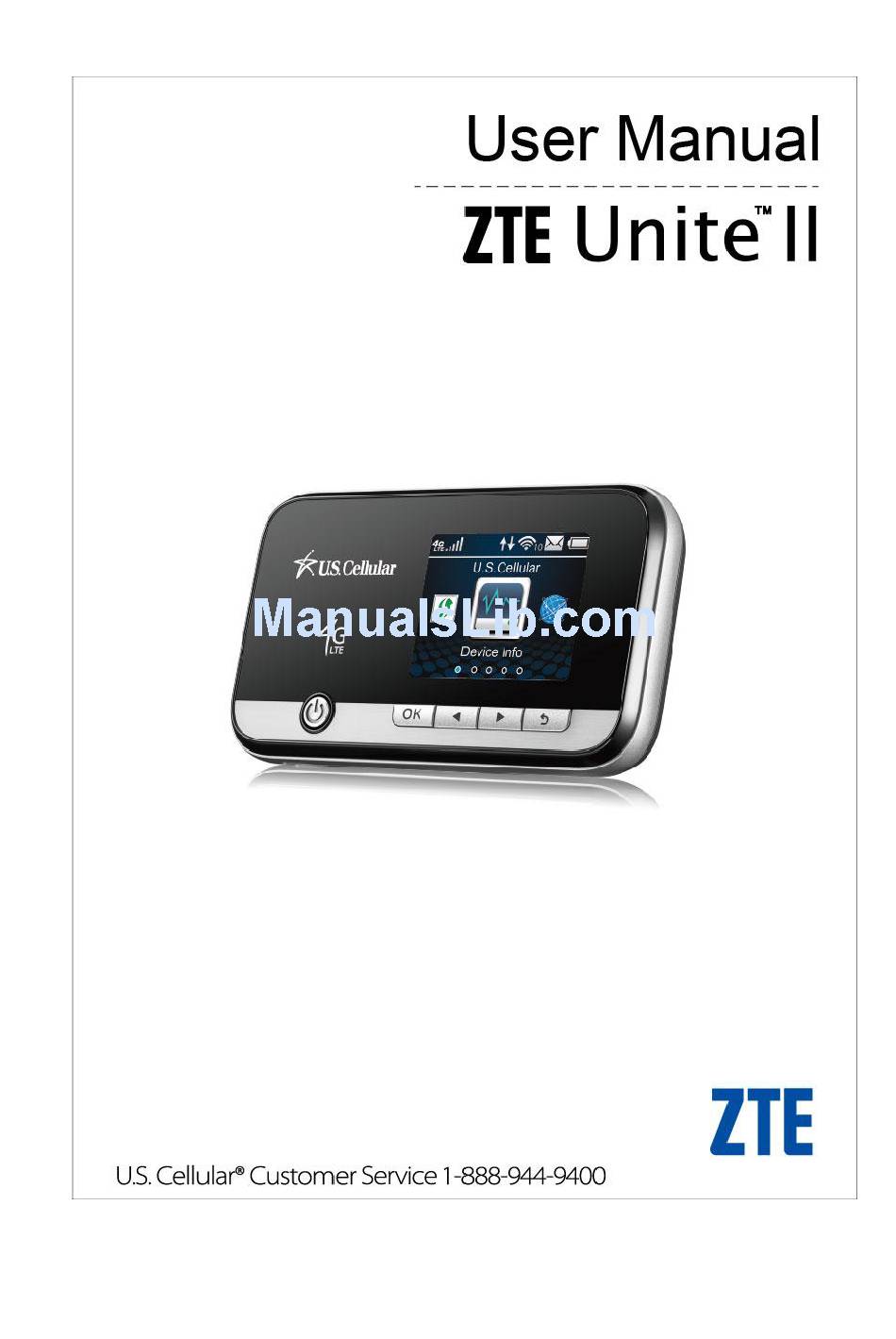

Zte Unite II User Manual

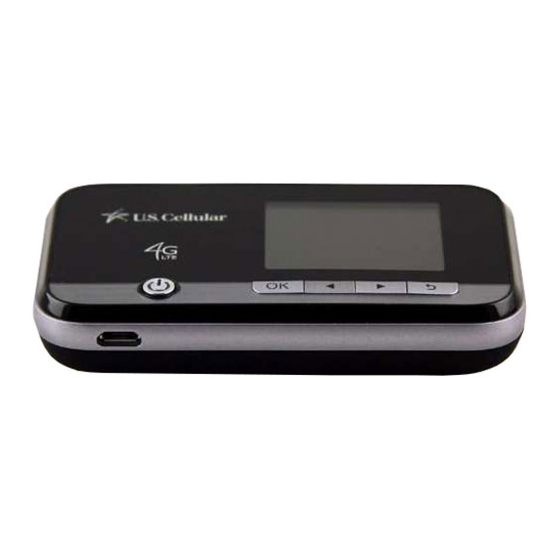

Zte unite ii is a 4g lte mobile hotspot device
Hide thumbs Also See for Unite II:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unite II and is the answer not in the manual?

Questions and answers

Related Manuals for Zte Unite II

Summary of Contents for Zte Unite II

  • Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice.

  • Page 3: Table Of Contents

    Accessing the Internet ....................8 Disconnecting from the Internet ................... 8 Navigating the Device ....................... 8 Resetting Your II ..................8 ZTE Unite Device Info ........................9 Connection Info......................9 Connected Device ......................9 Settings .......................... 9 WPS ..........................10 Web User Interface Configuration ..................
  • Page 4 Using Your Device...................... 31 Using Battery ......................31 Limited Warranty ......................32 Limitation of Liability ....................32 Radio Frequency (RF) Energy (Only for US Market) ..........32 FCC Compliance (Only for U.S. Market) ..............33 Disposal of Your Old Appliance ................. 33 Troubleshooting ......................

  • Page 5: Getting Started

    It is where you insert the microSDHC card. Indicators When the device is powered on, the following icons will appear on the LCD screen, with the corresponding indicators listed in the table below: Confidential and Proprietary Information of ZTE CORPORATION 1...

  • Page 6: Inserting The Sim Card And Battery

    2. Insert the SIM card into the SIM card slot. 3. Insert the battery as shown with the contacts located against the metal springs, and press the battery down into the case. 2 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 7: Inserting The Microsdhc Card

    2. Insert the microSDHC card into the microSDHC card slot, as shown below. You will hear a click when the microSDHC card locks in place. 3. Close the microSDHC card cover. Powering On/Off Your Device Press and hold the Power button to switch on/off the device. Confidential and Proprietary Information of ZTE CORPORATION 3...

  • Page 8: Sleep Mode

    Use the adapter and USB cable to connect the wall outlet and your device. NOTE: Do not use excessive force to insert the plug. Internet Access You can connect up to 10 Wi-Fi enabled devices at one time including computers, tablets, smartphones and more. 4 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 9: Configuring Your Pc

    Wireless Network Connection is used for Wi-Fi connection. Right-click My Network Places and then select Properties. Right-click the Wireless Network Connection, and then select Properties. Select Internet Protocol (TCP/IP), and then click Properties. Confidential and Proprietary Information of ZTE CORPORATION 5...

  • Page 10: Connecting To Your Device

    4. Select these two items, and then click OK to finish the configuration. Connecting to Your Device Power on your device. It will take 1-2 minutes to power up. Use your Wi-Fi application on the client to search for available wireless networks. 6 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 11 Input the password, and then click Connect. NOTE: You may need to input the password for Wi-Fi connection. Please check the label on your device to get the default password. Your client will connect to the Unite II. Confidential and Proprietary Information of ZTE CORPORATION 7...

  • Page 12: Accessing The Internet

    Resetting Your ZTE Unite Simply press and hold the Reset button on right side of the device bottom surface for 3 seconds to restore 8 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 13: Device Info

    Sound Alert: Turn on or off the sound alert. It is on by default, so you will hear an alert when there is  one or more device connected to your ZTE Unite Screen Timeout: Set time for screen timeout.

  • Page 14: Wps

    Click Login to log in the device. The Web User Interface is divided into three parts.  Index: Shows the configuration list for your device  Content: Shows the detailed configuration. 10 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 15: Settings

    Please disconnect the device from the network before changing the settings. Quick Settings In the main interface click Settings > Quick Settings. Read the guide carefully, and then click Next. Set PPP Profile Configuration in the following figure and then click Next. Confidential and Proprietary Information of ZTE CORPORATION 11...
  • Page 16 ZTE Unite II User Manual Set PPP Authentication in the following figure and then click Next. Set SSID Configuration in the following figure and then click Next. 12 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 17 Encryption will keep your traffic from being unauthorized monitored and accessed, select one encryption mode from the list, and then set key and/or algorithm for it. Show the configuration in the following figure: Confidential and Proprietary Information of ZTE CORPORATION 13...

  • Page 18: Network Settings

    You can set the WAN connection mode here. The default mode is Automatic. Network Selection Select Settings > Network Settings > Network Selection. The Network Selection page is shown in the following figure. 14 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 19 APN Setting Select Settings > Network Settings > APN Setting. The APN parameters are shown in the following figure. Click Set as default to set current profile as the default profile. • Confidential and Proprietary Information of ZTE CORPORATION 15...
  • Page 20 Password Authentication Protocol (PAP) provides a simple method without encryption for the peer to establish its identity using a 2-way handshake. Challenge-Handshake Authentication Protocol (CHAP) is used to periodically verify the identity of the peer using a 3-way handshake. 16 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 21: Wi-Fi Settings

    SSID, and other devices can search and connect to it. When you select Disable, other devices cannot see the SSID. If you want someone to connect, you need to tell them the SSID, and let them setup manually. Confidential and Proprietary Information of ZTE CORPORATION 17...
  • Page 22 Channel Bandwidth: Select a channel bandwidth from the drop-down list.  Country/Region Code: Select the right country code. When using the device internationally,  please change the country/region code. 18 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 23 If your client device supports WPS, there’s no need to enter password manually when WPS is available. Select Settings > Wi-Fi Settings > WPS, the WPS configuration is shown in the following figure: Confidential and Proprietary Information of ZTE CORPORATION 19...

  • Page 24: Device Settings

    You can change the administrator’s password. Click Apply to confirm your configuration. Reset Select Settings > Device Settings > Reset, click Reset to set all the settings to their factory default values, and then the device will restart automatically. 20 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 25 Sleep Time: Select a time from the drop-down list. When there’s no Wi-Fi connection in the specified time, Wi-Fi will be unavailable and the system will turn to sleep mode for power-saving. Confidential and Proprietary Information of ZTE CORPORATION 21...

  • Page 26: Firewall

    You can set the maximum 10 filtering items for MAC/IP/Port Filtering and Port Forwarding. Port Filtering Select Settings > Firewall > Port Filtering. The MAC/IP/Port Filtering is shown in the following figure: If you select Enable, the filter settings will appear as shown below: 22 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 27 Protocol: Set which protocol will be used for filtering.  Action: Set how to handle the packet if it matches with the rule.  Comment: Type comment for the filter settings.  Confidential and Proprietary Information of ZTE CORPORATION 23...
  • Page 28 You can set up Port Mapping to enable external computers to access www, FTP or other services provided by LAN. Select Settings > Firewall > Port Mapping and the Port Mapping page is shown in the following figure: If you select Enable, the Port Mapping Settings will appear: 24 Confidential and Proprietary Information of ZTE CORPORATION...
  • Page 29 The DMZ host feature allows one local host be exposed to the Internet for a special-purpose service such as Internet gaming. Select Settings > Firewall > DMZ and the following page will appear: If you select Enable, the DMZ Settings will appear: Confidential and Proprietary Information of ZTE CORPORATION 25...

  • Page 30: Router Settings

    Dial *228 This function allows you to active your SIM card manually in a 1X network. Select Dial *228 and the following page will appear. Click Dial *228 to active your SIM card. 26 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 31: Information

    NOTE: Data usage is an estimate. Please see uscellular.com/myaccount for more information. Data Limit Settings Select Information > Data Limit Settings and then the following page is shown. If you select Enable, the Data Limit Settings will appear: Confidential and Proprietary Information of ZTE CORPORATION 27...

  • Page 32: File Sharing

    You can access microSDHC card via USB cable only in USB mode. The web page of sharing microSDHC card will be disabled. Sharing microSDHC Card via Web Browser Select File Sharing and then the microSDHC card page is shown as the following figure. 28 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 33: Messages

    This function allows you to receive messages. Operating Messages in Native You can check the messages saved in your device. Device Messaging Select Messages > Device Messaging to access the following figure: Confidential and Proprietary Information of ZTE CORPORATION 29...

  • Page 34: Operating Messages In Sim Card

    By disabling this SMS feature, you will not receive any incoming messages when the device powers up in a 4G LTE™ network but you will still receive SMS in 3G networks. To receive messages when the device powers on, please enable this feature. 30 Confidential and Proprietary Information of ZTE CORPORATION...

  • Page 35: Warning And Notice

    Never use any charger or battery damaged or worn out. • Return the worn-out battery to the provider or put it in the appointed recycle place. Do not dispose of the • battery in the trash. Confidential and Proprietary Information of ZTE CORPORATION 31...

  • Page 36: Limited Warranty

    ZTE shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not ZTE had been advised, knew or should have known of the possibility of such damages, including, but not limited to lost profits, interruption of business, cost of capital, cost of substitute facilities or product, or any downtime cost.

  • Page 37: Fcc Compliance (Only For U.s. Market)

    The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. For this product’s recycling information based on WEEE directive, please send an e-mail to weee@zte.com.cn Confidential and Proprietary Information of ZTE CORPORATION 33...

  • Page 38: Troubleshooting

    If you changed the password and forgot the new password, you need to restore  the device to the factory default settings. For more assistance, please: • Send E-mail to mobile@zte.com.cn • Visit www.ztedevice.com • Call Service Hotline: 1–888–944-9400 34 Confidential and Proprietary Information of ZTE CORPORATION...
