Summary of Contents for Zte 4G LTERouter with Voice
-

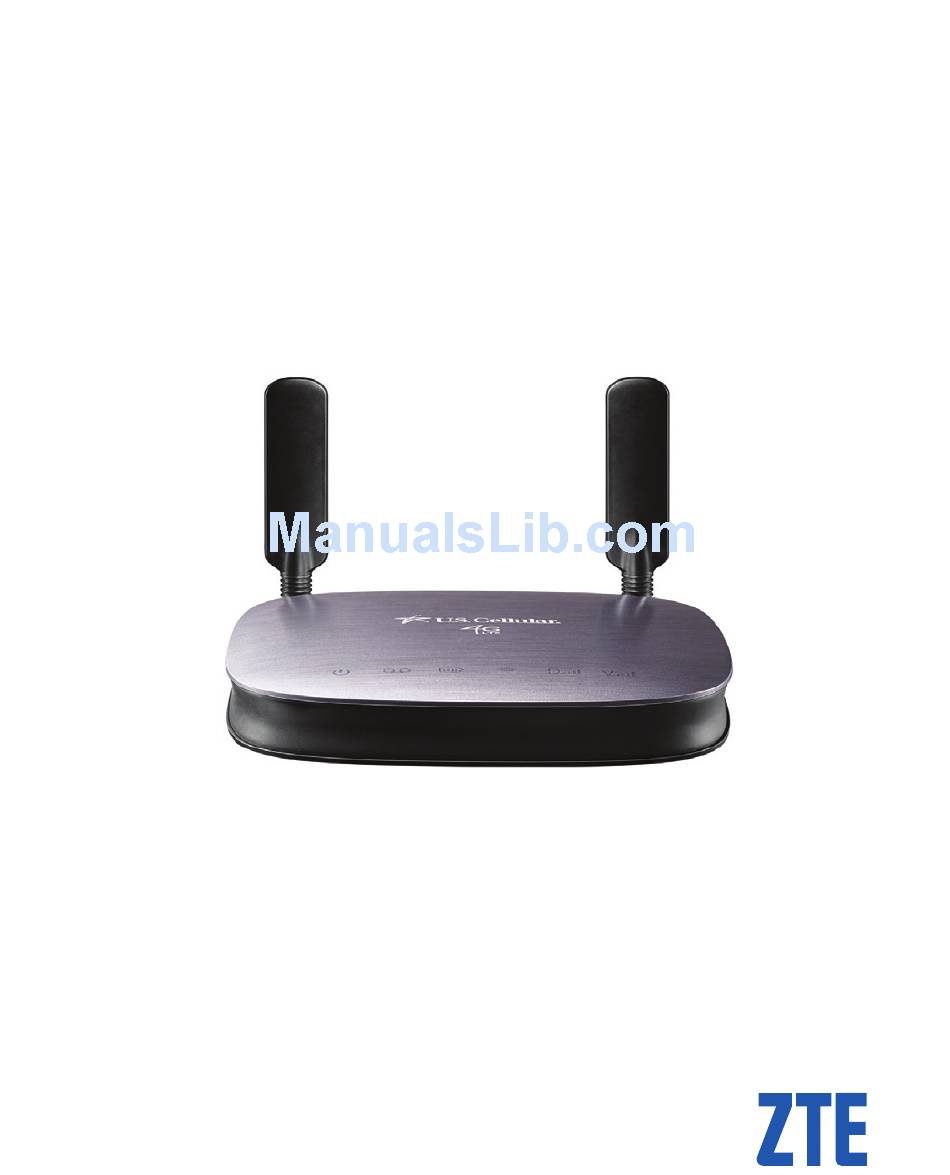

Page 1: Quick Start Guide
Quick Start Guide ™ 4G LTE Router with Voice ® U.S. Cellular Customer Service 1-888-944-9400... -
Page 2: Legal Information
ZTE Corporation. Notice This guide is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Every effort has been... - Page 3 4G LTE service provided through King Street Wireless, a partner of U.S. Cellular. LTE is a trademark of ETSI. ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.
- Page 4 SIM Card Limited Warranty Subject to the exclusions contained below, United States Cellular Corporation (“U.S. Cellular”) warrants to the original purchaser (“You” or “Your”) of the handset with which the 4G LTE™ SIM Card was provided that the 4G LTE SIM Card will be free from defects in material and workmanship for a period of one (1) year from the date You purchased the handset (the “Warranty Period”).
- Page 5 WITHOUT LIMITATION, ANY WARRANTIES OF TITLE, FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, NON-INFRINGEMENT OR ARISING FROM COURSE OF DEALING OR USAGE OF TRADE. NEITHER U.S. CELLULAR NOR ANY OF ITS AFFILIATES OR RETAILERS SHALL BE LIABLE TO YOU FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, ECONOMIC, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION,...
- Page 6 SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE DISCLAIMER OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND DISCLAIMERS MAY NOT APPLY TO YOU. No agent, employee, dealer, retailer, representative or reseller is authorized to modify or extend the terms of this Limited Warranty.
-
Page 7: Table Of Contents
Contents Getting to Know Your Device ....... 9 Appearance ..............9 Device Installation ..........11 Before You Begin ............11 Installing your Router with Voice ........ 11 Indicators ..............13 Connecting to your 4G LTE™ Router with Voice ............. 15 Accessing the Internet ........16 Connecting to Your Device ........ - Page 8 Call Waiting ..............24 Three-Way Calling .............24 Emergency Call ............25 Voicemail ..............25 Troubleshooting ..........26...
-
Page 9: Getting To Know Your Device
Getting to Know Your Device Appearance... - Page 10 1. 4G LTE™ SIM Insert your 4G LTE SIM Card. Card slot 2. Reset button Reset your router. 3. External antenna To get strength Signal. connector This button is used to start/end the Wi-Fi Protected Setup authentication process and enable/disable the Wi-Fi function. Hold it for 3 seconds to activate the 4.
-
Page 11: Device Installation
Device Installation Before You Begin You can charge your router by using an adapter. • Insert the charger lead carefully with the plug arrow facing the bottom of the router. • Do not use excessive force to insert the plug. •... - Page 12 2. Install the battery. 3. Install the 4G LTE™ SIM Card. IMPORTANT: Your device only supports the 4G LTE SIM Card. To avoid damaging the device, please use the card that comes installed or included in the box of the router.
-
Page 13: Indicators
Indicators Indicator State Description Power Green steady AC power present No AC power Green blinking New voicemail waiting Voicemail No new voicemail More than 50% discharging Green steady (charger not present, or fully charged) More than 50% charging Green blinking (charger present) 20%-50% discharging Yellow steady... - Page 14 Green steady Wi-Fi on Wi-Fi Blinking Active data connection Wi-Fi off Connected to the LTE Green steady network Connected to CDMA 1x or Yellow steady EVDO Data Network Blinking Roaming No service, limited service, searching, no 4G Red steady LTE™ SIM Card or other abnormal status Strong (3, 4 &...
-
Page 15: Connecting To Your 4G Lte™ Router With Voice
Connecting to your 4G LTE™ Router with Voice Please refer to the following picture for connecting to your 4G LTE Router with Voice. If you want to use the mobile network to connect to the Internet or use your land line phone, you need to insert your 4G LTE SIM Card first. -
Page 16: Accessing The Internet
Accessing the Internet Before accessing the Internet, please make sure that the following operations are finished: • Your device is connected via a network cable or Wi-Fi. • Your PC is configured. Connecting to Your Device Via Wi-Fi 1. Power on your device. It will take 1-2 minutes to initialize. - Page 17 3. Select the SSID of your device, and then click Connect. NOTE: SSID is printed on the device label beneath the battery door. 4. Input the password, and then click Connect.
- Page 18 NOTE: The password for the Wi-Fi connection is on the label of your device located under the battery cover. 5. The client will connect to your device.
-
Page 19: Wps Functionality
Via Ethernet port 1. Connect the Ethernet cable to the LAN port and your computer. 2. Your computer will acquire network connection via 4G LTE™ Router with Voice and connect to the internet automatically. WPS Functionality Your device supports WPS functionality. You can use this function to connect the client to your device. - Page 20 2. Press the WPS button on your device to start ‘Wi-Fi Protected Setup’ authentication process. 3. Enable the WPS function on your client to respond to this authentication process. 4. Follow the system prompts on your client to finish the connection.
-
Page 21: Voice Function
2) Input the password (for the default password, please check the label on your router), and then click Login to access the Web Portal Configuration Page. Now, you can customize your 4G LTE™ Router with Voice, such as the configuration on Internet, network selection, password and security settings, data usage, etc. -
Page 22: Answering A Call
NOTE: If there is no signal indication, the radio signal is unavailable. Change the location of the router and make sure that nothing is blocking it. Answering a Call When the phone rings, pick up the handset to answer it. If the telephone has hands-free functionality, you can also answer the call by pressing the Hands-free button. - Page 23 To deactivate Immediate Call Forwarding: • Pick up the handset and press *720#. • You will hear a confirmation tone. • Hang up your telephone or return the phone to its base. Busy Call Forwarding To enable Busy Call Forwarding: •...
-
Page 24: Call Waiting
To deactivate No Answer Call Forwarding: • Pick up the handset and press *920#. • You will hear a confirmation tone. • Hang up your telephone or return the phone to its base. Call Waiting With Call Waiting you will hear a beep tone if someone calls you while you are already on a call. -
Page 25: Emergency Call
NOTE: If your phone does not have a Flash key, use the off-hook mechanism supported by your phone instead. Emergency Call When making an emergency call, keep the device and phone power on and in service area. Pick up the phone receiver and key in the emergency number, wait for 3 seconds to send automatically. -
Page 26: Troubleshooting
Troubleshooting Voice-Related Symptoms Possible Problems/ Solutions * Please wait for 1-2 minutes after the router is turned on. No dial tone. * If the signal LED light is blinking, you have poor RF reception. Change the location of the router. * Make sure your 4G LTE SIM card There is a prompt/ is inserted correctly and the PIN... - Page 27 I hear a rapid tone * Put the phone on hook and try as soon as I lift again. If you are connected to the the phone off the Internet using the CDMA network, hook. please disconnect this first. After dialing the * When you have finished dialing, last digit, I hear you can press the # key or wait...
- Page 28 Internet Related Problems Symptoms Possible Problems/ Solutions * Please check your configuration Cannot access settings. the Internet at * Please wait 1-2 minutes for the all. router to initialize. * Check your service indicator LED’s. The download or * The speed is dependent on upload speeds signal strength.
- Page 29 * Make sure the Wi-Fi function is active. Press the WPS button to enable the Wi-Fi WPS function. * Refresh the network list and select Cannot establish the correct SSID. the Wi-Fi * Check the IP address to make sure connection your client can obtain an IP address between your...
- Page 30 Others Symptoms Possible Problems/ Solutions The voice signal * This indicates poor reception. indicator is always Try to move the router to blinking or does not another location near the light. window. * For the default password of the Web Portal configuration page and Wi-Fi connection password, please check the label on the About the pass-...
