QuickSpecs

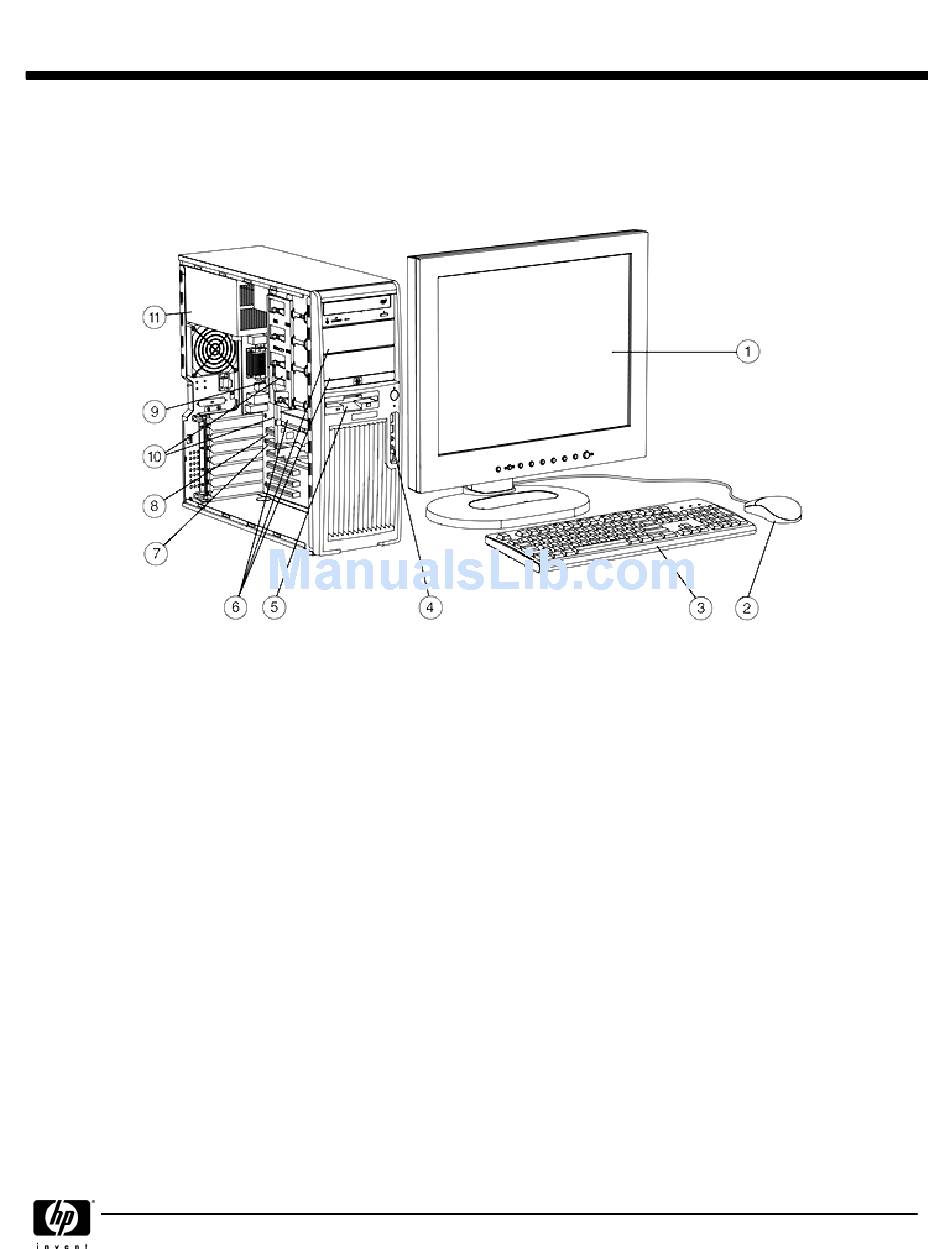

Overview
1. Monitor (sold separately)
2. 2-Button Scroll Mouse
3. 2004 Standard Keyboard
4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional PCI
card to enable), headphone and microphone
5. One 3.5" external bay for optional diskette drive or other
3.5" device
6. Three 5.25" external bays (3rd external is not full depth),
and two 3.5" internal bays
DA - 12260 Worldwide — Version 22 — May 25, 2007
HP recommends Windows
Vista™ Business
7. 3 PCI slots, 1 PCI Express x1 slot, 1 PCI Express x8 slot
(with x4 functionality)
8. 1 PCI Express x16 Graphics slot
9. Rear IO: 6 USB 2.0, 1 standard serial port, 1 optional
serial port, 1 parallel port, PS/2 keyboard, PS/2 mouse,
RJ-45, audio in, audio out, mic in
10. Intel® Pentium® 4 processor with Hyper-Threading
Technology and EM64T capability
11. 460 watt (continuous) power supply
HP xw4300 Workstation
Page 1
