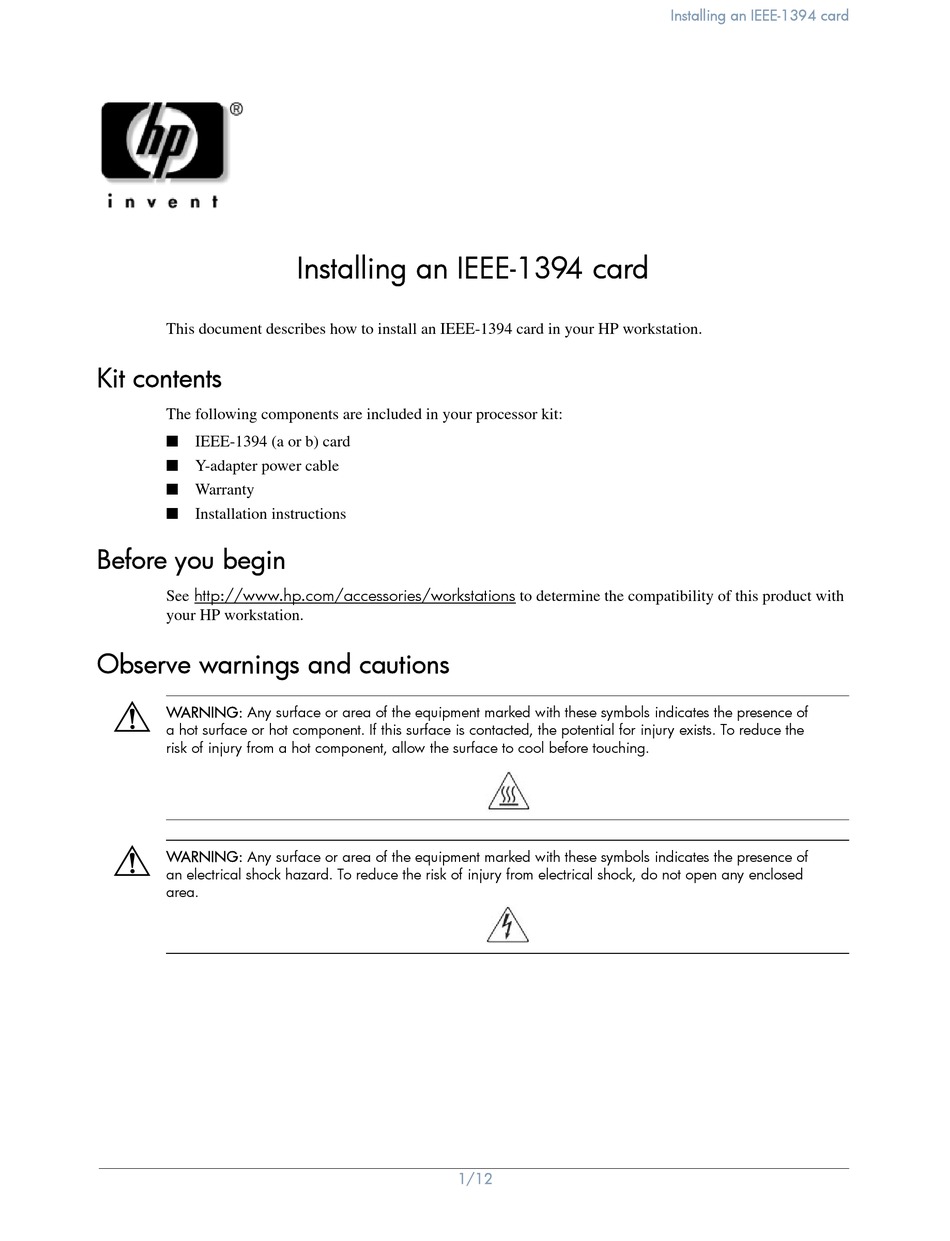

Installing an IEEE-1394 card This document describes how to install an IEEE-1394 card in your HP workstation. Kit contents The following components are included in your processor kit: ■ IEEE-1394 (a or b) card ■ Y-adapter power cable ■ Warranty ■...
✎ NOTE: HP accessories are for use in HP workstation products. They have been extensively tested for reliability and are manufactured to high quality standards. HP, therefore, warrants only those accessories that are manufactured or sold by HP.
Page 3
Installing an IEEE-1394 card Step 2—Remove PCI slot cover Open the PCI retention clamp by pressing down on the clips and moving the clamp toward the rear of the workstation 1. Pull up on the slot cover to remove it from the chassis 2. ✎...
Page 4
Step 3—Install the IEEE-1394 card Ä CAUTION: To prevent damage to this system, observe the following Electro Static Discharge (ESD) precautions while performing the system parts removal/replacement procedures: ❏ Work on a static-free mat. ❏ Wear a static strap to ensure that any accumulated electrostatic charge is discharged from your body to the ground.
Page 5
Step 4—Configure cabling HP xw4000/xw6000 series workstations 1. Connect a flexible disk-type power connector from the workstation power supply to the power connector on the IEEE-1394 card 1. Connect the front IEEE-1394 I/O cable to the I/O connector on the IEEE-1394 card 2.
