Summary of Contents for Broil King Q3XN-3

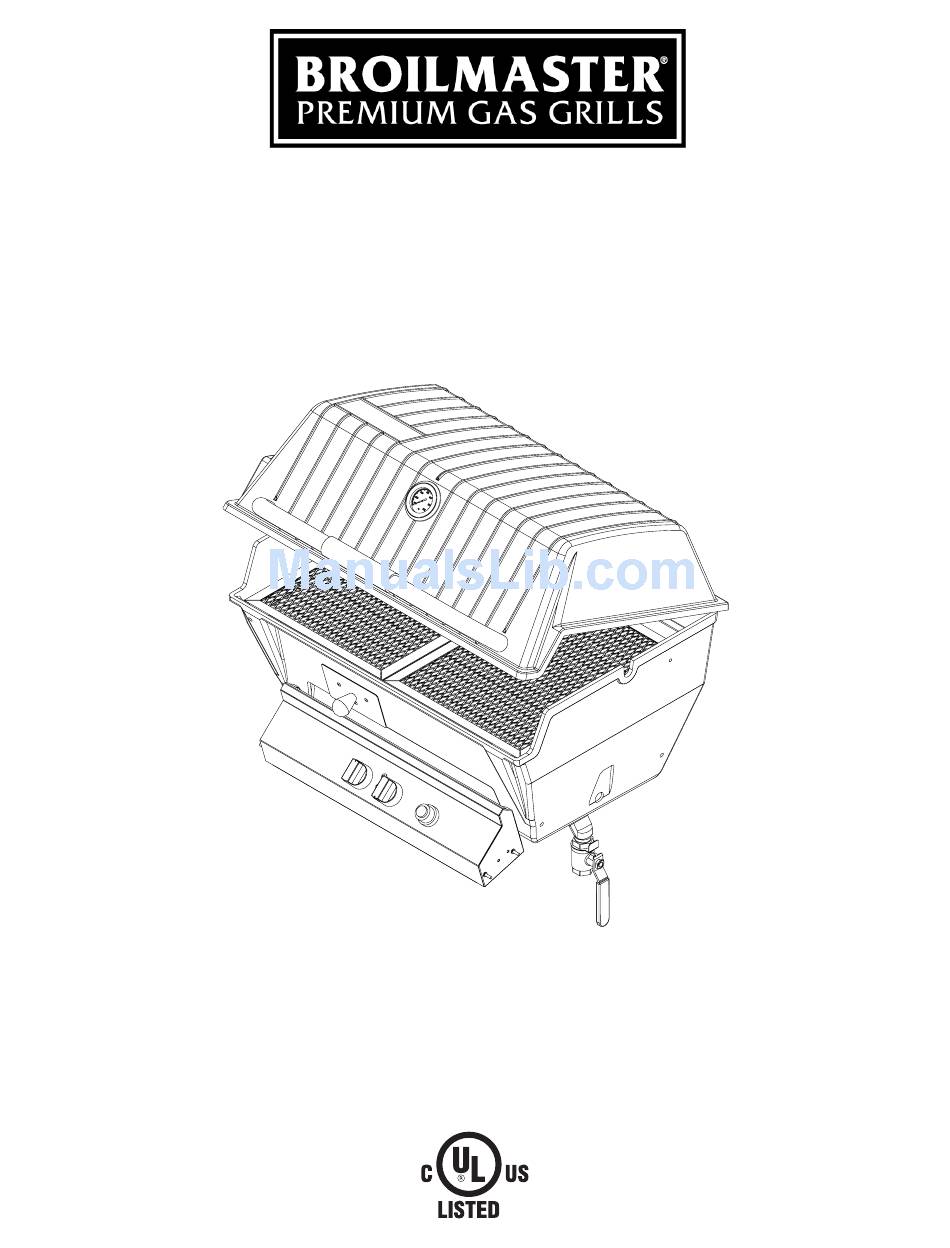

- Page 1 Owner’s Manual For Models: Q3X-3 Q3XN-3 GAS-FIRED Page 1...
- Page 2 WARNING Broilmaster Gas Grills must ONLY use propane cylinders equipped with an Overfill Pro- tection Device (OPD). Use only a reputable propane dealer when exchanging or filling cylinders. An overfilled or improperly filled propane cylinder can be dangerous.
- Page 3 At Broilmaster, we continually strive to enhance the performance and quality of our products for your grilling enjoyment. Every effort will be made to ensure that Broilmaster continues to be your choice as the Premium grill of the future. Whether you are at the lake or in the privacy of your own backyard, the Broilmaster Premium Gas Grill performs far beyond the ordinary and is designed to provide your family with years of outdoor cooking pleasure.
-
Page 4: Parts Diagram
PARTS DIAGRAM Order repair parts through your local Broilmaster dealer. To locate a dealer in your area visit www.broil- master.com. Please provide the following information when placing a repair part order: Model Number, Purchase Date, Serial Number, Part Name, Part Number, and Quantity of parts needed. See Page 7 for parts ordering information. -
Page 5: Parts List
PARTS LIST INDEX PART NUMBER DESCRIPTION NUMBER Q3XN B101883 B101883 GRILL BODY TOP B101665 B101665 PUSH NUT, 5/32” DPP119 DPP119 HEAT INDICATOR B070486 B070486 LID HANDLE B073097 B073097 FOAM GRIP B101732 B101732 COOKING SCREEN (2 PIECES, STAINLESS STEEL) B101718 B101718 DRIP PAN (STAINLESS) B101747 B101747... -
Page 6: Hardware Package
HARDWARE PACKAGE 10-24 KEPS NUT BRIDGE PIN 1/4-20 HEX NUT PHILLIPS TRUSS HEAD SCREW 10-24 X 1 PHILLIPS TRUSS HEAD SCREW 1/4-20 X 1 1/2 KNOB AA BATTERY WIRE, IGNITOR GROUND DESCRIPTION PART NUMBER QUANTITY SUPPLIED 10-24 KEPS NUT B073967 PHILLIPS TRUSS HEAD SCREW 10-24 X 1 B073978 1/4-20 HEX NUT... -
Page 7: Master Parts Distributor List
MASTER PARTS DISTRIBUTOR LIST To Order Parts Under Warranty, please contact your local Empire dealer. See the dealer locator at www.empirecomfort. com. To provide warranty service, your dealer will need your name and address, purchase date and serial number, and the nature of the problem with the unit. -
Page 8: Warranty Terms
WARRANTY TERMS Empire Comfort Systems Inc. warranties this Broilmaster premium gas grill to be free from defects at the time of purchase and for the periods specified below. Broilmaster Premium Gas Grills must be installed by a qualified technician and must be maintained and oper- ated safely, in accordance with the instructions in the owner’s manual. -
Page 9: Before You Begin
Compare the parts found in the shipping container to the parts list • Liquid soap (for foam grip) provided. If any parts are missing contact your Broilmaster dealer • Pipe sealant or Teflon tape (for sealing pipe fittings) before beginning assembly. -
Page 10: Propane Gas Grills
PROPANE GAS GRILLS Cylinder Requirements Grill Location When choosing the ideal location for your Broilmaster Premium Gas Grill, remember this grill is designed for outdoor use ONLY. Your Broilmaster Premium Gas Grill requires a standard twenty (20) pound propane gas cylinder. - Page 11 Never use an overfilled Propane gas cylinder. All Broilmaster pressure regulators and hose assemblies require Propane cylinders with a Type 1 connection device as illustrated. Cylinder Storage See Figure 1.
- Page 12 The pressure regulator’s fitting must remain clean and free of nicks and scratches. A dirty, nicked or scratched fitting can cause a gas leak, resulting in an explosion or fire. Use only genuine Broilmaster replacement parts unless otherwise specified by the manufacturer.
-
Page 13: Natural Gas Grills
NATURAL GAS GRILLS Connection Requirements Grill Location Broilmaster grills are not equipped with pressure regulators. Your When choosing the ideal location for your Broilmaster Premium gas grill operates at a manifold pressure of seven (7") inches water Gas Grill, remember this grill is designed for outdoor use ONLY. -
Page 14: Grill Assembly
GRILL ASSEMBLY To ease installation remove grill body top from grill body bottom by Install Heat Shield removing the two hinge pins and clips. Attach shield by inserting the shield over the studs. See Figure 7. Figure 7 Install Control Panel Attach control panel assembly to grill bottom with two (2) 10-24 keps nuts. - Page 15 GRILL ASSEMBLY Ignitor Wire Burner Bracket Securing Bolt Note: Install the Ignitor Ground Wire before installing the burner. Insert the 1/4-20 x 1 1/2 Phillips Truss Head Screw from the Connect the ground wire to the ground lug on the collector box underside of the grill and secure with the 1/4-20 Hex Nut.
- Page 16 GRILL ASSEMBLY Slide the venturi on to the valve assembly. Connect Igniter Wires and Install Battery Raise the unsecured end of the burner bracket and slip it over Attach ground and igniter wires to the igniter as shown in Figure the 1/4-20 x 1 1/2 Phillips Truss Head Screw as shown in Figure 13.
- Page 17 GRILL ASSEMBLY Handle For your added comfort a foam grip has been provided. See Figure 20. Tip: For ease of installation, slightly lubricate the front handle with liquid soap before pushing the foam grip into place. Figure 20 Figure 17 Fasten the front handle to the grill lid with two #10-24 x 1”...
- Page 18 GRILL ASSEMBLY Assemble Drain Pan Install the Drain Pan Assembly Note: Drain pipe and valve coponents are packed inside the Lower the drain pan into the lower casting with the drain pipe on smoker box. the right side. Pass the pipe through the oval hole in the bottom Lightly spread pipe sealant on all threads before assembling of the casting, making sure the pipe extends out through the to the drain pan.
-
Page 19: Operation - Propane & Natural Gas Grills
OPERATION - PROPANE & NATURAL GAS GRILLS Checking for Gas Leaks Lighting Instructions Check for gas leaks every time you connect your Broilmaster pro- Using the Ignitor pane gas grill to a Propane gas cylinder, when a connected cylinder Caution: If a burner fails to light after 5 seconds, turn the... -
Page 20: Maintenance
To clear the drain pipe and Clean regularly with a solution of mild detergent and hot water. valve, run a flexible drain brush through both and remove. Touch-up paint is available from your dealer. Broilmaster protec- tive covers are recommended. Stainless steel components can Bucket... -
Page 21: Troubleshooting
TROUBLESHOOTING Although the manufacturer has attempted to ensure that your grill will operate properly and satisfactorily, sometimes problems do arise. The following troubleshooting guide lists several possible problems and their probable cause and solution. Problem Cause Solution Burner will not light. Out of gas Refill LP gas cylinder. -
Page 22: Cooking Tips
COOKING TIPS Cook Food To Proper Temperatures Cooking food safely requires that you raise the internal temperature of the meat high enough and for a long enough period of time to kill any food-borne bacteria that may cause illnesses. Color is not the best indicator that food is safe to eat. Use a high-quality probe thermometer to be sure your food is prop- erly cooked. - Page 23 COOKING TIPS Grilling Smoking Place the cooking grids in the low position. The Qrave Grill is equipped with a front load smoker box. Preheat your grill with both valve knobs set to High for 15 Soak your flavor smoking chips in water for about 15 minutes. minutes.
- Page 24 COOKING TIPS Your Broilmaster Premium Gas Grill is identified by model number, serial number, and gas type. This information is provided on a product identification label located on the grill’s control panel. For your convenience, complete this section for future reference when contacting your dealer.
