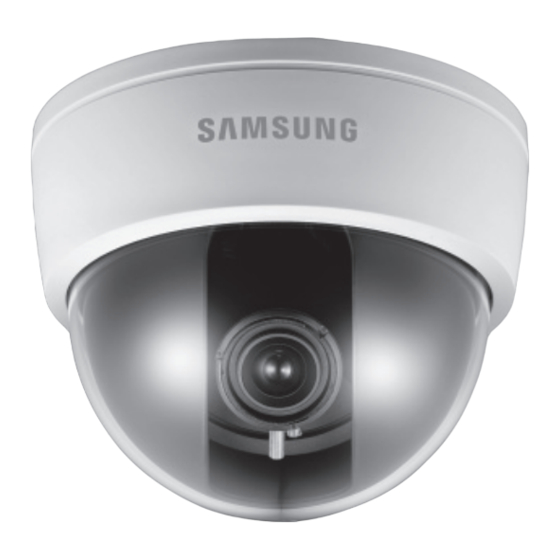

Samsung SCD-3080 Series User Manual

High resolution wdr dome camera
Hide thumbs Also See for SCD-3080 Series:
Table of Contents

Advertisement

Quick Links

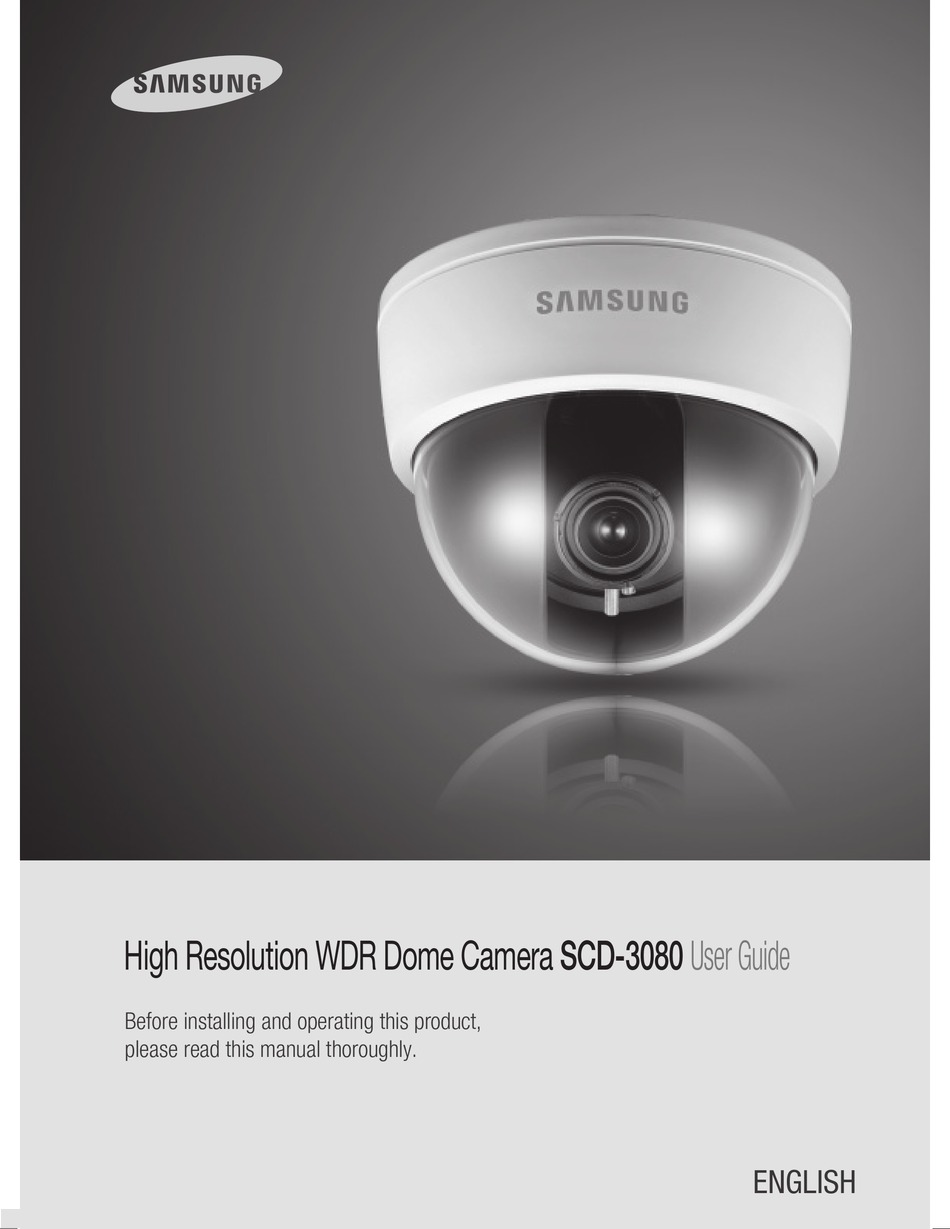

High Resolution WDR Dome Camera SCD-3080
High Resolution Varifocal Dome Camera SCD-3080
Before installing and operating this product,
Before installing and operating this product,
please read this manual thoroughly.
please read this manual thoroughly.
User Guide
User Guide
ENGLISH
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCD-3080 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung SCD-3080 Series

Summary of Contents for Samsung SCD-3080 Series

  • Page 1 High Resolution WDR Dome Camera SCD-3080 User Guide High Resolution Varifocal Dome Camera SCD-3080 User Guide Before installing and operating this product, Before installing and operating this product, please read this manual thoroughly. please read this manual thoroughly. ENGLISH ENGLISH...
  • Page 2 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. I SCD-3080 SERIES • NTSC MODELS • PAL MODELS SCD-3080N SCD-3080P I MODEL DESCRIPTION • SCD-3080X _ SIGNAL SYSTEM •...
  • Page 3 The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 4: Table Of Contents

    Connecting to Monitor ■ Connecting to Power ■ Using Coaxial Communications Operating Your Camera • ■ Menu Configuration ■ Menu Setup LENS EXPOSURE WHITE BAL BACKLIGHT SSNR3 DAY/NIGHT PROFILE SPECIAL EXIT Troubleshooting • Specifications • Dimension • COLOR DOME CAMERA SCD-3080...
  • Page 5 The function effectively removes blurred provide optimum colors, and B/W mode operates in night- outline problems resulting in excellent road time conditions to enhance the definition of the image. monitoring and improved license plate recognition. COLOR DOME CAMERA SCD-3080...
  • Page 6 D-ZOOM, SHARPNESS and PRIVACY functions are - NTSC : English, Korean, Japanese, Spanish, provided. French, Portuguese, Taiwanese - PAL : English, Chinese, German, Italian, French, Spanish, Russian, Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese, Thai COLOR DOME CAMERA SCD-3080...
  • Page 7 Warning/Attention/Special Mark Messages Ignoring this information may Ignoring this information may result in material loss and/or result in material loss and/or a serious personal injuries including slight injuries. death. Indicates "Never Allowed." Indicates "No Disassembling." COLOR DOME CAMERA SCD-3080...
  • Page 8 Be careful not to smear it with fingerprints. Do not drop the camera or subject it Never keep the camera face to strong to physical shock. light directly. May cause a product malfunction. May damage the CCD. COLOR DOME CAMERA SCD-3080...

  • Page 9: Components And Accessories

    • Ensure that the power source complies with normal specifications before supplying it to the camera. Components and Accessories ❶ ➋ ➌ High Resolution WDR Dome Camera SCD-3080 User Guide Before installing and operating this product, Before installing and operating this product, please read this manual thoroughly. please read this manual thoroughly.

  • Page 10: Overview

    D & N Input Terminal : You can switch to Day & Night Mode by connecting an external signal to this terminal. ❿ ⓫ ⓬ Ground Terminal Dome Cover Shield Case Notes • Be sure to connect the Day & Night input terminal to GND when using an external input. COLOR DOME CAMERA SCD-3080...

  • Page 11: Installation

    • If the ceiling material is not strong enough to hold the installation screws, the camera may fall off. Reinforce the ceiling as needed. Hole Cover • To change the position of the cable, take away the Hole Cover and pass the cable through. COLOR DOME CAMERA SCD-3080...
  • Page 12 [Figure-2] Notes • If you want to install the camera with the ceiling bracket combined, fix it using two M4 tapping screws at the side of the main body (refer to the [Figure-2] on page 12). COLOR DOME CAMERA SCD-3080...

  • Page 13: Adjust The Panning And Tilting, Rotating While Watching The Monitor

    After mounting the camera on a ceiling, adjusting the panning angle to the correct viewing position by rotating the pan base. ➋ Adjust the tilting angle by rotating the tilt base. ➌ Loosen the rotate base hold screw and adjust rotate base for the best view. ➍ Tighten the rotate base hold screw. COLOR DOME CAMERA SCD-3080...

  • Page 14: Connecting To Monitor

    * Standard voltage for camera operation : DC 12V ± 10%, AC 24V ±10% * There may be some deviation in voltage drop depending on the type of wire and the manufacturer. COLOR DOME CAMERA SCD-3080...

  • Page 15: Using Coaxial Communications

    Recommended Cable Specification 300m 3C2V(RG-59/U) 450m 5C2V(RG-6/U) 600m 7C2V(RG-11/U) Notes • It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable. COLOR DOME CAMERA SCD-3080...

  • Page 16: Operating Your Camera

    OUTDOOR INDOOR WHITE BAL MANUAL AWC→SET USER BLC BACKLIGHT SSDR SSNR3 AUTO EXTERN COLOR DAY/NIGHT BASIC DAY/NIGHT BACKLIGHT PROFILE INDOOR USER IMAGE ADJ CAM TITLE SYNC SPECIAL INTELLIGENCE PRIVACY LANGUAGE RETURN SAVE NOT SAVE RESET EXIT COLOR DOME CAMERA SCD-3080...

  • Page 17: Menu Setup

    2. Select a desired function using the Function Setup switch. • Place the cursor over a desired item. 3. Set up a selected item by using the Function Setup switch. 4. To finish the setting, select ‘EXIT’ and press the Function Setup switch . COLOR DOME CAMERA SCD-3080...
  • Page 18 MAIN SETUP 1.LENS 2.EXPOSURE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’. 2. Select a desired mode using the Function Setup switch. COLOR DOME CAMERA SCD-3080...
  • Page 19 SENS-UP : When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated. - OFF : Deactivates the SENS-UP function. - AUTO : Activates the SENS-UP function. COLOR DOME CAMERA SCD-3080...
  • Page 20 MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by using the ATW or AWC mode. After that switch to MANUAL mode, fine- tune the White Balance and the Function Setup switch. COLOR DOME CAMERA SCD-3080...
  • Page 21 White Balance operation may become unstable. BACKLIGHT The SCD-3080 is designed so that it delivers a distinctive subject and background at the same time, even when the subject is in backlight, by adopting a function of the proprietary SV-V DSP chip.
  • Page 22 WDR : When there are both bright and dark areas at the same time, this mode makes both areas distinctive. < WDR > < OFF > Select ’WDR‘ to adjust the WDR LIMIT and LEVEL. - LIMIT : Adjust the WDR Sensitivity by selecting LOW, MIDDLE or HIGH. COLOR DOME CAMERA SCD-3080...
  • Page 23 • If you increase LIMIT, the screen display may be distorted. • If you use the VPS (Virtual Progressive Scan) function, the CCD reads differently so you can not use WDR simultaneously. If you set VPS to ON, WDR will be automatically set to FIXED Mode. COLOR DOME CAMERA SCD-3080...
  • Page 24 DAY/NIGHT You can display pictures in color or in black and white. 1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Function Setup switch so that the arrow indicates ‘DAY/NIGHT’. COLOR DOME CAMERA SCD-3080...

  • Page 25: Main Setup

    EXTERN : This mode allows you to apply a desired filter to external signals. COLOR : The picture is always displayed in color. : The picture is always displayed in black and white. You can turn on or off the burst signal on B/W mode. COLOR DOME CAMERA SCD-3080...
  • Page 26 BACKLIGHT : It will be set automatically so you can distinguish the object from the background in a severe backlighting scene. ITS : It will be set automatically so you can easily check the traffic conditions. COLOR DOME CAMERA SCD-3080...
  • Page 27 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.BACKLIGHT 5.SSNR3 6.DAY/NIGHT AUTO 7.PROFILE BASIC 8.SPECIAL 9.EXIT SAVE COLOR DOME CAMERA SCD-3080...
  • Page 28 Monitor : Please change the settings value of video appropriate to your monitor. · LCD : Please select this menu item when using an LCD monitor. You can change the gamma, PED level and color gain in the sub menus. COLOR DOME CAMERA SCD-3080...
  • Page 29 Adjust this value appropriately depending on the sharpness of the picture. RETURN : Select this to save the settings for the IMAGE ADJ menu and to return to the SPECIAL menu. COLOR DOME CAMERA SCD-3080...
  • Page 30 To edit a letter, change the cursor to the bottom left arrow and press the Function Setup switch. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the Function Setup switch. COLOR DOME CAMERA SCD-3080...
  • Page 31 • If the VPS is set to ON, synchronization is fixed to INT. INTELLIGENCE : Commands the camera to motion-detect and trace an object. INTELLIGENCE 1. MOTION 2. DETECT BOX 3. ALARM OUT 4. DETECT AREA 5. MASK AREA 6. SENSITIVITY 7. DET. SIZE 8. RETURN COLOR DOME CAMERA SCD-3080...
  • Page 32 IN/OUT : Detects all objects entering and exiting the fenced area. - RETURN : Select this to save the POSITION menu settings and return to the TRACKING menu. RETURN : Select this to save the TRACKING menu settings and return to the INTELLIGENCE menu. COLOR DOME CAMERA SCD-3080...
  • Page 33 AREA : You can select up to 4 areas. MODE : Determines whether to use the area selected in the AREA. TOP / BOTTOM / LEFT / RIGHT : Adjust the size and position of the selected area. COLOR DOME CAMERA SCD-3080...
  • Page 34 SEL POS/ XPOS/ YPOS : Adjust the size and position of the selected area. RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu. DIS (Digital Image Stabilizer) : This function mitigates any picture movement due to external factors such as wind. COLOR DOME CAMERA SCD-3080...
  • Page 35 : Save the current settings and exit the MAIN SETUP menu. NOT SAVE : Do not save the current settings and exit the MAIN SETUP menu. RESET : Resets the camera settings to the factory defaults. Language and Monitor settings are not initialized. COLOR DOME CAMERA SCD-3080...

  • Page 36: Troubleshooting

    Make sure that the camera and monitor are installed within the recommended distance. Use the video amplifier equivalent to coaxitron if the recommended installation distance is exceeded. The camera is out of focus. Check that you have properly adjusted the zoom / focus adjustment lever of lens. COLOR DOME CAMERA SCD-3080...

  • Page 37: Specifications

    Specifications SCD-3080 NTSC SCD-3080 PAL ELECTRICAL Input Voltage AC 24V±10% / DC 12V±10% Power Consumption Max 3.5W VIDEO Imaging Device 1/3 inch Color Double Density CCD Total Pixels / 811(H) x 508(V) / 768(H) x 494(V) 795(H) x 596(V) / 752(H) x 582(V)
  • Page 38 Specifications SCD-3080 NTSC SCD-3080 PAL White Balance ATW / OUTDOOR / INDOOR / MANUAL / AWC (1,700°K ~ 11,000°K) Backlight Compensation OFF / USER BLC / HLC / SSDR / WDR Wide Dynamic Range x128(52dB) x160(54dB) 3D Noise Filter (SSNRIII) OFF / ON (Level adjustable) Day &...

  • Page 39: Dimension

    Dimension Ø115.8 Ø97 COLOR DOME CAMERA SCD-3080...

  • Page 40: Scd-3080

    We, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s). Manufacturer SAMSUNG TECHWIN CO., LTD Legal Representative in Europe Signature Signature Full Name BONJENG GU Full Name Position QUALITY CONTROL MANAGER Position Place CHANGWON, KOREA Place COLOR DOME CAMERA SCD-3080...
  • Page 41 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 42 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 43 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 44 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 45 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 46 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 47 MEMO COLOR DOME CAMERA SCD-3080...
  • Page 48 SALES NETWORK SAMSUNG TECHWIN CO., LTD. Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400 TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745 SAMSUNG TECHWIN AMERICA Inc. SAMSUNG TECHWIN EUROPE LTD. 1480 Charles Willard St, Carson, CA 90746, UNITED STATES Samsung House, 1000 Hillswood Drive, Hillswood Business Park Tol Free : +1-877-213-1222 FAX : +1-310-632-2195 Chertsey, Surrey, UNITED KINGDOM KT16 OPS www.samsungcctvusa.com...
