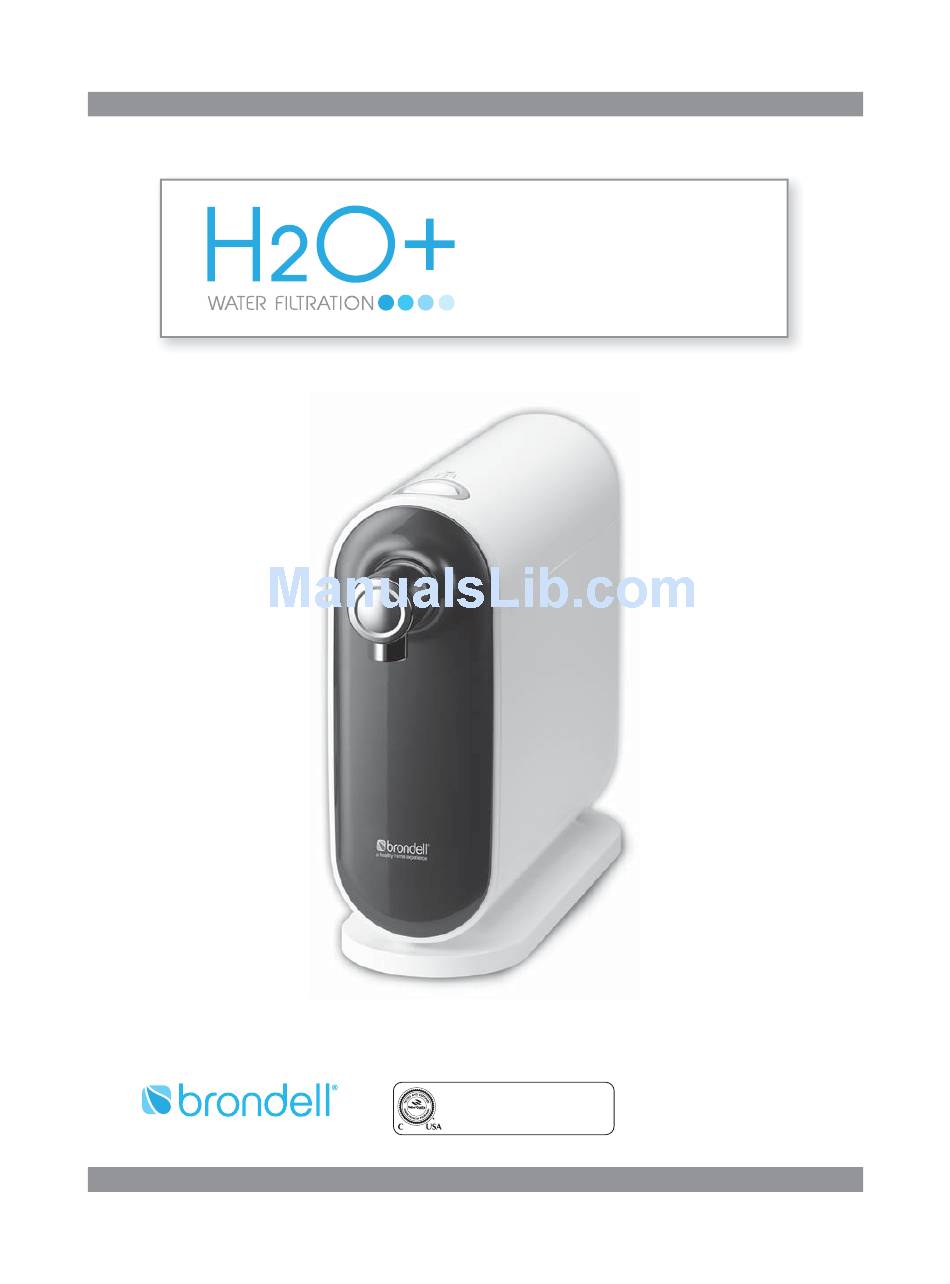

- Page 1 OWNER’S MANUAL The H630 water filtration system is tested and Model #: H630 certified by WQA to NSF/ANSI Standards 42 for Aesthetic Chlorine and Particulate Class 1 Cypress and 53 for VOC and Turbidity reduction. a healthy home experience...
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ........1 FILTER REPLACEMENT ........9 SAFETY PRECAUTIONS ........1 TROUBLESHOOTING ........11 FEATURES ............2 SPECIFICATIONS ..........12 PRODUCT COMPONENTS ......3 WATER FLOW DIAGRAM .......13 WATER FILTRATION PROCESS .......4 WARRANTY ..........14, 15 INSTALLATION ...........5 PERFORMANCE DATA SHEET ......16, 17 SPANISH .............19 HOW TO USE ............7 CLEANING ............8... -
Page 4: Features

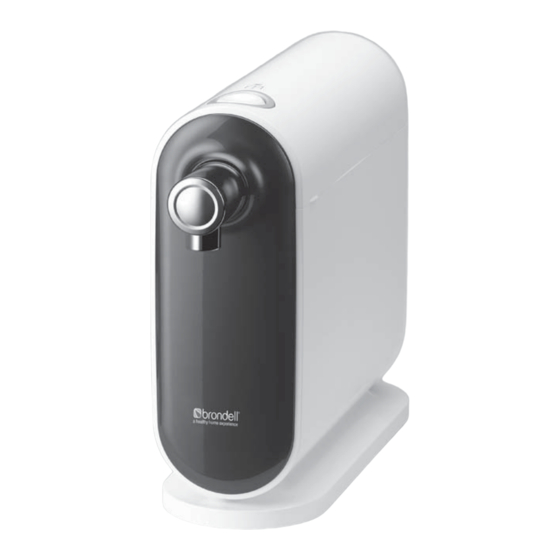

FEATURES Advanced 3-Stage Filtration System The Brondell H2O+ Cypress water filtration system provides powerful triple filtration performance utilizing patented Nanotrap technology. Cost Savings Efficiency Non-electric design, no wastewater or storage tanks, and long lasting filters all add up to significant cost savings over the life of the product. -
Page 5: Product Components
Diverter adapter (Type 1) (Type 2) Alternative Installation parts are T-valve for Alternative available for purchase online at under counter Installation www.brondell.com or call us toll water supply free: 1-888-542-3355 (not included) installation T-valve fitting (available in ½” or ” ) -
Page 6: Water Filtration Process
WATER FILTRATION PROCESS The 3-stage H2O+ Cypress H630 water filtration system 1 COMPOSITE PLUS FILTER (HF-31) This 2-step filter reduces particulate materials such as sand, rust, and fine particles from the water supply. This first filter also acts as a pre-filter protecting the 2 following filter systems. 2 NANOTRAP FILTER (HF-32) This specialized filter reduces turbidity and additional particulate material. -
Page 7: Installation
INSTALLATION Prior to installation. a) Remove top cover with both hands. b) Write filter replacement date on filter change sticker found on top of each filter. Note: Carbon Block (HF-33) and Composite Plus (HF-31) filters are 6 month filter life & Nanotrap (HF-32) filter is 1 year filter life. Faucet Diverter Type (included) 1. - Page 8 Alternative Installation T-valve Type (for under-the-counter water supply direct connection) * Sold separately on www.brondell.com or call Brondell at 1-888-542-3355. Prior to installation. a) Remove top cover with both hands. b) Write filter replacement date on filter change sticker found on top of each filter.
-
Page 9: How To Use
Failure to properly install or check for leaks may cause damage to your property and Brondell will not be responsible for any damages. 5. Press the button on top of the unit to dispense water (into your sink) and let it run for 10 minutes to flush the system and activate the filters. -
Page 10: Cleaning
CLEANING Filter Flushing Before First Use / After Filter Change 1. Flush the filters and system with continuous water flow for at least 10 minutes before first time use or after changing any of the filters. The initial flushed water contains carbon powder and air from the filter. During flushing of filter, sound will be heard as carbon powder and air is flushed out. -
Page 11: Filter Replacement
FILTER REPLACEMENT Filter The filters are critical to the performance of the H2O+ water filtration system and it’s important to replace all of the filters on a regular basis. If any of the filters are overused beyond the recommended service life, the performance of the water filtration device can deteriorate. - Page 12 How to Replace Filters - Cont. 3. Remove old filters by using connection tool as shown below to disconnect all connections. Remove old filters from main body and insert new filters. Reconnect all conections. Place each new filter in correct order during filter replacement. (Check the color and name of each filter) Use a cleaning tool to remove any foreign materials or moisture inside filter case.
-
Page 13: Troubleshooting
TROUBLESHOOTING In most cases, problems with your Brondell H2O+ water filtration system can be resolved with a little troubleshooting by checking each of the items below. If you cannot resolve the problem you are having after troubleshooting, please call Brondell customer service toll free: 888-542-3355 or email us at support@brondell.com... -
Page 14: Specifications
SPECIFICATIONS H2O+ Cypress Water Filtration Device Product name Model / SKU H630 Filter Composite Plus (HF-31) / Nanotrap (HF-32) / Carbon Block (HF-33) Working temperature 40 °F ~ 100 °F (4.4 °C ~ 37.8 °C ) Working pressure 20 ~ 120 PSI (0.14 MPa ~ 0.83 MPa) Filter flow rate 0.5 GPM (1.9 LPM) Dimensions... -
Page 15: Water Flow Diagram
WATER FLOW DIAGRAM Brondell Cypress H630 Water Filtration System A = Carbon Block (HF-33) B = Nanotrap (HF-32) C = Composite Plus (HF-31) -
Page 16: Warranty
BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first full year from date of purchase on all products except those that may be subject to commercial use limitations. - Page 17 Proof of purchase in the form of a copy of your original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre- paid to the closest Brondell authorized service center along with your RMA number and proof of purchase.
-
Page 18: Performance Data Sheet
Refer to the owner’s manual for specific installation instructions, manufacturer’s limited warranty, user responsibility, and parts and service availability. For parts and service availability, please contact Brondell. The estimated replacement time of filter, which is a consumable part, is not an indication of quality guarantee period, but it means the ideal time of filter replacement. - Page 19 1 These harmonized values were agreed upon by representatives of USEPA and Health Canada for the 5 Chemical reduction percent and maximum product water level calculated at chloroform 95% breakthrough Brondell, Inc purpose of evaluating products to the requirements of this Standard.
- Page 20 NSF/ANSI 42 and 53. * Certifications on file with Brondell / www.brondell.com The following is required for Iowa purchases only. A copy of this document must be retained by seller for 2 years.
