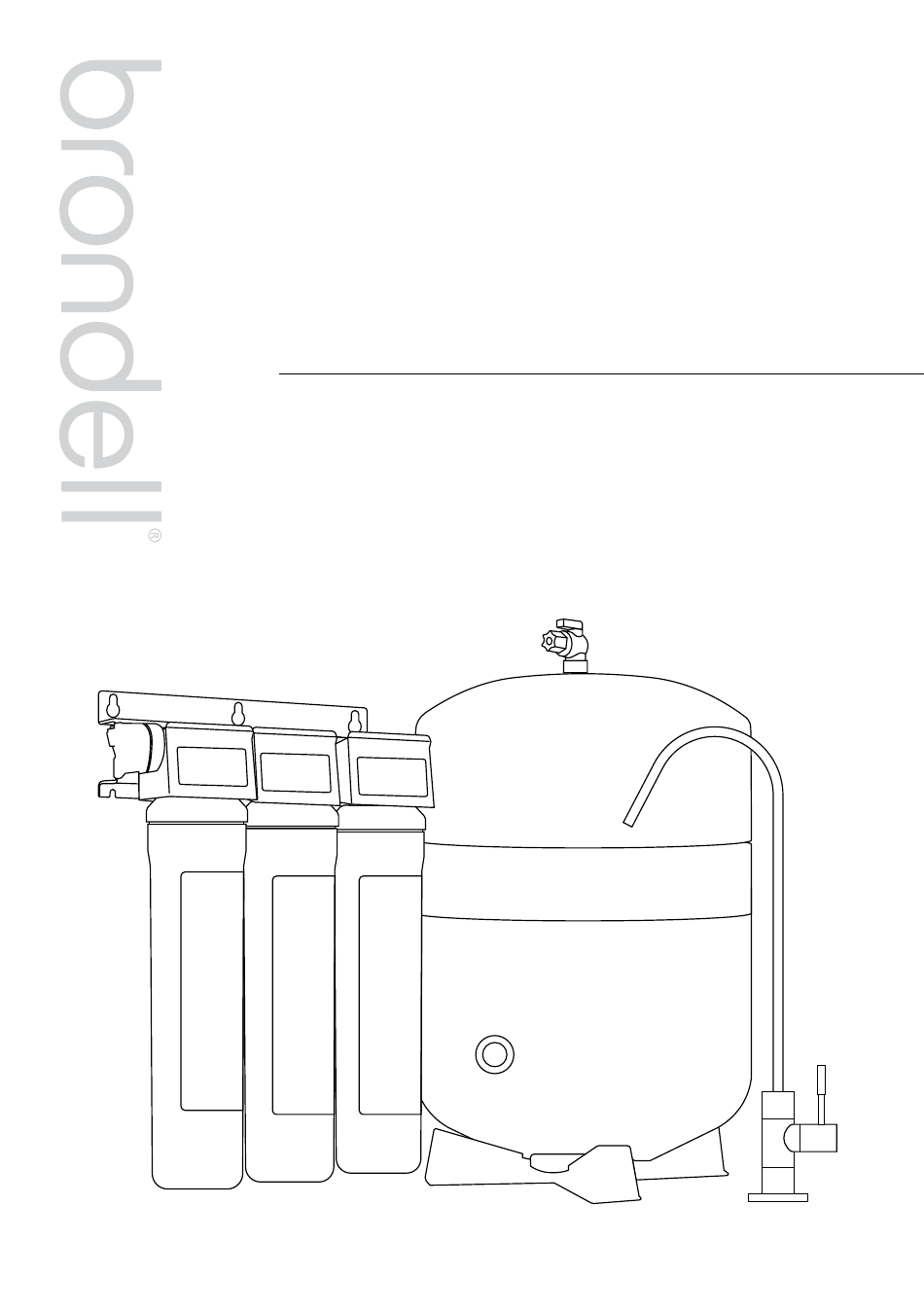

Owner's Manual
CAPELLA
H2O+ REVERSE OSMOSIS
WATER FILTRATION SYSTEM RC250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAPELLA RC250 and is the answer not in the manual?

Questions and answers

Related Manuals for brondell CAPELLA RC250

Summary of Contents for brondell CAPELLA RC250

  • Page 1 Owner's Manual CAPELLA H2O+ REVERSE OSMOSIS WATER FILTRATION SYSTEM RC250...

  • Page 2: Table Of Contents

    CAPELLA MANUAL Contents Read this Owner’s Manual for correct installation, use, and maintenance of this product. After reading and completing installation, keep this manual in a place that is easily accessible. GENERAL INFO TECHNICAL INFORMATION TECHNICAL INFORMATION SAFETY INFORMATION Product Specifications Button Battery Warning TDS Meter Information Performance Data Sheet...

  • Page 3: Safety Information

    SAFETY INFORMATION (IMPORTANT SAFEGUARDS) READ ALL INSTRUCTIONS BEFORE USING BE CAREFUL TO KEEP THIS SAFETY INFORMATION. PLEASE READ THIS INFORMATION TO PREVENT PROPERTY LOSS AND ENSURE SAFETY. If not observed, serious physical injury or property damage may occur as a result. WARNING Read all the instructions before using or installing the Capella.

  • Page 4: Button Battery Warning Tds Meter Information

    BUTTON BATTERY WARNING TDS METER INFORMATION Button battery warning: • Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. • Even used batteries may cause severe injury or death. • Call a local poison control center for treatment information.

  • Page 5: Product Information

    Air gap faucet prevents backflow, and the intuitive LED indicator reminds you when it’s time to change your filters. Easy DIY Installation Pre-installed faucet tubing and “quick-connect” water supply connections simplify installation. One Year Warranty Backed by Brondell’s commitment to superior customer service and support.

  • Page 6: Product Components

    PRODUCT INFORMATION Product Components   1   2   3   4   5   6     1 2     1 4   8   7   9  11   1 0     1 5     1 3 Filter Head Connector Assembly 6.

  • Page 7: Capella Waterflow Diagram

    PRODUCT INFORMATION Capella Waterflow Diagram Backside View Auto Shutoff Valve...

  • Page 8: The Three-Stage Filtration Process

    PRODUCT INFORMATION The Three-Stage Filtration Process Stage Stage Stage Stage One: Activated Carbon Plus Filter Three The Activated Carbon Plus filter reduces particulate materials such as sand, rust, and fine particles from the water supply. This first stage also acts as a pre-filter protecting and extending the life of the following filters.

  • Page 9: Product Installation

    PRODUCT INSTALLATION Step 1: T-Valve Installation DO NOT INSTALL THE FILTER HEAD CONNECTION ASSEMBLY FURTHER THAN 12 FEET AWAY FROM EITHER THE WATER SUPPLY VALVE OR THE INDICATOR FAUCET. Avoid unnecessary slack in the supply hoses when connecting to the water supply, Filter Head Connection Assembly, or Indicator Faucet.

  • Page 10: Step 2: Air Gap Faucet Installation

    NOTE: If drilling a new hole is required for the faucet installation, please consult a professional. Brondell will not be liable for any damages, including those to the sink or countertop, due to installation of the faucet or drilling a hole.

  • Page 11: Step 2: Faucet Installation

    PRODUCT INSTALLATION Step 2: Air Gap Faucet Installation Faucet Installation 1. Unpack the faucet, and insert the Top Spout into the Main Body by pushing down until inserted, then screw the Top Cap clockwise until secured in place. 2. Cut zip tie on the pre-installed 1/4-inch blue water connection tubing, and unroll to straighten.
  • Page 12 PRODUCT INSTALLATION Step 2: Air Gap Faucet Installation 5. Attach the Escutcheon to the Main Body by inserting the blue faucet tubing, orange brine input tubing, and black drain tubing (3 tubes) through the Escutcheon. Slide the Escutcheon all the way up until connected to the Main Body.

  • Page 13: Step 3: Drain Clamp Installation

    PRODUCT INSTALLATION Step 3: Drain Clamp Installation Before Installation You will need to have these tools (not included) for the following installation: 1) drill, 2) 1/4-inch drill bit, and 3) 3/8-inch drill bit WARNING: This step may require drilling into the existing drain pipe. Please seek professional help when completing this step, and always wear safety protection including safety goggles! 1.
  • Page 14 PRODUCT INSTALLATION Step 3: Drain Clamp Installation b. Insert the end of the guide into the 3/8-inch hole in the drain pipe, and slide the clamp with the foam against the pipe, lining up both holes. Take the back half of the drain clamp and position it against the back side of the drain pipe.

  • Page 15: Step 4: Filter Head Connection Assembly Installation

    PRODUCT INSTALLATION Step 4: Filter Head Connection Assembly Installation Be sure to install the Filter Head Connection Assembly so that the top of the assembly is at least 14 inches from the floor of the sink cabinet. Otherwise, the filters will not install correctly. 1.

  • Page 16: Step 5: Filter Installation

    PRODUCT INSTALLATION Step 5: Filter Installation 1. It is very important to install the filters in the Filter correct order. Match the same color label on Head each filter to the color label on the Filter Head Connection from left to right: 1) Activated Carbon Plus Filter Filter 2) E2RO Membrane Filter...

  • Page 17: Using "Quick Connectors

    Step b Connector Housing. c. To disconnect the tube, push down and hold the collet first, and then pull the tube out gently. NOTE: Visit brondell.com for our Quick Connect Tutorial Video. Step c...

  • Page 18: Step 7: Connecting The Tubing

    PRODUCT INSTALLATION Step 7: Connecting the Tube 1. Water Supply Connection a. Measure the distance from your T-valve to where you have installed the filter head assembly, and cut the white, Water Supply Tubing. Insert one end of the tubing firmly into the Quick Connect fitting on the open side of the T-valve.
  • Page 19 PRODUCT INSTALLATION Step 7: Connecting the Tube 4. Tank Connection a. Measure out the white Water Supply Tubing, and carefully cut a piece for connecting the tank. Locate the Shut-off Valve Assembly. Insert one end of the tubing firmly into the Quick Connect on the assembly.

  • Page 20: Preparing For Use

    NOTE: Failure to properly install this product or to properly check for leaks may cause damage to the property. In these instances, Brondell, Inc. will not be held responsible for any damages.

  • Page 21: Water Pressure

    PREPARING FOR USE Water Pressure Water Pressure Traditional RO systems run on water pressure. Your incoming water pressure has a direct effect on how well your RO system will perform. With sufficient water pressure (max 100 psi), your RO system will function well and fill up the storage tank quickly. To test your water pressure, you can use a water pressure gauge from your hardware store that connects onto your sink or garden faucet.

  • Page 22: Maintenance

    Do not miss the filter replacement cycle or use non-compatible filters as this can affect system performance or damage the unit. NOTE: Contact Brondell at 888-542-3355, or visit us at www.brondell.com to order replacement filters. Filter Change Indicator The LED filter change indicator in the faucet works by tracking both time and water flow from the Capella.

  • Page 23: Filter Replacement

    MAINTENANCE Filter Replacement After replacing the filters, Filters to Change Total Time Date Changed write down the date and Activated Carbon Plus Change 1 filters changed on this 6 Months 6 Months Carbon Block Filter Change Chart (a separate sticker is also Activated Carbon Plus Change 2 provided).
  • Page 24 7. Replace the battery in the faucet LED indicator to reset the filter Step 6a change reminder. The battery type is CR2032, and Brondell provides one with every set of RF-30 filters. a. Under the faucet handle, locate the black rubber battery compartment.

  • Page 25: Extended Non-Use

    MAINTENANCE Extended Non-Use If the system has not been used for two weeks or more, turn on the indicator faucet and allow the system to drain completely (about 10 minutes). After the system is drained, turn off the indicator faucet and allow the system to regenerate the water supply (about 90 minutes).

  • Page 26: Technical Information

    • The air chamber of the tank contains compressed air. • If the pressure tank leaks or shows signs of corrosion or damage, stop use and contact Brondell Customer Service.

  • Page 27: Performance Data Sheet

    TECHNICAL INFORMATION Performance Data Sheet The Capella RC250 RO system has been tested and certified by the Water Quality Association according to NSF/ANSI 42, 53, 58, and 401 for the reduction of Aesthetic Chlorine, Aesthetic Chloramine, Taste and Odor, Nominal Particulate Class 1, Cyst, VOCs, Asbestos, Mercury, Methyl Tert-Butyl Ether (MTBE), Turbidity, PFOA/...
  • Page 28 • Turbidity: < 1 NTU local regulations. • Temperature: 41 - 95°F • Hardness: < 1,000 mg/L • For parts and service availability, please contact Brondell at 888-542-3355. • The compounds certified under NSF/ANSI 401 have been deemed as “incidental contaminants/emerging compounds”.
  • Page 29 TECHNICAL INFORMATION Performance Data Sheet Filter Replacement Cycle Part Number Filter Name Usable Period Activated Carbon Plus 6 Months Filter RF-30 6 Months Carbon Block Filter RF-50 E2RO Membrane Filter 24 Months * The filter replacement cycle may be reduced for areas with poor water quality or greater use.
  • Page 30 TECHNICAL INFORMATION Performance Data Sheet Volatile Organic Chemicals (VOCs) Included by Surrogate Testing* Drinking Water Influent Challenge Chemical Reduction Maximum Product Water Chemical Regulatory level¹ Concentration² mg/L Percent (%) Concentration mg/L (MCL/MAC) mg/L alachlor 0.002 0.050 > 98 0.001 atrazine 0.003 0.100 >...

  • Page 31: Troubleshooting

    If the Capella appears to be operating abnormally, please review the troubleshooting tips before calling the Brondell Service Center as most issues are easily resolved with a few simple steps. If you are unable to resolve the issue after checking the following items, please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST (English and Spanish spoken), or...
  • Page 32 Unexpected flow The auto shut-off valve See product warranty in last page of manual, in drain line is inoperative and contact Brondell. No drain flow 1. Other filters or E2RO 1. See Filter Replacement (page 21). Membrane is clogged 2. The flow restrictor 2.

  • Page 33: Warranty

    • Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products. • Damage or loss resulting from acts that are not the fault of Brondell or that the Product is not specified to tolerate.
