Water Filtration System – Below Counter Installation

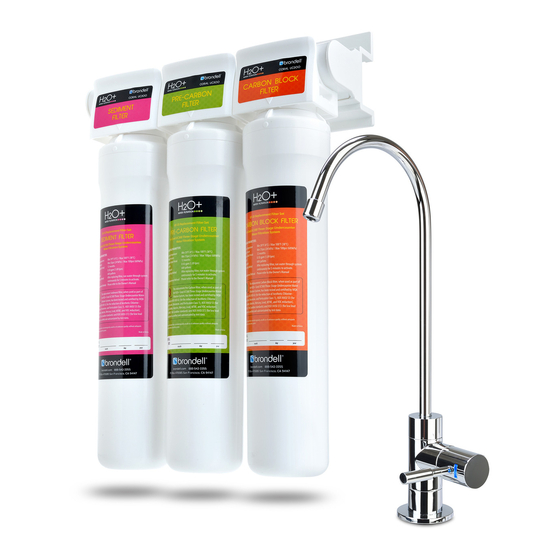

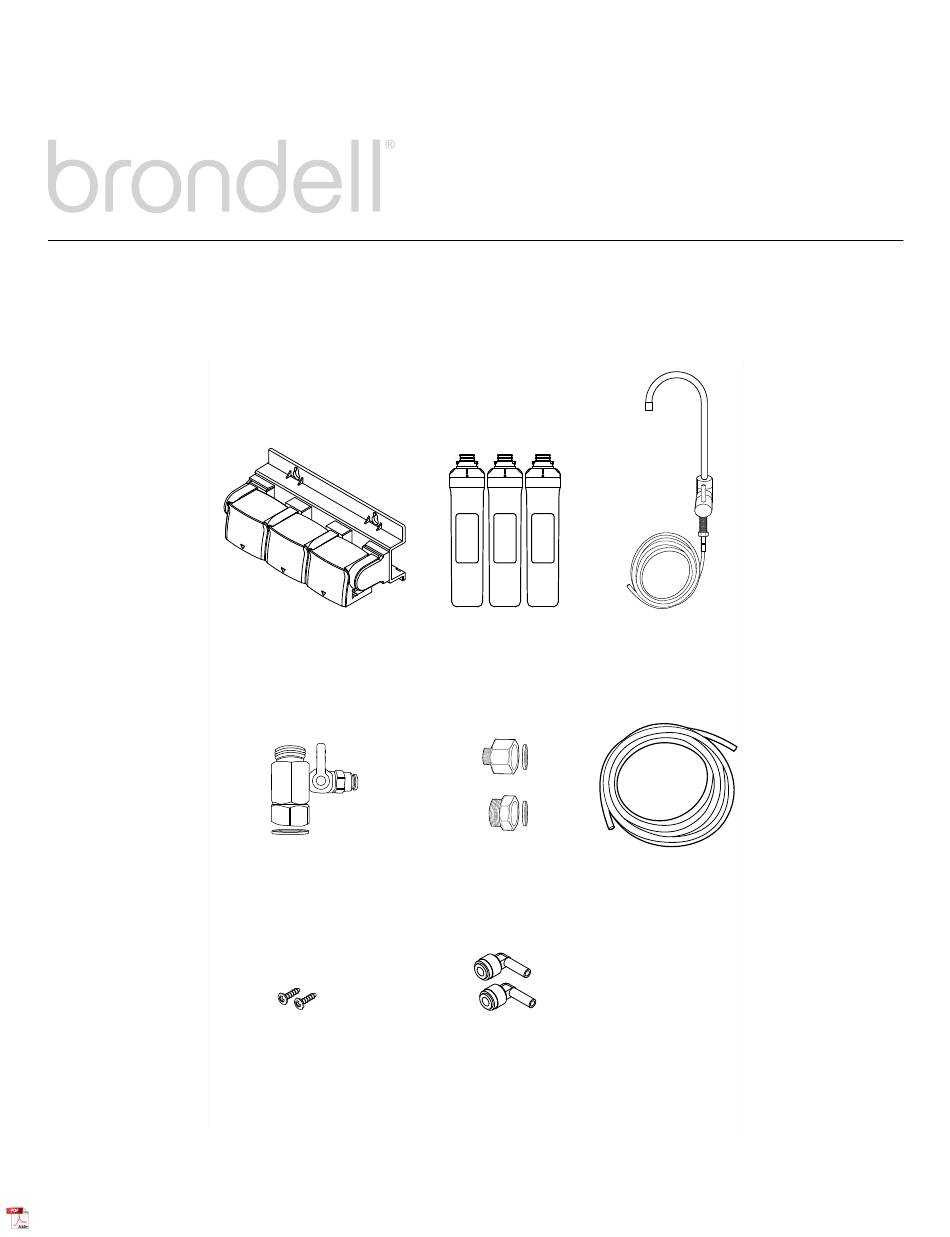

UC 300 COMPONENTS
Filter Head
3 Filters:
LED Indicator Faucet
Connection Assembly
Sediment Filter
Assembly with attached
Pre-Carbon Filter
tubing (blue)
Carbon Block Filter
Water Supply T-Valve
T-Valve Adapters
Water Supply Tubing
with Rubber Washer
with Rubber Washer
(3/8" connection)
3/8" to 1/2"
Mounting Screws
Quick Connect
90° Elbows
Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Advertisement
Table of Contents
Related Manuals for brondell UC 300
Summary of Contents for brondell UC 300
- Page 1 Carbon Block Filter Water Supply T-Valve T-Valve Adapters Water Supply Tubing with Rubber Washer with Rubber Washer (3/8” connection) 3/8” to 1/2” Mounting Screws Quick Connect 90° Elbows Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
- Page 2 (blue) Water Supply T-Valve T-Valve Adapters Water Supply Tubing with Rubber Washer with Rubber Washer (3/8” connection) 3/8” to 1/2” Mounting Screws Quick Connect 90° Elbows Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
-
Page 3: Uc 300 Water Flow Diagram
Filter Head Connection Assembly Sediment Filter Pre-Carbon Filter Carbon Block Filter – REAR VIEW – OUTLET INLET Filtered Incoming Water Water Carbon Pre-Carbon Sediment Block Filter Filter Filter Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 4: Uc 100 Water Flow Diagram
Filtered Tubing Water Tubing Water Supply T-Valve Filter Head Connection Assembly Carbon Block Filter – REAR VIEW – OUTLET INLET Filtered Incoming Water Water Carbon Block Filter Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 5: Product Installation
Adapters with Rubber Washers to connect the T-Valve and the water supply hose. 4. Screw the cold water supply hose to the top of the T-Valve. Be sure to keep the water supply valve closed. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 6: Step 2: Faucet Installation
2. Cut zip tie on the blue water connection tubing and unroll to straighten tubing. Be careful not to cut the tube when removing the zip tie. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... - Page 7 6. Pull the plastic tab out from the battery compartment to activate the faucet indicator. The LED light will blink red once, blue once, and then will be ready to go. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
-
Page 8: Step 3: Filter Head Connection Assembly Installation
NOTE: Before you mount the Connection Assembly, it may be a good idea to practice inserting and removing the filters. 3. Insert the two mounting screws through the holes in the Assembly frame and screw into the cabinet sidewall. UC300 UC100 Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 9: Step 4: Installing The Filters
UC100 3. For UC300 – Repeat the process for the Pre-Carbon filter and Carbon Block filter. For UC100 – This process is complete. water inlet water outlet Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 10: Step 5: Connecting The Tubing
Connector Assembly “Outlet” by inserting the Tube into the Collette on the Quick Connect 90° Elbow on the side labeled “Outlet”. Be sure to push in firmly all the way and ensure the Tube is not bent or kinked. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com... -
Page 11: Troubleshooting
Water is leaking from An O-ring on one of the filters is Determine which filter or filters are affected the head Connection damaged. and contact the Brondell service center. Assembly. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
