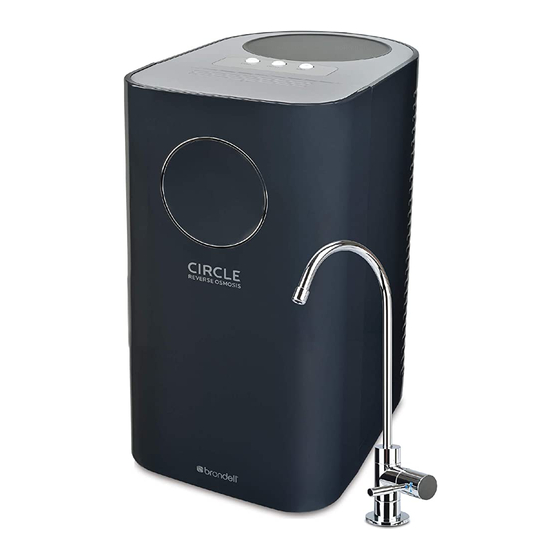

Water Filtration System – Reverse Osmosis Installation

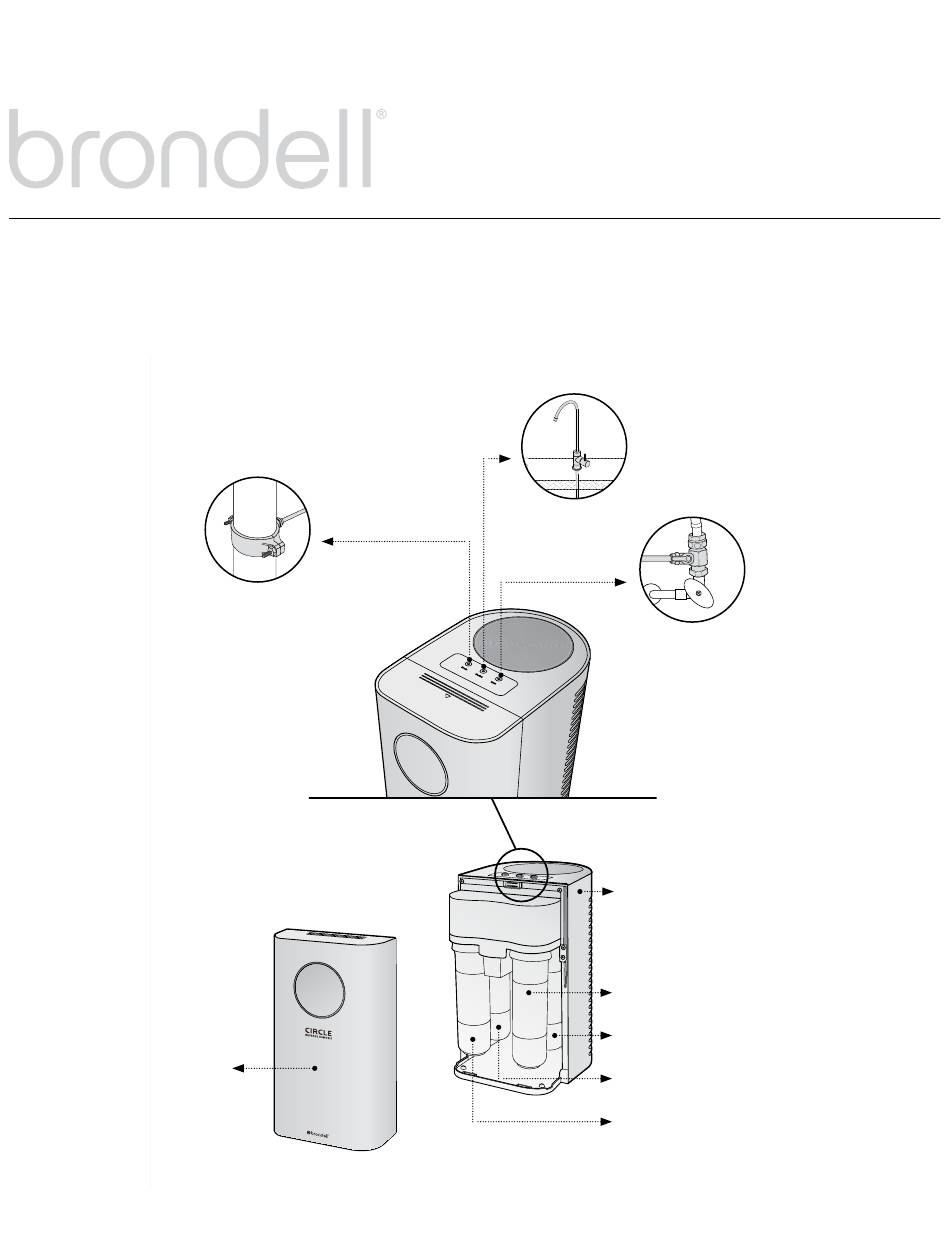

PRODUCT COMPONENTS
PRODUCT COMPONENTS
Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Waste Water
Drain Clamp
Cover
Outlet to
Faucet
Water Supply
Inlet
Water Tank
Sediment Filter
RO Membrane Filter
Post Carbon Block Filter
Pre-Carbon Plus Filter
5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for brondell RF-20

  • Page 1 PRODUCT COMPONENTS Outlet to Faucet Waste Water Drain Clamp Water Supply Inlet Water Tank Sediment Filter RO Membrane Filter Cover Post Carbon Block Filter Pre-Carbon Plus Filter Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 2: Tools Needed

    Adjustable Wrench Drill & 1/4” Drill Bit Thin Screwdriver, Straw, Towel & Bucket Safety Glasses Scissors for or similar item less than cutting zip ties 1/4” in diameter Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 3: Step 1: Faucet Installation

    2. Cut zip tie on the blue water connection tubing and unroll to straighten tubing. Be careful not to cut the tube when removing the zip tie. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 4 6. Pull the plastic tab out from the battery compartment to activate the faucet indicator. The LED light will blink red once, blue once, and then will be ready to go. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 5 NOTE: See next page for tips on how to use Quick Connectors. 5. Make sure the T-valve is in the closed position (valve arm should be facing up). Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 6 To disconnect the Tube, push down and hold the Collette first, and then pull the Tube out gently. Visit brondell.com for our Quick Connect video tutorial. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 7: Step 3: Drain Clamp Installation

    If you do not have a 1/8-inch drill bit, then you can just use the 1/4-inch bit. Clean the debris from the pipe and the hole before continuing. DO NOT drill all the way through the pipe. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 8 1/4-inch Quick Connector back into place. 5. Lastly, insert the white drain tube into the 1/4-inch Quick Connector on the drain clamp and push firmly into place. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 9: Step 4: Finishing Up

    Failure to properly install this product or to properly check for leaks may cause damage to the property. In these instances, Brondell, Inc. will not be held responsible for any damages. Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
  • Page 10: Troubleshooting

    Filter is not installed correctly place Unusual sounds during Problem with one of the internal See product warranty in last page of manual operation regulators and contact Brondell Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com...
