Install additional
4

power supplies

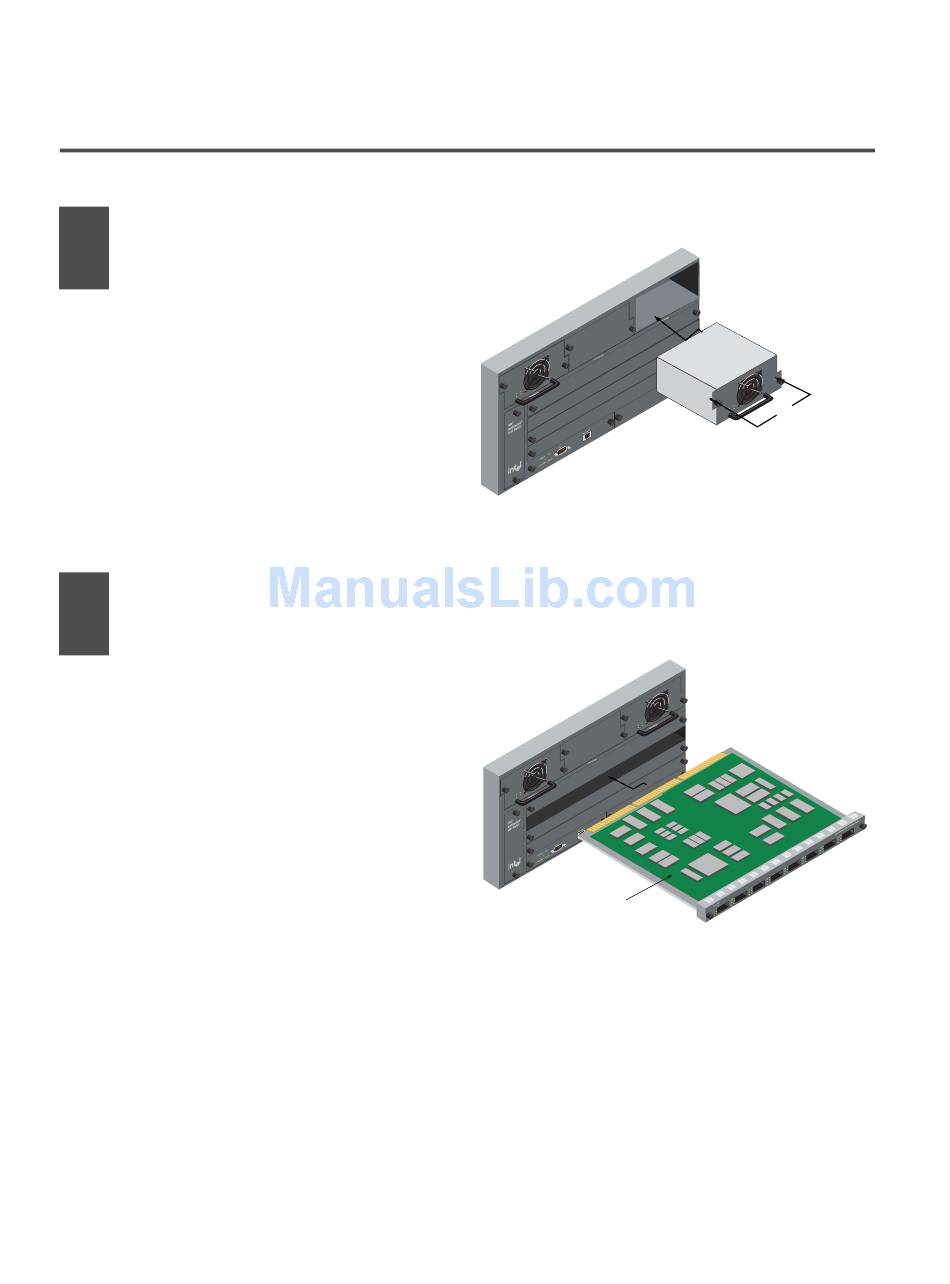

If you purchased an additional power sup-
ply, place it in one of the empty power
supply bays at the top of the chassis.
1 Loosen and remove the capture panel
screws on the face plate of the power
supply bay.
2 Push the power supply into the power
supply bay until the capture panel
screws engage the chassis.
3 Tighten the capture panel screws.
I nstall the
5
A c t

network modules

You can install network modules, such as
the 1000Base-SX, 1000BaseLX /
1000BaseSX and 10/100Base-TX, in any
available slot on the chassis
1 Remove the filler panels from any slots
(1-4) that will hold network modules.
2 Push the module back until it connects
with the backplane connector, and the
capture panel screws engage the chassis.
3 Tighten both capture panel screws
simultaneously.
4 Leave the filler panels in any unused
slots. Doing so keeps dust out of the
switch and helps maintain proper air-
flow.
2
Gigabit
Ethernet
Module
Capture Panel
Screws
