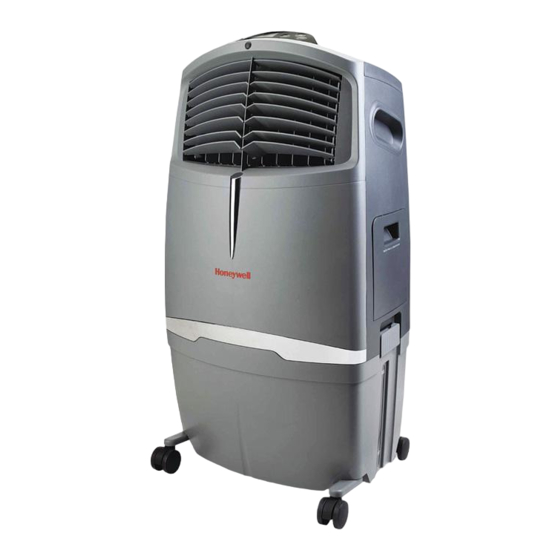

Honeywell CHL30XC Owner's Manual

Portable evaporative air cooler with heater for indoor use.
Hide thumbs

Advertisement

Portable Evaporative Air Cooler with Heater
for indoor use
OWNER'S MANUAL
Read and save these instructions before use
Model: CHL30XC
Power rating: 252W (Cooling) / 2000W (Heating)
Voltage rating: 220-240V ~ 50 Hz
For product inquiries or support, visit
www.honeywellaircoolers.com
Customer Service Center:
Made in China
+44 (0)1477 539500 / www.scott-air-cooling.co.uk

Advertisement

   Also See for Honeywell CHL30XC

   Related Manuals for Honeywell CHL30XC

   Summary of Contents for Honeywell CHL30XC

  • Page 1

    Portable Evaporative Air Cooler with Heater for indoor use OWNER’S MANUAL Read and save these instructions before use Model: CHL30XC Power rating: 252W (Cooling) / 2000W (Heating) Voltage rating: 220-240V ~ 50 Hz For product inquiries or support, visit www.honeywellaircoolers.com...

  • Page 2

    QUICK START GUIDE Fill with water and plug into standard power outlet. Note : Please make sure that the power outlet is set to correct settings as per product specifications. Place near open door or window. Note : Evaporative Air Coolers work on evaporative cooling mechanism which requires cross ventillation.

  • Page 3: Table Of Contents

    INDEX Read all instructions carefully before setting up and operating the unit, and please keep this instruction manual for future reference. This manual is designed to provide you with important information needed to setup, operate, maintain, and troubleshoot your cooler. Failure to follow these instructions may damage and/or impair its operation and void the warranty.

  • Page 4: Thank You

    THANK YOU Congratulations on your purchase of this versatile Honeywell Evaporative Air Cooler and Heater. For optimum cooling & heating performance from your unit, fill the water tank with water & ice (if available) to increase its cooling power and turn off the Cool mode at least 15 minutes before you turn on the heater.

  • Page 5: User Tips

    USER TIPS Energy Efficient, No Compressor EVAPORATIVE AIR COOLER Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This breeze drops the temperature and has a relaxing cooling effect. The evaporative air cooler cools the air by means of the evaporation of water.

  • Page 6

    USER TIPS The recommended maximum relative humidity level is 60% or less, which allows a noticeable temperature decrease. The temperature decrease will be greater in drier climates because higher evaporation occurs when the humidity is low. The evaporative air cooler should not be used in enclosed spaces.

  • Page 7

    SAFETY READ AND SAVE THESE INSTRUCTIONS: When using electrical appliances, basic safety precautions should always be followed: • Your cooler runs on 220-240 Volt AC, 50 Hz current. Check the household voltage to ensure it matches the appliance's 220-240V AC 50Hz rate specification.

  • Page 8

    SAFETY • DO NOT attempt to repair or adjust any electrical or mechanical functions of the cooler, as this may void the warranty. • DO NOT cover the air inlet or outlet on the appliance as this may cause motor damage. •...

  • Page 9: Safety Rules

    SAFETY RULES WHEN OPERATING AS HEATER • DO NOT put any combustible item over the unit, when operating on the HEAT mode, as it may catch fire. • DO NOT use this heater close to curtains and other combustible material and keep a safe distance.

  • Page 10: Parts Description

    PARTS DESCRIPTION 1 Control Panel 10 Back Grill 2 Handle 11 Front Panel 3 Louvers for Manual Adjustment 12 Water Level Indicator 13 Remote Control Holder 4 Left Side Panel 14 Latch (To Detach Water Tank) 5 Water Tank 15 Right Side Panel 6 Power Cord 7 Power Plug 16 Water Fill Door...

  • Page 11: Use & Operation

    USE & OPERATION CONTROL PANEL SWING SPEED COOL HEAT TIMER Icons on LCD Low water level in tank Swing Cool Time delay set Fan operating Heater Low Low speed Heater High Medium speed High speed...

  • Page 12: Function Buttons

    USE & OPERATION FUNCTION BUTTONS POWER SWITCH This unit is equipped with a spearate Main Power Switch, located on the side near the top (part no.19). Please make sure that this Power Switch is in the ON position, if your Power Switch is not in the ON position the unit will not run.

  • Page 13

    USE & OPERATION SWING LOUVER MOVEMENT Press the SWING button. The indicator light will come on and the louvers will begin to move from right to left automatically. Manually adjust the horizontal louvers to change vertical airflow. HEAT Press the HEAT button to turn ON the heater. You can vary the speed of heater from low to high.

  • Page 14: Room Cooling And Humidifying

    USE & OPERATION ROOM COOLING AND HUMIDIFYING When the Water Regulator is set to MIN, the water pump distributes a minimal amount of water to the Honeycomb Cooling Media. This results in less water evaporation and reduces the cooling effect. When the Water Regulator is set to MAX, the water pump distributes the maximum amount of water to the Honeycomb Cooling Media.

  • Page 15: Remote Control

    USE & OPERATION REMOTE CONTROL Power: On / Off Speed: Low / Medium / High POWER Cool: Controls cooling or fan option Swing: Controls the motion of the louvers SPEED SWING Timer: Controls timer function for automatic shut off TIMER Heat: Turns on / off the heating function COOL HEAT...

  • Page 16: Filling With Water

    USE & OPERATION FILLING WITH WATER Open the Water Fill Door located below the Remote Control Holder on the unit. The water tank of the unit holds up to 30 litres of water. Water level display window is located on the front of the unit. Refill the water tank when water level is low.

  • Page 17: Cleaning & Maintenance

    CLEANING & MAINTENANCE WARNING • Before cleaning the unit, switch it to the off position and remove the plug from the power socket. • To clean the outside, use a damp cloth to remove dirt and dust. • Never use corrosive elements or any chemicals to clean this product. •...

  • Page 18

    CLEANING & MAINTENANCE CLEANING THE HONEYCOMB COOLING MEDIA & CARBON FILTER • The appliance is supplied with Carbon Filter & Honeycomb Cooling Media. Open Screws • Always keep the Carbon Filter clean. You can wash the Carbon filter at least twice a year or whenever you feel necessary.

  • Page 19: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION No discharge of air Cord is not plugged in. Make sure power cord is plugged in and the supply switch is ON. Power is not ON. Turn the unit ON by pressing button on the control panel or remote control.

  • Page 20

    TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION The unit does not respond Remote control batteries. Check batteries. Replace if needed. Try to operate using the control panel. Damaged Control Panel Try with remote control. If the on unit. unit responds, PCB board fasteners may be loose.

  • Page 21: Technical Specifications

    TECHNICAL SPECIFICATIONS MODEL NO. CHL30XC Voltage 220-240V 50Hz Frequency Wattage (Air Cooler Mode) 252W 2000W Wattage (Heating Mode) Water Tank Capacity 30 Liter Cooling Media Honeycomb Product Dimension 458(W) x 352(D) x 856(H) mm 13.05 kg / 28.8 lbs Net Weight...

  • Page 22

    We undertake by this Warranty to rectify free of charge any fault due to poor workmanship or faulty materials occurring in this Honeywell evaporative cooler within 1 year from the date of purchase. This undertaking is conditional upon the cooler being used only for personal...

  • Page 23

    Authorized distributor: February 2014 © 2014 AirTek Int’l Corp. Ltd. All rights reserved. Scott Brothers Limited. The Honeywell Trademark is used under license from www.scott-air-cooling.co.uk Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product.
