Honeywell CHS122AE User Manual

Portable evaporative air cooler


Quick Links

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
Model: CHS122AE


Table of Contents

Summary of Contents for Honeywell CHS122AE

  • Page 1 Portable Evaporative Air Cooler User Manual Read and save these instructions before use Model: CHS122AE E-mail:
  • Page 2: Parts Description

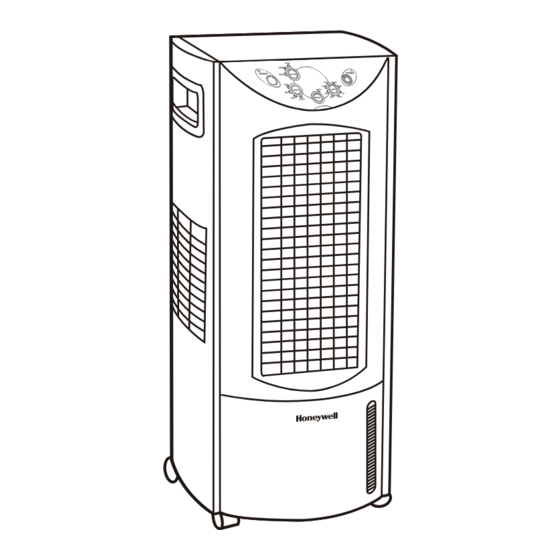

    PARTS DESCRIPTION Handle Water Tank Remote Control Control Panel Right Side Grill Ice Compartment Lid Casters Ice Compartment Water Level Indicator Left Side Grill Louvers Power Cord & Plug Drain Plug Main Power Switch WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER MANUAL BEFORE USING THIS PRODUCT.
  • Page 3: Use And Operation

    USE & OPERATION CONTROL PANEL SWING POWER HEATING HIGH HIGH COOL SPEED TIMER MODE SLEEP FUNCTION BUTTONS MAIN POWER SWITCH This unit is equipped with a separate Main Power Switch, located on the back side of the air cooler. Please make sure that this Main Power Switch is switched on "|" before operating the unit.
  • Page 4 USE & OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) MODE Press to switch the air cooler between FAN only, COOL and WARM only modes. FAN - The unit is automatically set to the Fan only mode when first switched on. No indicator lights will illuminate in this mode.
  • Page 5: Remote Control

    USE & OPERATION (CONTINUED) REMOTE CONTROL POWER ON / OFF ON / OFF MODE Controls COOL / WARM / FAN Modes HEATING MODE TIMER SWING SPEED HEATING Select HIGH / LOW heat in WARM mode SPEED Low / Medium / High / Sleep SWING Switch on / off automatic louvers TIMER...
  • Page 6: Filling With Water

    USE & OPERATION (CONTINUED) FILLING WITH WATER • Turn off the unit by pressing the POWER button and switching of the Main Power Switch. Remove the power plug from the wall power outlet with dry hands. • Try not to remove the water tank completely, if you need to, please refer to the water tank refitting section on how to reinsert the water tank.
  • Page 7 USE & OPERATION (CONTINUED) CLEANING THE CARBON DUST FILTER* AND HONEYCOMB COOLING MEDIA • The appliance is supplied with a Carbon Dust Filter* and Honeycomb Cooling Media. • The Carbon Filter* and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
  • Page 8 JMATEK Limited Made in China © 2017 JMATEK Limited. All rights reserved. Manulife Financial Centre, The Honeywell Trademark is used under license Kwun Tong, Hong Kong from Honeywell International Inc. Phone: 852-2559-5522 Honeywell International Inc. makes no representations or warranties with respect to this product.
