QNAP TS-101 Turbo Station User Manual

Ts-101 turbo station network attached storage
Hide thumbs Also See for TS-101 Turbo Station:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Network Attached Storage

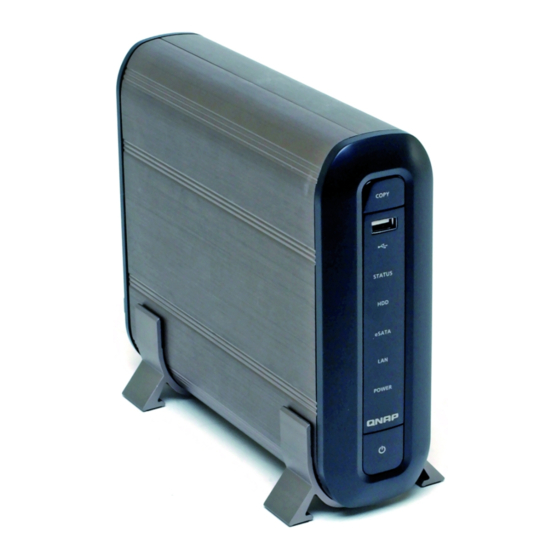

TS-101 Turbo Station

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-101 Turbo Station and is the answer not in the manual?

Questions and answers

Related Manuals for QNAP TS-101 Turbo Station

Summary of Contents for QNAP TS-101 Turbo Station

  • Page 1: User Manual

    Network Attached Storage TS-101 Turbo Station User Manual...
  • Page 2 TS-101 Turbo Station User Manual (Version: 1.0) ©Copyright 2005. QNAP Systems, Inc. All Rights Reserved. December 22, 2005 - 2 -...
  • Page 3 Please read carefully and start to enjoy the powerful functions of TS-101! LIMITED WARRANTY In no event shall the liability of QNAP Systems, Inc. (QNAP) exceed the price paid for the product from direct, indirect, special, incidental, or consequential software, or its documentation.

  • Page 4: Safety Warnings

    4. Unplug the power cord and all connected cables before cleaning. Wipe TS-101 with wet towel. Do not use chemical or aerosol to clean TS-101. 5. Do not place any objects on TS-101 for the server’s normal operation and to avoid overheat.

  • Page 5: Table Of Contents

    Check System Status ..............14 Configure Software Settings ............16 2.5.1 Windows Users................ 16 2.5.2 MAC Users ................31 Chapter 3 Start to Enjoy the Powerful Services of TS-101 ....40 Server Administration..............44 Quick Configuration ............45 System Settings ............48 3.3.1 Server Name................
  • Page 6 Remote Replication (Disaster Recovery)........87 3.8.7 Backup/ Restore/ Reset Settings..........90 Event Logs ..............91 Chapter 4 Copy Data Directly by USB Ports to TS-101 ......92 Chapter 5 Multimedia Station .............93 Chapter 6 Download Station...............99 Chapter 7 Web Server ..............105 Chapter 8 FTP Server................108...
  • Page 7 11.3 Disk Failure or Malfunction ............133 11.4 Power Outage or Abnormal Shutdown..........133 Technical Support ................134 - 7 -...

  • Page 8: Chapter 1 Overview Of Ts-101 Turbo Station

    Recovery, Web Server, Backup Server, File Server, FTP Server, and Printer Server Easy to use, simple configuration in a few steps and TS-101 is ready to use! Enormous storage capacity, support SATA disk of up to 500GB or above, and extendable to 1TB or more by eSATA/USB port.

  • Page 9: Package Contents

    Package Contents Your TS-101 package contains: TS-101 Turbo Station Adaptor Power cord CD-ROM (user manual, Quick Installation Flat head screw x 4 Quick Install Wizard Guide and software inclusive) Ethernet cable x 1 Stand x 2 Hardware Illustration One Touch Copy Button...

  • Page 10: Chapter 2 Install Ts-101

    TS-101 as shown below: Pull Pull Install a hard disk in TS-101 drive plate. Make sure the disk holes of the disk match the holes of drive plate. Lock the disk with flat head screws. - 10 -...
  • Page 11 After installing the disk, cover TS-101 with the front case and fasten the round head screws. Then place TS-101 vertically on the stands. - 11 -...

  • Page 12: Hard Disk Recommendation List

    The following HDD models are verified by QNAP that are compatible with TS-101. It is recommended to use the disk models listed here. Other HDD brands that are not tested by QNAP may or may not work properly with TS-101. For more updated compatible hard disk information, please visit QNAP website at www.qnap.com.tw.

  • Page 13: Set Up Ts-101

    Please check your network environment and select the appropriate installation method before installing TS-101. 1. Office/ Home 2. Individual Connect TS-101 and PC to the same Connect TS-101 directly to your PC by hub/ switch/ router. a network cable. When you have verified your network environment, please follow the steps below to install TS-101.

  • Page 14: Check System Status

    Check System Status TS-101 provides LED indicators for you to indicate system status and information easily. When TS-101 is turned on, please check the following items to make sure system status is normal. System starting up System has started Blue...
  • Page 15 LED Display & System Status Overview LED Display & System Status Blue: System has started Power Blink in orange: Accessing network Network Blink in orange: Accessing data eSATA Blink in orange: Accessing data Green: System is normal Status Blink in green: Hard disk not detected Blink in red: Bad blocks are found in hard disk Blink in green for 5 seconds, blink in green and red alternatively: Hard disk not initialized...

  • Page 16: Configure Software Settings

    Please select the appropriate procedure according to your OS. 2.5.1 Windows Users Insert TS-101 CD-ROM in your PC. Wait for a few seconds until the following screen shows up. Then start to configure the software settings of TS-101. 1. Select Install Quick Install Wizard.
  • Page 17 2. Run Quick Install Wizard. When the wizard prompts for performing quick configuration, click OK. Enter the default user name and password. Default user name: administrator Password: admin - 17 -...
  • Page 18 When you have entered quick configuration page, follow the instructions to complete the settings. Click Next to continue. - 18 -...
  • Page 19 Step 1. Enter the server name and click Next. - 19 -...
  • Page 20 Step 2. Enter a new password or select to use the original password. Click Next to continue. - 20 -...
  • Page 21 Step 3. Select the time zone of your location or enter the date and time manually. You can also select to synchronize the time of TS-101 with an Internet time server automatically. Click Next to continue. - 21 -...
  • Page 22 Step 4. Select the encoding language of TS-101 and click Next. Note: All files and directories on TS-101 will be created using Unicode encoding. If your FTP clients or PC does not support Unicode, e.g. Windows 95, 98, ME OS, select the language the same as the OS of your PC here in order to view the files and directories on the server properly.
  • Page 23 Next. Note: If you select to enter IP address manually, please make sure your PC and TS-101 are in the same LAN. If you are not sure about the network settings, please contact your network administrator or ISP.
  • Page 24 Step 6. When a new hard disk is installed in TS-101, select “Initialize the hard disk now” and click Next to format and initialize the disk. Note: All disk data will be cleared after disk initialization. - 24 -...
  • Page 25 Step 7. You have finished quick configuration. Please make sure all settings are correct and click Next to start disk formatting. - 25 -...
  • Page 26 Step 8. Please wait patiently when the disk is being formatted. Formatting may take a few minutes depending on the capacity of your hard drive. When the disk is formatted, click Next to proceed. - 26 -...
  • Page 27 TS-101 provides several default share folders for data sharing and access. To map the share folders on TS-101 as your drive, check the option “Continue to map network drive for me” and follow the steps below to proceed. To start to use TS-101 immediately, you can skip to 3.
  • Page 28 For example, to map the folder Public as your drive, select the folder and click Map Network Drive. Note: The share folders Qdownload, Qmultimedia, Qusb, and Qweb are system default network share of TS-101 for the use of Download Station, Multimedia Station, USB Auto-copy and Web Server.
  • Page 29 Upon successful connection, you can start to use the share folder on TS- 101. You can access these folders by opening My Computer. 3. Quick Install Wizard will appear when all configurations are completed. Click on the name of TS-101 on the list to enter administration page. - 29 -...
  • Page 30 4. When the administration page of TS-101 is shown, you can start to use the services. If you have any questions during web administration, please click the help button on the top right hand corner of the page. To modify system settings, click Administration. Enter the user name and password to login.

  • Page 31: Mac Users

    1. Please go to Network settings and select Using DHCP. Then connect TS- 101 to your MAC via a cable. 2. Open a web browser and enter the default IP address of TS-101 to login the system. Default IP of TS-101: http://169.254.100.100:6000 Note: Please use the browser Safari in MAC to access TS-101.
  • Page 32 3. When the administration page is shown, click Administration. Enter the default user name and password to login. Default user name: administrator Password: admin - 32 -...
  • Page 33 4. Follow the step-by-step guide in Quick Configuration to complete the settings of TS-101. If you have any questions during web administration, please click the help button on the top right hand corner of the page. - 33 -...
  • Page 34 Note: If you are not sure about the network settings, please contact your network administrator or ISP. 2. Connect TS-101 to your MAC by a cable. Open a web browser and enter the default IP address of TS-101. Default IP address of TS-101: http://169.254.100.100:6000 Note: Please use the browser Safari in MAC to access TS-101.
  • Page 35 3. When the administration page is shown, click Administration. Enter the default user name and password to login. Default user name: administrator Password: admin - 35 -...
  • Page 36 4. Go to TCP/IP Configuration of Network Settings . Select to use static IP and input the IP address of TS-101. Make sure the value does not conflict with the IP address of your MAC and other devices in LAN. Configure the subnet mask and default gateway of TS-101 to the same as subnet mask and router address of MAC which you set in Step 1.
  • Page 37 5. Click Yes to restart TS-101 for the changes to take effect. Please wait patiently for TS-101 to restart. 6. Connect your MAC and TS-101 to the network. Open a web browser and enter the IP address of TS-101 you set up in step 4.
  • Page 38 7. Click Administration and enter the default user name and password to login. Default user name: administrator Password: admin - 38 -...
  • Page 39 8. Follow the step-by-step guide in Quick Configuration to complete the settings of TS-101. If you have any questions during web administration, please click the help button on the top right hand corner of the page. - 39 -...

  • Page 40: Chapter 3 Start To Enjoy The Powerful Services Of Ts-101

    A. Use network share-Public folder 1. You can access the public folder of TS-101 by the following means: a. Open My Network Places and find the workgroup of TS-101. If you cannot find the server, please browse the whole network to search for TS-101.
  • Page 41 2.5 Configure Software Settings. If you are using DHCP: (a) connect PC to TS-101 directly, please use the default IP address 169.254.100.100:6000 of TS- 101; (b) connect TS-101 by network, please run Quick Install Wizard to view the IP address of TS-101.
  • Page 42 2. When the administration page is shown, click Administration, Web File Manager, Web Server, Multimedia Station, or Download Station. Enter the user name and password, and then start to manage TS-101. For further details, please refer to the user manual in TS-101 CD-ROM.
  • Page 43 QNAP NAS server. In case of data damage in PC, you can restore all backup data. Please refer to Chapter 3.8.6. Web Server TS-101 enables you to upload html files and manage your own website easily. Please refer to Chapter 7. Printer Server TS-101 supports network printer sharing function by direct USB connection.

  • Page 44: Server Administration

    Server Administration There are eight main sections in server administration: - 44 -...

  • Page 45: Quick Configuration

    Quick Configuration Please follow the step-by-step guide in Quick Configuration to complete the settings of TS-101. If you have any questions during web administration, please click the help button on the top right hand corner of the page. Other buttons...
  • Page 46 Step 2. Change the administrator password or select to use the original password. Step 3. Enter the date, time and select the time zone for the server. Step 4. Select the language the server uses to display files and directories. The default setting is English.
  • Page 47 Step 5. Enter the IP address, subnet mask and default gateway for the server. Step 6. Initialize the disk volume in TS-101 for first time configuration. Step 7. When TS-101 is initialized, the basic settings will be shown. - 47 -...

  • Page 48: System Settings

    3.3.1 Server Name Enter the name of TS-101. The server name can be 14 characters long at maximum, which can contain alphabets, numbers and hyphen (-). The server does not accept names with space, period (.), or names in pure numbers.

  • Page 49: Date & Time

    3.3.2 Date & Time Set the date, time, and time zone according to your location. If the settings are incorrect, the following problems may occur: When using a web browser to access or save a file, the display time of the action will be incorrect.

  • Page 50: Encoding Setting

    Encoding Setting Select the language TS-101 uses to display files and directories. Note: All files and directories on TS-101 will be created using Unicode encoding. If your FTP clients or the OS of your PC does not support Unicode, e.g. Windows 95/98/ME, select the language the same as your OS here in order to view the files and directories on the server properly.

  • Page 51: Network Settings

    You can select one of the following two methods to configure the TCP/IP settings of TS-101. • Obtain IP address settings automatically via DHCP If your network supports DHCP, TS-101 will automatically use DHCP protocol to retrieve the IP address and related information. • Use static IP address To use fixed IP address for network connection, enter fixed IP address, subnet mask and default gateway.

  • Page 52: Microsoft Networking

    3.4.2 Microsoft Networking Enable file service for Microsoft networking: If you are using Microsoft Windows, enable this service to access the files on network share folders. Assign a workgroup name. Standalone Server Use local users for user authentication. WINS server If the local network has a WINS server installed, specify the IP address.
  • Page 53 PC in the network or workgroup of Windows. When a domain master browser (Windows NT/ 200x/ XP PC) exists already in the network, there is no need to configure TS-101 as the domain master.

  • Page 54: Apple Network

    If your AppleTalk network uses extended networks, and is assigned with multiple zones, assign a zone name to TS-101. If you do not want to assign a network zone, enter an asterisk (*) to use the default setting. This setting is disabled by default.

  • Page 55: Ftp Service

    “System Settings—Encoding Setting” page so that the folders and files on FTP can be properly shown (please refer to Chapter 3.3.3). If your FTP client supports Unicode, make sure you have enabled Unicode support for both your client and TS-101. - 55 -...

  • Page 56: Multimedia Station

    Multimedia Station. For further information, please refer to Chapter 5. 3.4.7 Download Station To use P2P download function of TS-101, please enable Download Station. For further information, please refer to Chapter 6. Note: Please be warned against illegal downloading of copyrighted materials. The Download Station functionality is provided for downloading authorized files only.

  • Page 57: Web Server

    3.4.8 Web Server You can publish your own server by enabling Web Server function of TS-101. For further information, please refer to Chapter 7. - 57 -...

  • Page 58: View Network Settings

    3.4.9 View Network Settings You can view current network settings and status of TS-101 in this section. - 58 -...

  • Page 59: Device Configuration

    3.5.1 SATA Disk This page shows the model, size and current status of the SATA disk on TS-101. You can format and check disk, and scan bad blocks on the disk. When the SATA disk is formatted, TS-101 will create the following default share folders:...

  • Page 60: Usb Disk

    SATA disk in TS-101 as Q-RAID1 configuration. When backup is executed once, data can be automatically backed up by connecting the external disk to TS-101 directly. There is no need to configure the settings in administration interface. Manual operation is required for the first time backup to enhance secure data protection.
  • Page 61 *This button will appear when the following conditions are all met: a. The usage of the plugged in USB disk has been configured as Q-RAID 1. b. The SATA disk in TS-101 has been changed or the plugged in USB disk has been configured as Q-RAID 1 in other servers.
  • Page 62 - 62 - - 62 -...

  • Page 63: Usb Printer

    USB Printer 1. To provide printer sharing function for network users, you can simply connect a USB printer to the USB port of TS-101. TS-101 will detect the printer automatically. 2. A printer icon should be shown in the share folder of the server. Double click the icon.
  • Page 64 3. Install the printer driver. 4. When finished, you can start to use network printer service of TS-101. - 64 -...

  • Page 65: Esata Disk

    Disk TS-101 supports eSATA disk for extended storage and Q-RAID 1 function. You can connect an eSATA disk to the eSATA port of TS-101. You can select one of the following two settings for the disk: a. Data Sharing: Select this option to use the selected eSATA disk as a network share of TS-101.
  • Page 66 *This button will appear when the following conditions are all met: a. The usage of the plugged in USB disk has been configured as Q-RAID 1. b. The SATA disk in TS-101 has been changed or the plugged in USB disk has been configured as Q-RAID 1 in other servers.
  • Page 67 - 67 -...

  • Page 68: User Management

    User Management The files on TS-101 can be shared among multiple users. For easier management and better control of users’ access right, you have to organize users, user groups and their access right control. 3.6.1 Users The system has created the following users by default:...
  • Page 69 512 users can be created at maximum (including system default users). You can create a new user according to your needs. The following information is required to create a new user: User name The user name must not exceed 32 characters. It is case-insensitive and can contain double-byte characters, such as Chinese, Japanese, and Korean except: "...

  • Page 70: User Groups

    User Groups User group is a collection of users with the same access right to files or folders. TS-101 has created the following user groups by default: Administrators All members in this group have administration right. You cannot delete this group.
  • Page 71 Department and Ms. Jane Wu for Sales Department. The IT Department therefore needs to create two user accounts for them to access company data on TS-101. To create a user account, go to User Management-Users. Click Create. Enter the user name (Jones Lee/ Jane Wu) and password. Check the box “Continue to set the user groups to which this user belongs”...
  • Page 72 iii. Select the user groups the users belong to on the right list, i.e. Mr. Jones Lee for Administration Dept and Ms. Jane Wu for Sales Dept, and click Add. Then click Close. After creating the users, the users will appear on the list on Create User Page. - 72 -...
  • Page 73 Create Private Network Share for User Groups You can create particular network share for each user group. The procedure is described as below: 1. To create a network share called media accessible by Administration Department only, please go to “User Management—User Groups” page. Select the user group Administration Dept and click Create Private Network Share on the right.
  • Page 74 3. You can see the folder media in Network Share Management page. 4. Enter Access Control. You can see that only Administration Dept has full access right to the folder. - 74 -...

  • Page 75: Quota

    The IT department is planning to set the disk quota of Mr. Jones Lee from Administration Department and Ms. Jane Wu from Sales Department on TS-101. The disk quota is 2000MB for Mr. Jones Lee and 4000MB for Ms. Jane Wu.
  • Page 76 2. Select Jones Lee on User page and click Quota Settings on the right. 3. Enter the quota size 2000MB and click OK. 4. Follow the same steps and enter the quota size 4000MB for Jane Wu and click OK. The quota setting is successfully applied. - 76 -...

  • Page 77: Network Share Management

    Network Share Management The primary purpose of network storage is file sharing. You can create different network share folders for various types of files, and provide different file access rights to users or user groups. There are four options in Network Share Management: - 77 -...

  • Page 78: Create

    3.7.1 Create To create a network share, enter the following information: Network share name The share name must not exceed 12 characters and cannot contain the following characters: " . + = / \ : | * ? < > ; [ ] % Disk volume This area shows the disk volume status.

  • Page 79: Property

    3.7.2 Property To edit the property of an existing network share, select a share and click Property. You can then edit the content of that share. - 79 -...

  • Page 80: Access Control

    3.7.3 Access Control When a network share is created, you can assign access rights to users or user groups: Deny access Access to the network share will be denied. Read only Users can read the files only on the network share. Full access Users can to read, write, create, or delete files and folders on the network share.

  • Page 81: Delete

    3.7.4 Delete Select a share and click Delete. Click OK to confirm. - 81 -...

  • Page 82: System Tools

    System Tools System Tools enable you to optimize the maintenance and management of TS- 101. - 82 -...

  • Page 83: Alert Notification

    If your mailbox requires SMTP authentication, enter the user name and password. Note: It is recommended to send a test e-mail to make sure you can receive the alert mails. 3.8.2 Restart/ Shutdown Select to restart or shut down TS-101. - 83 -...

  • Page 84: Hardware Settings

    SATA disk is less than the value. The range of the value is 1-51200 MB. iv. Auto power on when power resumes after power loss When this function is enabled, TS-101 will turn on automatically when power resumes after improper shutdown or power loss. - 84 -...

  • Page 85: System Update

    3.8.4 System Update Note: If the system is running properly, you do not need to update the firmware. Before updating system firmware, please make sure the product model and firmware version are correct. Follow the steps below to update firmware: Step 1: Download the release notes of the same version as the firmware from QNAP website http://www.qnap.com.tw/.

  • Page 86: Change Logo

    3.8.5 Change Logo You can choose a personal picture to display on the login page of TS-101. The size of the picture cannot exceed 20K bytes. - 86 -...

  • Page 87: Remote Replication (Disaster Recovery)

    3.8.6 Remote Replication (Disaster Recovery) Remote Replication enables you to replicate files on TS-101 to another TS-101 or QNAP NAS series. The files will be compressed before the replication process in order to save time for data transfer. Make sure a network share is created before creating a remote replication task.
  • Page 88 Complete all settings and click OK to save or Cancel to quit. Note: To use remote replication, enable Microsoft Networking service, make sure the destination network share and directory have been created, and the user name and password are valid to login the destination folder.
  • Page 89 Edit Select the task to be edited. Click Edit. Modify the settings. Click OK to save or Cancel to quit. iii. Delete Select the task to be deleted. Click Delete. - 89 -...

  • Page 90: Backup/ Restore/ Reset Settings

    3.8.7 Backup/ Restore/ Reset Settings • To backup all settings, including user accounts, server name and network configuration etc., click Backup and select to open or save the setting file. • To restore all settings, click Browse to select a previously saved setting file and click Restore to confirm.

  • Page 91: Event Logs

    Event Logs TS-101 can store thousands of recent event logs, including warning, error and information messages. In case of system malfunction, event logs can be retrieved to analyze system problems. - 91 -...

  • Page 92: Chapter 4 Copy Data Directly By Usb Ports To Ts-101

    Chapter 4 Copy Data Directly by USB Ports to TS- TS-101 supports direct copy of data on USB devices to TS-101 by using the Copy button. To use this function, please follow the steps below: Make sure a SATA disk is installed correctly in TS-101 according to the instructions in Chapter 2.1.

  • Page 93: Chapter 5 Multimedia Station

    A. Upload photos by web administration 1. To use Multimedia Station of TS-101, make sure a SATA disk is installed correctly in TS-101 according to the instructions in Chapter 2.1. A share folder Qmultimedia will be created. Enable Multimedia function in Network Settings.
  • Page 94 2. Click on the link http://TS-101 IP/Qmultimedia on Multimedia Station page or click Multimedia Station on the login page of TS-101 to access Multimedia Station. 3. Click on the top right hand corner. Login with administrator name and password to manage Multimedia Station. Users without administration right can view the photos and multimedia files on Multimedia Station but they do not have the right to modify the files.
  • Page 95 B. Upload photos to Qmultimedia folder directly You can upload multimedia files to TS-101 directly by the following steps. Use Run function in Windows. Enter \\[server name] or \\[server IP] to access share folder on TS-101.
  • Page 96 When you login Multimedia Station by web browser again, all multimedia files will be shown. Buttons on Multimedia Station page Sort files by name Sort files by size Sort files by date Return to previous page Return to Home Create folder Rename file or folder Select all Select none...
  • Page 97 View Photo Information 1. To view detailed information of a photo, click on the thumbnail of the picture. 2. The information of the photo, e.g. file name, resolution, size, camera producer will be shown on the right. You can enter a description for the picture in the box below the photo and click Submit.
  • Page 98 Buttons Description You can use the buttons on top of the photo to manage the album. Back to previous level Previous image Next image Rotate image anticlockwise Rotate image clockwise Zoom in Zoom out Play slideshow. Select the time interval in seconds. Click play to play slide show.

  • Page 99: Chapter 6 Download Station

    Chapter 6 Download Station TS-101 supports P2P download mechanism. You can add download task to TS- 101 and let the server finish downloading independent of PC. Note: Please be warned against illegal downloading of copyrighted materials. The Download Station functionality is provided for downloading authorized files only.
  • Page 100 2. Click on the link http://TS-101 IP/Qdownload on Download Station page or click Download Station on the login page of TS-101 to access Download Station. - 100 -...
  • Page 101 3. Click Add new download task on the left and upload a torrent file. You can download legal torrent files by searching on the Internet. There are websites that provide legally sharing torrents e.g. www.legaltorrents.com. Please download the torrent files to your local disk and then upload them to TS-101. - 101 -...
  • Page 102 4. After uploading a download task, the task will appear on View Run List. 5. You can select an available download task and click Set Share Time to configure the time for sharing the torrent file, or click Set Config to set the maximum number of downloads at the same time (default value is 3).
  • Page 103 6. To pause a running download task, select the task in View Run list and click Pause/ Restart Task. To delete a running, paused, or finished task, select the task and click Delete Task. To restart a paused task, select the task in View Pause List and click Pause/ Restart Task.
  • Page 104 9. To access the folders you have downloaded, please go to the share folder Qdownload of TS-101. - 104 -...

  • Page 105: Chapter 7 Web Server

    Chapter 7 Web Server TS-101 enables you to upload HTML files and manage your own website easily by Web Server function. Once you activate Web Server function, you can access your own homepage wherever you are. You can add hyperlinks in your homepage to connect to all the features of TS-101, such as Download Station, Multimedia Station and Web Server.
  • Page 106 - 106 -...
  • Page 107 IP/ on Web Server page or click Web Server on the login page of TS-101 to access the web page you upload. Note that when Web Server is enabled, you have to type [http://TS-101 IP address:6000] in your web browser to access the login page of TS-101.

  • Page 108: Chapter 8 Ftp Server

    Chapter 8 FTP Server TS-101 supports FTP service. To use FTP service, enable this function in Network Settings and follow the steps below: Open an IE browser and type ftp://[TS-101 IP] or ftp://[TS-101 name]. By Web File Manager of TS-101.
  • Page 109 Click FTP. Enter the user name and password to login FTP service. - 109 -...
  • Page 110 You can start to enjoy FTP service. - 110 -...

  • Page 111: Chapter 9 Web File Manager

    Using Web File Manager To use Web File Manager, enable web service in Network Settings first. Launch the web browser and go to TS-101 administration page. Select Web File Manager and enter the correct login name and password. You may also enter “guest”...
  • Page 112 Select an existing network share for management. You can organize network share folders of TS-101. With Web File Manager, you can upload, rename, or delete files and folders in the network shares. View files online Click on a file displayed on the web page. The information of the file will be displayed.
  • Page 113 Rename file or folder Select a file or folder to rename. Click (Rename) on the toolbar. iii. Enter the new file or folder name and click OK. Delete file or folder Select a file or folder to delete. Click (Delete) on the toolbar. iii.
  • Page 114 Viewing Files Named in Local Language To view files named in Chinese, you may have to configure the browser settings. Take Internet Explorer as an example, follow the steps below to configure the settings. 1. Click on Tools in IE browser. 2.
  • Page 115 Web File Manager Icons Icon Description Up-return to the parent folder Refresh-reload the current page Home-return to network share list home page Create folder Rename file or folder Delete file or folder Select all Cancel selection Logout Full access network share folder Read-only network share folder Malfunction network share folder - 115 -...

  • Page 116: Chapter 10 Netbak Replicator

    NetBak Replicator is a powerful program installed in user’s system (Windows OS only) for data backup. You can back up any files or folders on local PC to specified share folder on TS-101 by LAN or WAN. Main Functions Backup •...
  • Page 117 Install NetBak Replicator Select Install NetBak Replicator in TS-101 CD-ROM. Follow the steps to install NetBak Replicator. Upon successful installation, a shortcut icon will be shown on the Desktop. Double click the icon to run NetBak Replicator. - 117 -...
  • Page 118 Use NetBak Replicator 1. Before using NetBak Replicator, please login TS-101 administration and go to Network Share Management to create a share folder for backup. Make sure the share folder is open for everyone access or you login the share folder with an authorized account or administrator by NetBak Replicator.
  • Page 119 2. Run NetBak Replicator. Click . All TS-101 and their share folders within the network will be displayed. - 119 -...
  • Page 120 3. When the following window appears, TS-101 connected to the LAN will appear on the left list. Select a server and a share folder on the right. NetBak Replicator also supports backup via WAN, you can enter the IP address of TS- 101 for data backup directly and select a share folder.
  • Page 121 Description of Buttons on NetBak Replicator Open Configuration: Open a previously saved NetBak Replicator configuration. Save Configuration: Save the settings on NetBak Replicator. The file will be named as *.rpr Select All: Selects all items in the window. Clear All: Clear selection of all folders. Select My Document: Select all folders in My Document.
  • Page 122 • Backup Select files and folders for backup. - 122 -...
  • Page 123 Start When you have selected the files for backup to TS-101, click Start on NetBak Replicator. The program will start to copy the selected files to the specified share folder on TS-101. - 123 -...
  • Page 124 File Filter Click File Filter on NetBak Replicator main page to select file format to be skipped from backup. Then click OK. - 124 -...
  • Page 125 Schedule Click Schedule on NetBak Replicator main page. Then check the box “Enable Backup Schedule” and select the frequency and time for backup. Click OK to confirm. - 125 -...
  • Page 126 Monitor Select a folder for monitoring. When this option is enabled, the system will upload all files or folders to the server instantly for backup when the files or folders are modified. Other files will be gray and cannot be selected.
  • Page 127 Initialize Configuration When using this function, NetBak Replicator will record all current settings of the user, including whether or not monitor function is enabled. When the user login again, this program will load the previous recorded settings for users to manage data backup. - 127 -...
  • Page 128 • Restore Please follow the steps below to restore files from TS-101 to your PC. a. Restore to original position: Select the location that the data will be restored to. b. Select new restore position: Click to select the directory to restore data to or select a previously chosen location from the drop-down menu.
  • Page 129 d. Option: Select recovery option and error option. If the restoring file existed, NetBak Replicator will: Overwrite all the files Ask first Skip this file If an error happens in the process of file restoring, NetBak Replicator will: Stop the restoring Ask first Ignore this error message - 129 -...
  • Page 130 • a. Save As…: To save all logs on NetBak Replicator, click this button. All logs will be saved as text file. b. Clear All: Click this button to clear all logs. c. Option: Select the type of logs to be recorded― “Record all logs” or “Record error logs only”.

  • Page 131: Chapter 11 Ts-101 Maintenance

    Chapter 11 TS-101 Maintenance TS-101 is specially designed to run 24x7 and be ready at all times against system crash caused by power outage. This section provides a general overview on system maintenance. 11.1 Restart/ Shut down Server Follow the steps below to restart or shut down TS-101.

  • Page 132: 11.2 Reset Administrator Password And Network Settings

    11.2 Reset Administrator Password and Network Settings To reset the administrator password and network settings of TS-101, 1. Press the reset button of TS-101 for a few seconds. A beep sound will be heard. 2. Login TS-101 with the default user name and password:...

  • Page 133: Disk Failure Or Malfunction

    11.4 Power Outage or Abnormal Shutdown In case of power outage or improper shutdown of TS-101, the system will resume to the state before it is shut down. If your server does not function properly after restart, please do the following: 1.

  • Page 134: Technical Support

    Technical Support QNAP provides dedicated online support and customer service via instant messenger. You can contact us by the following means: Online Support: www.qnap.com.tw E-mail: support@qnap.com.tw MSN: support@qnap.com.tw SKYPE: qnapskype - 134 -...
