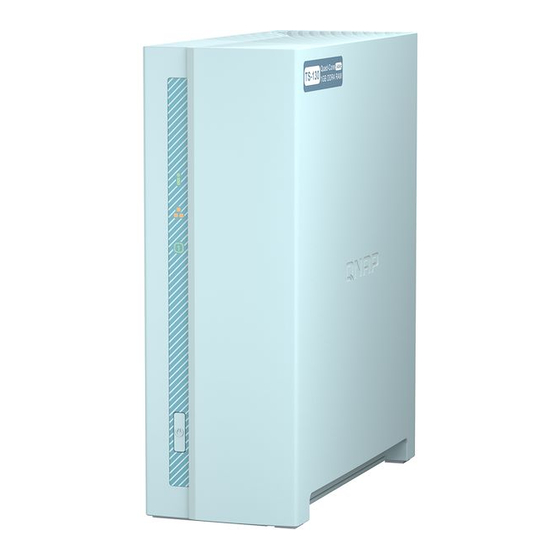

QNAP TS-130-US User Manual
  1. Manuals
  2. Brands
  3. QNAP Manuals
  4. Network Storage Server
  5. TS-130-US
  6. User manual

QNAP TS-130-US User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TS-130
User Guide
Document Version: 1
08/02/2021

Advertisement

Table of Contents
loading

Related Manuals for QNAP TS-130-US

Summary of Contents for QNAP TS-130-US

  • Page 1 TS-130 User Guide Document Version: 1 08/02/2021...

  • Page 2: Table Of Contents

    Audio Alert..............................25 5. Troubleshooting Forcing Qfinder Pro or myQNAPcloud to Locate the NAS................. 26 Support and Other Resources........................26 6. Glossary Cloud Key..............................27 myQNAPcloud............................27 QNAP ID..............................27 myQNAPcloud Link.............................27 Qfinder Pro..............................27 QTS................................27 7. Notices Limited Warranty............................28 Disclaimer..............................28 GNU Public License............................28...
  • Page 3 VCCI Notice..............................37 BSMI Notice..............................37 SJ/T 11364-2006............................37...

  • Page 4: Preface

    TS-130 User Guide 1. Preface About This Guide This guide provides information about the device and step-by-step instructions on installing the hardware. It also provides instructions on basic operations and troubleshooting information. Audience This document is intended for consumers and storage administrators. This guide assumes that the user has a basic understanding of storage and backup concepts.

  • Page 5: Product Overview

    Hardware Specifications Warning • If your QNAP product has hardware defects, return the product to QNAP or a QNAP- authorized service center for maintenance or replacement. Any attempt to repair or perform maintenance procedures on the product by you or an unauthorized third party invalidates the warranty.

  • Page 6: Package Contents

    System: 1 x 50 mm, 12V DC fan Operating temperature 0˚C to 40˚C (32˚F to 104˚F) Relative humidity • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) For the list of compatible drive models, go to https://www.qnap.com/compatibility. Package Contents Item Quantity TS-130 Power cord...

  • Page 7: Components

    TS-130 User Guide Components Front Panel Component Component Status LED Drive LED LAN LED Power button Rear Panel Product Overview...

  • Page 8: Drive Numbering

    TS-130 User Guide Component Component Reset button Power input USB 2.0 Type-A port Gigabit Ethernet port (RJ45) Gigabit Ethernet activity LED USB 3.2 Gen 1 One Touch Copy Type-A port Gigabit Ethernet speed LED Drive Numbering Safety Information The following instructions help ensure personal safety and environmental safety. Read these instructions carefully before performing any operations.

  • Page 9: Installation Requirements

    NAS or power cord Hardware and peripherals • Storage drives For the list of compatible drive models, go to https:// www.qnap.com/compatibility. • Network cable Tools • Phillips #1 or #2 screwdriver • Flat head screwdriver • Anti-static wrist strap...

  • Page 10: Setting Up The Nas

    TS-130 User Guide Setting Up the NAS Note Read all safety requirements and information carefully before setting up the NAS or installing NAS components. 1. Place your NAS device in an environment that meets the requirements. 2. Install the drives. For details, see the following topics: •...

  • Page 11: Hardware Installation

    TS-130 User Guide 3. Hardware Installation This section provides information on installing drives and installing expansion units. Drive Installation The TS-130 is compatible with 3.5-inch and 2.5-inch SATA hard drives, and 2.5-inch solid-state drives. Installing 3.5-inch Hard Drives on 3.5-inch Drive Trays Warning •...
  • Page 12 TS-130 User Guide c. Slide the cover back. d. Lift the cover off the device. 5. Load the tray into the bay. a. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on the sides of the tray.
  • Page 13 TS-130 User Guide b. Attach the screws. 6. Attach the case cover. a. Place the cover on the device. b. Slide the cover forward. Hardware Installation...

  • Page 14: Installing 2.5-Inch Hard Drives Or Solid-State Drives On 3.5-Inch Drive Trays

    TS-130 User Guide c. Attach the screw to the bottom of the NAS. d. Place the device in its normal upright position. 7. Connect all cables and external attachments. 8. Power on the device. Installing 2.5-inch Hard Drives or Solid-State Drives on 3.5-inch Drive Trays Warning Hardware Installation...
  • Page 15 TS-130 User Guide • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components. • Moving fan blades: Keep your hands and other body parts away from moving fan blades. •...
  • Page 16 TS-130 User Guide 5. Load the tray into the bay. a. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on the sides of the tray. b. Attach the screws. 6.

  • Page 17: Installing Expansion Units

    TS-130 User Guide c. Attach the screw. d. Place the device in its normal upright position. 7. Connect all cables and external attachments. 8. Power on the device. Installing Expansion Units The TS-130 supports USB expansion units. For details, see table below. To connect the device to USB expansion units, USB Type-A to USB Type-C cables are required.
  • Page 18 TS-130 User Guide You can purchase storage expansion accessories from QNAP or an authorized reseller. For details, go to https://shop.qnap.com/. For the list of compatible expansion units and the maximum number of applicable expansion units, go to http://www.qnap.com/go/compatibility-expansion. Expansion Unit Model...

  • Page 19: Qts Installation

    3. Run Qfinder Pro on a computer that is connected to the same local area network. Note To download Qfinder Pro, go to https://www.qnap.com/utilities. 4. Locate the NAS in the list and then double-click the name or IP address. 5. Perform any of the following actions.

  • Page 20: Installing Qts Using The Cloud Key

    ASCII characters. 8. Click Next. 9. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 10. Click Next. 11. Select Obtain an IP address automatically (DHCP).
  • Page 21 ASCII characters. 11. Click Next. 12. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 13. Click Next. 14. Select Obtain an IP address automatically (DHCP).
  • Page 22 TS-130 User Guide 20. Click Confirm. QTS is installed. Hardware Installation...

  • Page 23: Basic Operations

    TS-130 User Guide 4. Basic Operations This chapter describes basic NAS operations. Power Button Operation User Action Result Power on Press the button once. The device powers on. Power off Press and hold the button for 1.5 The device powers off. seconds.

  • Page 24: Reset Button

    TS-130 User Guide Reset Button Operation User Action Result Basic system reset Press and hold the button for 3 seconds. The following settings are reset to default: • System administrator password: The default password is the first MAC address in uppercase letters without special characters.
  • Page 25 TS-130 User Guide Status Description System Status Flashes green and red • The drive is being formatted. alternately every 0.5 • The device is being initialized. seconds • The operating system is being updated. • The firmware is being updated. Note When updating the firmware, do not remove the power cord or USB cable, and do not...

  • Page 26: Audio Alert

    TS-130 User Guide Audio Alert Duration Frequency Description Short beep (0.5 seconds) 1 • The NAS is starting up. • The NAS is shutting down (software shutdown). • When the reset button is pressed for 3 seconds, the NAS resets configurations. •...

  • Page 27: Troubleshooting

    2. Remove all drives. 3. Power on the NAS. 4. Locate the NAS using Qfinder Pro or myQNAPcloud. 5. Reinsert the drives. 6. Continue with the QTS installation. Support and Other Resources QNAP provides the following resources: Resource Documentation https://download.qnap.com Compatibility List https://www.qnap.com/compatibility NAS Migration Compatibility https://www.qnap.com/en/nas-migration...

  • Page 28: Glossary

    Link Enables you to access the NAS over the internet without configuring complex port forwarding settings Qfinder Pro QNAP utility that lets you locate and access QNAP NAS devices in your local area network QNAP NAS operating system Glossary...

  • Page 29: Notices

    No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.
  • Page 30 TS-130 User Guide Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.
  • Page 31 TS-130 User Guide tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.
  • Page 32 TS-130 User Guide You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code;...
  • Page 33 TS-130 User Guide the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source.
  • Page 34 TS-130 User Guide a. Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License; or b. Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by works containing it; or c.
  • Page 35 TS-130 User Guide An “entity transaction” is a transaction transferring control of an organization, or substantially all assets of one, or subdividing an organization, or merging organizations. If propagation of a covered work results from an entity transaction, each party to that transaction who receives a copy of the work also receives whatever licenses to the work the party's predecessor in interest had or could give under the previous paragraph, plus a right to possession of the Corresponding Source of the work from the predecessor in interest, if the predecessor has it or can get it with reasonable efforts.
  • Page 36 TS-130 User Guide If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot convey a covered work so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not convey it at all.

  • Page 37: Ce Notice

    • Consult the dealer or an experienced radio/television technician for help. Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
  • Page 38 TS-130 User Guide VCCI Notice VCCI–B BSMI Notice SJ/T 11364-2006 本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品 可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在...
  • Page 39 TS-130 User Guide 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Notices...
