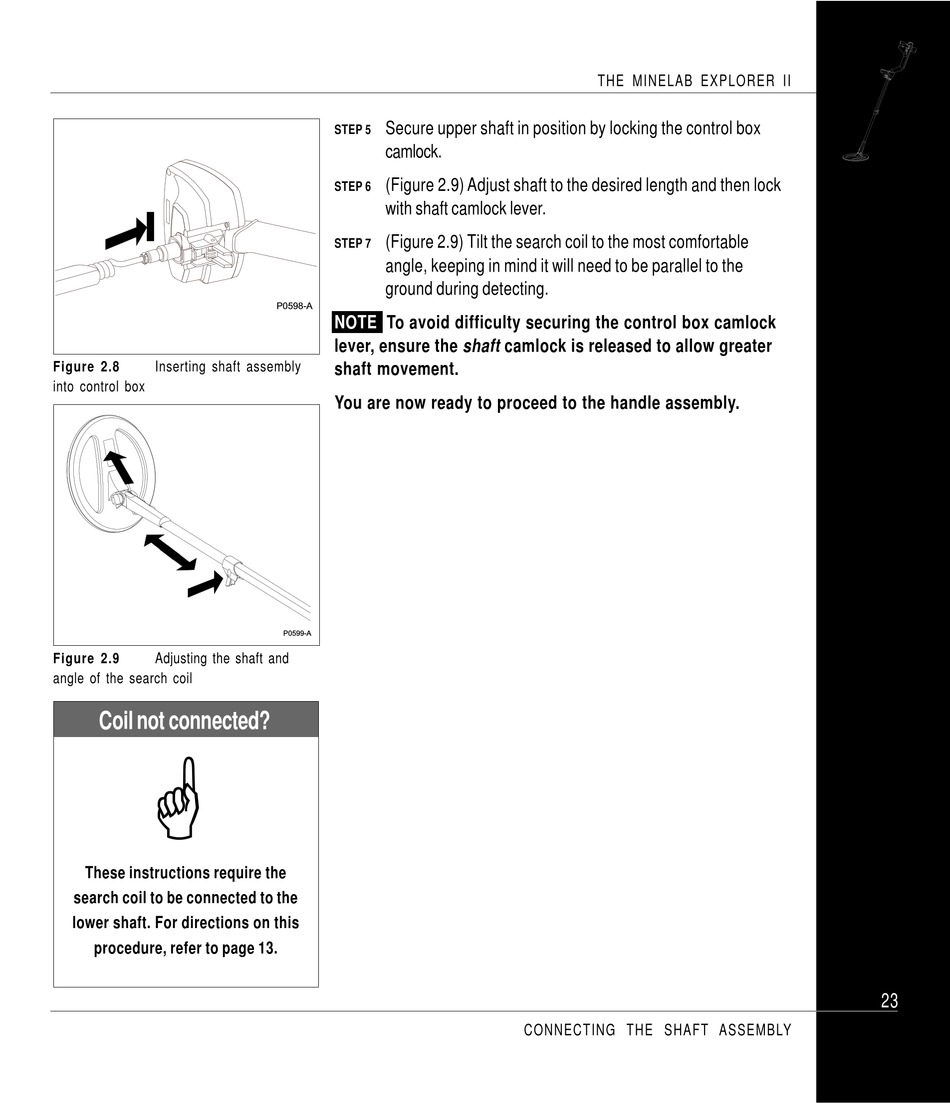

Figure 2.8 Inserting shaft assembly
into control box
Figure 2.9 Adjusting the shaft and
angle of the search coil
Coil not connected?
$
These instructions require the
search coil to be connected to the
lower shaft. For directions on this
procedure, refer to page 13.
Secure upper shaft in position by locking the control box
STEP 5
camlock.
(Figure 2.9) Adjust shaft to the desired length and then lock
STEP 6
with shaft camlock lever.
(Figure 2.9) Tilt the search coil to the most comfortable
STEP 7
angle, keeping in mind it will need to be parallel to the
ground during detecting.
P0598-A
NOTE To avoid difficulty securing the control box camlock
lever, ensure the shaft camlock is released to allow greater
shaft movement.
You are now ready to proceed to the handle assembly.
P0599-A
THE MINELAB EXPLORER II
CONNECTING THE SHAFT ASSEMBLY
