Insignia NS-PSB4521 Quick Setup Manual

Congratulations on your purchase of a high-quality
Insignia product. Your 2.1 Bluetooth Desktop Speaker
System is designed for reliable and trouble-free
performance.

PACKAGE CONTENTS

• Subwoofer with an attached 5-foot (1.5-meter)
power cord
• Right satellite speaker with an attached 5-foot
(1.5-meter) cable
• Left satellite speaker with an attached 5-foot
(1.5-meter) cable
• 3.5 mm 5-foot (1.5-meter) stereo audio cable
• Quick Setup Guide

FIND YOUR USER GUIDE ONLINE!

We are going green so a copy of your User Guide is
not provided in the box but is available online.
To find your manual, touch the ? icon on your tablet
or go to www.insigniaproducts.com, then click
Support & Service. Enter your model number in
the box under Manual, Firmware, Drivers &
Product Information, then click ►.
Before using your new product, please read
these instructions to prevent any damage.

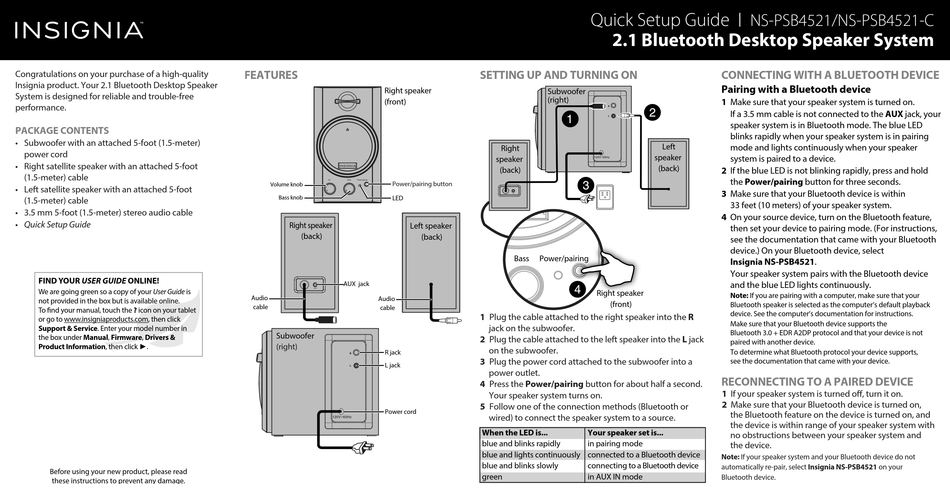

FEATURES

Right speaker
(front)
Vol Bass Power/pairing
Power/pairing button
Volume knob
Bass knob LED
Right speaker Left speaker
(back) (back)
AUX jack
Audio
Audio
cable
cable
Subwoofer
(right)
R jack
L jack
Power cord
Quick Setup Guide
2.1 Bluetooth Desktop Speaker System

SETTING UP AND TURNING ON

Subwoofer
(right)
Right
speaker
speaker
(back)
(back)
Bass Power/pairing
Right speaker Righ h t speaker
(front)
1 Plug the cable attached to the right speaker into the R
jack on the subwoofer.
2 Plug the cable attached to the left speaker into the L jack
on the subwoofer.
3 Plug the power cord attached to the subwoofer into a
power outlet.
4 Press the Power/pairing button for about half a second.
Your speaker system turns on.
5 Follow one of the connection methods (Bluetooth or
wired) to connect the speaker system to a source.
When the LED is... Your speaker set is...
blue and blinks rapidly in pairing mode
blue and lights continuously connected to a Bluetooth device
blue and blinks slowly connecting to a Bluetooth device
green in AUX IN mode
I
NS-PSB4521/NS-PSB4521-C

CONNECTING WITH A BLUETOOTH DEVICE

Pairing with a Bluetooth device
1 Make sure that your speaker system is turned on.
If a 3.5 mm cable is not connected to the AUX jack, your
speaker system is in Bluetooth mode. The blue LED
blinks rapidly when your speaker system is in pairing
Left
mode and lights continuously when your speaker
system is paired to a device.
2 If the blue LED is not blinking rapidly, press and hold
the Power/pairing button for three seconds.
3 Make sure that your Bluetooth device is within
33 feet (10 meters) of your speaker system.
4 On your source device, turn on the Bluetooth feature,
then set your device to pairing mode. (For instructions,
see the documentation that came with your Bluetooth
device.) On your Bluetooth device, select
Insignia NS-PSB4521.
Your speaker system pairs with the Bluetooth device
and the blue LED lights continuously.
Note: If you are pairing with a computer, make sure that your
Bluetooth speaker is selected as the computer's default playback
device. See the computer's documentation for instructions.
Make sure that your Bluetooth device supports the
Bluetooth 3.0 + EDR A2DP protocol and that your device is not
paired with another device.
To determine what Bluetooth protocol your device supports,
see the documentation that came with your device.

RECONNECTING TO A PAIRED DEVICE

1 If your speaker system is turned off, turn it on.
2 Make sure that your Bluetooth device is turned on,
the Bluetooth feature on the device is turned on, and
the device is within range of your speaker system with
no obstructions between your speaker system and
the device.
Note: If your speaker system and your Bluetooth device do not
automatically re-pair, select Insignia NS-PSB4521 on your
Bluetooth device.
