Summary of Contents for Insignia NS-HTSB20S

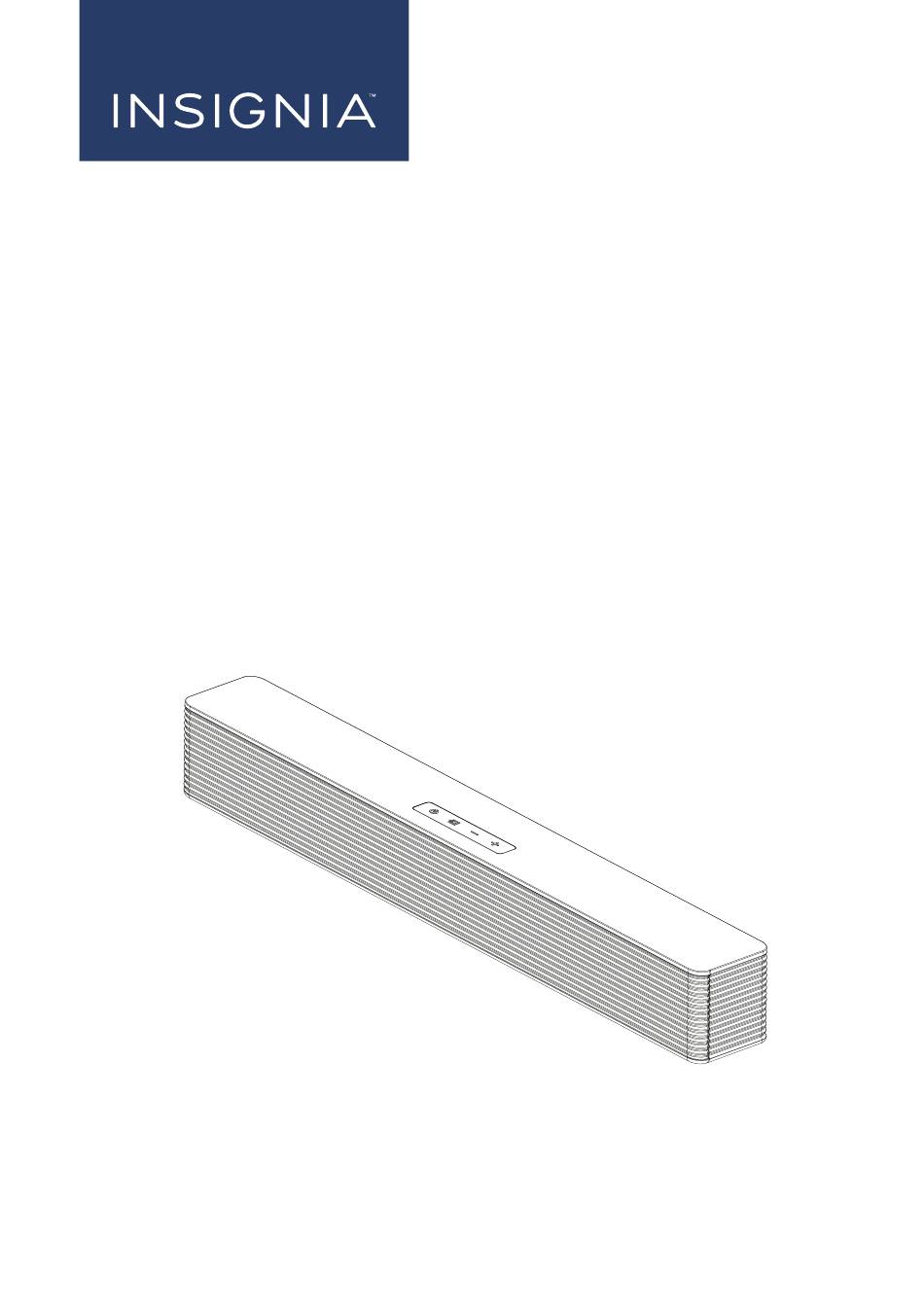

- Page 1 USER GUIDE 2.0-Channel 20 in. Soundbar NS-HTSB20S Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY .........22 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-HTSB20S represents the state of the art in soundbar design and is designed for reliable and trouble-free performance. -
Page 3: Getting Started
2.0-Channel 20 in. Soundbar Getting started To help you get started quickly, here are the basic steps to setting up your soundbar. For more detailed information, follow the page numbers listed below: Connecting your sound source Choose a sound source, such as a TV, DVD/Blu-ray player, or smartphone to connect to your soundbar. -
Page 4: Positioning Your Soundbar
Positioning your soundbar You can either place your soundbar on a flat surface or mount it on the wall (optional) under the TV. For more detail, see Mounting your soundbar on a wall (optional) on page Flat surface Wall mounted IMPORTANT SAFETY INSTRUCTIONS •... -
Page 5: Package Contents
2.0-Channel 20 in. Soundbar • Do not put water or other liquids close to your soundbar. If liquid is spilled on top of your soundbar, it may be damaged. • Your soundbar should be placed on a sturdy, flat surface that is free from vibration, or mounted on a wall. -
Page 6: Front View
Front view # ITEM DESCRIPTION 1 Speaker Left and right speakers Different color LEDs indicate the following: • Red - Standby mode • Blue - Bluetooth mode (blinks while pairing) • Orange - AUX mode Status indicator • Green - Digital optical mode •... -
Page 7: Back View
2.0-Channel 20 in. Soundbar Back view # ITEM DESCRIPTION Connect a digital optical cable to this jack and the 1 OPTICAL jack OPTICAL OUT jack on a TV or audio source device. Set the sound output from the source to the PCM format. Connect a 3.5 mm audio cable to this jack. -
Page 8: Remote Control
Remote control # ITEM DESCRIPTION Press to turn on your soundbar. (power) button (sound source Press repeatedly to cycle through the available sound sources. selector) button 3 +/– (volume) buttons Press to increase or decrease your soundbar’s volume. Press to mute the sound from your soundbar. Press again to (mute) button restore the sound. -
Page 9: Using The Remote Control
2.0-Channel 20 in. Soundbar Using the remote control Point the remote control directly at the IR sensor on the front of your soundbar. You must be within approximately 50 ft. (15 m) of your soundbar and within 30° on either side. IR sensor Installing the remote control batteries Remove the battery compartment cover from the back of the remote control. -
Page 10: Setting Up Your Soundbar
Short press the button on the other remote control you want to teach. The status indicator blinks green once. The soundbar has learned the code and matched step 3 button function to this remote button. Repeat steps 3 and 4 to have your other remote learn more functions. The soundbar will exit learning mode after 20 seconds, or you can press and hold the (sound source selector) button on the soundbar for two seconds to stop learning mode. -
Page 11: Connecting To Digital Optical (Better)
2.0-Channel 20 in. Soundbar Connecting to digital optical (Better) Remove the caps of the both ends of the optical cable. Connect one end of the included digital optical cable to the OPTICAL jack on your soundbar. Connect the other end into the Digital Optical Output jack on your source device. Change the device’s audio output to the PCM format (typically found in audio settings). -
Page 12: Connecting To Aux (Good)
Connecting to AUX (Good) Connect one end of the included 3.5 mm audio cable into the AUX IN jack on your soundbar, then connect the other end of the AUX cable to the headphone or AUX Output jack on your audio source device. Press the (sound source selector) button on your soundbar or your remote control repeatedly until the source indicator turns orange. -
Page 13: Connecting To Bluetooth
See the documentation that came with your audio source device for more information on pairing. On your Bluetooth device, select NS-HTSB20S from the device list. Repeat steps 1-4 if NS-HTSB20S is not displayed. If a PIN code is requested, enter 0000. -
Page 14: Connecting The Ac Power Adapter
Disconnect your Bluetooth device from the other another Bluetooth device. Bluetooth device, then set your device to pairing mode. Select NS-HTSB20S on your Bluetooth device. Note: If a device does not automatically reconnect, you may need to reselect NS-HTSB20S on your Bluetooth device. -
Page 15: Positioning Your Soundbar
2.0-Channel 20 in. Soundbar Positioning your soundbar WARNING: Incorrect installation can result in serious injury or damage to your soundbar. If necessary, seek the assistance of a professional. Note: If you are installing screws into drywall or concrete, use wall anchors (provided) designed for that type of surface. - Page 16 If you are mounting your soundbar to drywall, use the stud finder to find the studs and mark the locations. Note: Since normal stud spacing is 16” or 24” on center, only one of the mounting screws can be in a stud. Use a wall anchor for the other screw. Use a level to determine that the mounting template is level, then tape the mounting template to the wall.
-
Page 17: Using Your Soundbar
2.0-Channel 20 in. Soundbar Align the speaker hanging brackets with the screws, then hang your soundbar on the screws. WARNING: Incorrect installation can result in serious injury or damage to your soundbar. If necessary, seek the assistance of a professional. Using your soundbar This system lets you access four different sound sources, including Optical, AUX IN, Bluetooth, and USB. -
Page 18: Cleaning Your Soundbar
Cleaning your soundbar CAUTION: Only use a soft and clean rag to clean the outside of your soundbar. Never clean it with chemicals, detergents, or abrasives. Troubleshooting Check this list for a possible troubleshooting solution before calling for service. PROBLEM POSSIBLE SOLUTION The power doesn’t come Make sure that the AC power cord is securely plugged into the... - Page 19 There is no sound or low Make sure that your Bluetooth device is turned on, Bluetooth is volume in Bluetooth turned on, and NS-HTSB20S is selected. mode. Turn up the volume on your soundbar. Turn up the volume on your Bluetooth device.
-
Page 20: Specifications
Make sure that your soundbar isn’t paired to another Bluetooth device. Make sure that your soundbar and Bluetooth device are both in pairing mode. Make sure that you have selected NS-HTSB20S on your Bluetooth device. My Bluetooth device Shorten the distance between your soundbar and your Bluetooth keeps unpairing. -
Page 21: Legal Notices
2.0-Channel 20 in. Soundbar Legal notices FCC compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 22: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. - Page 23 2.0-Channel 20 in. Soundbar • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.) •...
- Page 24 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2024 Best Buy. All rights reserved. V1 ENGLISH...
