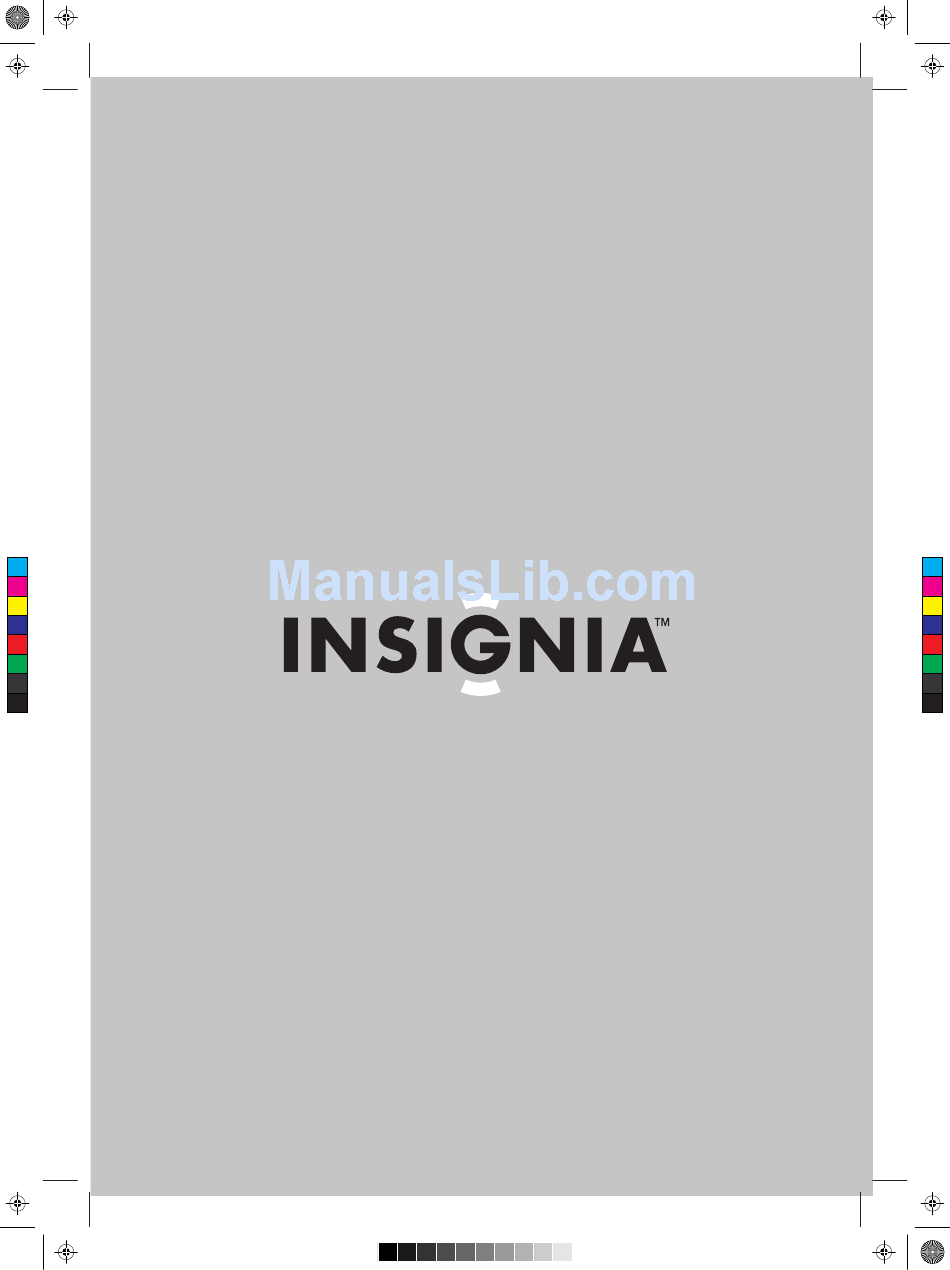

- Page 1 NXT designer shelf system FRONT CVR [A4]_press.pdf User Guide Sistema de audio de diseño compacto y elegante 6/16/2005 6/16/2005 12:21:30 PM 12:21:30 PM | Guide de l’utilisateur | Guía del Usuario NXT Designer Shelf System Système audio de salon haut de gamme IS-NXT10232...
-
Page 2: Table Of Contents
NXT Designer shelf system - combined.fm Page 1 Wednesday, July 6, 2005 9:04 AM Welcome Thank you for purchasing this Insignia Products Designer Shelf System with the flat panel speakers, using the latest NXT* flat panel speaker technology. We think you will be truly... - Page 3 Store your CDs in a cool area to avoid damage from heat. • When moving the system, be sure to first disconnect the power cord. IS-NXT10232 Designer shelf system Class 1 laser product CLASS 1 LASER PRODUCT APPAREIL A LASER DE CLASSE 1 PRODUCTO LASER DE CLASE 1...
-
Page 4: Preparing To Set Up Your System
NXT Designer shelf system - combined.fm Page 3 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system Preparing to set up your system Unpacking and setup This system consists of the following components: • Tuner/CD player unit • Amplifier/subwoofer unit •... -
Page 5: Setting Up Your System
Make sure that the speaker plugs are fully inserted into the speaker jacks. If the plugs are loose, the connection may be intermittent. IS-NXT10232 Designer shelf system Auxiliary source connections You can listen to the sound from external audio sources through the speakers of this system. To... - Page 6 NXT Designer shelf system - combined.fm Page 5 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system Remote control battery The remote control requires one button-type 3-volt lithium battery (included). To extend the life of the original battery we have inserted a small clear plastic spacer tab between the lithium battery and the battery terminal.
-
Page 7: Getting To Know Your System
AM and FM bands. LCD display Displays system status and with backlight other information. Play/Pause Begins playback, then toggles button between Play and Pause modes. IS-NXT10232 Designer shelf system Control/ Item connection Skip/Tune >> button Digital volume + button Open/close button... - Page 8 NXT Designer shelf system - combined.fm Page 7 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system MPLIFIER UBWOOFER BACK PANEL Item Connector Function FROM MAIN Attach one end of a 9-pin cable jack to this connector and the other...
- Page 9 Decreases the bass response. BASS + Increases the bass response. STOP/BAND Stops the playback of CD and MP3 discs. Toggles between AM and FM in Tuner mode. STANDBY/ON Toggles the system from Standby mode to on. IS-NXT10232 Designer shelf system www.insignia-products.com...
-
Page 10: Using Your System
NXT Designer shelf system - combined.fm Page 9 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system Using your system Operating instructions • Make sure the tuner/CD player unit is connected to the amplifier/subwoofer unit with the 9-pin cable. - Page 11 TUNER>CD>AUX. The display will show an AM or FM station frequency. IS-NXT10232 Designer shelf system 3 To select a different band (AM or FM), press the AM/FM button on the front panel or the STOP/BAND button on the remote control.
- Page 12 NXT Designer shelf system - combined.fm Page 11 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system 4 Press the CLOCK/PROG button again to save the station to memory. The display shows the preset memory number “01” and the saved frequency “FM 103.50 MHz,” to indicate the station is stored in the selected preset memory.
- Page 13 CLOSE button again to close the CD door. 13 Press the STANDBY/ON button to return the system to the Standby (Power Off) mode. IS-NXT10232 Designer shelf system AUSE CONTROL To momentarily pause during CD playback: 1 Press the PLAY/PAUSE button. The sound stops and the elapsed time flashes on the display.
- Page 14 NXT Designer shelf system - combined.fm Page 13 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system 3 Press and hold the SKIP/TUNE > or < button for one second. The first character keeps flashing in the display. In this case, “L” is selected.
- Page 15 5 Repeat Steps 3 and 4, selecting a different track number each time until you have entered up to 64 tracks in the memory. IS-NXT10232 Designer shelf system 6 Press the PLAY/PAUSE button to begin programmed playback. To use programmed playback - MP3: 1 Load your disc as usual and wait until the display shows the total number of tracks.
- Page 16 NXT Designer shelf system - combined.fm Page 15 Wednesday, July 6, 2005 9:04 AM IS-NXT10232 Designer shelf system After the last programmed track has played the player stops, the PROGRAM indicator disappears, and the display again shows the total tracks and playing time on the disc.
- Page 17 If the system turns on to the CD function, it will only play until the end of the disc and then stop. IS-NXT10232 Designer shelf system Note • As long as the “TIMER” indicator remains in the display, the timer will turn the system on every day at the same time.
-
Page 18: Maintenance
Insignia authorized service facility. After the Warranty Period, you must pay for all labor charges. 2 PARTS: In addition, Insignia will supply, at no charge, new or rebuilt replacement parts in exchange for defective parts for the Warranty Period. - Page 19 1-877-467-4289 www.insignia-products.com Insignia Products, Richfield, Minnesota, U.S.A. Copyright © 2005 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.
