Insignia NS-HTSB22 User Manual

Insignia NS-HTSB22 User Manual

2.0 channel soundbar

Advertisement

USER GUIDE
2.0 Channel Soundbar
NS-HTSB22
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading

Summary of Contents for Insignia NS-HTSB22

  • Page 1 USER GUIDE 2.0 Channel Soundbar NS-HTSB22 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    Contents Getting started ............3 Connecting your sound source .
  • Page 3: Getting Started

    2.0 Channel Soundbar Getting started To help you get started quickly, here are the basic steps to setting up your soundbar. For more detailed information, follow the page numbers listed below: Connecting your sound source Choose a sound source, such as a TV, DVD/Blu-ray player, or smartphone to connect to your soundbar.
  • Page 4: Positioning Your Soundbar

    Positioning your soundbar You can either place your soundbar on a flat surface or mount it on the wall (optional) under the TV. For more detail, see Mounting your soundbar on a wall (optional) on page 18. Flat surface Wall mounted IMPORTANT SAFETY INSTRUCTIONS Read these instructions.
  • Page 5 2.0 Channel Soundbar Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 6: Placement

    Placement • Your soundbar cabinet is made out of plastic and is therefore sensitive to extreme temperatures and humidity. Do not put it in locations subject to direct sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen.
  • Page 7: Features

    2.0 Channel Soundbar Features • Versatile options let you connect to a TV (with HDMI) and an additional audio source (with optical digital audio, 3.5 mm AUX, USB, or Bluetooth) • HDMI ARC and CEC technology let you control your soundbar with your TV remote (HDMI cable not included.
  • Page 8: Side View

    Side view ITEM DESCRIPTION (power) Press to turn on your soundbar. The source indicator lights. button Press again to return your soundbar to standby mode. The status indicator turns red. + (volume up) Press to increase the volume of your soundbar. button –...
  • Page 9: Back View

    2.0 Channel Soundbar Back view HDMI (ARC) AUX IN OPTICAL ITEM DESCRIPTION Connect a USB source device to play MP3/WAV files. 1 USB port Connect a 3.5 mm audio cable to this jack. 2 AUX IN jack Connect an HDMI cable (not included) to this jack on an 3 HDMI (ARC) jack ARC-enabled sound system.
  • Page 10: Remote Control

    Remote control BUTTON DESCRIPTION Press to turn on your soundbar. Press again to put your (power) soundbar into standby mode. Press to increase or decrease your soundbar’s volume. +/– SOURCE Press repeatedly to cycle through the available sound sources. Press to mute the sound from your soundbar. Press again to (mute) restore the sound.
  • Page 11: Using The Remote Control

    2.0 Channel Soundbar Using the remote control Point the remote control directly at the IR sensor on the front of your soundbar. You must be within approximately 50 ft. (15m) of your soundbar and within 30° on either side. IR sensor Installing the remote control batteries Remove the battery compartment cover from the back of the remote control.
  • Page 12: Setting Up Your Soundbar

    Short press the button on the other remote control you want to teach. The Status indicator blinks green once. Repeat steps 3 and 4 to learn and match more remote buttons you want. The soundbar has learned the code and matched step 3 button function to this remote button.

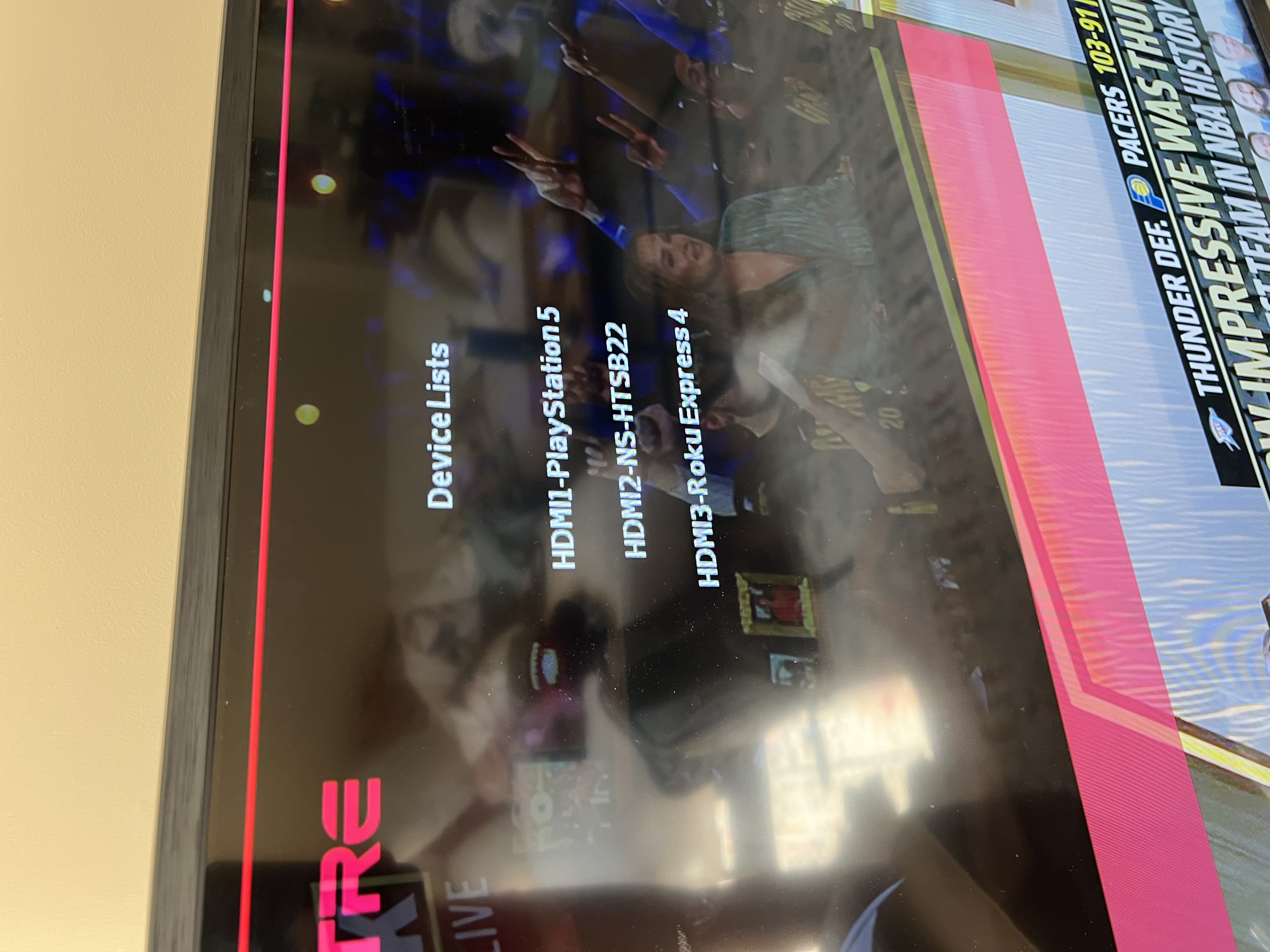

  • Page 13: Connecting To Hdmi (Best)

    2.0 Channel Soundbar You can also choose a USB thumb-drive or Bluetooth device as your sound source. Connecting to USB on page 15, or Connecting to Bluetooth on page 15. Connecting to HDMI (Best) Connect one end of an HDMI cable (not included) to the HDMI ARC jack on your soundbar.
  • Page 14: Connecting To Aux (Good)

    Press the button on your soundbar or the SOURCE button on the remote control repeatedly until the source indicator turns green. Audio source (TV, Blu-ray player, or cable box) Back of your soundbar Digital optical cable (included) Important: Make sure that the device you connect and select as your sound source is outputting sound to your soundbar.
  • Page 15: Connecting To Usb

    See the documentation that came with your audio source device for more information on pairing. On your Bluetooth device, select NS-HTSB22 from the device list. Repeat steps 1-4 if NS-HTSB22 is not displayed. If a PIN code is requested, enter 0000.
  • Page 16 Disconnect your Bluetooth device from the another Bluetooth device. other Bluetooth device, then set your device to pairing mode. Select NS-HTSB22 on your Bluetooth device. Note: If a device does not automatically reconnect, you may need to reselect NS-HTSB22 on your Bluetooth device.
  • Page 17: Connecting The Ac Power Cord

    2.0 Channel Soundbar Connecting to a different device On the Bluetooth device you are currently connected to, turn off the Bluetooth function or unpair your soundbar in your Bluetooth device list. Your soundbar can now be connected to another Bluetooth device. Follow the section Connecting to Bluetooth on page...
  • Page 18: Mounting Your Soundbar On A Wall (Optional)

    Mounting your soundbar on a wall (optional) Note: Make all connections to your soundbar before mounting your soundbar on a wall. You need (not included with your soundbar): Stud finder (optional for wood stud Tape measure Hammer installation) Drill and drill bit Level Screwdriver Tape...
  • Page 19 2.0 Channel Soundbar Secure two screws (included) to the wall or wall anchors (if required). The screws must protrude from the wall by about 5/32" (4 mm). Approx. 5/32" (4 mm) Wall Optional: For easier connections, use the mounting holders to widen the space between the soundbar and wall.
  • Page 20: Using Your Soundbar

    Using your soundbar This system lets you access five different sound sources, including HDMI (ARC), Optical, AUX IN, Bluetooth, and USB. Listening to your soundbar Press to turn on your soundbar. The source indicator turns from red to the color of the selected sound source (green=optical, blue=Bluetooth, orange=AUX IN, purple=USB, or white=HDMI (ARC).
  • Page 21: Troubleshooting

    2.0 Channel Soundbar Troubleshooting Check this list for a possible troubleshooting solution before calling for service. PROBLEM POSSIBLE SOLUTION The power doesn’t come on. Make sure that the AC power cord is securely plugged into the power outlet and your soundbar. Make sure that your soundbar is turned on.
  • Page 22 There is no sound or low Make sure that your Bluetooth device is turned on, volume in Bluetooth mode. Bluetooth is turned on, and NS-HTSB22 is selected. Turn up the volume on your soundbar. Turn up the volume on your Bluetooth device.
  • Page 23 Make sure that your soundbar isn’t paired to another Bluetooth device. Make sure that your soundbar and Bluetooth device are both in pairing mode. Make sure that you have selected NS-HTSB22 on your Bluetooth device. My Bluetooth device keeps Shorten the distance between your soundbar and your unpairing.
  • Page 24: Specifications

    Specifications Designs and specifications are subject to change without notice. Power output Left and right channel: 20 W × 2 (1% THD) Number of speakers 2 Power requirement - AC-100~240 V at 50/60 Hz Soundbar DC-12 V at 3.5 A Dimensions 2.4 ×...
  • Page 25: Legal Notices

    2.0 Channel Soundbar Legal notices FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 26: One-Year Limited Warranty

    Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 27 2.0 Channel Soundbar • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” • Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.) •...
  • Page 28 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2021 Best Buy. All rights reserved. V2 ENGLISH...
