Mercury 130.030UK User Manual

Amd series 4g ready aerial distribution amplifiers

AMD SERIES

Item ref: 130.030UK, 130.031UK,

4G READY AERIAL

130.032UK, 130.033UK

DISTRIBUTION AMPLIFIERS

CAUTION

Please read through this manual carefully before use. This product is strictly for indoor

use only, please install this product in dry and cool environment and keep out of the

reach of children and pets.

Please do not open cover, contain high voltage. This

product is not serviceable or repairable by end user. Please

return to dealer for repair

Table of Contents

Do you have a question about the 130.030UK and is the answer not in the manual?

Page 1: Distribution Amplifiers
AMD SERIES Item ref: 130.030UK, 130.031UK, 4G READY AERIAL 130.032UK, 130.033UK DISTRIBUTION AMPLIFIERS User Manual CAUTION Please read through this manual carefully before use. This product is strictly for indoor use only, please install this product in dry and cool environment and keep out of the reach of children and pets.

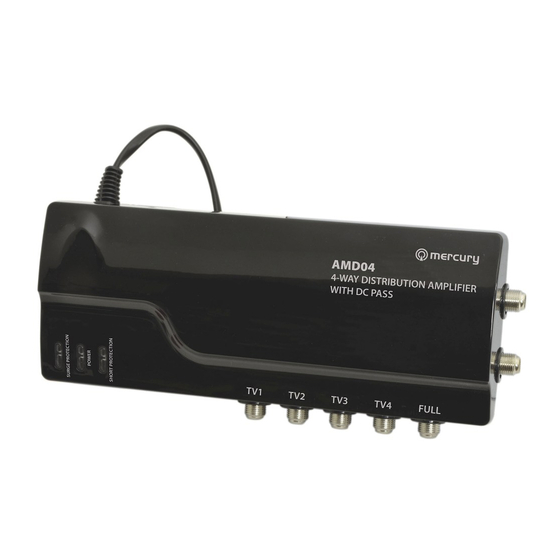

Page 2 INTRODUCTION: Thank you for choosing Mercury AMD series distribution amplifier. It is designed to amplify weak FM/DAB/TV aerial from aerial and distribute to multiple outputs, ideal for domestic or commercial use to distribute FM/DAB/DTV(DVB-T, ATSC, ISDB, T-DMB)/Sat signal to different room/area.
Page 3 EXAMPLE INSTALLATION: This diagram shows AMD08 receiving TV signals from the Sat receiver and FM/DAB aerial and distributes signals to 4 individual hi-fi and TV units. AMD series amplifiers are designed with DC pass function. All 4 TV units can be set up with “Magic eye” (remote extension unit) to allow remote control of Sat receiver when TV set is not at the same room as the Sat receiver.
Page 4 It is also suitable for upgrading or replacing existing UHF/VHF signal distribution unit, simply reconnect existing connecting from previous unit to the AMD amplifier. Ensure the UHF aerial is connected to the UHF input of the amplifier and FM/DAB aerial connected to the VHF input of the amplifier.
