4G Ready VHF/UHF
Distribution Amplifiers

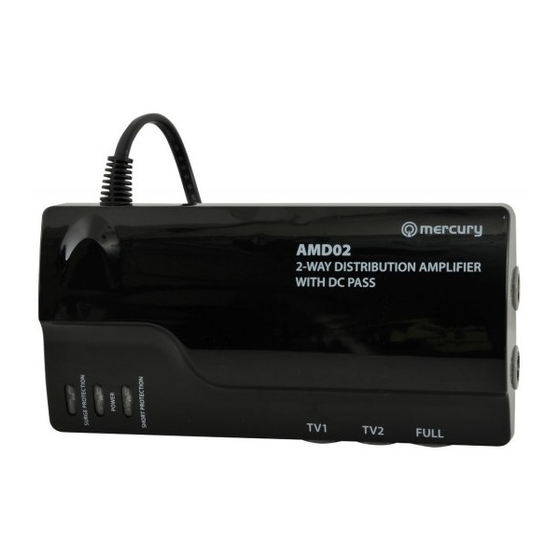

AMD02/04/06/08
Please read through this manual carefully before use. This
product is strictly for indoor use only and must be kept in a dry
and cool environment and out of reach from children and pets.
A range of Distribution amplifiers with built in 4G LTE filter, designed to improve the quality of audio
and video by amplifying weak VHF/UHF signals and distributing them across a designated area.
Suitable for both professional and domestic installations and fully compatible with Digital
Terrestrial/Satellite/Cable TV and DAB/FM radio signals.
Features:
•
Fully screened amplifier compatible with Digital Terrestrial/Satellite/Cable TV and DAB/FM
radio signals
•
Integrated LTE signal filter avoids interference and channel loss from 4G mobile signals
•
Coaxial socket connection, F socket adaptors included to allow F-Type connection
•
Built in low noise amplifier with wideband output
•
Built in surge protection – LED lights when a power surge is detected
•
Short circuit protection – LED illuminates when a short circuit is detected on an output
•
Maximum output limiter prevents overload
•
High gain output for additional distribution connection
•
Separate inputs for VHF and UHF
•
DC pass allows the control of satellite via Magic Eye remote extender (124.157)
•
Side mounted terminals allow easy cable management
www.avsl.com
CAUTION
Item ref:
130.030/031/032/033UK
User Manual
130.030UK User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mercury AMD02
Summary of Contents for Mercury AMD02
- Page 1 Item ref: 130.030/031/032/033UK Distribution Amplifiers User Manual AMD02/04/06/08 CAUTION Please read through this manual carefully before use. This product is strictly for indoor use only and must be kept in a dry and cool environment and out of reach from children and pets.
- Page 2 Specifications: AMD02 AMD04 AMD06 AMD08 No of inputs No of outputs 2+Full 4+Full 6+Full 8+Full Frequency 47-230MHz, 47-230MHz, 47-230MHz, 47-230MHz, response 470-790MHz 470-790MHz 470-790MHz 470-790MHz Max output level 94dBµV 90dBµV 87dBµV 87dBµV Gain per split 12dB Gain on Full 20dB...
- Page 3 The above diagram shows AMD08 receiving TV signals from the Satellite receiver and FM/DAB aerial and distribute the signals to 4 individual hi-fi and 4 TV units. The AMD series amplifier is designed with DC pass function. All 4 TV’s can also be set up with a “Magic eye” (remote extension unit) to allow remote control of the satellite receiver when the TV is not the same room.
