Mercury AMD02 User Manual

AMD02/04/06/08

Item ref:

4G READY AERIAL

130.030/031/032/033UK

DISTRIBUTION AMPLIFIER

User Manual

CAUTION

Please read through this manual carefully before use. This

product is strictly for indoor use only, please install this product

in dry and cool environment and keep out of reach from children

and pets.

Please do not open cover, contain high

voltage. This product is not serviceable or

repairable by end user. Please return to

seller or professional when unit

malfunction.

Table of Contents

Need help?

Do you have a question about the AMD02 and is the answer not in the manual?

Page 1 AMD02/04/06/08 Item ref: 4G READY AERIAL 130.030/031/032/033UK DISTRIBUTION AMPLIFIER User Manual CAUTION Please read through this manual carefully before use. This product is strictly for indoor use only, please install this product in dry and cool environment and keep out of reach from children and pets.
Page 2 INSTRODUCTION: Thank you for choosing Mercury AMD series distribution amplifier. It is designed to amplify weak FM/DAB/TV aerial from antenna and distribute to multiple outputs, ideal for domestic or commercial use to distribute FM/DAB/TV/Sat signal to different room/area. PRODUCT FEATURE: Separate dedicated inputs for VHF and UHF signal.
Page 3 Below are some of the examples for installation: This diagram shows AMD08 receiving TV signals from the Sat receiver and FM/DAB aerial and distributes signals to 4 individual hi-fi and TV units. AMD series amplifier is designed with DC pass function.
Page 4 It is also suitable for upgrade or replace existing UHF/VHF signal distribution unit, simply reconnect existing connector from previous unit to the AMD amplifier. Ensure the UHF aerial is connected to the UHF input of the amplifier and FM/DAB aerial connected to the VHF input of the amplifier. For loft distribution installation please ensure the unit is kept away from moist/water.

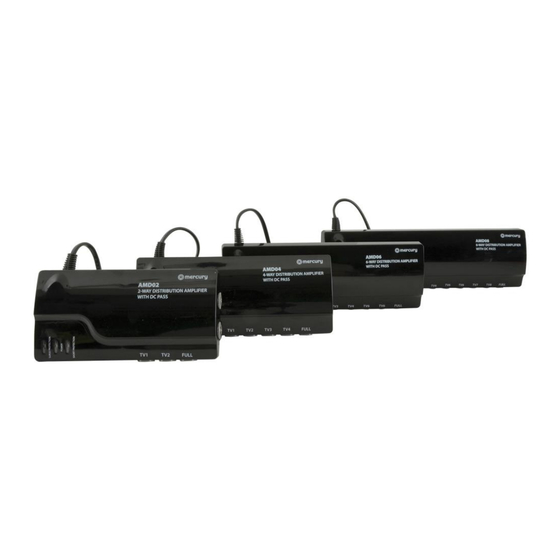

Amd04Amd06Amd08
