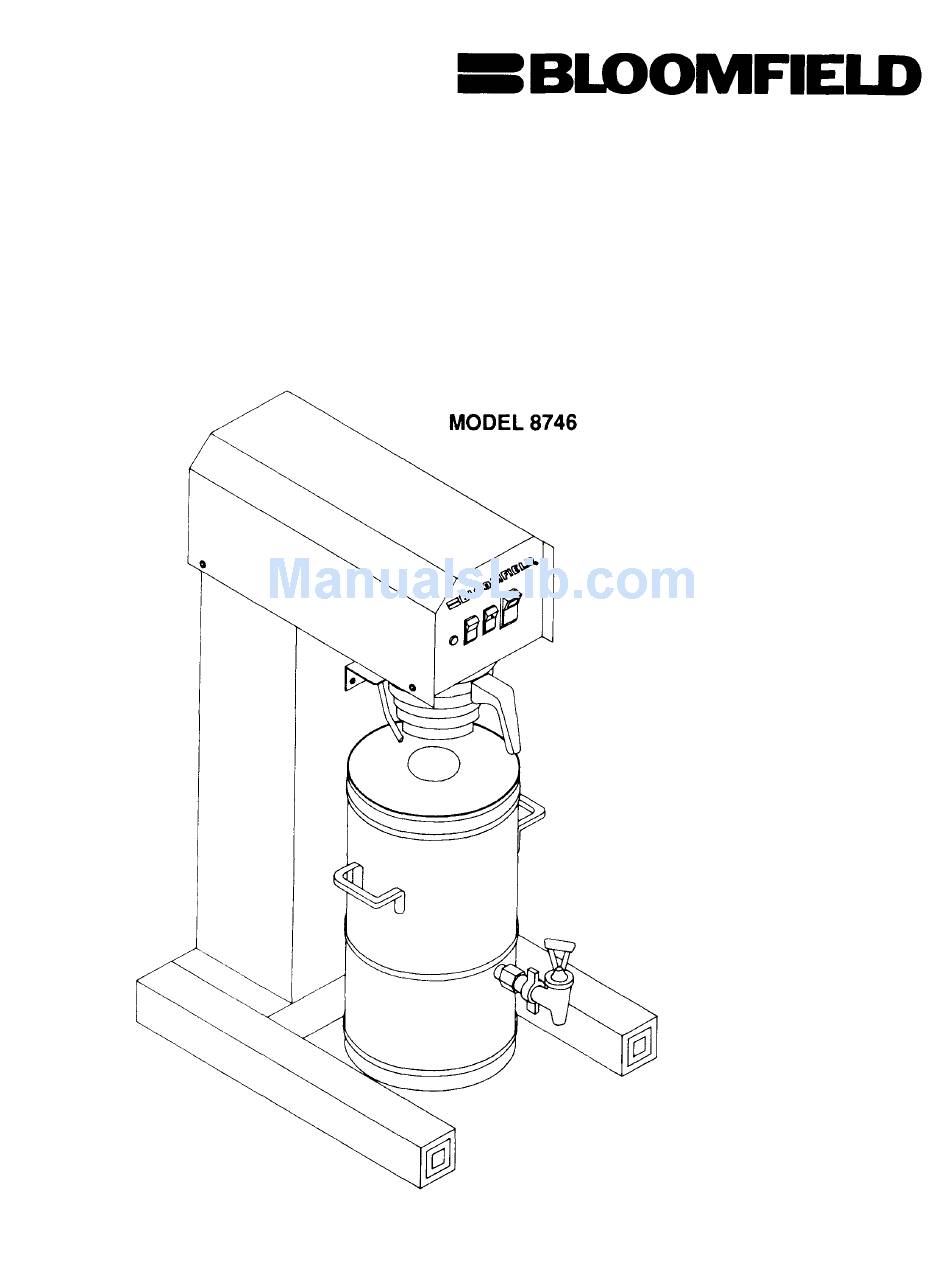

- Page 1 OWNER'S MANUAL INTEGRITY™ Brewing Systems OPERATING INSTRUCTIONS MAINTENANCE INSTRUCTIONS PARTS LIST ICED TEA 70473 8746-M BLOOMFIELD INDUSTRIES 2 ERIK CIRCLE, P.O. BOX 280 VERDI, NEVADA 89439 FAX (800) 356-5142...
-
Page 2: Table Of Contents
INDEX INTRODUCTION TO THE UNITS ..........……………..3 UNIT SET UP ..................………..…3& 4 BREWING OF TEA..............……………..4 TEABREWERADJUSTMENTS……………………………………………………4 TIMER/VOLUME ADJUSTMENT BREWER WATER VOLUME ADJUSTMENT……………………………………5 RATIO CHANGE PARTS LIST ................……………..6 & 7 EXPLODED VIEW OF BREWING UNIT .........……………8 EXPLODED VIEW, DISPENSER UNITS………………………………………….9 PARTS LIST, DISPENSER UNITS.. -
Page 3: Introduction To The Units
INTRODUCTION TO THE UNITS This manual covers the six (6) gallon tea brewer and the six (6) gallon tea dispenser. 1. The Model 8746 is the tea brewing section All brewers are shipped from the factory with: only and does not have a storage and/or dis- 1. -
Page 4: Brewing Of Tea
After end of final cycle, turn tank heater 11. Discard all water in reservoir and brew one (1) switch to ON position - top portion of additional cycle. CAUTION! Water dispensed from switch rocker pressed in. spray disc will be HOT! Watch out for splashing. If water level needs to be adjusted, see tea brewer 10. -
Page 5: Timer/Volume Adjustment Brewer Water Volume Adjustment
BREW WATER VOLUME ADJUSTMENT (Ratio Change) 4. Water flow from spray disc and dilute spout 1. Follow steps 1 through 4 in Timer Adjustment should be measured separately to determine Procedure. that the desired ratio has been achieved. 2. Turn the handle of the needle valve clockwise NOTE: If flow from spray disc is very weak and IN (facing the valve stem and handle) to in- slow in starting, the ratio adjustment made is... -
Page 6: Parts List
REPLACEMENT PARTS LIST - OF BREWING UNIT MODEL 8746 REF. NO. PART NO. DESCRIPTION #08x3x8 B.PN.P.SS 8543-52 8746-12 BASIN TOP WELDED #O8-32 X 5/16 PN.P.SS 7200-6X HOLD DOWN STRAP ASSY 8043-5 8043-47 #10-32 X 1 PN.P.SS 8543-69 SHORTY BUSHING-HEYCO TUBE, CONNECTOR WATER OUTLET TUBE 8746-38 8043-13... -
Page 7: Parts List
REPLACEMENT PARTS LIST (continued) REF. NO. PART NO. DESCRIPTION 8043-30 HTG ELEMENT GASKET 8710-10 NUT 7/16-20 X 1/8 8043-12 TANK COVER GASKET 8043-28 NUT, HEX /2-20 2B 8512-41 SEAL WASHER 8512-51 THERMOSTAT - R. SHAW 88 12-34 TANK COVER. WELDED ASSY 8043-83 HI-LIMIT THERMOSTAT 8746-28... -
Page 8: Exploded View Of Brewing Unit
EXPLODED VIEW - OF BREWING UNIT MODEL 8748... -
Page 9: Exploded View, Dispenser Units
EXPLODED VIEW RESERVOIR AND DISPENSER SECTIONS OF MODEL NO. 8808 MODEL NO. 8806 Model Without Slght Glass REPLACEMENT PARTS LIST DESCRIPTION REF NO. PART NO. Flat Washer Nylon Washer Faucet ONLY, Plastic Seat Cup Wing Nut Gasket 6942-33 6606-l Label (“Luzianne” _ not shown) 66061 Pago 9... -
Page 10: Solenoid Explosion & Parts List
ADDITIONAL SERVICE INFORMATION COLD WATER ENTRANCE SOLENOID VALVE PART NO. 8541-120 SOLENOID VALVE REPLACEMENT PARTS (For Black Coil Valve) (1) 8541.120CS Coil Assembly 120V. Solenoid Repair Kit Vacuum Pat consists of: (3) 8541-120JS Solenoid Repair Kit Vacuum Pat consists of: (20) Service Wrench (4) 8541-120KS Solenoid Overhaul Kit... -
Page 11: Warranty
BREWER WARRANTY IS VOID IF: For a period of one (1) year from date of installa- Other than genuine Bloomfield replacement parts tion, all defective parts on Bloomfield equipment are used. will be replaced free of charge, providing parts did... -
Page 12: Installation Instruction
INSTALLATION INSTRUCTION FOR BASE EXTENDER KIT #83334 FOR MODEL 8748 TEA BREWER FIGURE A SHOCK HAZARD: Turn off the Tank Heater Switch and disconnect ELECTRICAL power supply to Brewer before removal of any panel. Electrical shock will cause death or serious Injury. Wait until the water in the tank has cooled down to room temperature CAUTION: before Installing this Kit.
