Bloomfield 2030 Owner's Manual

Bloomfield e-maxtm tea brewers owner's manual models 2030
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

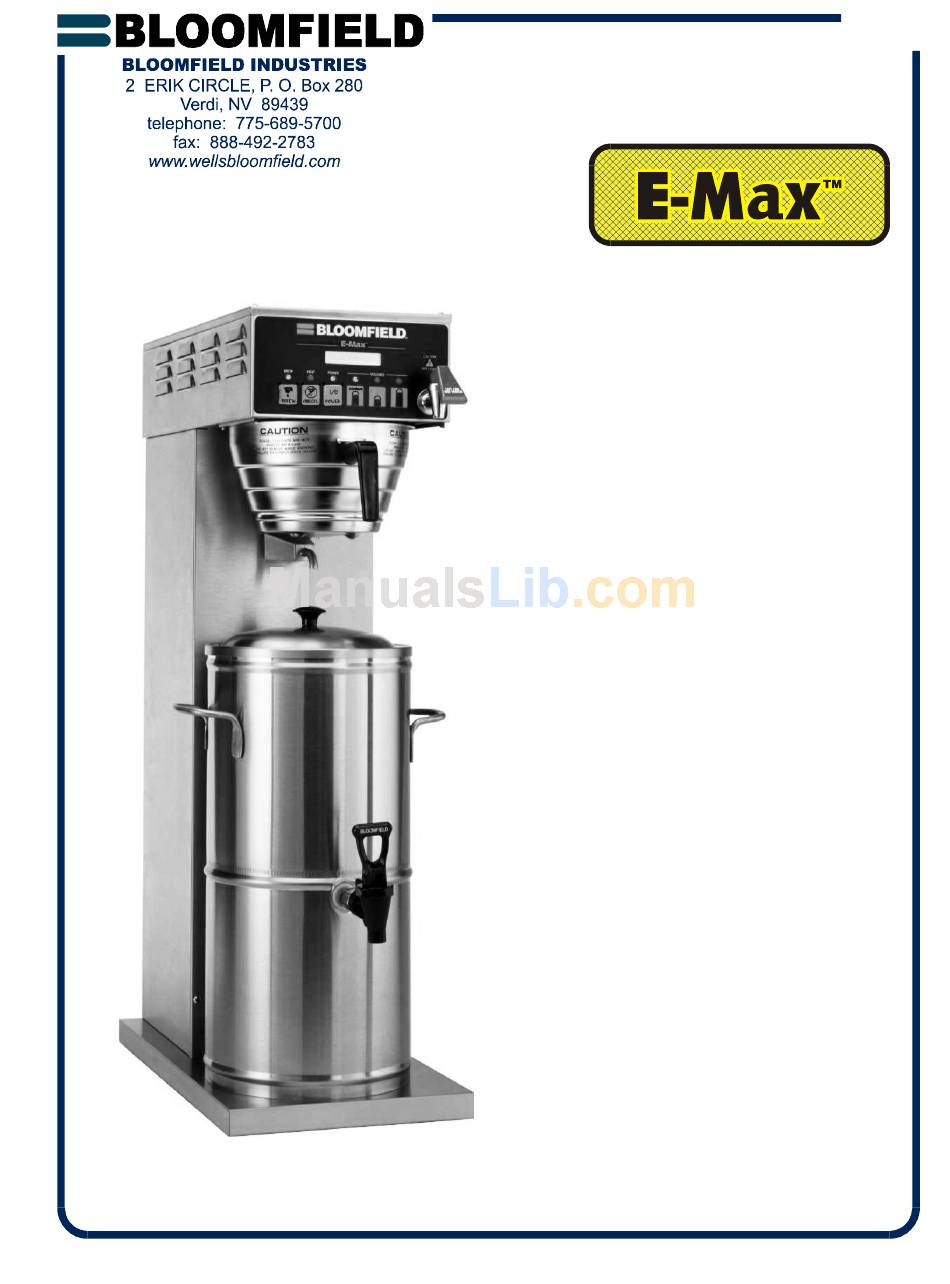

73902
p/n
Rev. F ECN-12817
Model 2030
Tea Brewer
with optional
8799 Dispenser
PRINTED IN UNITED STATES OF AMERICA
OWNERS MANUAL
for
E-Max™
TEA BREWERS
MODELS
2030
Includes:
Installation
Operation
Use & Care
Servicing Instructions
E-Max BREWERS are covered under
U. S. Patents #5704275, 5862738, 6095031.
Other U.S. Patents and Canadian Patents Pending
653
05
M653
0208 cps

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2030 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bloomfield 2030

Summary of Contents for Bloomfield 2030

  • Page 1 73902 Rev. F ECN-12817 Model 2030 Tea Brewer with optional 8799 Dispenser Other U.S. Patents and Canadian Patents Pending PRINTED IN UNITED STATES OF AMERICA OWNERS MANUAL E-Max™ TEA BREWERS MODELS 2030 Includes: Installation Operation Use & Care Servicing Instructions E-Max BREWERS are covered under U.

  • Page 2: Warranty Statement

    It also does not apply if the serial nameplate has been removed or unauthorized service personnel perform service. The prices charged by Bloomfield Industries for its products are based upon the limitations in this warranty. obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Industries Authorized Service Agency or one of its sub-agencies.

  • Page 3: Table Of Contents

    CIRCUIT REQUIRED 50/60 15 Amp (NEMA 5-15P) 2 + ground 1500 watts in Canada Thank You for purchasing this Bloomfield Industries appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Features And Operating Controls

    FEATURES AND OPERATING CONTROLS Features & Operating Controls...

  • Page 5: Precautions & General Information

    WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: Injury Hazard All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes.

  • Page 6: Installation

    NOTE: Water supply inlet line must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line.

  • Page 7: Agency Listing Information

    REFER TO ELECTRICAL SPECIFICATIONS - Page 1 Check the nameplate to determine correct electrical service required for the Brewer to be installed. NOTE: Models 2030 requires a 115 - 125 V 15A circuit (50/60 Hz, 2 wire plus earth ground, with NEMA 5-15R or 5-20R Receptacle)

  • Page 8: Operation

    OPERATION IMPORTANT: 1. Energizing the Brewer: When electricity has been connected to All E-Max T™ brewers are tested and set at the factory. If programming adjust- ments are necessary, refer to the E-Max™ Programming Manual (p/n 73674). To over-ride the Brew Wait mode, press and hold the BREW key for 2.
  • Page 9 1. Remove the brew chamber from under the spray head. Place one (1) genuine Bloomfield paper filter into the brew chamber. Add your choice of pre-measured tea leaves. Shake the brew chamber gently to level the tea leaves. Slide the brew chamber back into place.
  • Page 10 OPERATION (continued) PROGRAMMING FEATURES AND OPTIONS 1. View Water Temperature in Tank: To view the water temperature on the screen, E-Max T™ brewer must be ON, and not brewing or in the filling mode. Press and hold the 4th key, and depress the 6th key.
  • Page 11 8. Clock A. Time – Battery Backup. The E-Max T™ has a battery backup system which will maintain the proper time during power failures, or when the brewer is unplugged (even for very prolonged periods of time). Normally there will not be a need to set the time except for Daylight Saving Time changes, or moving the brewer to different time zones.
  • Page 12 OPERATION (continued) 12. View Filter Statistics: To view filter statistics, turn the brewer off. Press and hold the 1st key (Brew), and depress the 3rd (ON/OFF) key. Total water volume will be displayed (TotalVol.). Press the 3rd key to view the Filter Life (FltrLife:). Press the 3rd key to view the percentage of the filter that has been used.

  • Page 13: Cleaning Instructions

    PROCEDURE: Clean Coffee Brewer PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. FREQUENCY: Daily TOOLS: Mild Detergent, Clean Soft Cloth or Sponge Bristle Brush Disconnect brewer from electric power. Allow brewer to cool before cleaning. Remove dispenser. Remove and empty brew chamber. Remove the spray disk from the brew head: Press up on the spray disk ears, then turn the disk to the left to unlatch.

  • Page 14: Plumbing

    SERVICING INSTRUCTIONS — PLUMBING FUNCTION 1. Water enters at the inlet fitting of the fill solenoid (32). The solenoid admits water via a command from the controller. NOTE: The solenoid has an internal strainer. To clean the strainer: Shut off water supply. Unscrew the plastic cap protruding from the rear of the brewer.

  • Page 15: Servicing Instructions

    SOLENOID, BREW (DUMP) ELBOW, BREW ELBOW, VENT GASKET, SPRAY HEAD SPRAY DISK SOLENOID, FILL INSERT, BREW SPOUT SPOUT ASSY TUBE, BYPASS (SILICONE 30“ LONG) PART N0. USED ON 8783-1 2030 83500 2030 83499 2030 83504 2030 83506 2030 86014 2030 83538...

  • Page 16: Electrical

    SERVICING INSTRUCTIONS - ELECTRICAL WARNING: RISK OF INJURY The following servicing sections are for operator reference only. All servicing and/or repairs must be performed by a qualified technician FUNCTION 1. Pressing the POWER key energizes the unit. The POWER LED will glow whenever the unit is ON. 2.
  • Page 17 SERVICING INSTRUCTIONS - ELECTRICAL (continued) ITEM DESCRIPTION PROBE, TEMPERATURE THERMOSTAT, HI-LIMIT SAFETY (120V) GROMMET, TEMP PROBE SENSOR, WATER LEVEL SLEEVE, WATER LEVEL SENSOR ELEMENT, HEATER 1500W (120V) ASSEMBLY, TRIAC & HEATSINK CONTROLLER POWER CORD (120V) STRAIN RELIEF, POWER CORD OVERLAY DECAL, KEYPAD, VOLUME KEYS PART N0.

  • Page 18: Deliming Water Tank

    NOTE: Normally, silicone hoses do not need to be de-limed. Should de-liming hoses become necessary, Bloomfield Industries recommends replacing the hoses. 1. Disconnect brewer form the electrical supply. Turn off the water supply and disconnect water supply from the brewer inlet fitting.

  • Page 19: Troubleshooting Suggestions

    If the E-Max T™ goes into the error mode as outlined below, it will likely be necessary to reset the brewer in order to test individual components. Note the reset procedure below: • For the first four error modes, press and hold CANCEL for 3 seconds, or RE-ENERGIZE the brewer by disconnecting from electric power for 5 seconds, then reconnecting.

  • Page 20: E-Max T™ Test Program

    D. Switch Test - The keys are tested in this stage. 1. Test 1st key by pressing the “BREW” key. You will hear a beep, and Note: Bloomfield 2. Test 2nd key by pressing the “CANCEL” key. You will hear a beep,...
  • Page 21 155 indicate a defective probe.) H. Test Done. Indicates completion, press ON/OFF to reset controller. The controller should restart with the message “BLOOMFIELD”, then return to the OFF mode. E-Max T™ TEST PROGRAM (continued) Volume 1 Volume 2 or “E”...

  • Page 22: Exploded View And Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 23 ITEM PART # DESCRIPTION 8783-1 FAUCET, HOT WATER 83500 TANK ASSEMBLY, 120V 83480 THERMISTOR, 5-½" 83949 THERMO, HI-LIMIT CERAMIC, 120V 82115 GROMMET, ¼ ID TRANSLUCENT 83499 GASKET, TANK COVER 83521 PROBE, WATER LEVEL ASSY 83532 SLEEVE, WATER LEVEL PROBE 83504 COVER ASSY, TANK 83506 CLIP, RETAINING TANK LID...

  • Page 24: Wiring Diagram

    WIRING DIAGRAMS (continued)
  • Page 25 NOTES...
  • Page 26 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com PRINTED IN UNITED STATES OF AMERICA...
