Summary of Contents for Bloomfield Reily 8740LZ

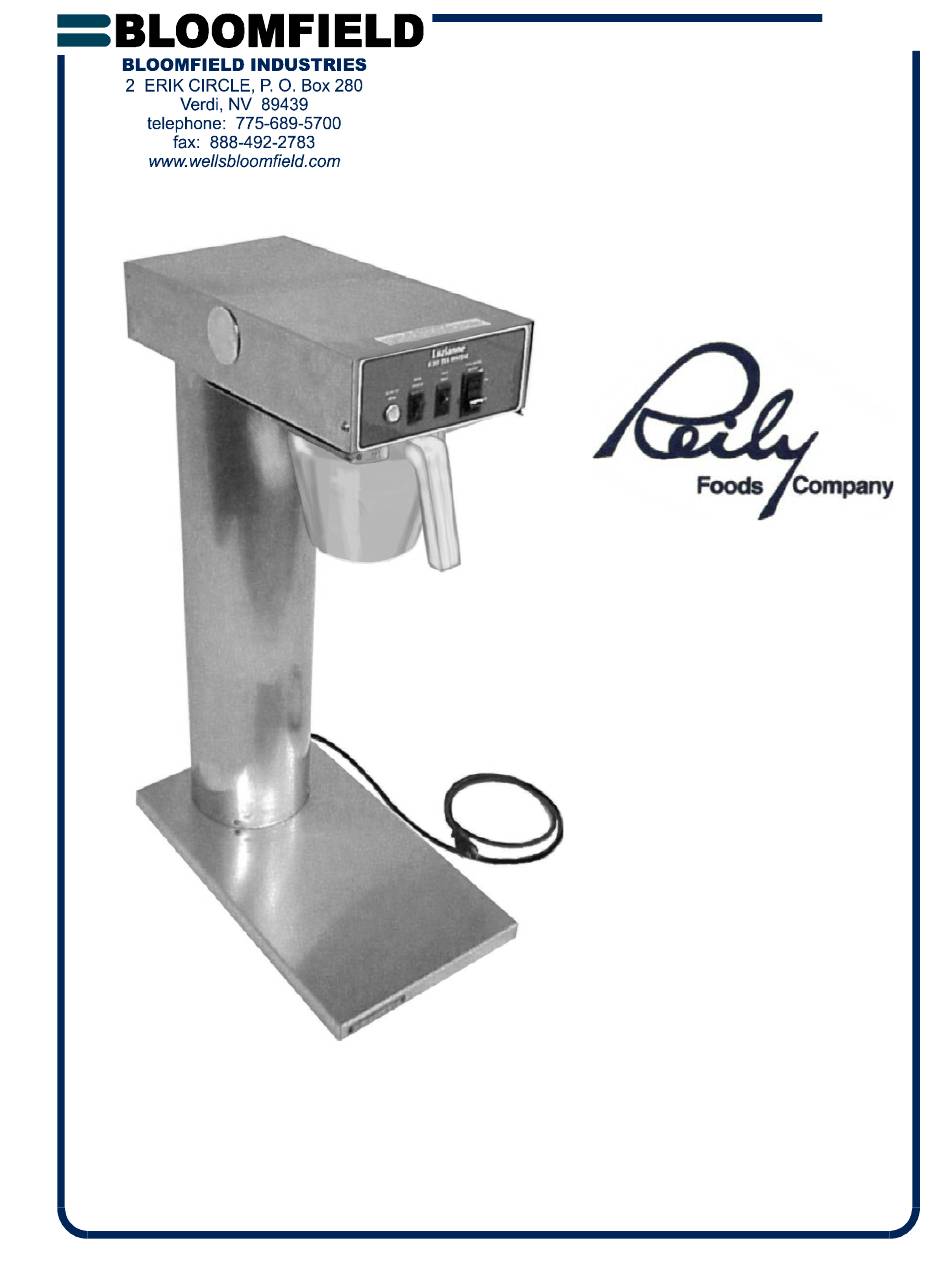

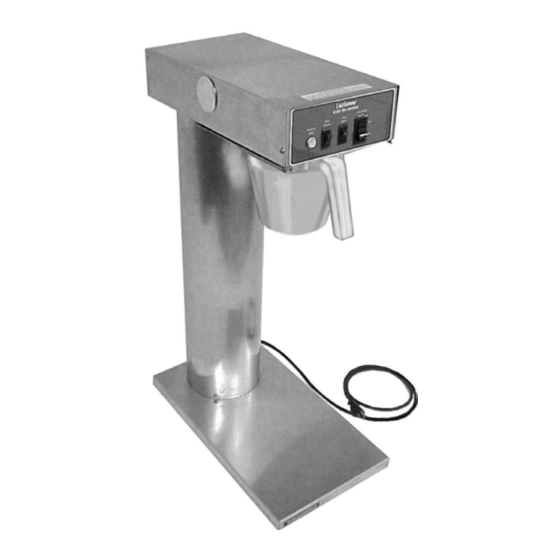

- Page 1 608R OWNERS MANUAL MODEL 8740LZ ICED TEA BREWING SYSTEM Includes: Installation Operation Use & Care Servicing Instructions Model 8740LZ Brewer p/n 76466 Rev. B ECN-12589 M608R 111303 cps...
- Page 2 The prices charged by Bloomfield Industries for its products installation or eighteen (18) months from the date of shipment are based upon the limitations in this warranty.
- Page 3 WATTS AMPS POWER SUPPLY 1ø CORD 8740LZ 34-1/4" high 3 - 5 Gallon 11-1/4" wide 1515 NEMA 5-15P Iced Tea 19-27/32" deep Brewer APPLICABILITY This manual applies to the following Bloomfield Industries product: 8740LZ 3 - 5 Gallon Tea Brewer...
- Page 4 FEATURES AND OPERATING CONTROLS Fig. 1 Model 8740 Features and Operating Controls...
- Page 5 PRECAUTIONS AND GENERAL INFORMATION WARNING: Electric Shock Hazard All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: Injury Hazard All installation procedures must be performed by qualified personnel with full knowledge of all applicable electrical and plumbing codes.
- Page 6 See Figure 2 below. must meet certain minimum criteria to insure successful operation of the brewer. Bloomfield recommends 1/4" copper tubing for installation of less than 12 feet and 3/8" for more than 12 feet from a 1/2" water supply line.
- Page 7 INSTALLATION (continued) ELECTRICIAN’S INSTALLATION INSTRUCTIONS WARNING ELECTRIC SHOCK REFER TO ELECTRICAL SPECIFICATIONS - Page 1 HAZARD: Check the nameplate to determine correct electrical service required for the Brewer to be installed. Brewer must be properly IMPORTANT: Before connecting to electricity, make sure grounded to prevent possible automatic brewers are connected to the water supply.
- Page 8 OPERATION Fig. 4 Brewer Operation Diagram IMPORTANT: A. START-UP Tank must be full of water For initial start-up, or if the brewer has not been used for an before pressing TANK extended period of time: HEATER SWITCH " ". ♦ Be sure spray disk and brew gasket are properly installed in the Heating elements will be brew head.
- Page 9 OPERATION (continued) WATER HEATER Water temperature is sensed by a thermobulb inserted into the water tank. This temperature signal is fed to the mechanical thermostat. The temperature setpoint is adjustable. Heating element is energized by the thermostat. Excessive temperature will trip the hi-limit safety switch.
- Page 10 BREWING TEA CAUTION: A. PREPARATION Burn Hazard Place one (1) genuine Bloomfield paper filter into the brew chamber. Exposed surfaces of the brewer, brew chamber and Add an amount of fresh tea leaves dispenser may be HOT to to the brew chamber appropriate the touch, and can cause to the brew volume.
- Page 11 CLEANING INSTRUCTIONS PROCEDURE: Clean Tea Brewer CAUTION: Burn Hazard PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Brewing and serving temperatures of tea are FREQUENCY: Daily extremely hot. Hot tea will cause serious skin TOOLS: Mild Detergent, Clean Soft Cloth or Sponge burns.
- Page 12 Repair/replace as needed Tea level too high or low Timer out of adjustment Adjust timer Brew chamber overflows Too many filter papers or wrong Use one (1) genuine Bloomfield filter paper filter per brew Brew chamber dispense hole Thoroughly clean brew plugged...
- Page 13 SERVICING INSTRUCTIONS ACCESS PLUGS CAUTION Use a small flat-blade screwdriver or similar implement to pry the Electric Shock hole plug from the access hole in the top wrap. Hazard HOT WATER TEMPERATURE: Opening access panels on this Remove right 7/8" hole plug to access temperature control. brew may expose uninsulated WATER DELIVERED VOLUME: electrical components.
- Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT NOTE: Optimum brewing temperature is 195ºF to 205ºF Energize brewer and allow unit to heat. When the READY TO (90ºC to 96ºC). BREW light first glows, read the temperature. Thermostat should be adjusted Thermostat may be adjusted by removing the right button plug. to a maximum temperature of Carefully check the water temperature at the outlet of the brew 200ºF (95ºC).
- Page 15 SERVICING INSTRUCTIONS (continued) IMPORTANT: Water pressure SOLENOID TIMER ADJUSTMENT must be between 20 p.s.i and The amount of water dispensed automatically during a brew cycle 90 p.s.i. flowing pressure. is controlled by the SOLENOID TIMER. If water pressure exceeds this value, or if water pressure Place empty dispenser under brew chamber.
- Page 16 SERVICING INSTRUCTIONS (continued) REPLACE SOLENOID Symptom: Automatic brewer will not flow water; or, automatic brewer drips continuously from brew head. Unplug power cord or turn circuit breaker OFF. Turn OFF and disconnect water supply from brewer inlet fitting. Remove rear access panel.
- Page 17 Should deliming Reassemble piping for the faucet. Verify that all internal hoses become necessary, components are dry, then reinstall the top panel. Bloomfield recommends 10. Reconnect brewer to electrical supply and reconnect water replacing the hoses. supply. 11. Install the brew chamber without filter paper or grounds.
- Page 18 EXPLODED VIEW & PARTS LIST...
- Page 19 EXPLODED VIEW & PARTS LIST (continued) ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION WRAP, TOP COVER SPACER, TANK 82186 SPRAY DISK 8043-10 TANK BODY 8043-15 VENT, TUBE SHORT 8043-12 GASKET, TANK 86280 THERMOSTAT 8043-14 ELEMENT, 120V 1500W 82241 CONNECTOR 8043-30 GASKET, HEAT ELEMENT 8706-20...
- Page 20 SERVICE KITS SERVICE KITS SOLENOID REPAIR KITS 83282 Solenoid, Complete, Dual 85218 Inlet Fitting Kit (includes cap, inlet fitting, washer and screen) 85219 Inlet Strainer...
- Page 21 WIRING DIAGRAM...
- Page 22 Created for Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-698-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com...
