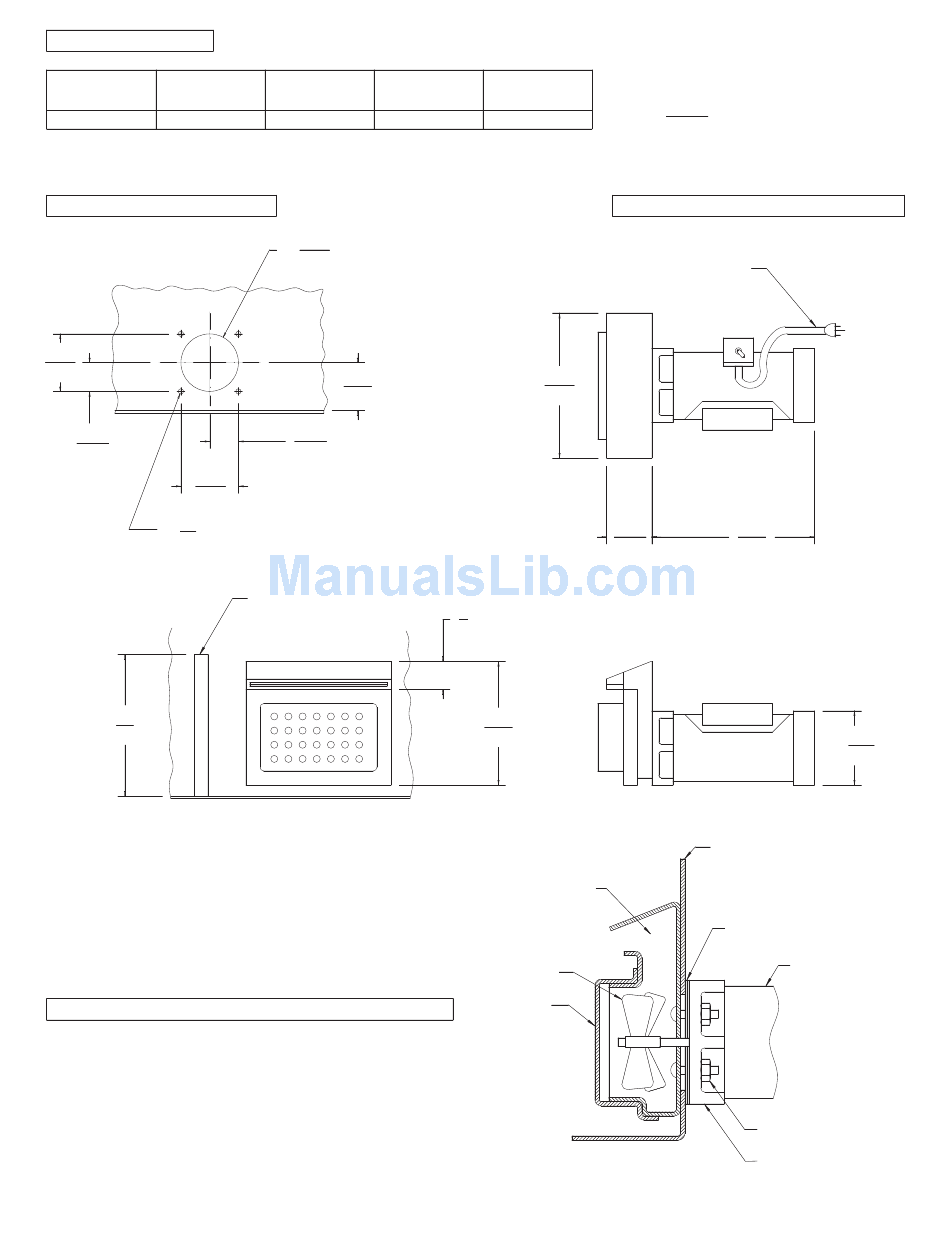

Bloomfield PW-106 Installation Instructions

ELECTRICAL
MODEL VOLTS
PW-106 120

CUTOUT DETAILS

4 1/16
(103)
2 1/32
(52)
4 1/16
(103)
3/8
ÿ 4X
(10)
10
(254)
INSTALLATION INSTRUCTIONS

TO FABRICATE AND INSTALL:

1. Cut and/or drill holes as required in wash tank side,
as specified in cutout details.
2. Remove thumb screws which hold impeller cover to
scoop housing.
3. Remove nuts and bolts which hold scoop housing to motor.
4. Mount motor and scoop housing to wah tank using supplied nuts,
bolts and gasket. Note On-Off switch orientation.
5. Replace impeller cover on scoop housing using thumb screws.
6. Plug power supply cord in to appropriate receptacle.
MOTOR
AMPS
H/P
1/3 6.0
4 1/16
ÿ
(103)
IF TANK HAS RADIUS
3 3/8
AT BOTTOM, INCREASE
(86)
THIS DIMENSION BY
THE AMOUNT OF THE
RADIUS.
2 1/32
(52)
OVERFLOW DRAIN
(NOT SUPPLIED)
WELLS/BLOOMFIELD * VERDI, NV
POWER
SUPPLY
CORD
NEMA 5-15P

POWER SUPPLY CORD

10 1/4
(260)
3 3/16
(81)
2
(51)
8 3/4
(222)
SCOOP
IMPELLER
COVER
INSTALLATION INSTRUCTIONS
HYDRO-SURGE WASHING UNIT
MODEL PW-106
INCHES
(MM)

PRODUCT DIMENSIONS

11 1/2
(292)
ÿ
WASH TANK
GASKET
MOTOR
NUTS & BOLTS
MOUNTING PLATE
37102-1 REV (-)
5 1/4
(133)
