ASSEMBLY INSTRUCTIONS

1

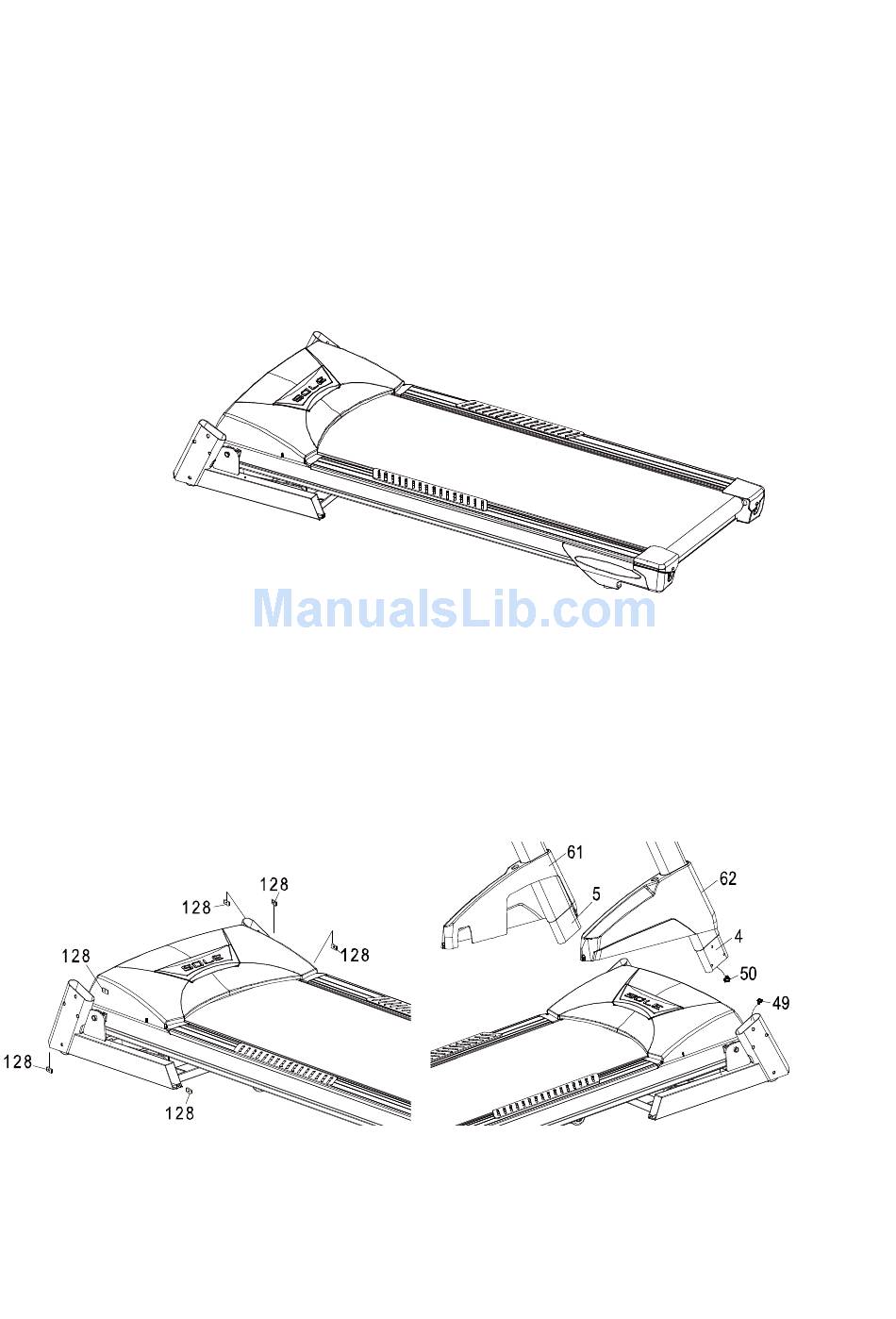

ASSEMBLY STEP 1
Remove the unit from the box and put it on a flat and level
2
ASSEMBLY STEP 2
1. Install the six Speed Nut Clips (128) on the Frame Base left and right side.
2. Slide the Frame Base Caps (61 & 62) over the Upright tubes (4 & 5). Connect the Lower
Computer Cable (49) to the Middle Computer Cable (50) on the right side of the unit.
Before attaching the hardware to Step 3, make sure the cables you just connected don't
get pinched in between the steel tubing. If they do, this may cause issues that prevent
the treadmill from operating properly.
floor.
7
