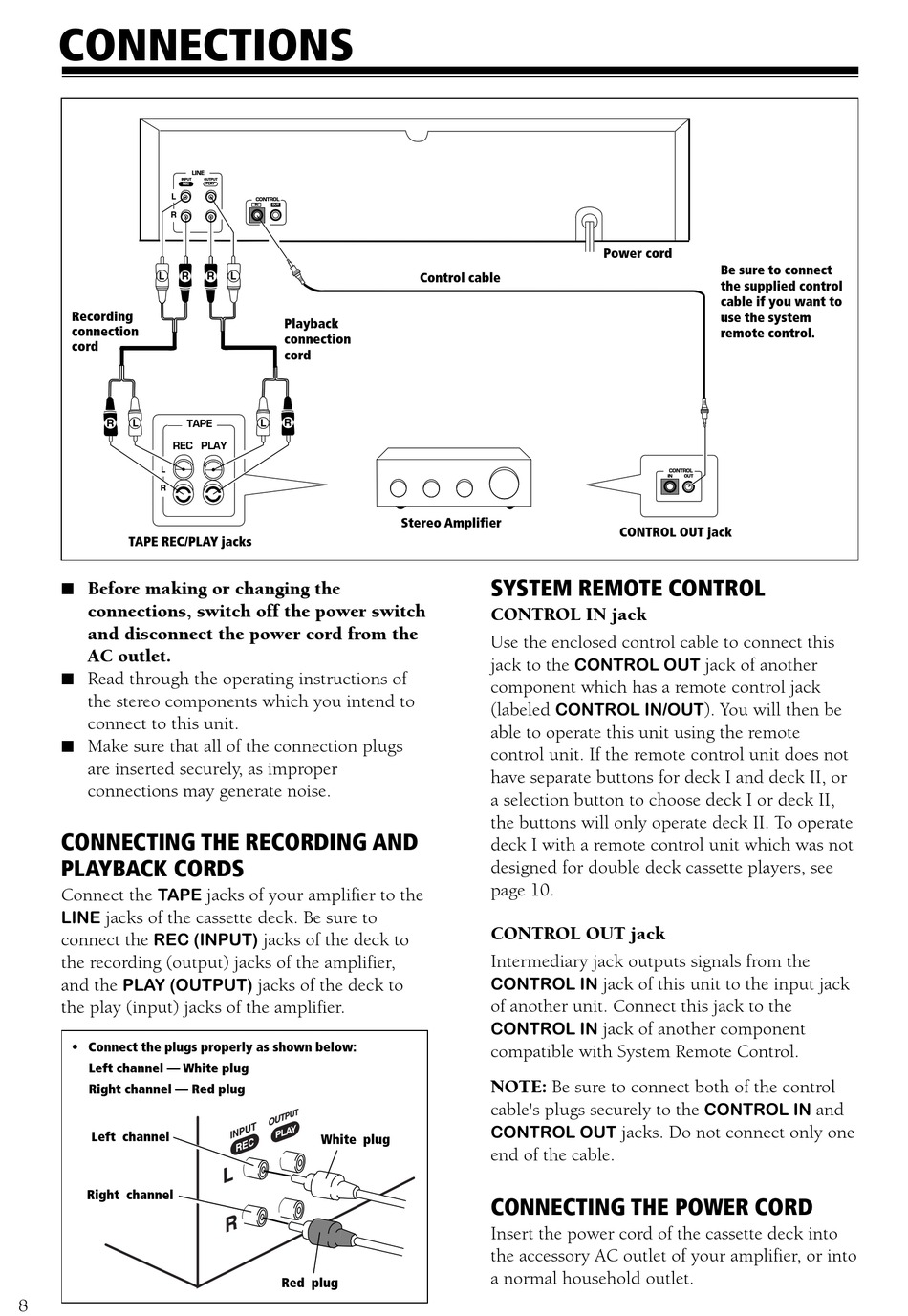

CONNECTIONS

INPUT
REC
L
R
Recording
connection
cord
TAPE
REC PLAY
L
R
TAPE REC/PLAY jacks
7 Before making or changing the
connections, switch off the power switch
and disconnect the power cord from the
AC outlet.
7 Read through the operating instructions of
the stereo components which you intend to
connect to this unit.
7 Make sure that all of the connection plugs
are inserted securely, as improper
connections may generate noise.
CONNECTING THE RECORDING AND
PLAYBACK CORDS
Connect the
TAPE
jacks of the cassette deck. Be sure to
LINE
connect the
REC (INPUT)
the recording (output) jacks of the amplifier,
and the
PLAY (OUTPUT)
the play (input) jacks of the amplifier.
• Connect the plugs properly as shown below:
Left channel — White plug
Right channel — Red plug
Left channel
Right channel
8
LINE
OUTPUT
PLAY
CONTROL
IN
OUT
Playback
connection
cord
jacks of your amplifier to the
jacks of the deck to
jacks of the deck to
White plug
Red plug
Control cable
Stereo Amplifier
SYSTEM REMOTE CONTROL
CONTROL IN jack
Use the enclosed control cable to connect this
jack to the
component which has a remote control jack
(labeled
CONTROL IN/OUT
able to operate this unit using the remote
control unit. If the remote control unit does not
have separate buttons for deck I and deck II, or
a selection button to choose deck I or deck II,
the buttons will only operate deck II. To operate
deck I with a remote control unit which was not
designed for double deck cassette players, see
page 10.
CONTROL OUT jack
Intermediary jack outputs signals from the
CONTROL IN
of another unit. Connect this jack to the
CONTROL IN
compatible with System Remote Control.
NOTE: Be sure to connect both of the control
cable's plugs securely to the
CONTROL OUT
end of the cable.
CONNECTING THE POWER CORD
Insert the power cord of the cassette deck into
the accessory AC outlet of your amplifier, or into
a normal household outlet.
Power cord
Be sure to connect
the supplied control
cable if you want to
use the system
remote control.
CONTROL
IN
OUT
CONTROL OUT jack
jack of another
CONTROL OUT
). You will then be
jack of this unit to the input jack
jack of another component
CONTROL IN
jacks. Do not connect only one
and
